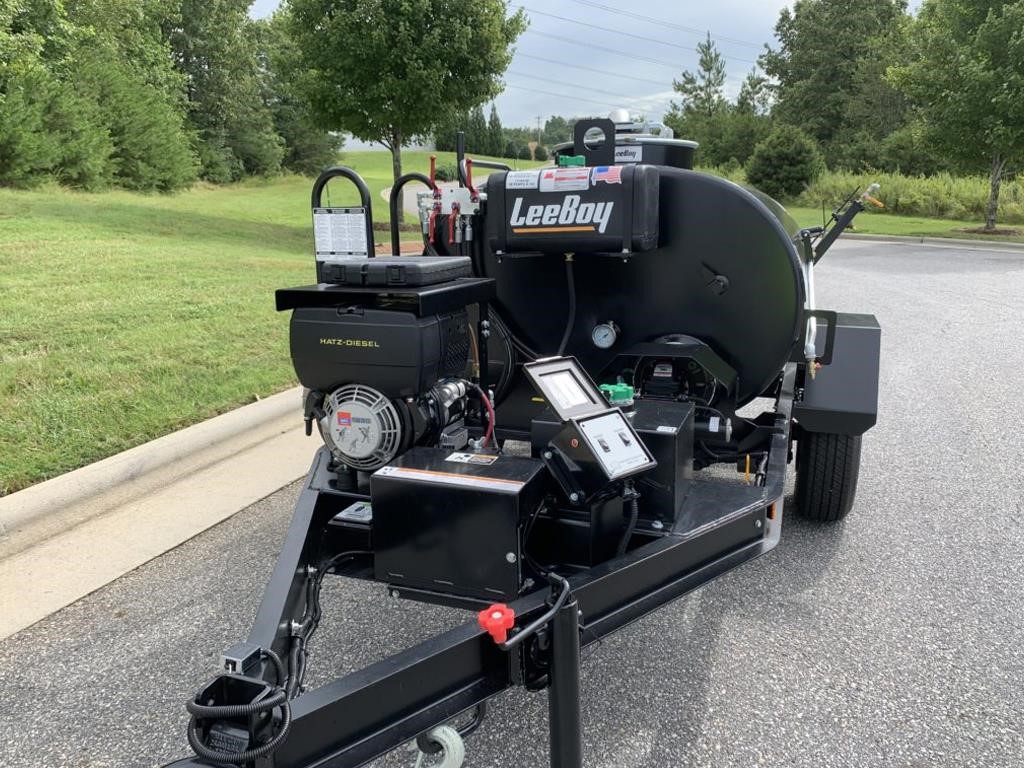

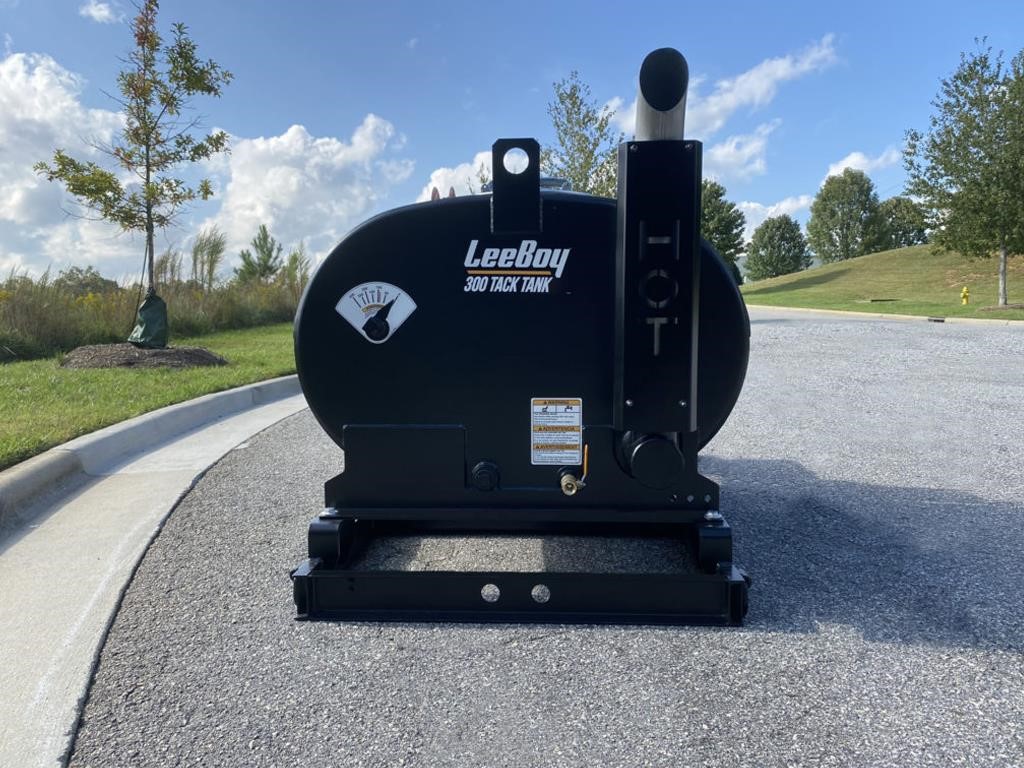

LEEBOY L300 — TACK DISTRIBUTOR
Perfect for the all-inclusive commercial paving contractor, the L300 Tack Distributor provides a perfectly sized tank for small to large projects including parking lots, patching, driveways or soil stabilization. Daily tasks can be completed with ease by relying on the trouble-free gas engine and the proven reliable user-friendly design. Uniquely configurable, the customizable options give the contractor the ability to create a solution specific to their exact needs.
PERFORMANCE
• 300 Gallon (1,136 l) Capacity Tank
• 4.8 hp (3.6 kw) Honda Engine
• 6’ (1.8 m) Wand with On/Off Valve
• 40’ (12.19 m) Heavy-Duty Recoil Hose Reel
• 4,210 lbs (1,909 kg) Loaded Weight
• 1” (25 mm) Rear Tank Sampling Valve
• One 300,000 BTU Propane Burner

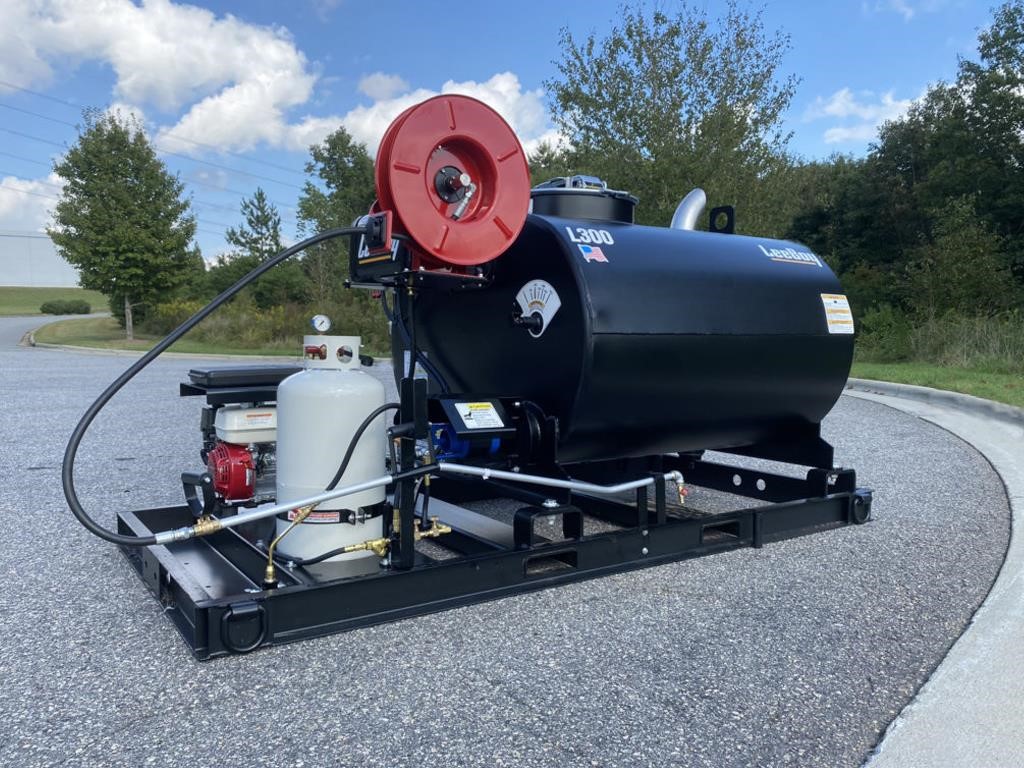

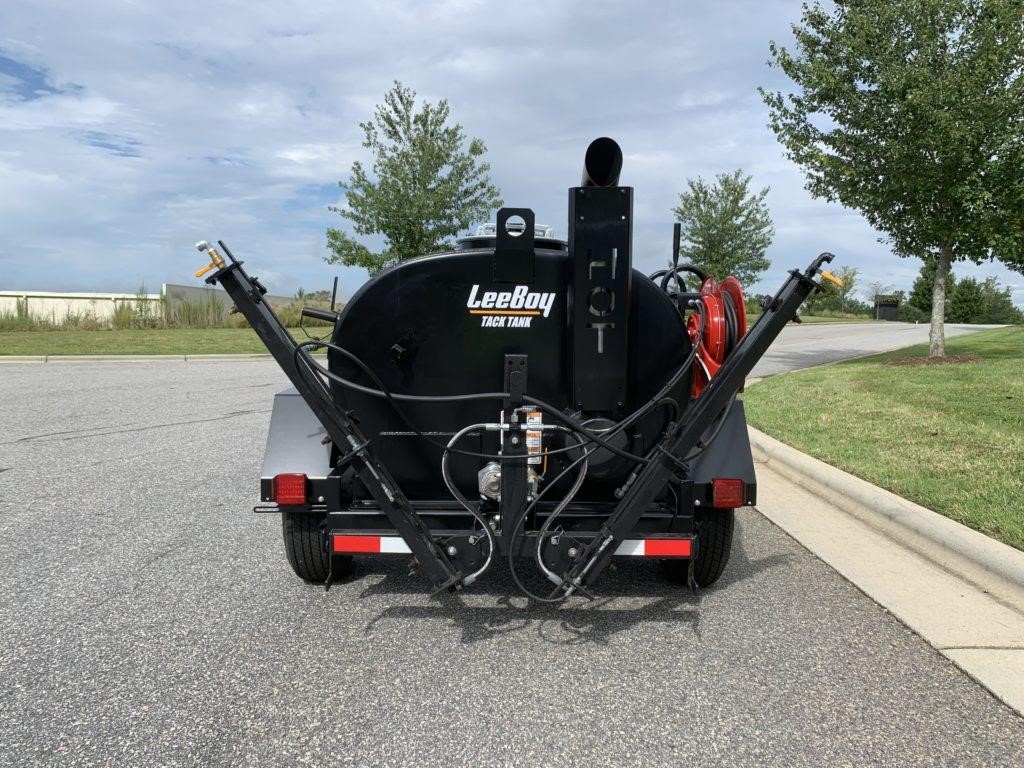

• Trailer-Mounted or Skid-Mounted Configurations
• Electric brakes
• Emergency Brake-Away System
• Optional Accessories Available
TRAILER SPECIFICATION (FOR TRAILER CONFIGURATION)
• 6,000 lb axle with a pintle eye
• 5,000 lb jackleg
• Wired for towing
• Tires: ST 225/75D15
• Electric brakes on axle
• Safety chains
• Emergency breakaway switch with battery backup
ENGINE
• 4.8 HP (3.6 kw) Honda
• 1 gallon fuel tank
HEAT SYSTEM
• One 300,000 BTU propane burner
• One starter burner
• 40 lbs (18.1 kg) propane fuel tank
ASPHALT PUMP
•Specially designed 7 gallons per minute (26.5 lmp) pump
TEMPERATURE GAUGE
• 50 – 300⁰ F (10 – 149⁰ C)
• Adjustable angle face plate
FLUSH TANK
• 7 gallons (26.5 l) tank with suck back valve
HOSE AND REEL
• .5” x 40’ (13 mm x 12.192 m) heavy-duty recoil hose reel

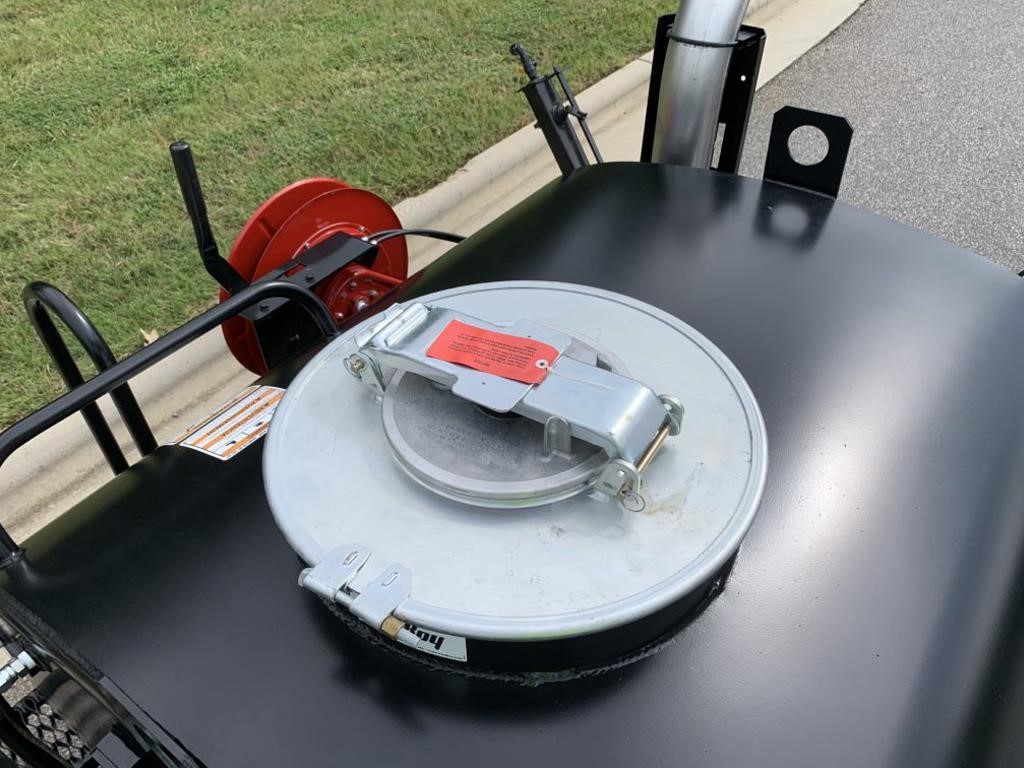

MANHOLE
• 20″ (508 mm) diameter
• 10″ (254 mm) diameter fill hose
• 3 osi (2.1 bar) pressure relief
WAND
• 6’ (1.829 m) wand with cold handles
• On/off valve
• Removable spray tip
CLEAN OUT
• 4” (102 mm)
SAMPLING VALVE
• 1” (25 mm)
ADDITIONAL STANDARD EQUIPMENT
• Waste bucket mount (trailer only)
• 1” rear tank return
• 2” in-tank overflow
OPTIONAL EQUIPMENT
ENGINES
• Honda gas – 4.8 hp (3.6 kW) electric start
• Hatz diesel – 7.2 hp (5.4 kW) pull start or electric start
• Fuel: 1.32 gallons (5.0 l)
HEAT SYSTEMS
• Overnight Heat – 120 volt/1500 watt, Immersion element
• Diesel Burner – One 300,000 BTU diesel burner (only available with electric start engines), 7 gallon (26.5 l) fuel tank, Auto ignition diesel burner with outfire

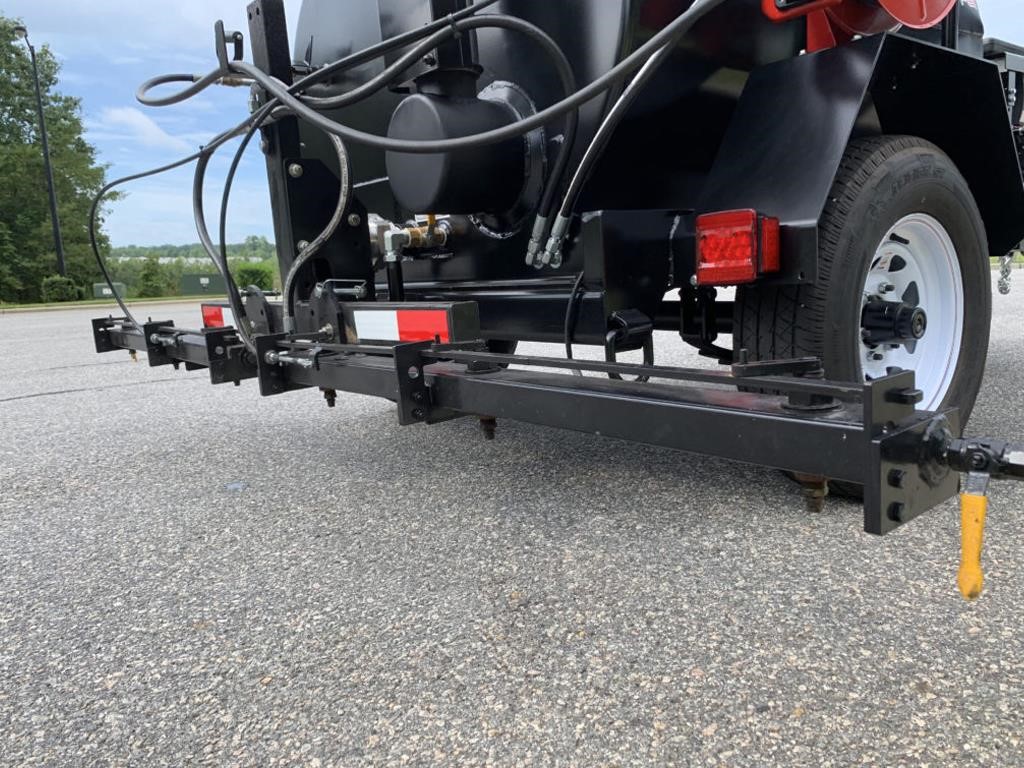

SPRAY BAR
• Spray width: 12’ (3.65 m)
• Spray Bar Controls: In-truck wireless remote controls (requires spray bar option)
• Spray bar lift with wireless remote control
Insulated Tank
• 2-5/16” ball hitch
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
