LB5013 - Arnold Machinery

Asphalt / Pavers / Concrete Equipment - Asphalt Equipment - Asphalt Other - Leeboy

2026 LEEBOY LB5013

Call for price

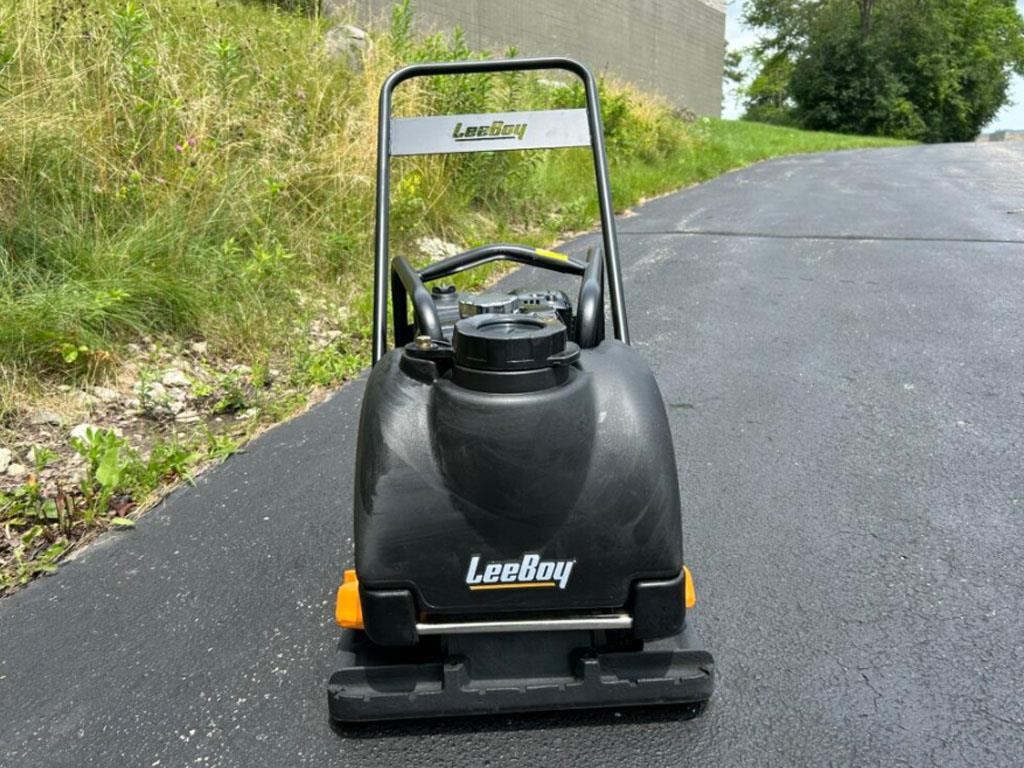

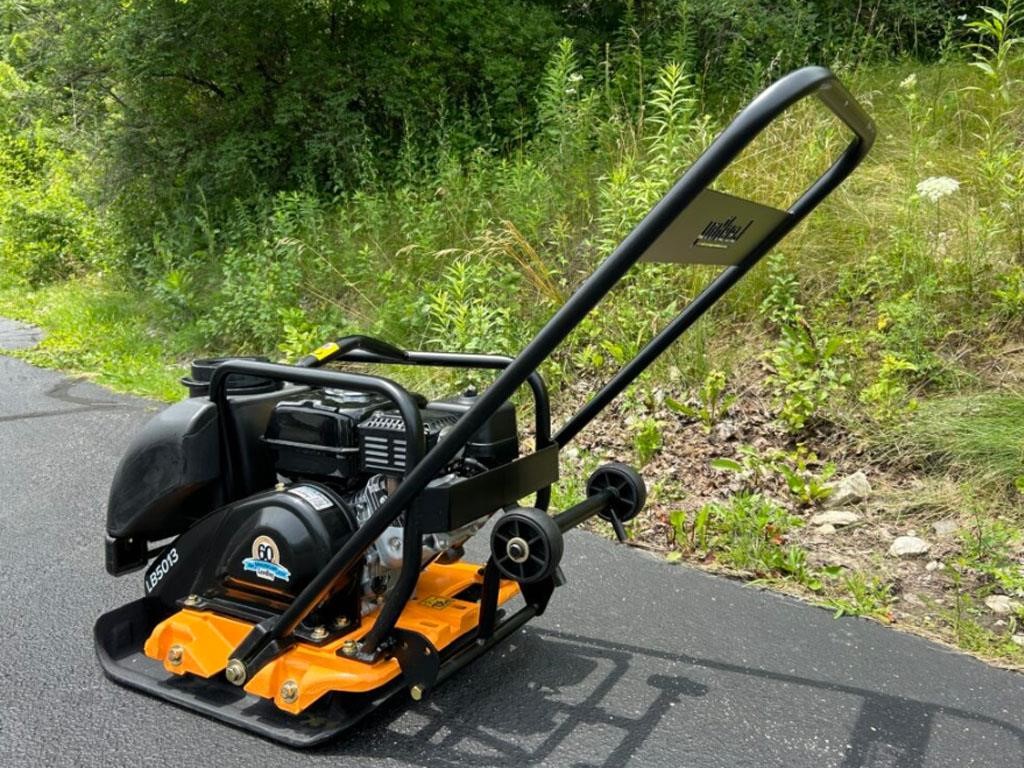

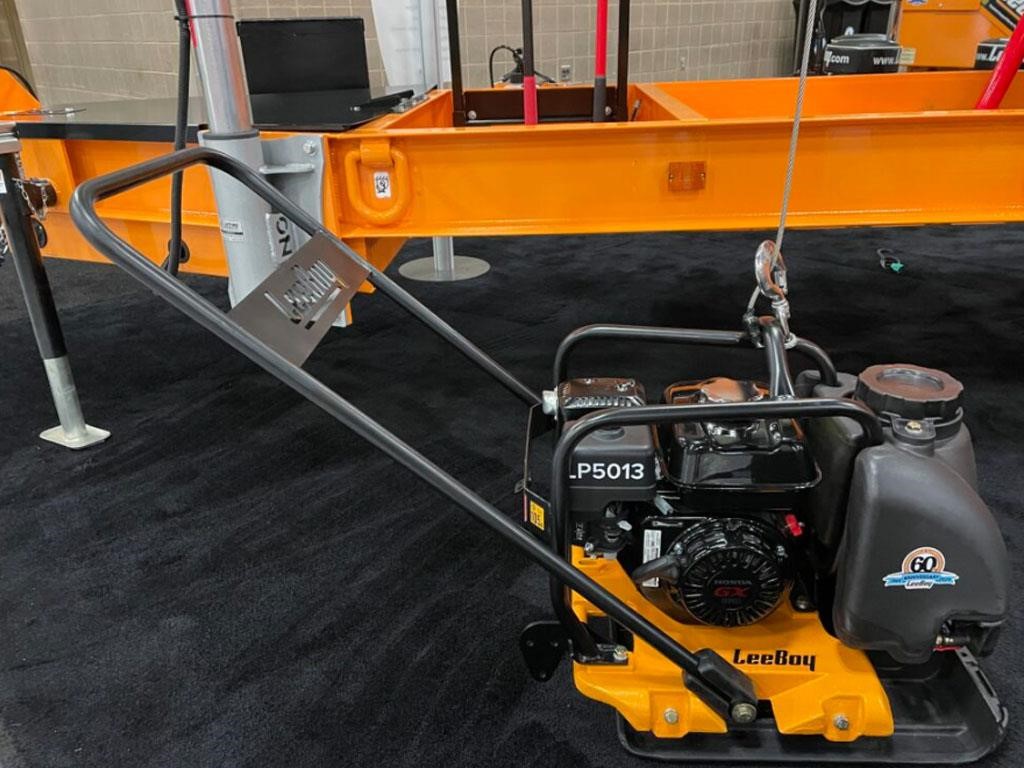

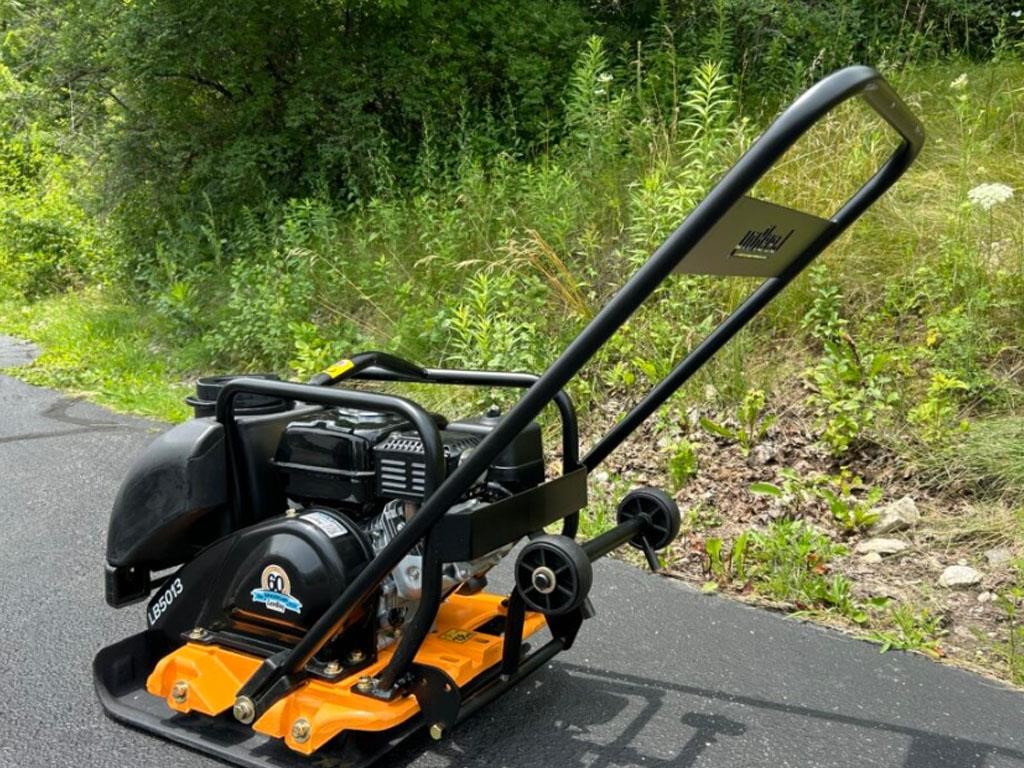

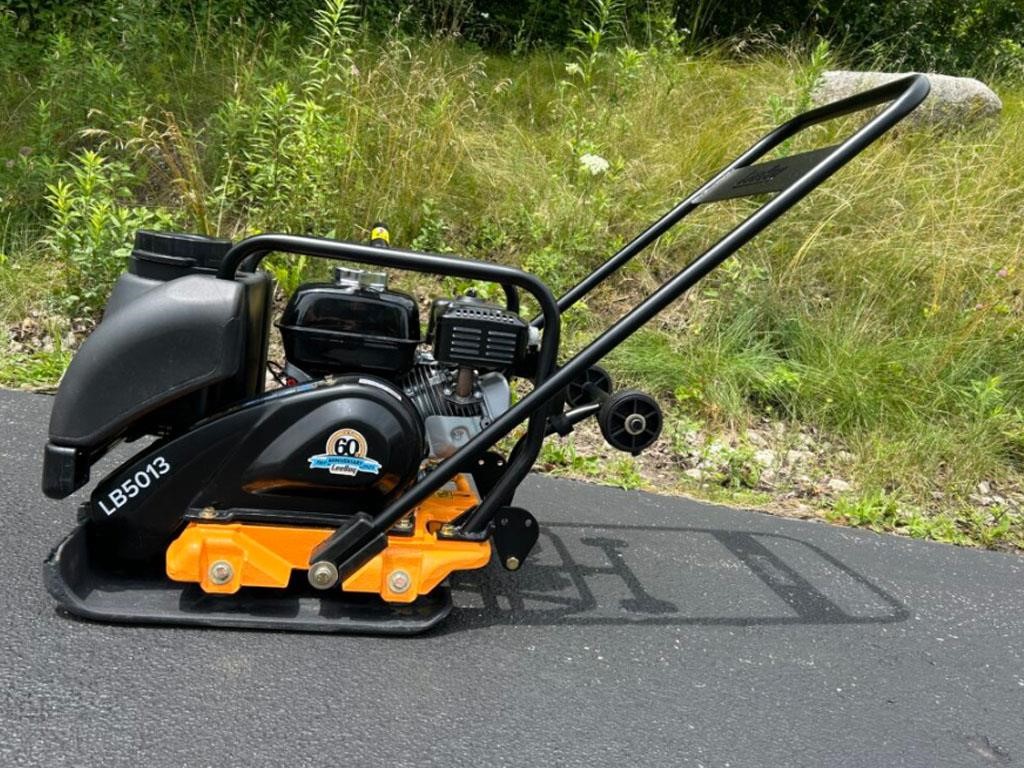

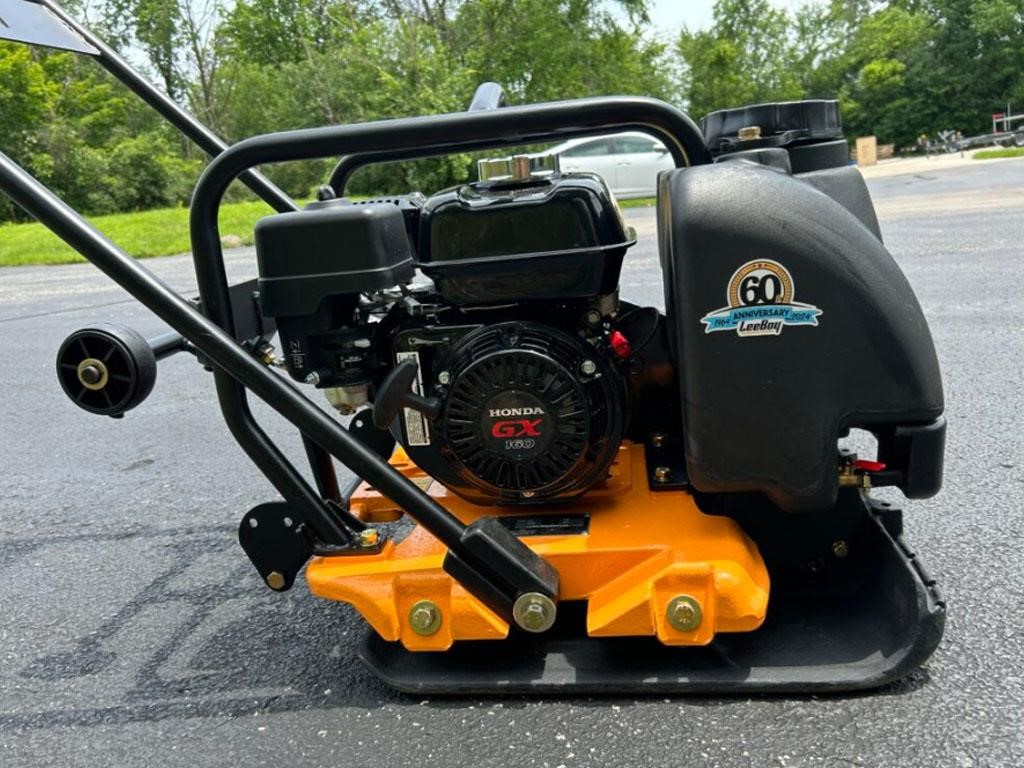

LEEBOY LB5013 — PLATE COMPACTORS

The LB5013 single direction plate compactor is the perfect match for professional grade paving contractors. Excelling in asphalt paving applications, the LB5013 is well equipped for driveways, patchwork, parking lots, or edging. A high capacity, removeable water system, prevents sticking and asphalt pick-up, leaving a professional grade finish.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Request a Quote

additional information

Year: 2026
Manufacturer: LEEBOY
Model: LB5013
Condition: New

Horsepower: 5.5

Shipping Weight: 200

HorsepowerUnit: horsepower
Shippingwidth: 20
ShippingwidthUnit: inch
Shippingheight: 33
ShippingheightUnit: inch
Shippinglength: 42
ShippinglengthUnit: inch
ShippingweightUnit: pound
Techinical Specifications Operating Weight: 200 lbs
Techinical Specifications Engine: Honda GX160
Techinical Specifications Horsepower: 5.5 HP
Techinical Specifications RPM: 3600
Techinical Specifications Fuel Tank Capacity: 3.3 qt
Techinical Specifications Fuel Consumption: 1.5 qt / hr
Techinical Specifications Starter: Recoil
Techinical Specifications Centrifugal Force: 2923 lbf
Techinical Specifications Vibration Frequency: 5500 VPM
Techinical Specifications Travel Speed: 96 ft / min
Techinical Specifications Water Tank Capacity: 13.7 qt
Techinical Specifications Standard Equipment: Removeable Water Tank
Techinical Specifications Optional Equipment: Wheel Transport Kit Polyurethane Paver Stone Pad Kit
