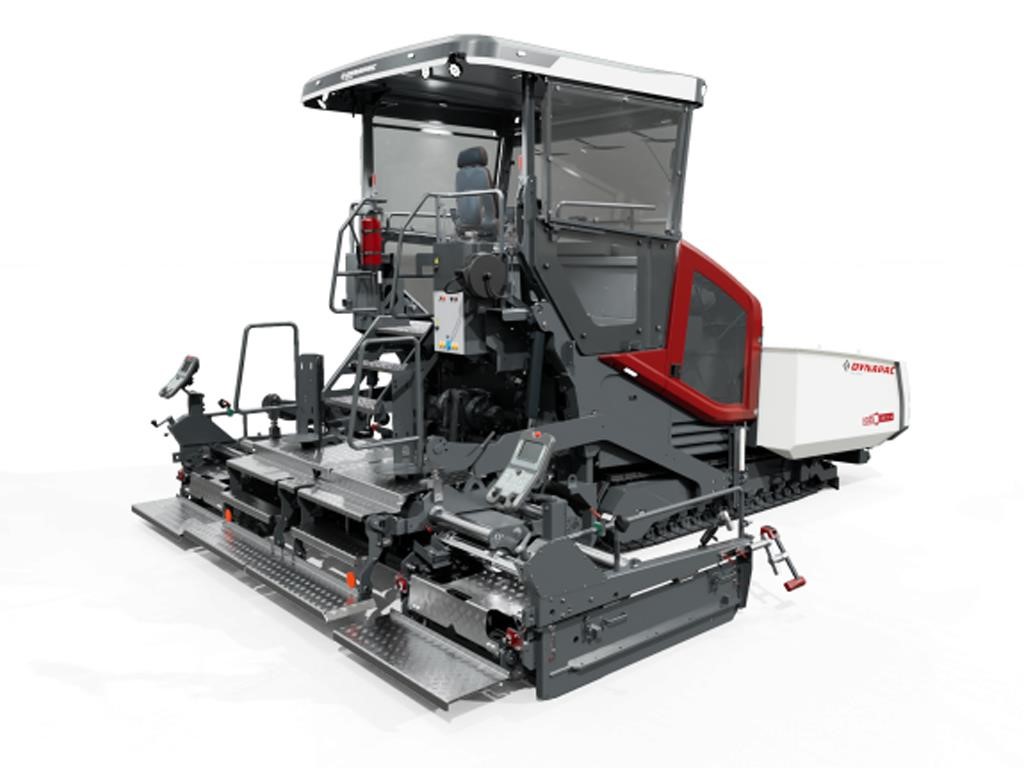

2026 DYNAPAC XD25 80CE

Easy Service Concept

• All filters have been repositioned to the side doors. Furthermore, a service flap for oil checkup is located on the platform.

Protected Truckassist

• The truck communication system TruckAssist is integrated in the hopper design.

Xd 25 Concept With 45° Swing Seat

• Dynapac introduced a new operating concept with one seat on the platform. All controls are in the armrest to enhance operator comfort to new levels.

All New Hmi Points

• The new Highway Paver Class is made for operators. Focus on the new machine are renewed HMI points, which means, a new dashboard, new remote controls and a new customizable software called PaveOS.

Same But Different

• Enjoy the same HMI Concept, the same well-known paving quality as you know from your Diesel Paver.

5 Electric Drives

• Be the operator of the most efficient paver of the market. With 5 electric drives, this machine operates the hydraulics, conveyor and auger, leading to 3 times higher efficiency compared to Diesel.

Think For Your Environment

• Enjoy 20% lower noise levels while operating the electric paver. Win more tenders by offering CO2 neutral paving jobs.

Up To 8 H Operation

• With 294 kWh of battery capacity, you can operate this machine up to 8 hours. Additionally, you can use the Dynapac Bypass for Screed Heating while re-charging the machine.

Clean Platform

• A free field of view is crucial for the operator. The Dynapac Highway Class Pavers offers an excellent all-around visibility.

Most Stable Screed

• Keep your surface quality high! Beside all new features, Dynapac kept his well-known stable screed design with the 4-tube system.

Excellent Weather Protection

• Protect yourself against all kind of weather conditions, by having the possibility to close the cabin to the sides and front. Furthermore, the side windows are available in a tinted version.

Automatic Screed Width Adjustment

• Automate your screed with adjustment with the MatTracker System. The sensor will detect an existing edge, for example a previously laid asphalt layer, and will adjust the screed width accordingly.

Standard

• VarioSpeed
• Pave OS
• OpenInterface
• Distance Dependent Slope and Crowning
• Hydraulic Crowning
• Fuel Safe Hydraulics
• SafeImpact truck damping system

Optional

• MatTracker
• Fume Ventilation System
• Sun Umbrellas for Side Shield
• Magentic Storage Compartments
• LightAssist incl. Home Coming
• TruckAssist
• Hydraulic controlled side shields
• Camera System
• MatManager Job Site Documentation System
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2026
• Manufacturer: DYNAPAC
• Model: XD25 80CE
• Condition: New

Other

• Dimensions Basic Paving Width: 0.10 in
• Dimensions Max. Layer Thickness: 12.20 in
• Dimensions Max. Paving Width: 236.22 in
• Dimensions Theor Placement Cap: 800 t/h
• Masses Tractor Weight (incl. Standard Screed): 46,297.32 lbs
• Conveyor Conveyor Control: Proportional with paddle sensor
• Conveyor Conveyor Type: Dual Conveyor, reversible
• Conveyor Conveyor Width: 2x 655 mm
• Electrical System Auxiliary Battery Voltage: 24 V
• Electrical System Battery Capacity (gross): 294 kWh
• Electrical System Battery Type: Lithium-Ion (NMC)
• Electrical System Motor Type: Permanent Magnet Synchronous Motor (PMSM)
• Electrical System Nominal Battery Voltage: 665 V
• Electrical System System Power (Peak): 235 kW
• Charging 5 – 80 % @ 235 KW (DC): ~ 40 min
• Charging 5 – 80 % @ 400 V, 43 KW (AC, Type II): ~ 4.5 h
• Dimensions Axle Track: 2.90 m
• Dimensions Width, Max.: 3.40 m
• Dimensions Width, Standard: 2.55 m
• Dimensions Width, Center Of Tracks: 1.99 m
• Dimensions Crawler Width: 0.32 m
• Dimensions Height, Max.: 3.94 m
• Dimensions Height, Transport: 3.10 m
• Dimensions Push Roller Height: 0.49 m
• Dimensions Length: 6.15 m
• Dimensions Length, Hopper: 2.12 m
