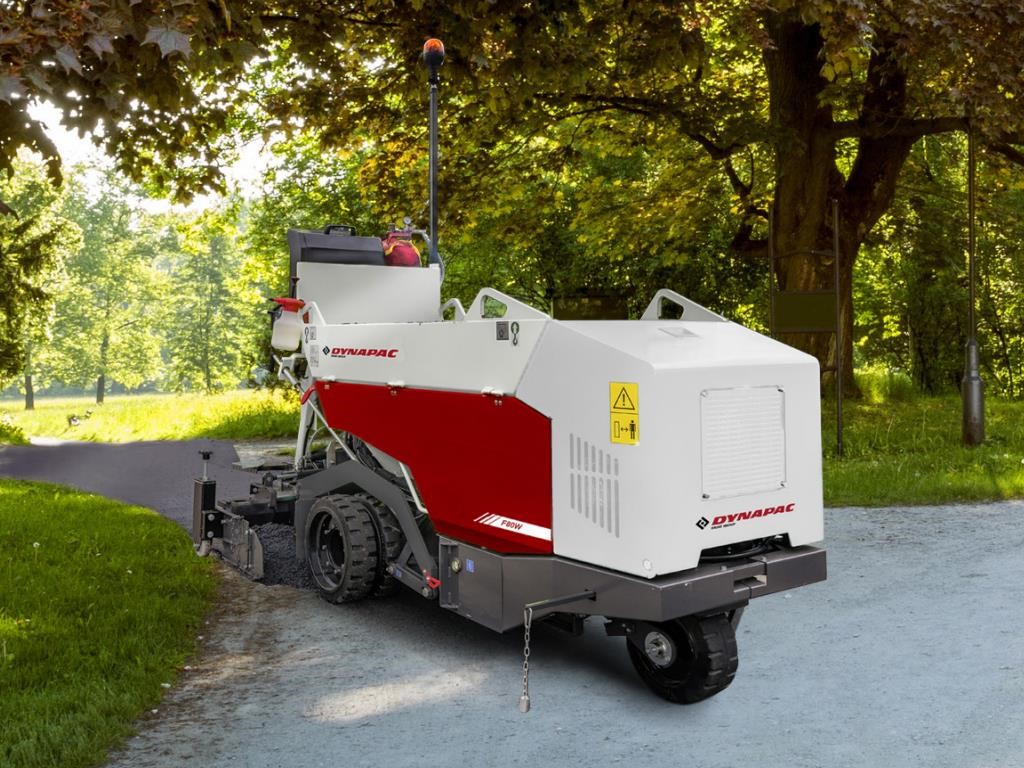

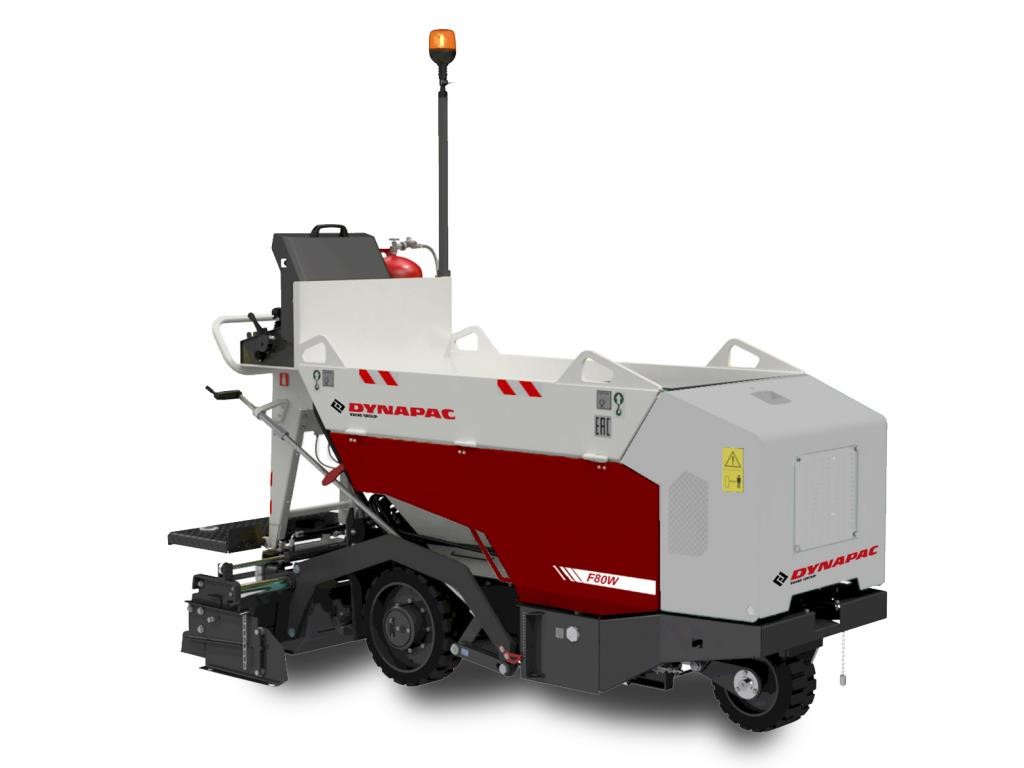

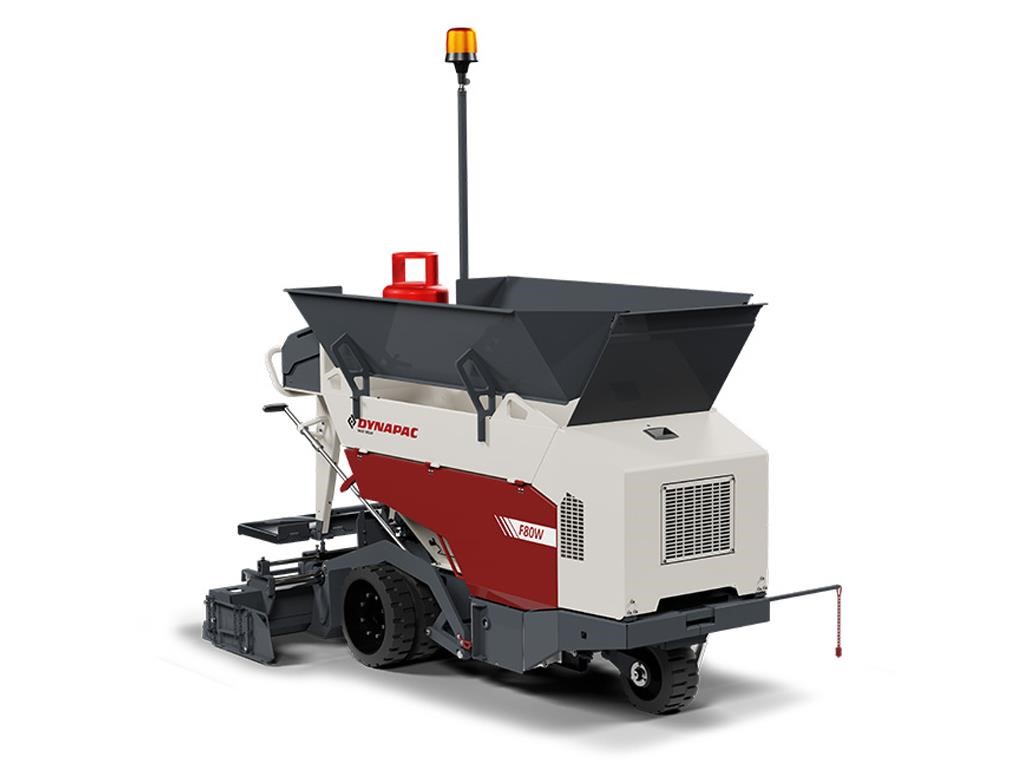

2026 DYNAPAC F80W

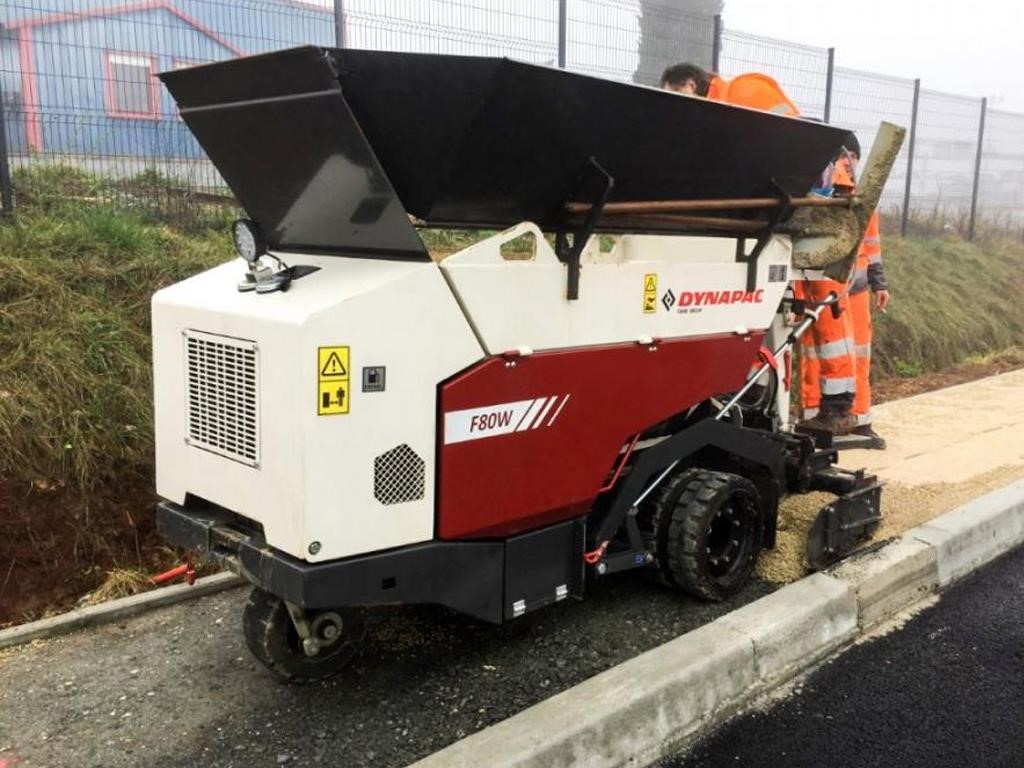

DYNAPAC MINI PAVER — F80W

The F80W – equipped with its gas heated vibrating screed V1300V- is the perfect fit for jobsites with a working width range between 0.25 and 1.65m. The simple and robust design is easy to handle and to learn, so the F80W is the ideal partner for smooth and well compacted surface jobs, which manually cannot be achieved.

JOB SITE CONFIDENCE
Keep your team confident and healthy when operating on the job site. Ensure good working safety, ergonomics and easy to use operating systems.

• Maneuverability
Maneuver easily in tight spaces with the three wheel construction 1m inside turning radius

• Ease Of Operation
Learn quick & stay in control with a simple & intuitive operator station

• Operator Safety
Forward movement immediately stops if the operator removes his foot from a dead-man’s switch on the platform floor

• Assisted Functions
Enjoy the comfort of hydraulic screed extension, auto conveyor & auger control

LOW COST OF OWNERSHIP
Improve the overall profitability of your investment by reducing the costs of operating the machine while maintaining a high equipment value.

• Fits Your Trailer
Easy & cost efficient transport on your trailer

• Reliable Engine
Hatz 1B50E diesel engine, delivers exceptional reliability and optimal power

HIGH QUALITY RESULTS
Avoid penalties and rework! Stabilize the quality of your paving and compaction jobs.

• Continuous Feed
Feed the right amount of material with the automatic conveyor

• Angle Of Attack
Ensure even surface with the optimal screed angle of attack using the manual crank

• Adequate Material Head
Have adequate amount of material with the automatic auger control

MAXIMUM UPTIME
A machine has to run to make money! Minimize non-productive times, avoid unscheduled break downs.

• Less Set-Up Time
Warm it up and get going fast with gas/propane heating

• Fast Trouble Shooting
Fast trouble shooting with BODAS machine diagnostics with error codes

HIGH PRODUCTIVITY
Increase the productivity of your job sites through efficient paving and compaction operation. Reduce non-productive times on the job site.

• Adapt To Changing Widths
Quickly adapt to changing paving width with hydraulically extendable screed

• Up To 1.65m (5.4ft) Paving
Go up to 1.65m (5.4ft) paving width as the twin wheels provide the traction for the right speed

ENVIRONMENT/SUSTAINABILITY
Protect the environment. Show your social responsibility and collect on tenders that require low CO2 and noise emissions.

• Less Energy
Lower energy to heat up the screed with gas/propane as compared to electric heating

• Low Emission
Stage V / EPA certified engine

MACHINE APPLICATION
• Excellent surface quality
• Reduced work load
• Fast & precise execution

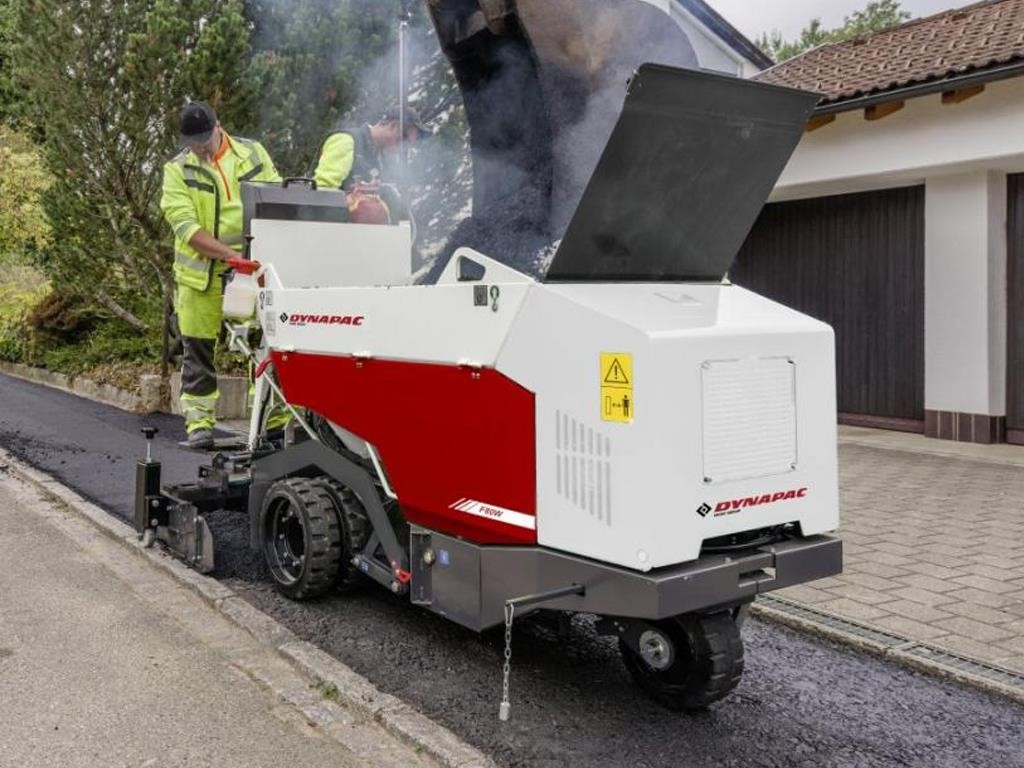

PERFECTION IN MINI
THE DYNAPAC F80W with a width of only 31.5 in is the ideal paver for narrow paving situations and small asphalt jobs. Equipped with a gas heated vibrating screed V1300V the Dynapac mini paver can lay up to 4 in hot asphalt as well as cold layers between 10 and 65 in.

Typical jobsite examples are sidewalks, cable channels, landscaping jobs and bicycle paths.

Thanks to the mini paver’s intuitive and robust design, the F80W is the ideal option for achieving smooth and well compacted surface jobs, which cannot be achieved manually.

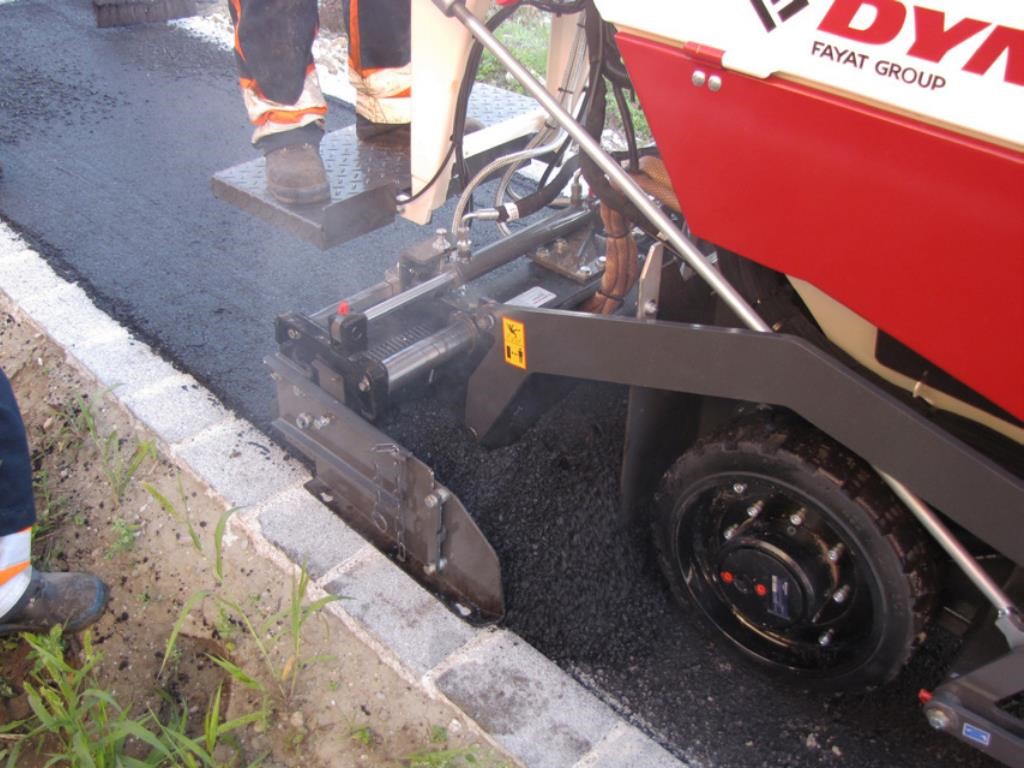

MACHINE PAVING FOR EXCELLENT RESULTS
The F80W is equipped with an automatic material flow system to ensure an even distribution of material and excellent asphalt results.

The independent adjustable flow gates allow for a convenient material management and asymmetric paving. The auger and conveyor are controlled by a limit switch to have always the right quantity of material in front of the screed.

With an easy crank system the adjustment of the angle of attack becomes simple and convenient.

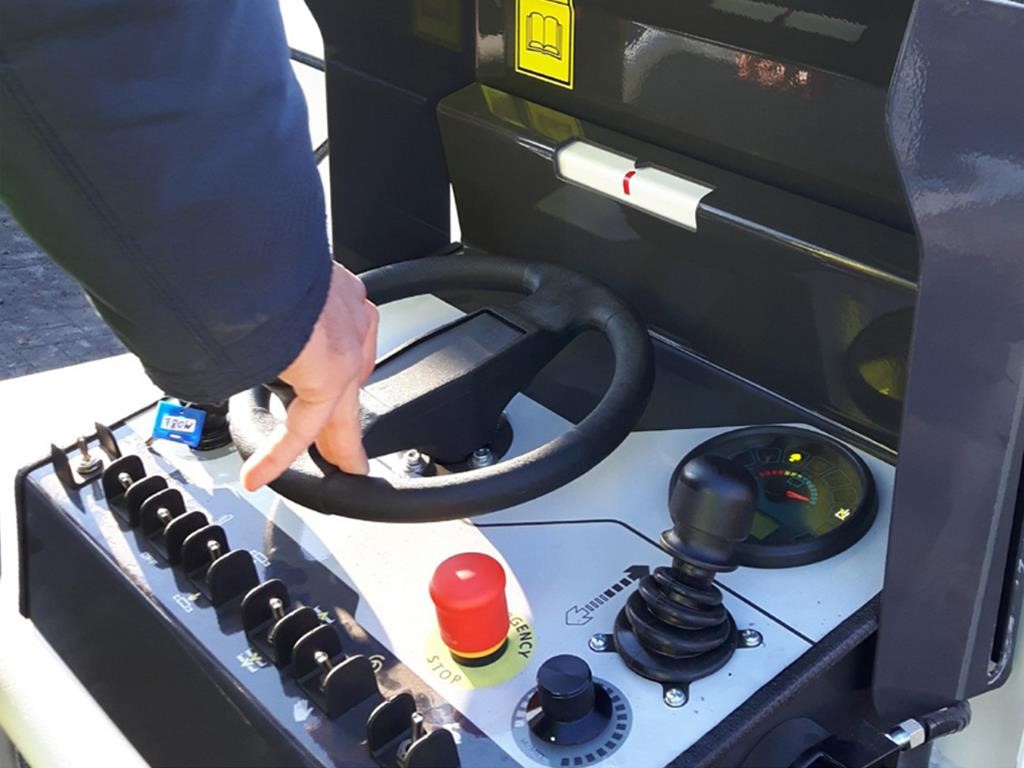

INTUITIVE
The operator control panel uses robust switches and controls that are neatly arranged for easy use. Thanks to the user-friendly steering wheel drive system, it is easy for even a relatively new driver to operate the paver.

VERSATILE USAGE

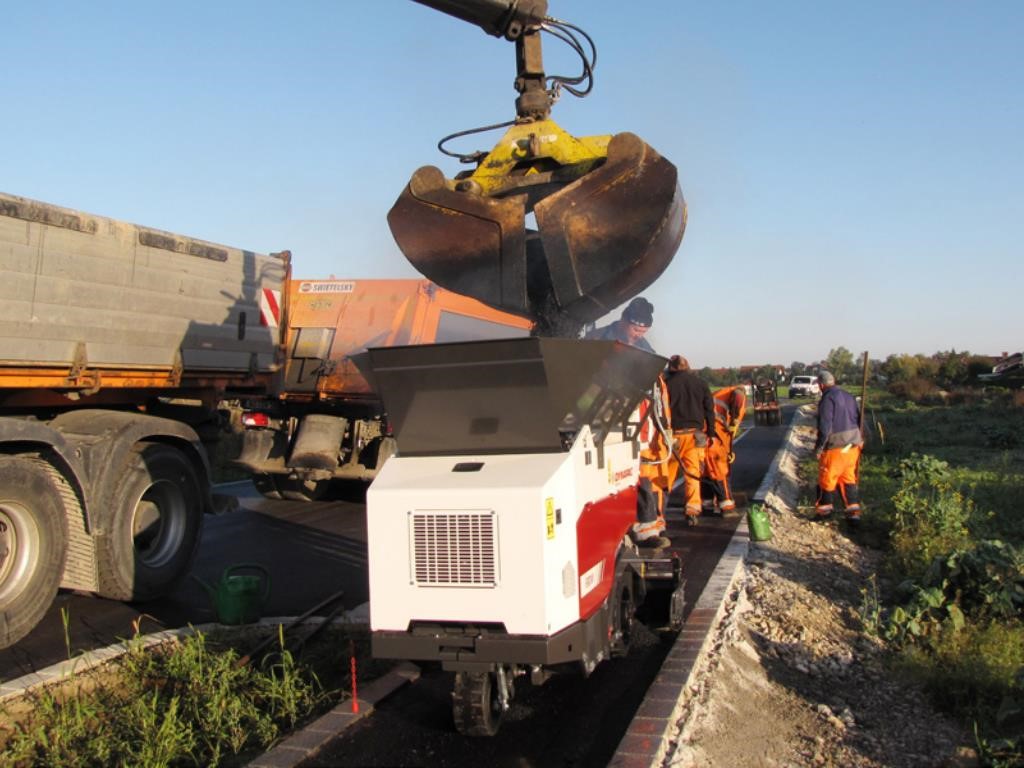

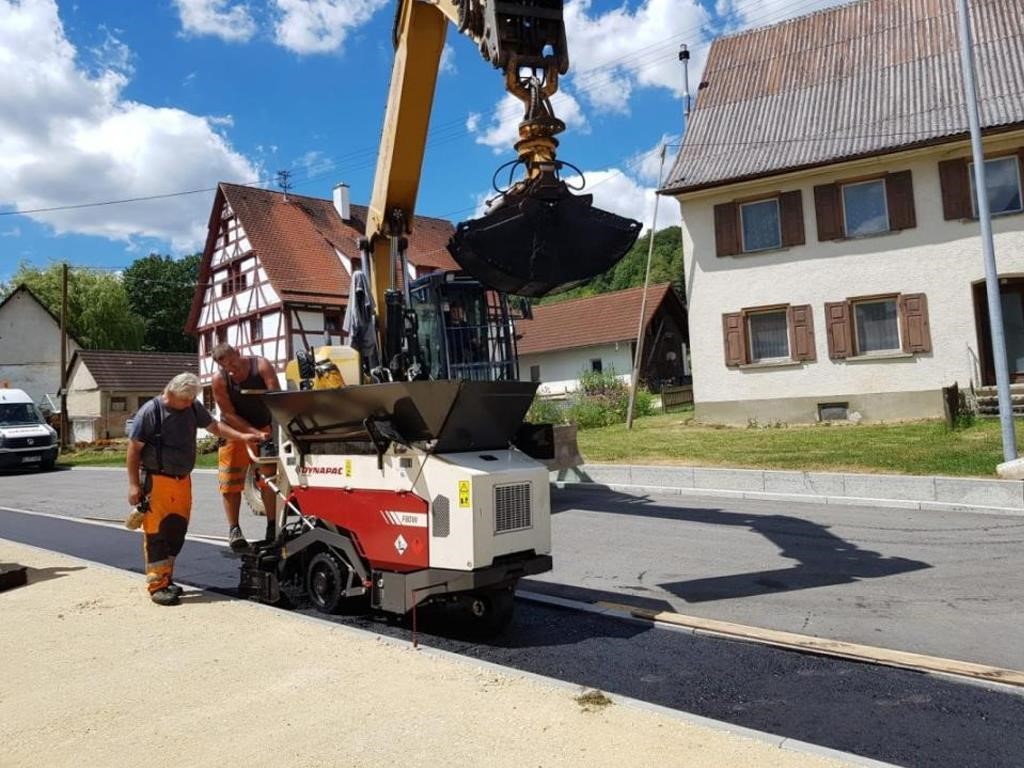

The wheeled Dynapac F80W can drive up to 3.1 mph allowing for flexible move-ability on the job site. The large filling opening allows feeding by a wheel load, excavator or even with pear-shaped asphalt lorries.

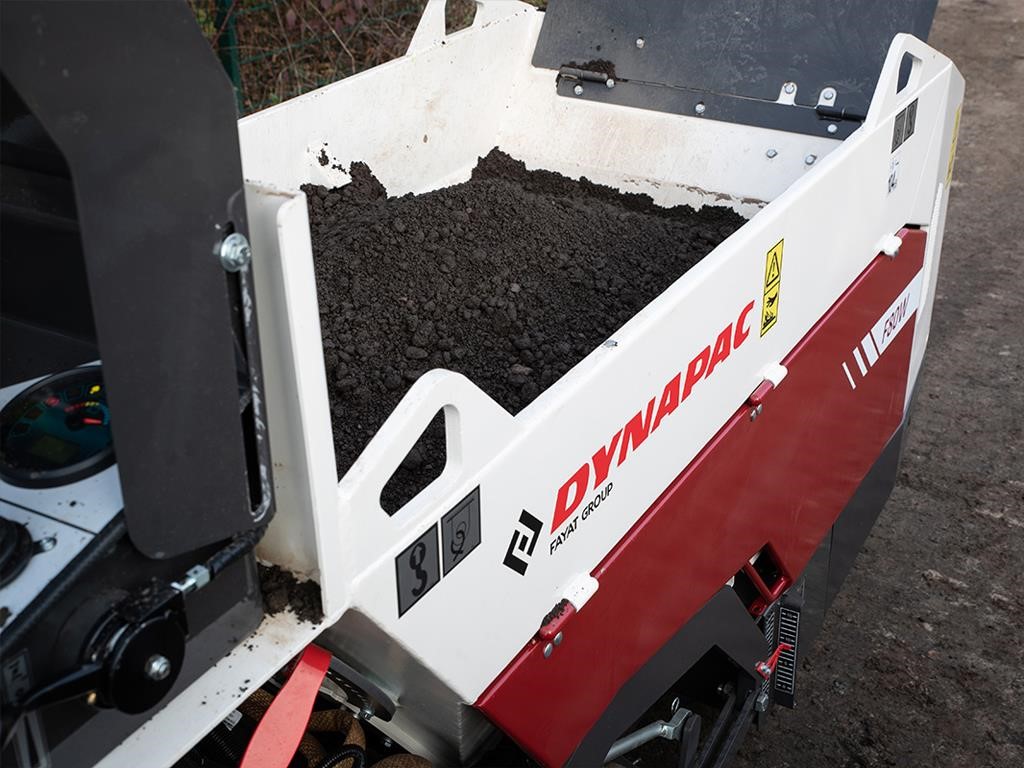

The Dynapac F80W is not only an excellent choice for narrow asphalt jobs, cold material like gravel or sand can be layed in a professional and efficient manner.

COST EFFICIENT PAVING
With the F80W paving jobs can be realized efficiently and be finished in a shorter period of time.

The F80W, with its air-cooled Hatz engine and simple technology, is designed for longevity and hassle-free service.

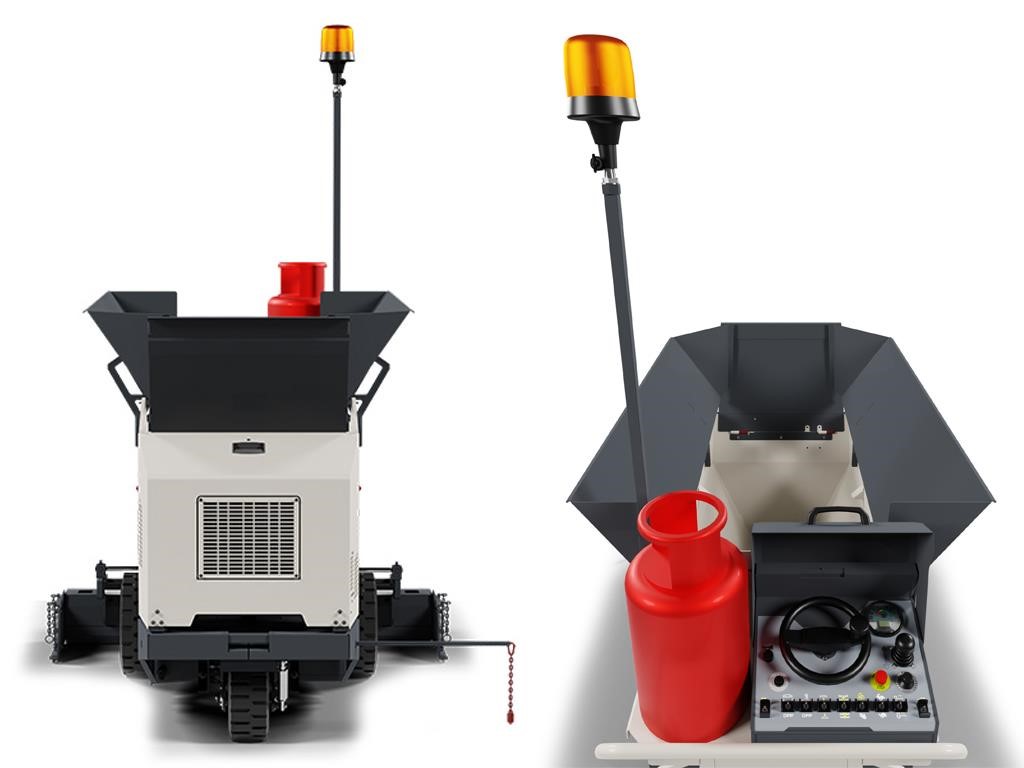

The efficient gas heating can be operated with a 5 kg gas bottle.

The screed is heated up to 250°F within 15-30 minutes.

OPTIONAL EQUIPMENT
• Mechanical extensions (2x 175 mm) till 1650 mm
• Twin rear wheels
• Hopper filling help
• Additional auger LED light
• Copying roller
• Customer Colour
• Emergency Kit
• Front wheel scraper
• USB Documentation

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
