SANDVIK DS211L-M―ROCK SUPPORT DRILL RIGS

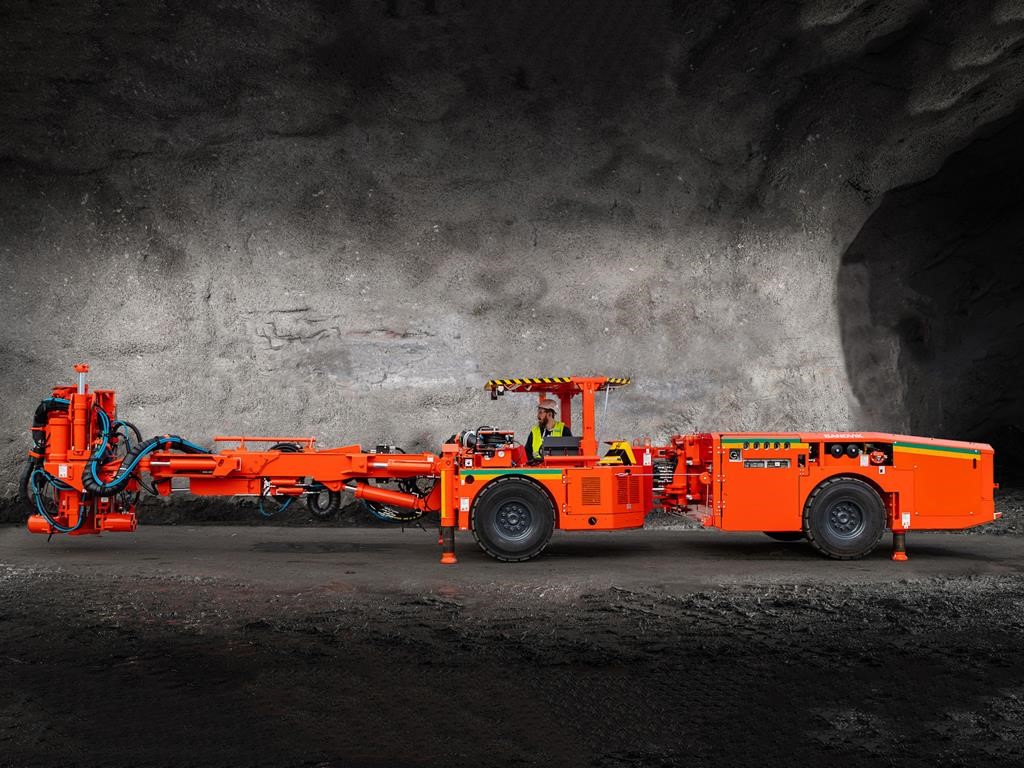

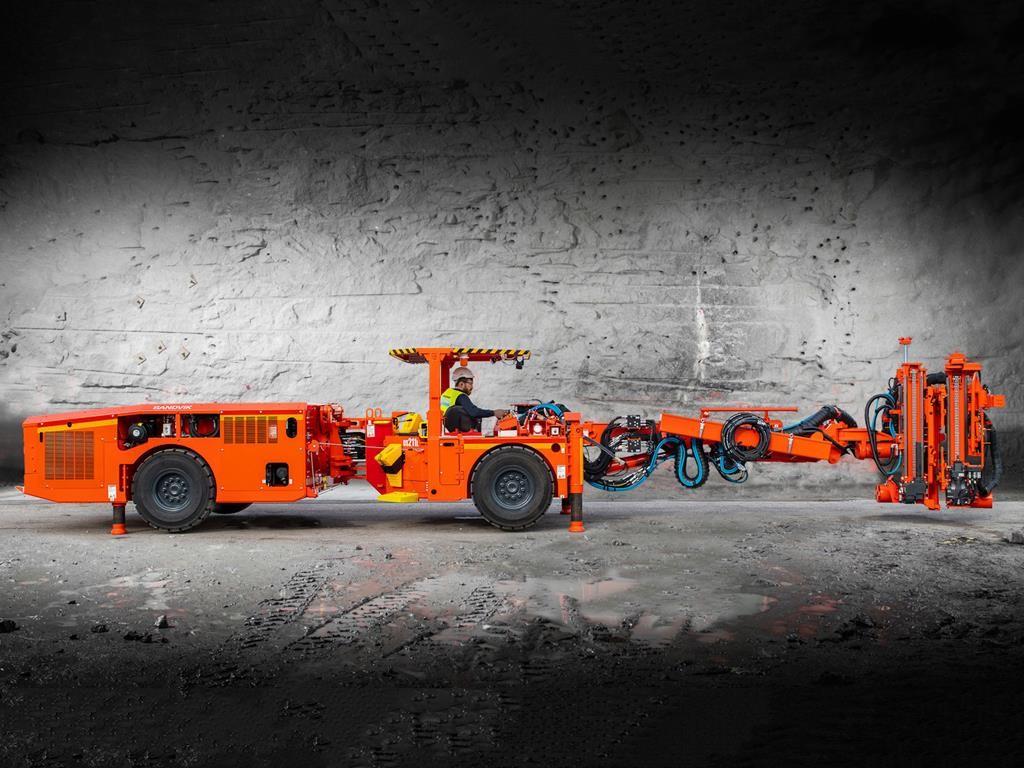

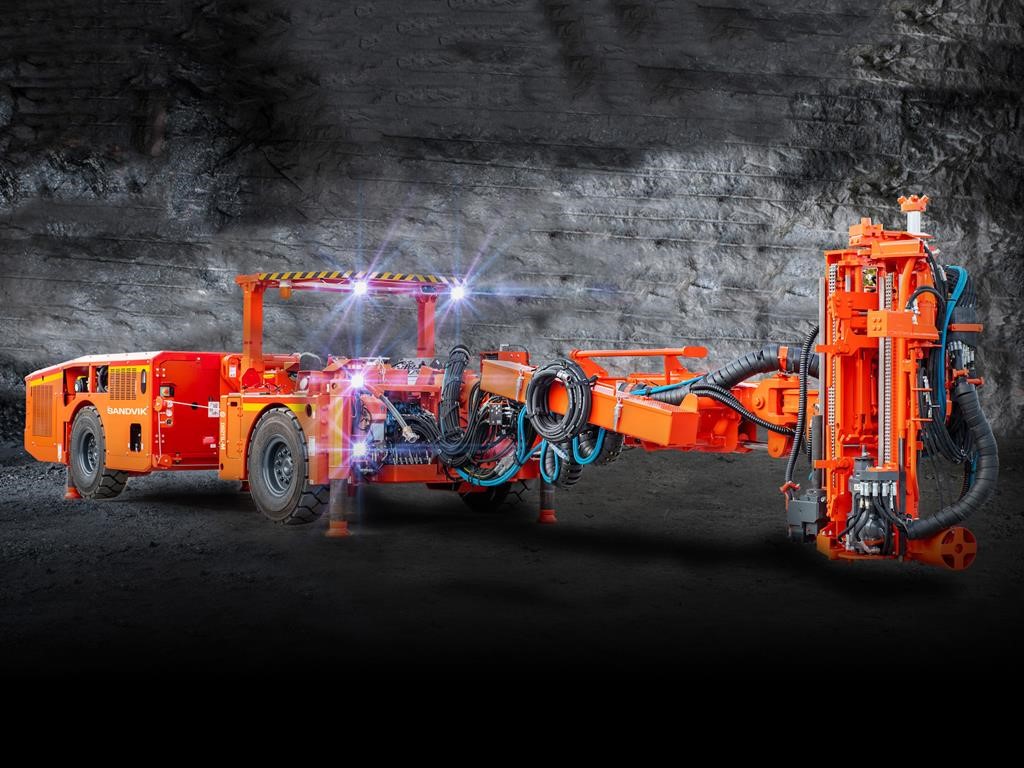

Sandvik DS211L-M is a fully mechanized one man operated electro-hydraulic low profile bolting machine for rock reinforcement in excavations with headroom as low as 1.6 meters. The robust rectangular profile telescopic boom allows the installation of several rows of bolts without moving the machine by a single operator working under the FOPS / ROPS protective canopy. The exceptional «V» shape layout is designed for good visibility and balance, this and the powerful four-wheel-drive articulated carrier ensure fast and safe manoeuvring even in low headroom conditions.
The high performance drilling system allows high drilling performance with good drill steel economy and high machine reliability. The operator environment and added automatic functions allow the operator to concentrate on safe, fast and accurate drilling and bolts installation. All functions are piloted by a radio remote control, with SICA platform for fault finding. All the service points are well protected but easy to access.
MAIN BENEFITS
LESS DILUTION
The Low-profile range offers a productive and low-cost solution in low seam. From drift 1.7m height with reduced dilution, up to large drill coverage up to 8 m lateral width drilling and bolting. The low-profile range could be suitable for your all needs.
SAFETY
Radio remote operation enables the operator to work from a safe distance in a secure and stable area. The FOPS/ROPS canopy provides excellent protection for the operator. The drill’s design ensures optimal visibility and balance, allowing for safe and efficient maneuvering in tight spaces.
HIGH PRODUCTIVITY
Capable of drilling in excavations with headroom as low as 2 meters (6.5 feet), the drill features a telescopic boom that allows multiple rows of bolts to be installed without repositioning. Automatic functions ensure fast and precise bolt installation.
MAINTENANCE & RELIABILITY
All service points are well-protected yet easily accessible from ground level. The boom and feed structure are robust and durable. Automatic safety shutdowns ensure the protection of the equipment.
SAFE AND OPTIMIZED OPERATOR’S STATION
Safety canopy is certified FOPS/ROPS for a 1950 mm position high, that allows a operator’s protection without uncomfortable during the drilling and tramming phase.
REMOTELY DRILLING CONTROL SYSTEM
The THC561 drilling control system with reaming hole selector increases drilling performance and reduces the wear on both rock drill and rock tools for an extended lifetime.
PROXIMITY DETECTION SYSTEM INTERFACE (PDS LEVEL 9)
PDS system is generally designed to inform the operator and to slow down the machine and/or stop the equipment in case of a collision risk with a person or object carrying a tag.
COMPACT ROCK DRILL
Sandvik RD106 is a compact rock drill with a low profile height. It drills with air or water flushing.
BOLTS MAGAZINE
TULPM bolting head is equipped with bolts magazine. The bolt lengths can vary from 1.5 m to 1.8 m. The versatile bolting head construction allows all the most common bolt types.
KNOWLEDGE BOX™ (TS2-535)
The Knowledge Box™ is our standard connectivity solution onboard Sandvik Underground drills. It allows to collect, process and transfer monitoring data into My Sandvik Digital Service dashboards for visualization of fleet health, productivity and utilization.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
