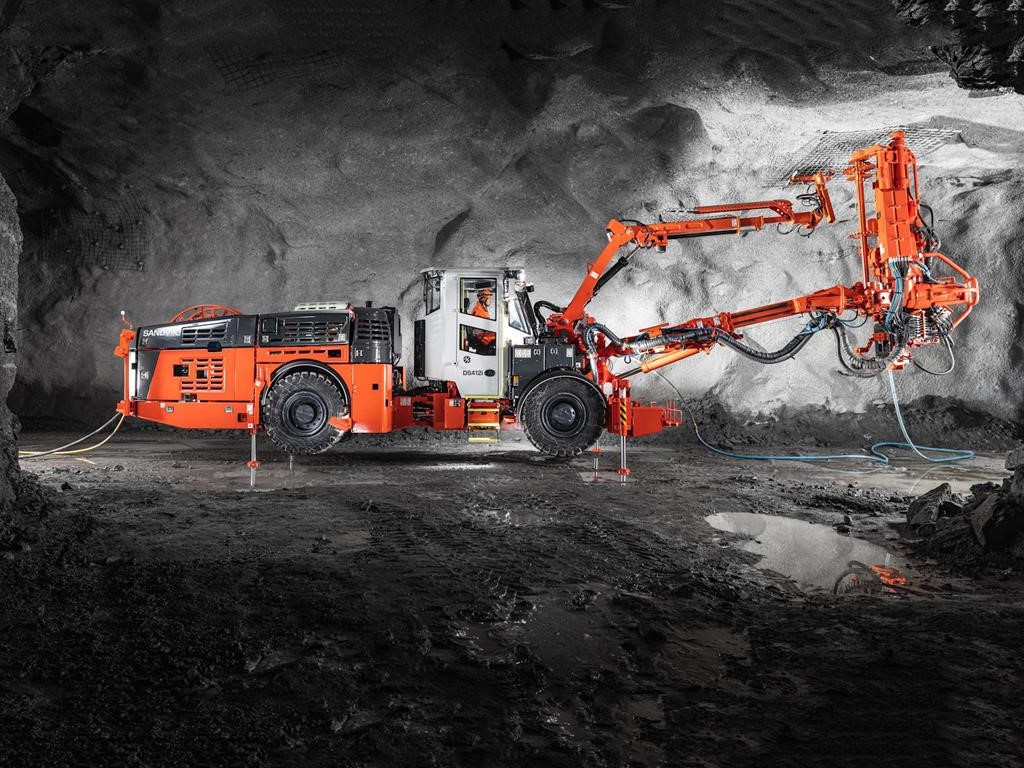

2025 SANDVIK DS412I
additional information
- Year: 2025
- Manufacturer: SANDVIK
- Model: DS412I
- Condition: New
- Torque: 250.77113075418
- Shipping Weight: 63934.05598
- Shippingwidth: 98.42519675
- ShippingwidthUnit: inch
- Shippingheight: 120.866141609
- ShippingheightUnit: inch
- Shippinglength: 512.59842
- ShippinglengthUnit: inch
- ShippingweightUnit: pound
- TorqueUnit: foot-pound
- TECHNICAL SPECIFICATION Bolting Coverage: 7 x 4.5 m (optimum)
- TECHNICAL SPECIFICATION Hole Size: 33 - 43 mm
- TECHNICAL SPECIFICATION Tramming Type And Distance: Hydrostatic transmission - Diesel engine - QSB4.5 (119 kW, Tier 3, Stage IIIA)
- TECHNICAL SPECIFICATION Bolt Length: 1.5 - 3.0 m (5.0 - 10.0 ft.)
- TECHNICAL SPECIFICATION Bolt Type: GCR, WI, S, BCS, M, K
- TECHNICAL SPECIFICATION Grouting Method: Resin cartridges, bulk cement
- TECHNICAL SPECIFICATION Rock Drill: RD314, 14 kW
- TECHNICAL SPECIFICATION Controls Type: SICA (Sandvik Intelligent Control System)
- TECHNICAL SPECIFICATION Automation Package: Silver (Standard), Gold (Optional), Platinum (Optional)
- TECHNICAL SPECIFICATION Weight: 29,000 kg (depending on options)
- HYDRAULIC ROCK DRILL Type Of Rock Drill: RD314 (TS2-137)
- HYDRAULIC ROCK DRILL Percussion Power: 14 kW
- HYDRAULIC ROCK DRILL Percussion Pressure: Max. 160 bar
- HYDRAULIC ROCK DRILL Percussion Rate: 110 Hz
- HYDRAULIC ROCK DRILL Stabilizer:
- HYDRAULIC ROCK DRILL Rotation Speed: Max. 520 rpm (with OMS100)
- HYDRAULIC ROCK DRILL Rotation Torque: 340 Nm (with OMS100)
- HYDRAULIC ROCK DRILL Hole Size (bolting): 33 - 43 mm
- HYDRAULIC ROCK DRILL Shank Adapter: 45 mm / R32 female
- HYDRAULIC ROCK DRILL Weight: 122 kg
- HYDRAULIC ROCK DRILL Length: 571 mm

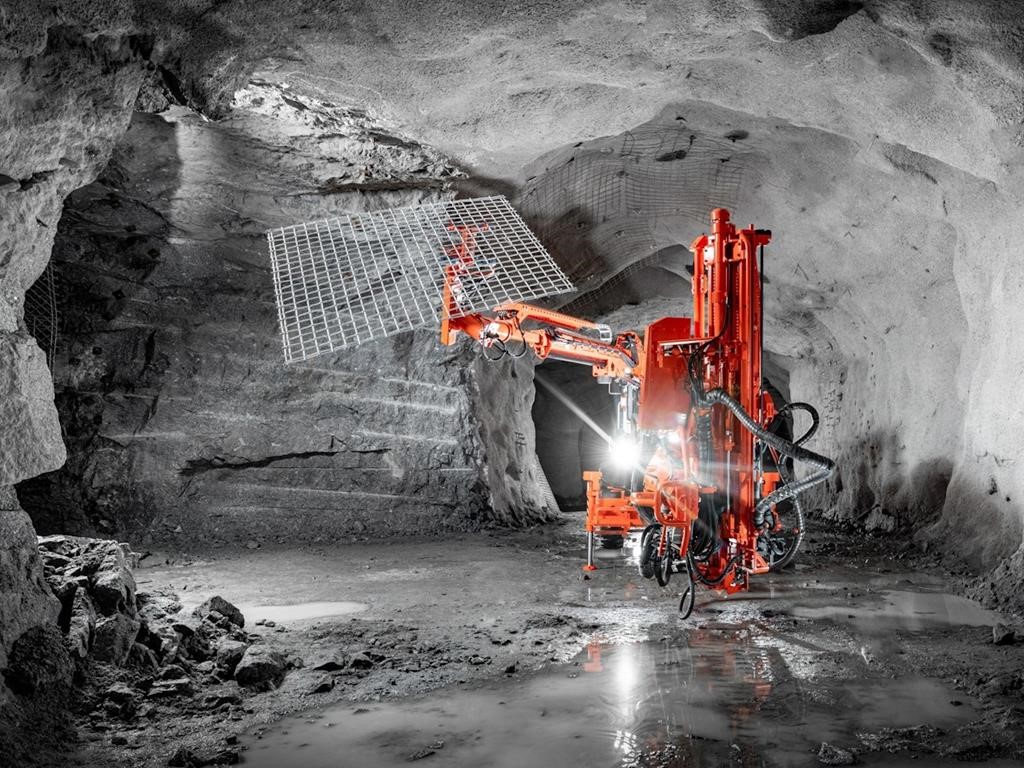

- Bolting Head Type Of Bolting Head: BHi (TS2-277)
- Bolting Head Bolting Head Feed: KS140
- Bolting Head Bolt Caroussel Capacity: 8 rock bolts with 200 x 200 mm maximum plate size
- Bolting Head Bolting Head Length: Max. 4 342 mm (BH30)
- Bolting Head Net Weight: Max. 1 720 kg (BH30)
- Bolting Boom Type Of Boom: SBR60i (TS2-478)
- Bolting Boom Boom Extension: 1 200 mm
- Bolting Boom Boom Weight, Net: 2 200 kg
- Bolting Boom Roll Over Angle: 358°
- HYDRAULIC SYSTEM Powerpack: HPP355 (1x55 kW)
- HYDRAULIC SYSTEM Filtration Size (pressure / Return): 20 µ / 10 µ
- HYDRAULIC SYSTEM Oil Tank Volume: 270 liters
- HYDRAULIC SYSTEM Oil Tank Filling Pump: Electric
- HYDRAULIC SYSTEM Cooler For Hydraulic Oil: OW30 oil-to-water (1 x 30 kW)
- DRILLING CONTROL SYSTEM Control System Type: SICA
- DRILLING CONTROL SYSTEM Drilling Control Modes: Intelligent Torque control / Feed percussion / manual
- DRILLING CONTROL SYSTEM Safety Lock For Movement Prevention: 2 switches
- DRILLING CONTROL SYSTEM MySandvik Insight / OptiMine / WLAN: Data transfer readiness
- DRILLING CONTROL SYSTEM Features: Upgradeable automation levels | Comprehensive diagnostic system | Electronic joystick controls | 15’’ full color touch screen | Cable kit for spare part programming
- Automation Package, Silver Level (Standard) Drilling Control System: Torque or manual drilling
- Automation Package, Silver Level (Standard) One Bolt Automation: Drills one hole automatically
- Automation Package, Silver Level (Standard) Boom Manipulator Mode: Operator can lock XYZ-axis
- Automation Package, Silver Level (Standard) Hole Angle Measurement: Boom tilt and bolting module rotation indication
- Automation Package, Silver Level (Standard) Drill Bit Navigation: Drill bit can be used for bolter navigation
- Automation Package, Silver Level (Standard) Basic Remote Data Monitoring: Info about drilled meters installed bolts
- Automation Package, Silver Level (Standard) Automatic Cement Mixer: Mixing one batch automatically
- ELECTRICAL SYSTEM Multivoltage: 380 – 1 000 V (±10%)
- ELECTRICAL SYSTEM Total Installed Power: 70 - 80 kW
- ELECTRICAL SYSTEM Main Switch Gear: MSE 10
- ELECTRICAL SYSTEM IP Classification: Specification TS2-132
- ELECTRICAL SYSTEM Starting Method: Direct on line 380 V - 1 000 V
- ELECTRICAL SYSTEM Automatic Cable Reel: TCR4CE with spooling system
- ELECTRICAL SYSTEM Cable Reel Control: Operator station and remote control at rear machine
- ELECTRICAL SYSTEM Front Lights : 6 x 50 W LED (24V) 125lx, 20 000 lm; 6 000 k
- ELECTRICAL SYSTEM Rear Lights : 2 x 50 W LED (24V) and 2 x 17 W LED (24V) 8 000 lm; 6 000 k
- ELECTRICAL SYSTEM Remote Controlled Spot Lights: 2 pcs
- ELECTRICAL SYSTEM Outlets On Carrier: 1 x 110 V or 230 V (16A)
- ELECTRICAL SYSTEM Parking Rear Brake / Park Lights: 2 x Red LED
- ELECTRICAL SYSTEM Stair And Service Lights: LED (24 V)
- ELECTRICAL SYSTEM Amber Flashing Light: LED (24 V)
- ELECTRICAL SYSTEM Electric Quality Monitoring: Voltage, Amperage, Power, Pf Energy, Phase-sequence
- ELECTRICAL SYSTEM Motor Protection: Intelligent control with power maximization
- ELECTRICAL SYSTEM Extra Low Voltage Supply: Continuous 80 A (27 VDC) with battery back-up and management
- ELECTRICAL SYSTEM Powerpack Tramming:
- AIR AND WATER SYSTEM Flushing Of Holes: By water
- AIR AND WATER SYSTEM Water Booster Pump Type: WBP2
- AIR AND WATER SYSTEM Water Pump Capacity: 100 l/min
- AIR AND WATER SYSTEM Water Pump Inlet Pressure: 2 bar (Min.)
- AIR AND WATER SYSTEM Flushing Water Pressure: 10 - 15 bar
- AIR AND WATER SYSTEM Shank Lubrication Device: SLU-1 (Air / oil mist)
- AIR AND WATER SYSTEM Air Compressor: CTN10, 1.0 m³/min (7 bar)
- AIR AND WATER SYSTEM Oil Consumption: 150 - 250 g/h
- AIR AND WATER SYSTEM Air Consumption: 250 - 350 l/min
- AIR AND WATER SYSTEM Compressed Air Outlet: Quick coupling

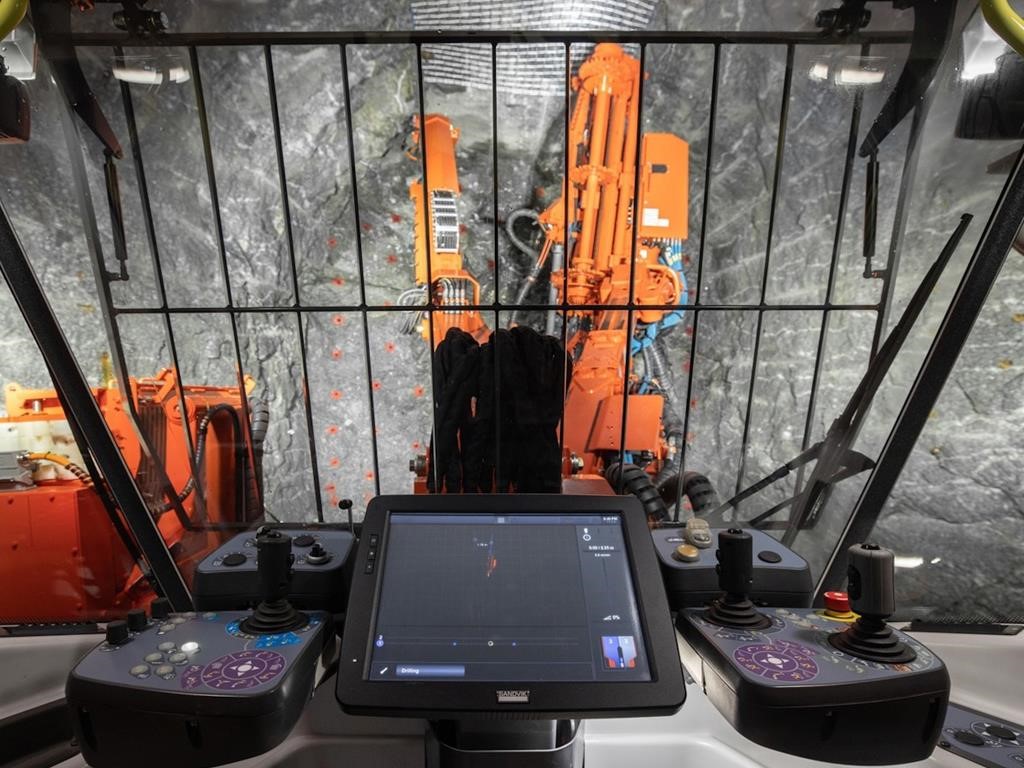

- OPERATOR’S SAFETY CABIN Cabin Certification: FOPS / ROPS (ISO 3449)
- OPERATOR’S SAFETY CABIN Operation: Seated tramming | Standing and seated drilling
- OPERATOR’S SAFETY CABIN Sound Pressure Level : According to EN 16228, ISO4872, ISO1120. Operator station: 69 db(A)
- OPERATOR’S SAFETY CABIN Vibration Level: According to EN791, ISO2631-1
- OPERATOR’S SAFETY CABIN Operator’s Seat: Fully adjustable seat (tramming and drilling)
- OPERATOR’S SAFETY CABIN Optimized Dust Level Control Via Air Circulation:
- OPERATOR’S SAFETY CABIN Air Conditioning : EU6/7 filtering capacity
- OPERATOR’S SAFETY CABIN Cabin Heating: During tramming and drilling
- OPERATOR’S SAFETY CABIN Electricity Outlets: 1 x 24 V, 1 x 12 V
- OPERATOR’S SAFETY CABIN Stairs And Indoors Lights: LED
- OPERATOR’S SAFETY CABIN Audio Player: CD / MP3 player with radio
- OPERATOR’S SAFETY CABIN Boot Washer: At each cabin entrance
- OPERATOR’S SAFETY CABIN Safety Laminated Acoustic Windows:
