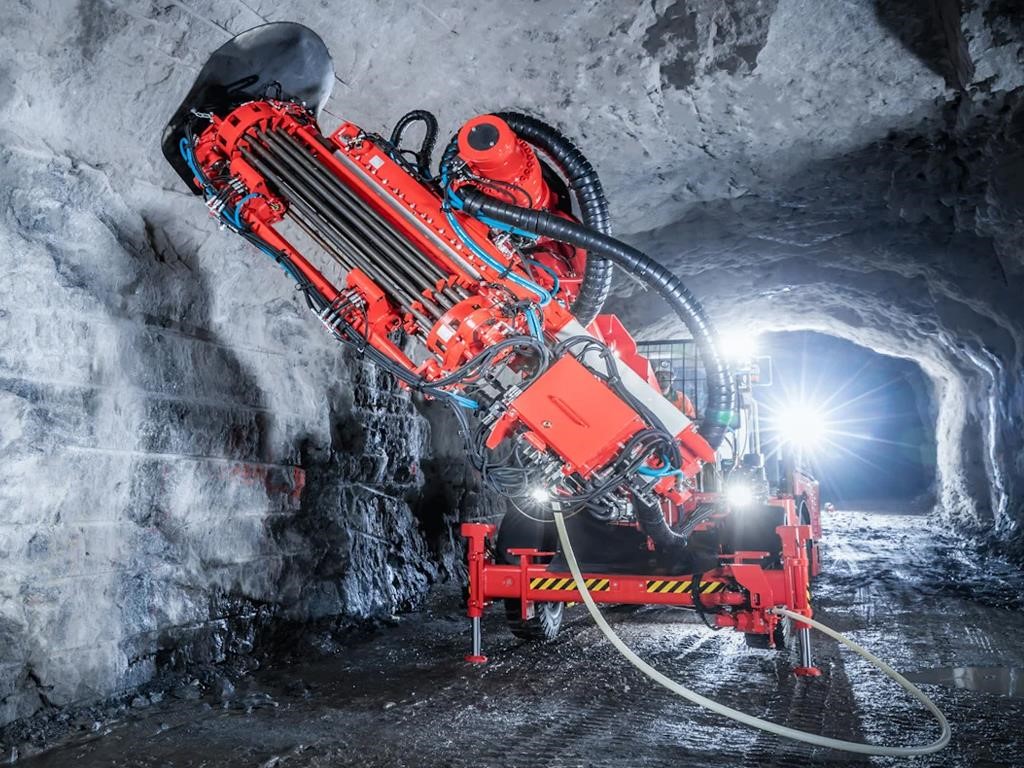

2025 SANDVIK DS422i
additional information
- Year: 2025
- Manufacturer: SANDVIK
- Model: DS422i
- Condition: New
- Horsepower: 159.58162871
- Shipping Weight: 63934.05598
- Air Conditioning: 1
- ROPS Type: Enclosed
- HorsepowerUnit: horsepower
- Shippingwidth: 107.480314851
- ShippingwidthUnit: inch
- Shippingheight: 120.078740035
- ShippingheightUnit: inch
- Shippinglength: 531
- ShippinglengthUnit: inch
- ShippingweightUnit: pound
- TECHNICAL SPECIFICATION Bolting Coverage: 5.9 x 2.0 m
- TECHNICAL SPECIFICATION Hole Length: Up to 38 m
- TECHNICAL SPECIFICATION Tramming Type And Distance: Hydrostatic transmission - Diesel engine - B4.5 (119 kW, Tier 3, Stage IIIA)
- TECHNICAL SPECIFICATION Hole Diameter: 54 - 57 mm
- TECHNICAL SPECIFICATION Steel Strand Diameter: 15.2 mm
- TECHNICAL SPECIFICATION Rock Drill: RD414, 14kW
- TECHNICAL SPECIFICATION Controls Type: SICA (Sandvik Intelligent Control System)
- TECHNICAL SPECIFICATION Automation Package: Silver (Standard), Gold (Optional)
- TECHNICAL SPECIFICATION Weight: 29,000.000 kg
- HYDRAULIC ROCK DRILL Type Of Rock Drill: RD414 (TS2-178)
- HYDRAULIC ROCK DRILL Percussion Power: 14 kW
- HYDRAULIC ROCK DRILL Percussion Pressure: Max. 220 bar
- HYDRAULIC ROCK DRILL Percussion Rate: 78 Hz
- HYDRAULIC ROCK DRILL Stabilizer: Sleeve type
- HYDRAULIC ROCK DRILL Rotation Speed: Max. 300 rpm (with OMS160)
- HYDRAULIC ROCK DRILL Rotation Torque: 570 Nm (with OMS160)
- HYDRAULIC ROCK DRILL Hole Size (bolting): 54 - 57 mm
- HYDRAULIC ROCK DRILL Recommended Rod: T35
- HYDRAULIC ROCK DRILL Shank Adapter: T35 (male)
- HYDRAULIC ROCK DRILL Weight: 180 kg

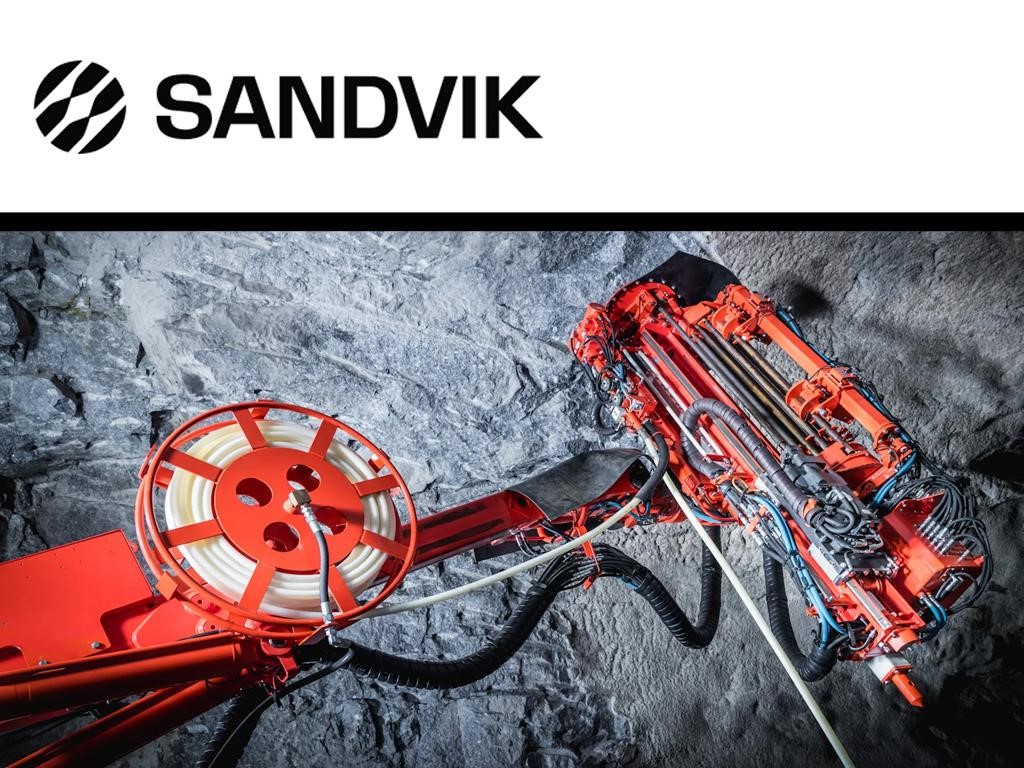

- CABLE BOLTING HEAD Type Of Bolting Head: CBHi (TS2-477)
- CABLE BOLTING HEAD Bolting Head Length: 4’, 5’, 6’
- CABLE BOLTING HEAD Rod Handling System: RC604, 5 or 6 | 19 + 1 rods
- CABLE BOLTING HEAD Centralizer: Pito 11LH
- CABLE BOLTING HEAD Total Length: 3 190 - 3 800 mm
- CABLE BOLTING HEAD Net Weight: 2 150 kg
- GROUTING AND CABLING SYSTEM Cement Mixer: TCM200i (incl. cement dust collector)
- GROUTING AND CABLING SYSTEM Cement Pump: TP8
- GROUTING AND CABLING SYSTEM Cement Hose Reel: 35 m capacity
- GROUTING AND CABLING SYSTEM Cement Silo: 600 kg
- GROUTING AND CABLING SYSTEM Steel Strand Reel: Standard
- GROUTING AND CABLING SYSTEM Steel Strand Feeding Unit: Standard
- BOOM Type Of Boom: SBR60i (TS2-478)
- BOOM Boom Extension: 1 200 mm
- BOOM Boom Weight, Net: 2 200 kg
- BOOM Roll Over Angle: 358°
- BOOM Parallel Coverage:
- BOOM Boom Parallel Holding:
- BOOM Bolt Hole Drilling:
- HYDRAULIC SYSTEM Powerpack: HPP575 (1 x 75 kW)
- HYDRAULIC SYSTEM Filtration (pressure / Return): 20 µ / 10 µ
- HYDRAULIC SYSTEM Oil Tank Volume: 270 liters
- HYDRAULIC SYSTEM Oil Tank Filling Pump: Electric
- HYDRAULIC SYSTEM Cooler For Hydraulic Oil: OW30 oil-to-water (1 x 30 kW)
- HYDRAULIC SYSTEM Percussion And Feed Pump:
- HYDRAULIC SYSTEM Rotation Pump:
- DRILLING CONTROL SYSTEM Control System Type: SICA
- DRILLING CONTROL SYSTEM Drilling Control Modes: Intelligent Torque control / Feed percussion / manual
- DRILLING CONTROL SYSTEM Safety Lock For Movement Prevention: 2 switches
- DRILLING CONTROL SYSTEM Features: Upgradeable automation levels | Comprehensive diagnostic system | Electronic joystick controls | 15’’ full color touch screen | Cable kit for spare part programming
- ELECTRICAL SYSTEM Standard Voltage: 380 – 1 000 V (±10%)
- ELECTRICAL SYSTEM Main Switch Gear: MSE20
- ELECTRICAL SYSTEM IP Classification: Specification TS2-132
- ELECTRICAL SYSTEM Starting Method: Direct on line 380 V - 1 000 V
- ELECTRICAL SYSTEM Automatic Cable Reel: TCR4EC with spooling system
- ELECTRICAL SYSTEM Cable Reel Control: Operator station and remote control at rear machine
- ELECTRICAL SYSTEM Front Lights : 6 x 50 W LED (24V) 125lx, 20 000 lm; 6 000 k
- ELECTRICAL SYSTEM Rear Lights : 2 x 50 W LED (24V) and 2 x 17 W LED (24V) 8 000 lm; 6 000 k
- ELECTRICAL SYSTEM Parking Rear Brake / Park Lights: 2 x Red LED
- ELECTRICAL SYSTEM Stair And Service Lights: LED (24 V)
- ELECTRICAL SYSTEM Amber Flashing Light: LED (24 V)
- ELECTRICAL SYSTEM Electric Quality Monitoring: Voltage, Amperage, Power, Pf Energy, Phase-sequence
- ELECTRICAL SYSTEM Motor Protection: Intelligent control with power maximization
- ELECTRICAL SYSTEM Extra Low Voltage Supply: Continuous 80 A (27 VDC) with battery back-up and management
- AIR AND WATER SYSTEM Flushing Of Holes: By water
- AIR AND WATER SYSTEM Water Booster Pump Type: WBP2
- AIR AND WATER SYSTEM Water Pump Capacity: 100 l/min
- AIR AND WATER SYSTEM Water Pump Inlet Pressure: 2 bar (Min.)
- AIR AND WATER SYSTEM Flushing Water Pressure: 10 - 15 bar
- AIR AND WATER SYSTEM Shank Lubrication Device: SLU-1 (Air / oil mist)
- AIR AND WATER SYSTEM Air Compressor: CTN10, 1.0 m³/min (7 bar)
- AIR AND WATER SYSTEM Oil Consumption: 150 - 250 g/h
- AIR AND WATER SYSTEM Air Consumption: 250 - 350 l/min
- AIR AND WATER SYSTEM Compressed Air Outlet: Quick coupling
- OPERATOR’S SAFETY CABIN Safety Cabin Certification: FOPS / ROPS (ISO 3449 / 3471)
- OPERATOR’S SAFETY CABIN Operation: Seated tramming | Standing and seated drilling
- OPERATOR’S SAFETY CABIN Sound Pressure Level : According to EN791, ISO4872, ISO1120 | Operator station: 69 db(A)
- OPERATOR’S SAFETY CABIN Vibration Level: According to EN791, ISO2631-1
- OPERATOR’S SAFETY CABIN Seat: Fully adjustable seat (tramming and drilling)
- OPERATOR’S SAFETY CABIN Optimized Dust Level Control Via Air Circulation: Standard
- OPERATOR’S SAFETY CABIN Air Conditioning : EU6/7 filtering capacity
- OPERATOR’S SAFETY CABIN Cabin Heating: During tramming and drilling
- OPERATOR’S SAFETY CABIN Electricity Outlets: 1 x 12 VDC and CD player readiness
- OPERATOR’S SAFETY CABIN Stairs And Indoors Lights: LED
- OPERATOR’S SAFETY CABIN Audio Player: CD / MP3 player with radio
- OPERATOR’S SAFETY CABIN Boot Washer: At each cabin entrance
- OPERATOR’S SAFETY CABIN Safety Laminated Acoustic Windows: Standard
