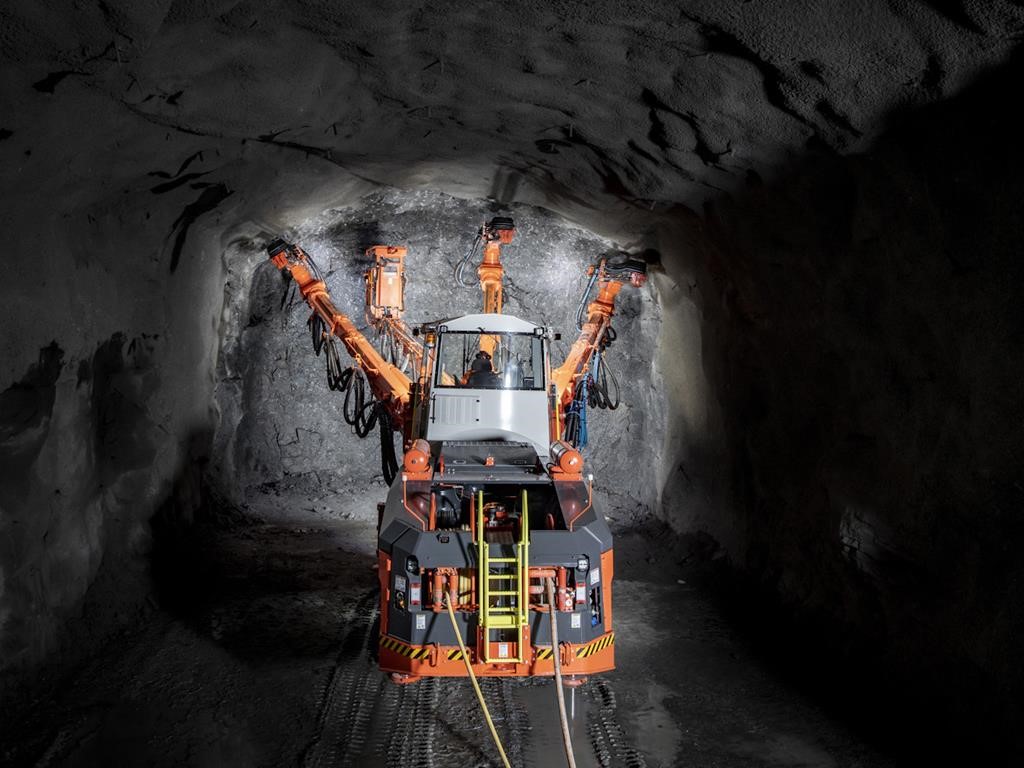

SANDVIK DT1132I―TUNNELING JUMBOS
Sandvik DT1132i is a fully automated i-series tunneling jumbo equipped with three electrohydraulic booms for fast and accurate drilling in tunneling and cavern excavations. This tunneling drill rig has automatic drilling functions and boom positioning. Thanks to the automated drilling of preplanned drilling patterns combined with an extensive data collection and reporting system, DT1132i enables continuous control of productivity, quality and efficiency. iSURE® software utilizes the rig’s data collection to improve the work cycle and the drill and blast excavation process.
The optional toolset GeoSURE, for geological analysis and mapping, as well as the onboard 3D-scanner provide valuable feedback to produce rock mass interpretation, assess reinforcement/ injection needs and indicate over- and underbreak.
MAIN BENEFITS
VERSATILE AND HIGHLY PRODUCTIVE
Equipped with RD535 rock drill, Sandvik DT1132i has more rock drill power to reduce the drilling time and increase advance meters per cycle, saving time and money. In addition to face drilling, this unit can also be utilized in other applications such as: long-hole drilling, cross-cutting and bolt hole drilling.
SB160I INSTRUMENTED BOOM

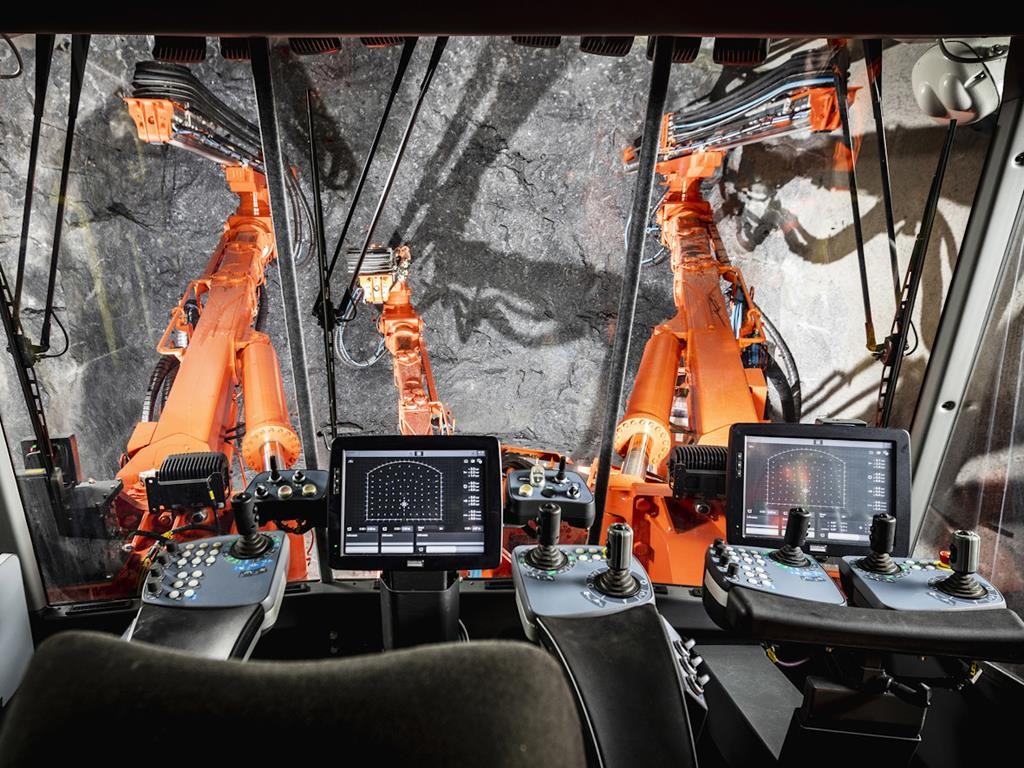

The 3 meter telescopic SB160i boom with double roll-over for mechanized tunneling, drifting, cross-cutting and bolt hole drilling uses a fully proportional boom control for accurate and fast manual boom handling.
ROD HANDLING SYSTEM
Typical applications are drilling of injection and probe hole fans heading from tunnel face forward. SRH provides safe, ergonomic and automated way of extension rod handling.
SUPERIOR DRILLING ACCURACY
The Alpha360 bits and GT38 rods are optimized for RD535 high power rock drill. The optimized rod diameter together with coupling guide and the bit gives superior drilling accuracy in face drilling.
SANDVIK DRILLCONNECT
Readiness for Sandvik DrillConnect mobile application for improved data management and enhanced maintenance, and My Sandvik digital services.
AT – PIPE UMBRELLA OPTIONAL KIT
In case of weak ground conditions, Sandvik DT1132i can be equipped with the AT – Pipe Umbrella to install pipes, prior to excavation to create an umbrella/canopy ensuring reliable support and increased stability.
RD535 ROCK DRILL
RD535 has efficient, powerful patented percussion mechanism, efficient and patented stabilizer structure High performance, high frequency with increased reliability and long service interval gives more production.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
