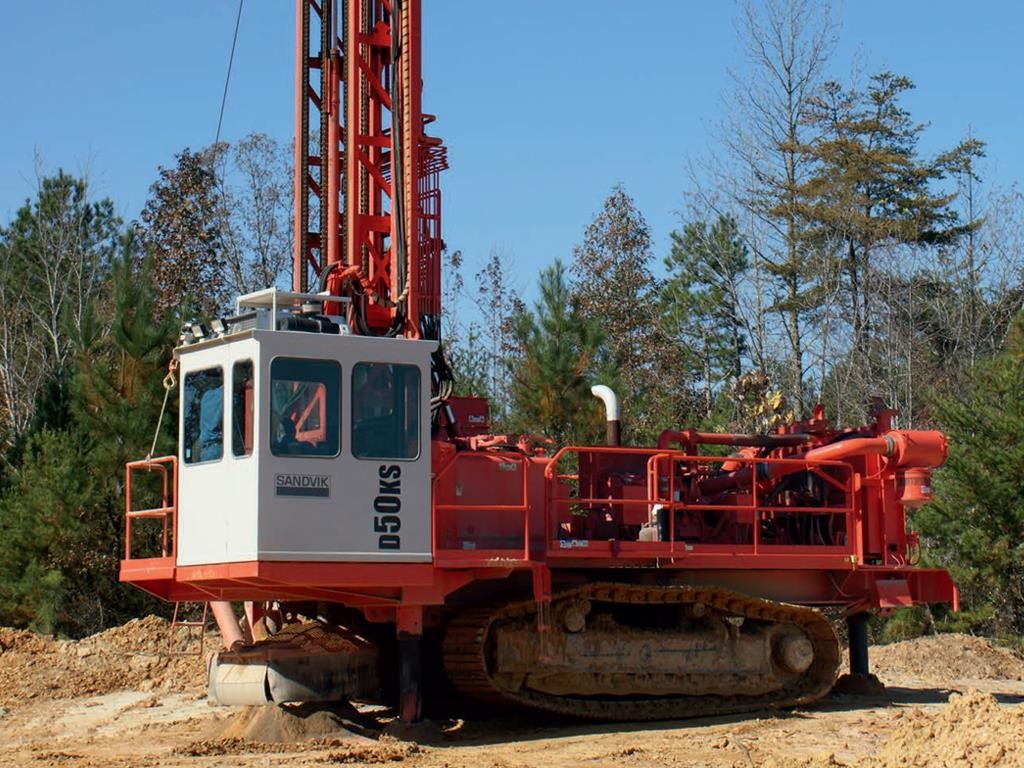

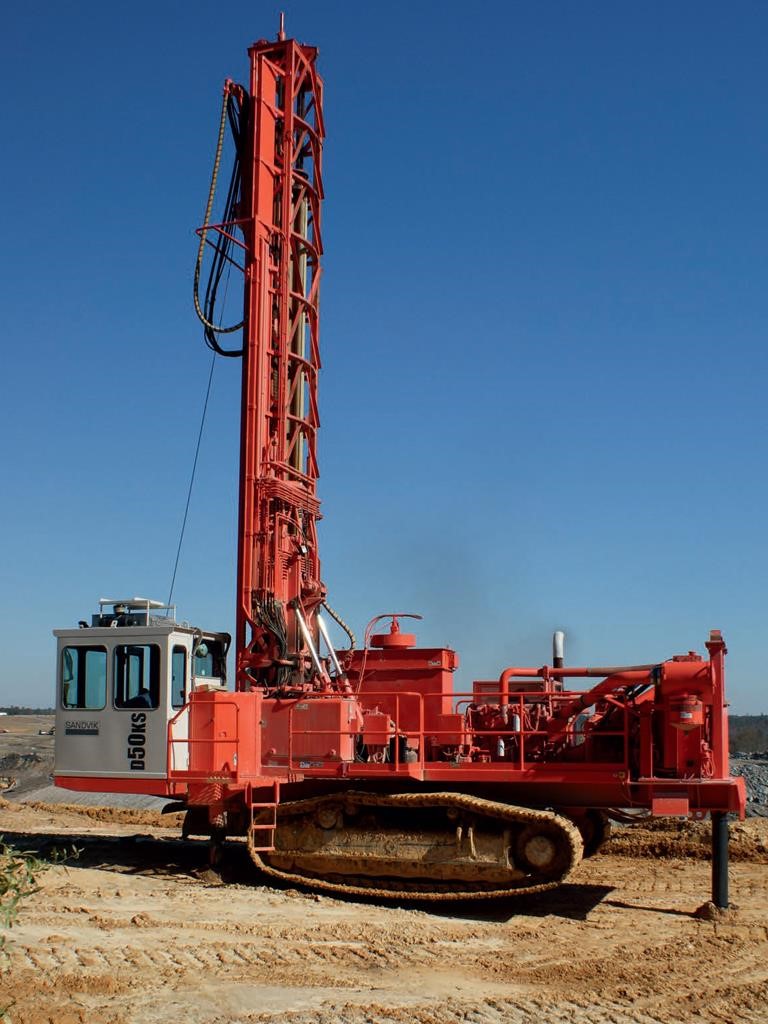

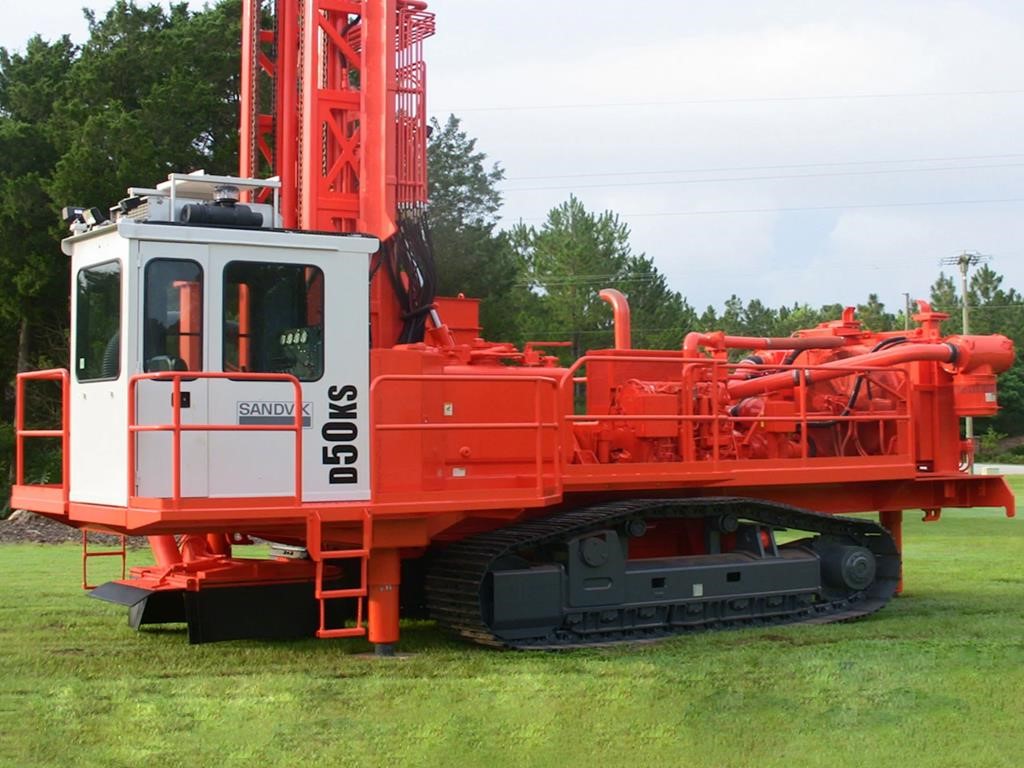

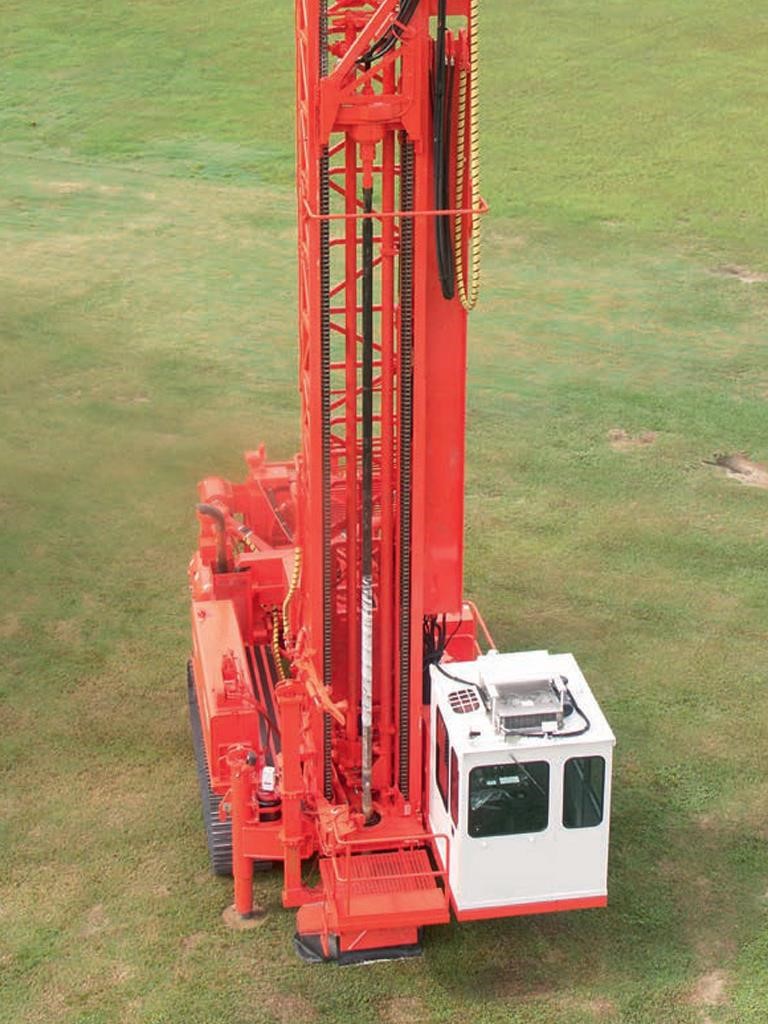

2025 SANDVIK D50KS

Open In-line Engine Design

• D50KS features an open in-line engine design, which ensures easy maintenance and serviceability, lowering operating costs and enhancing longevity.

Achieve Maximum Output

• Operators achieve greater productivity, comfort and visibility when working inside the driller’s cab, contributing to better work output.

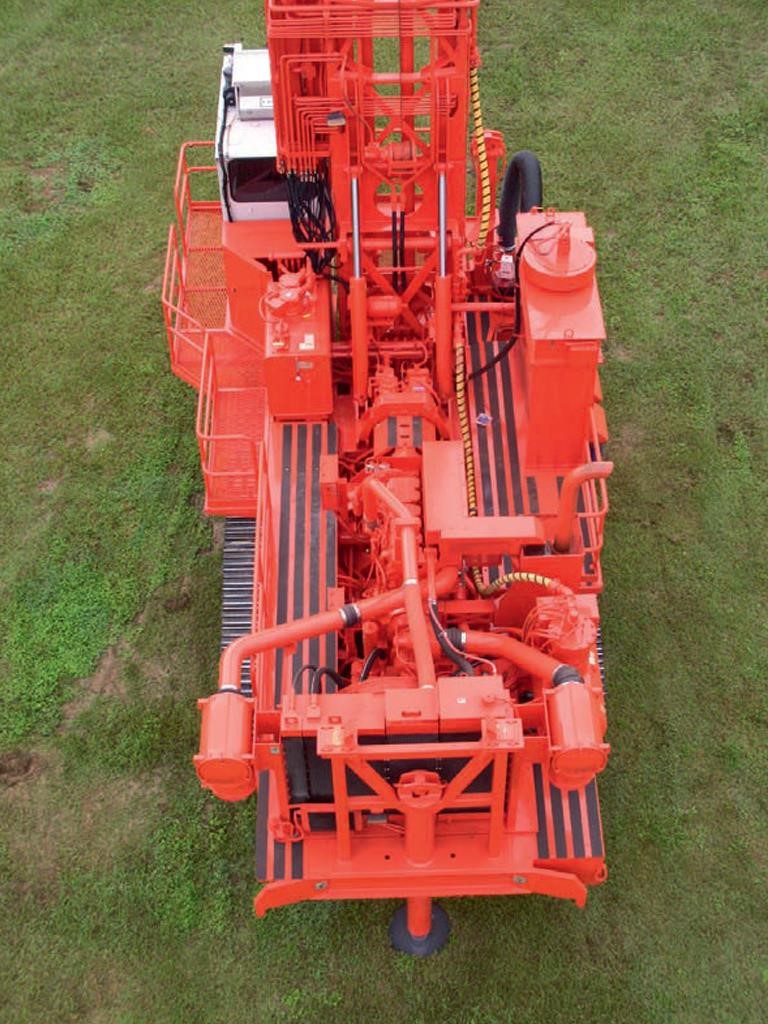

Sturdy Work Deck

• The rotary drill rig offers operators a well-designed work deck area built on a compact, powerful drilling platform that enhances stability and support.

Optimal Drilling

• D50KS comes with a low-pressure compressor for rotary drilling. Due to its upgraded, heavy-duty hydraulic system, the equipment delivers rotary horsepower for maximum productivity throughout its hole size range. Achieve efficient hole flushing and enhanced performance with load sensing and fan speed controls.
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2025
• Manufacturer: SANDVIK
• Model: D50KS
• Condition: New

Other

• Performance Hole Diameter: 152 - 229 mm | 6 - 9 in.
• Performance First Pass Hole Depth (Std. Mast):
• Performance First Pass Hole Depth (Ext. Mast):
• Performance Max. Hole Depth (Std. Mast): 45 m | 148 ft
• Performance Max. Hole Depth (Ext. Mast):
• Performance Drill Pipe: 9.14 m | 30 ft
• Performance Pull Down Force: 222 kN | 50,000 lbf.
• Performance Weight On Bit:
• Performance Maximum Bit Load: 267 kN | 60,000 lbf
• Performance Feed Rate: 0 - 38 m/min | 0-125 fpm
• Performance Operating Weight (approx): 47,726 kg | 105,000 lb
• Power Group Rated Horsepower: 417 kW | 560 hp
• Power Group Full Load Rpm: 1,800 RPM
• Power Group Standard Ambient Range: 46.1°C | 115°F
• Power Group Fuel Tank: 1,135L | 300 gal
• Power Group High Pressure: 29.7 m³/min | 1,050 scfm
• Power Group Rotary: 6.9 bar | 100 psi
• Power Group Compressor Options:
• Power Group High Pressure (Non Tier 4):
• Power Group High Pressure (Tier 4):
• Power Group Rotary Drilling (T3 & T4):
• Power Group Advanced Compressor Control:
• Power Group DTH Drilling:
• Power Group Ambient Operating Range:
• Frame And Integral Jacks Main Frame: CAD/FEA designed, wide flange beam main rails w/ heavy cross bracing reinforced at high-stress areas
• Frame And Integral Jacks Walkways:
• Frame And Integral Jacks Lifting Hooks: Welded, 2 front, 2 rear
• Frame And Integral Jacks Leveling Jacks: Three
• Frame And Integral Jacks Pad Diameter: 610 mm | 24 in.
• Frame And Integral Jacks Pad To Ground Clearance: 610 mm front, 457 mm rear when retracted | 24" front, 18" rear when retracted
• Undercarriage Model: Sandvik S30HD
• Undercarriage Track Shoe Width: 750 mm | 29 1/2 in
• Undercarriage Track Shoe Type: Triple grouser
• Undercarriage Width Over Tracks: 3,68 m | 145 in
• Undercarriage Track Length:
• Undercarriage Tram Speed: 3,2 km/h | 2.0 mph @100% theoretical efficiency
• Undercarriage Gradeability, Mast Down: 46% | 25 degrees
• Mast Construction: Rectangular tubing, welded/stress relieved, CAD designed, spray transfer welding method w/beveled toe joints, recessed side members
• Mast Pivot Bushings: Replaceable alloy aluminum bronze
• Mast Mast Raising Cylinders: 2
• Mast Mast Locking:
• Mast Hoist:
• Mast Pipe Loader:
• Mast Pipe Size:
• Mast Pipe Length:
• Mast Hydraulic Lines: Seamless pipe, Sch. 80 ASTM A53F P.O.P.
• Mast Table Hole Diameter: 508 mm | 20" for holding wrench pilot
• Feed Feed Type: Hydraulic cylinder and chain
• Feed Brake: Spring set, hydraulic release
• Feed Chain Type: Heavy series roller chains with heavy side bars and through hardened pins
• Feed Chain Size: Feed: Super 180H, 57 mm pitch 2-1/4” Hoist: Super 160H, 51 mm pitch 2”
• Feed Rotary Head Stroke: 10.4 m | 34 ft
• Feed Bit Load: 267 kN | 60,000 lbf
• Feed Feed Rate: 38 m/min | 0 to 125 ft/min
• Feed Chain Adjustment: Manually adjusted hydraulic
• Feed Chain Tensioning:
• Hydraulic System Oil Reservoir: 511 L | 135 gal w/sight glass & temp. gauge
• Hydraulic System Reservoir Pressurization: 34.5 kPa | 5 psi air, filtered breather
• Hydraulic System Reservoir Refill Capacity: 700 L | 185 gal
• Hydraulic System Standard Ambient Rating:
• Operator’S Cab Certification: Steel FOPS cover over AC unit meets AS 2294-1979 & ISO 3449-1992 FOPS drop test criteria
• Operator’S Cab Sound Level Rating: 81.8 dBA operating in drill mode tested per SAE J9196
• Operator’S Cab Floor Area: 1.78 m² | 19 1/5 ft²
• Operator’S Cab Height Inside: 1.98 m | 6' 6"
• Operator’S Cab Length: 1.98 m | 78"
• Operator’S Cab Width: 1.28 m | 50.2"
• Operator’S Cab Construction: Welded 10 gauge steel w/ 3/16" sheet steel roof
• Operator’S Cab Doors: 2 with heavy duty hinges lockable door latches
• Operator’S Cab Operator's Seat: Fully adjustable and swiveling with adjustable lumbar support, shoulder type seat belt
• Operator’S Cab Helper's Seat: Fixed
• Operator’S Cab Cabin Filtration:
• Operator’S Cab Sunshades:
• Operator’S Cab AM/FM Radio:
• Rotary Head Standard Rotary Speed/torque: 188 RPM at 6,643 Nm | 58,793 in-lb
• Rotary Head Alternate Rotary Speed/torque:
• Rotary Head Speed:
• Rotary Head Bull Shaft Thread:
• Operator’S Controls System:
• Operator’S Controls :
• Dust Suppression Dust Collector:
• Dust Suppression Water Injection (w/ DC):
• Dust Suppression Water Injection (w/o DC):
• Dust Suppression Water Injection (w/ Or W/o DC):
• Dust Suppression Water Pump:
• Dust Suppression Dust Hood:
• Standard Features Lighting:
• Standard Features Chain Lubrication:
• Standard Features Central Grease Lubrication:
• Standard Features Thread Lubrication:
• Standard Features Cameras:
• Standard Features Safety Features:
• Standard Features Fluid Service Center:
• Standard Features Remote Drain Points:
• Standard Features Strobe Lights:
• Standard Features Oil Sampling:
• Standard Features Diagnostics Package:
• Options Autoleveling:
• Options RemoteTram:
• Options Radio Remote:
• Options Mast Access:
• Options Wash Down:
• Options Hammer Lube / Bit Lube:
• Options Deck Crane:
• Options Fire Suppression:
• Options Additional Cameras:
• Options Auxilliary Fuel Tank:
• Options Central Lube:
• Arctic Package Genset:
• Arctic Package Electric Heaters:
• Arctic Package Fuel Fire Heaters:
• Arctic Package Insulation Wrap:
• Arctic Package Water Purging:
• Arctic Package Water Tank Heaters:
• Arctic Package Cold Weather Group:
• Automatic & Technology Features IDrill Performance :
• Automatic & Technology Features IDrill Navigation:
• Automatic & Technology Features Automine® Readiness Package:
• Automatic & Technology Features Connectivity:
• Automatic & Technology Features ILink Interface:
• Automatic & Technology Features Digital Solutions:
• Dimensions Mast Up Height (single Pass): 14.3 m | 46' 9"
• Dimensions Mast Down Length (single Pass): 14.2 m | 46' 7"
• Dimensions Mast Down Height W/ Work Deck: 5.82 m | 19' 1"
• Dimensions Mast Up Length: 9.45 m | 31'
• Dimensions Height Mast Down:
• Dimensions Height Mast Up:
• Dimensions Height Mast Up (std. Mast):
• Dimensions Height Mast Up (ext. Mast):
• Dimensions Operating Width: 4.42 m | 14' 6"
• Dimensions Width W/ Dust Collector:
• Dimensions Width W/o Dust Collector:
• Dimensions Base Unit Less Tools Weight: 43,545 kg | 96,000 lb
