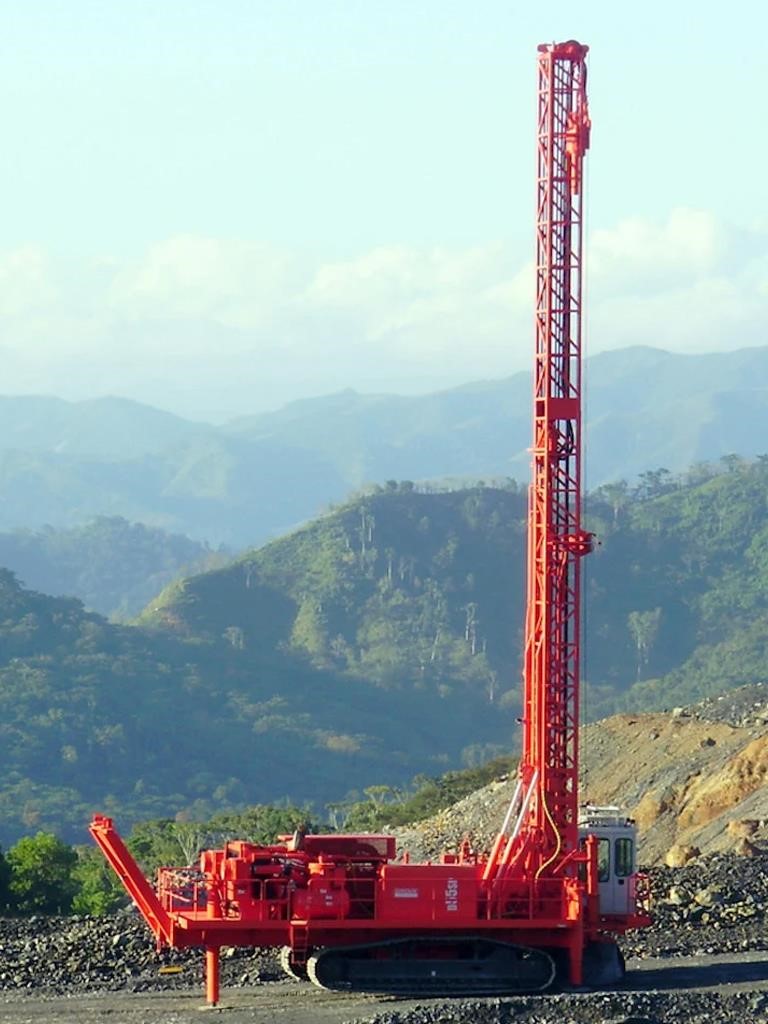

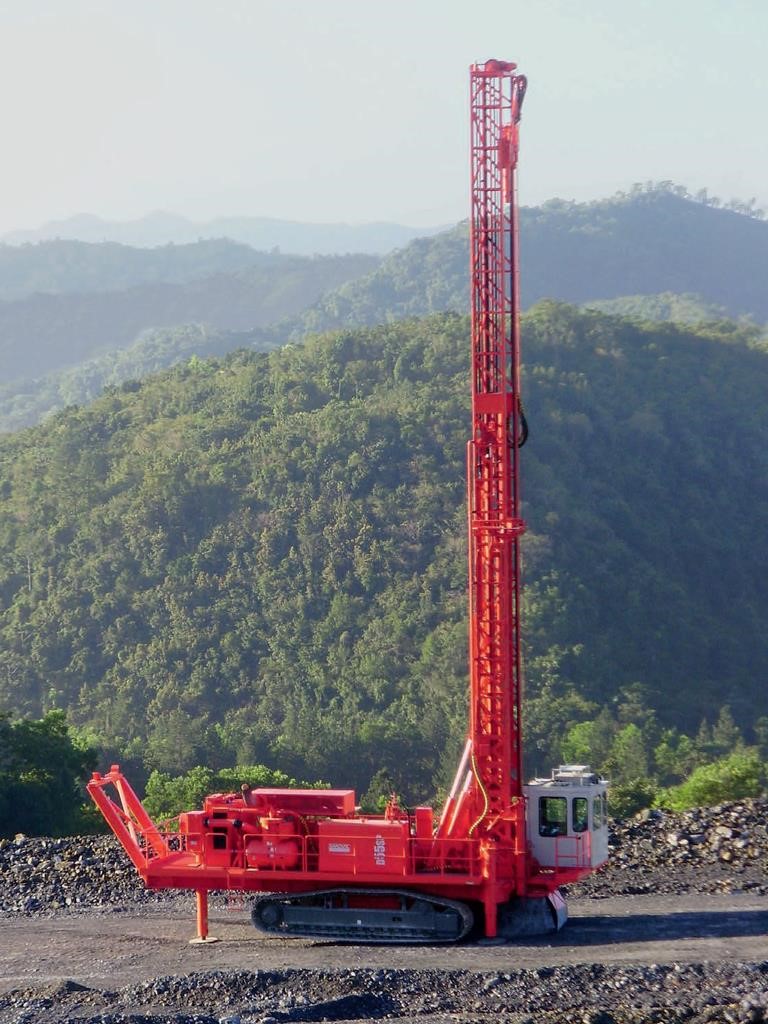

2025 SANDVIK D55SP

Engine And Compressor

• Attain the right combination of engine and compressor for demanding drilling conditions. The available range allows for hole flushing and down-the-hole drilling and ensures longevity by operating at lower speeds.

Sturdy Mast Construction For Optimal Penetration

• Sturdy mast and frame construction with robust components deliver industry-leading longevity.

Large Drilling Platform

• Large drilling platform ensures superior single-pass stability and support.
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2025
• Manufacturer: SANDVIK
• Model: D55SP
• Condition: New

Other

• Performance Hole Diameter: 127 - 254 mm | 6 3/4 - 10 in.
• Performance Maximum Hole Depth: 17 m | 55' Single Pass
• Performance Drill Pipe: 7.62 m | 25'
• Performance Maximum Pulldown: 200 kN | 45,000 lbf
• Performance Maximum Bit Load: 232 kN | 52,000 lbf
• Performance Feed Rate: 0-35.4 m/min | 0-116 fpm
• Performance Operating Weight: 79,333 kg | 174,900 lb
• Power Group Rated Horsepower: 567 kW | 760 hp
• Power Group Full Load Rpm: 1,800 RPM
• Power Group Standard Ambient Rating: -VE 15°C | 5°F - +VE 54°C | -130°F
• Power Group Fuel Tank: 2,274 l | 600 gal
• Power Group High Pressure: 38.2 m3/min | 1,350 scfm
• Power Group DTH: 24.1 bar | 350 psi
• Power Group Low Pressure: 45.3 m3/min | 1,600 scfm
• Power Group Rotary: 6.9 bar | 100 psi
• Power Group Compressor Options:
• Power Group Rotary Drilling:
• Power Group Advanced Compressor Control:
• Power Group DTH Drilling:
• Power Group Ambient Operating Range:
• Frame And Integral Jacks Main Frame: CAD/FEA designed, wide flange beam main rails w/ heavy cross bracing reinforced at high-stress areas.
• Frame And Integral Jacks Walkways: Open grip strut, 610 mm (24") wide, from cab to right deck and front to service cooler and air cleaners. Left side to service compressor receiver tank and dust control systems. Complete w/ handrails, kickplates & access ladders.
• Frame And Integral Jacks Lifting Hooks: Welded, 2 front, 2 rear
• Frame And Integral Jacks Leveling Jacks: 3
• Frame And Integral Jacks Pad Diameter: 7621 | 30"
• Frame And Integral Jacks Pad To Ground Clearance When Retracted: 457 mm | 18 in on rear 559 mm | 22 in on front
• Undercarriage Model: S40HD
• Undercarriage Pad Width: 850 mm | 33.5 in
• Undercarriage Pad Type: Triple grouser
• Undercarriage Width Over Tracks: 4,34 m | 14'3"
• Undercarriage Track Length:
• Undercarriage Tram Speed: 2.4 kmph | 1.5 mph
• Undercarriage Gradeability, Mast Down: 58% (approx. 30°)
• Feed Feed Type: Hydraulic cylinder and chain
• Feed Brake: Spring set, hydraulic release
• Feed Chain Type: 2 heavy series roller chains with heavy side bars and thru hardened pins
• Feed Chain Size: ANSI #180 Super-H Series, 57.2 mm | 2 1/4" pitch
• Feed Rotary Head Stroke: 18.9 m | 62'
• Feed Bit Load: 232 kN | 52,000 lbf with heavy wall pipe
• Feed Chain Adjustment: Manually adjusted hydraulic
• Feed Rated Pull Back Force:
• Feed Feed Up Rate:
• Feed Chain Tensioning:
• Hydraulic System Oil Reservoir: 872 l | 230 gal w/sight glass & temp gauge
• Hydraulic System Reservoir Pressure: 34.5 kPa | 5 psi air, filtered breather
• Hydraulic System Reservoir Refill Capacity: 1,213 l | 320 gal
• Hydraulic System Standard Ambient Rating : 40 to +100°C | 40 to +212°F
• Mast Construction: Rectangular tubing, welded, spray transfer welding method w/beveled toe joints and recessed side members, and reinforcing in high stress areas. CAD designed.
• Mast Pivot Bushings: Replaceable alloy aluminum bronze
• Mast Hydraulic Lines: Pressure rated steel hydraulic tubing, all pipes clamped in plastic clamps
• Mast Angle Drilling: 0° to 20° in 5° increments
• Mast Table Hole Diameter: 508 mm | 20" for holding wrench pilot
• Mast Mast Raising Cylinders: Two
• Mast Hoist:
• Mast Pipe Loader:
• Mast Pipe Size:
• Mast Pipe Length:
• Operator’S Cab Certification: FOPS rated AS2294, meets drop criteria per SAE J231
• Operator’S Cab Sound Level: 80 dB(A) or less
• Operator’S Cab Operator's Seat: Fully adjustable and swiveling with adjustable lumbar support, shoulder type seat belt
• Operator’S Cab Helper's Seat: Fixed
• Operator’S Cab Floor Area: 4 m2 | 43 ft2
• Operator’S Cab Height Inside: 2.28 m | 90"
• Operator’S Cab Length: 1.83 m | 6 ft
• Operator’S Cab Width: 2.2 m | 87"
• Operator’S Cab Construction: Welded 10 gauge steel w/ 3/16” sheet steel roof
• Operator’S Cab Doors: Two, swing type with heavy duty hinges and rotary type latch
• Rotary Head Model:
• Rotary Head Rotary Power: 136 kW | 182 HP
• Rotary Head Standard Rotary Speed/torque: 131 rpm at 9,943 Nm | 88,000 in-lb
• Rotary Head Alternate Rotary Speed/ Torque W/ 5 ½" API Thread: 114 rpm at: 10,993 Nm | 97,300 in-lb 145 rpm at" 8,643 Nm | 76,400 in-lb
• Rotary Head Bullshaft Thread: 3.5 in API REG.
• Operator’S Controls Location:
• Operator’S Controls GUI:
• Dust Suppression Dust Collector:
• Dust Suppression Water Injection (w/ DC):
• Dust Suppression Water Injection (w/o DC):
• Dust Suppression Water Injection (w/ Or W/o DC):
• Dust Suppression Water Pump:
• Dust Suppression Dust Hood:
• Standard Features Lighting:
• Standard Features Chain Lubrication:
• Standard Features Central Grease Lubrication:
• Standard Features Thread Lubrication:
• Standard Features Cameras:
• Standard Features Safety Features:
• Standard Features Fluid Service Center:
• Standard Features Remote Drain Points:
• Standard Features Strobe Lights:
• Standard Features Oil Sampling:
• Standard Features Diagnostics Package:
• Options Autoleveling:
• Options RemoteTram:
• Options Radio Remote:
• Options Mast Access:
• Options Wash Down:
• Options Air Hose Reel:
• Options Hammer Lube / Bit Lube:
• Options Deck Crane:
• Options Fire Suppression:
• Options Additional Cameras:
• Options Auxilliary Fuel Tank:
• Options Central Lube:
• Arctic Package Genset:
• Arctic Package Electric Heaters:
• Arctic Package Fuel Fire Heaters:
• Arctic Package Insulation Wrap:
• Arctic Package Water Purging:
• Arctic Package Water Tank Heaters:
• Arctic Package Cold Weather Group:
• Arctic Package Electrical Supply To Heaters:
• Technology Features Performance :
• Technology Features Navigation:
• Technology Features Automine® Readiness Package:
• Technology Features Connectivity:
• Technology Features ILink Interface:
• Technology Features Digital Solutions:
• Dimensions Mast Up Height (single Pass): 23,06 m | 75’ 8”
• Dimensions Operating Width: 5.05 m | 16’ 7”
• Dimensions Mast Down Length (single Pass): 22.63 m | 74’ 3”
• Dimensions Mast Down Height W/ Work Deck: 5.33 m | 17’ 6”
• Dimensions Mast Up Length: 13.72 m | 45’ 0”
• Dimensions Height Mast Up:
• Dimensions Height Mast Up (std. Mast):
• Dimensions Height Mast Up (ext. Mast):
• Dimensions Width:
• Dimensions Width W/ Dust Collector:
• Dimensions Width W/o Dust Collector:
• Dimensions Estimated Operating Weight: 51,937 kg | 114,500 lb
