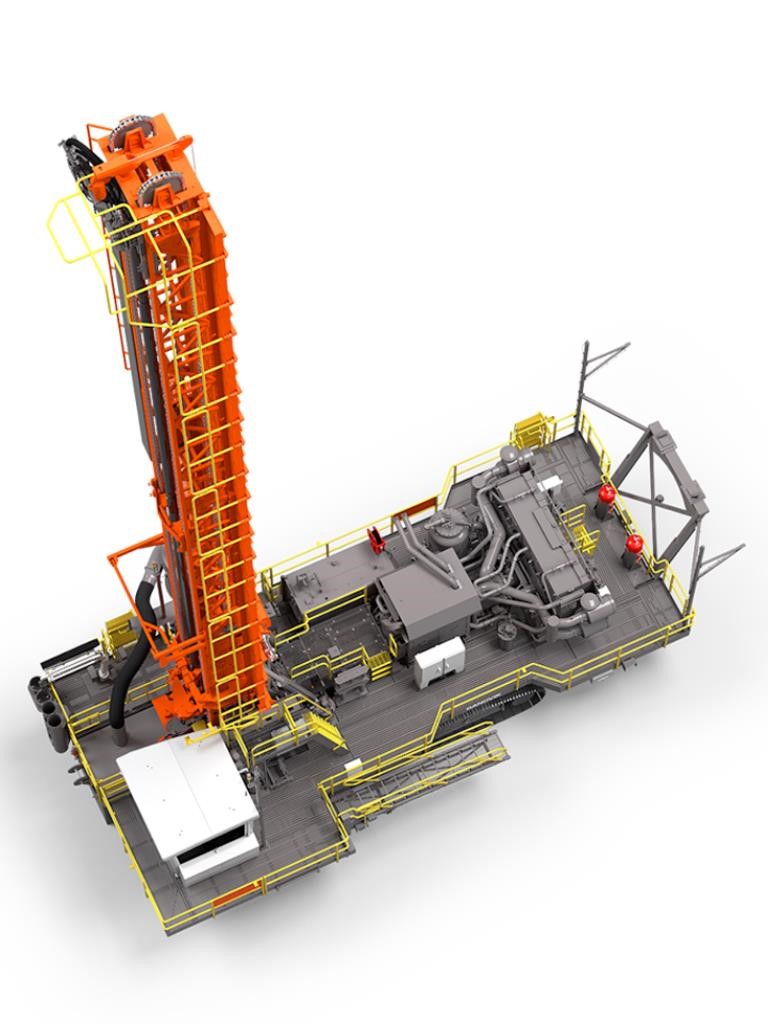

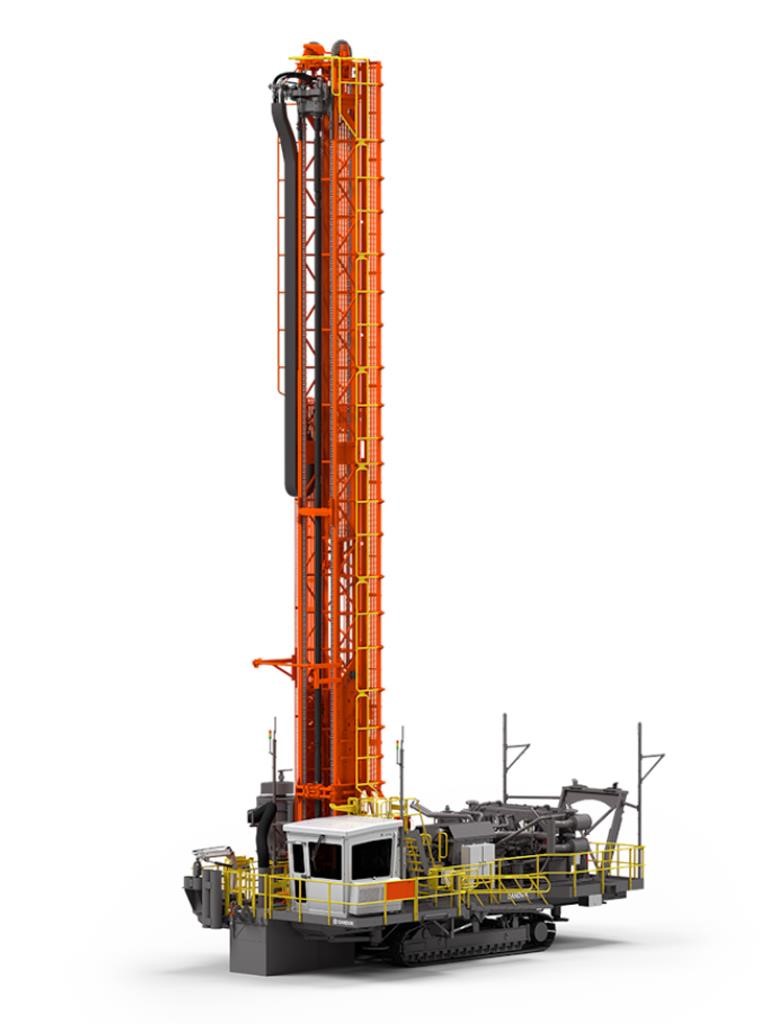

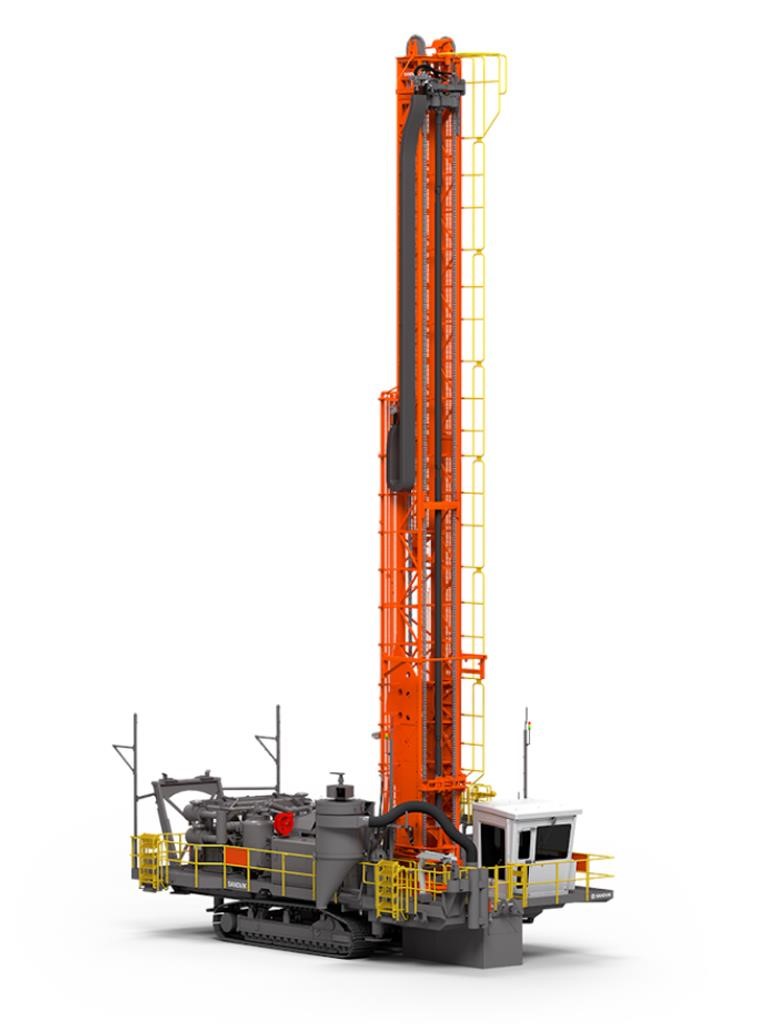

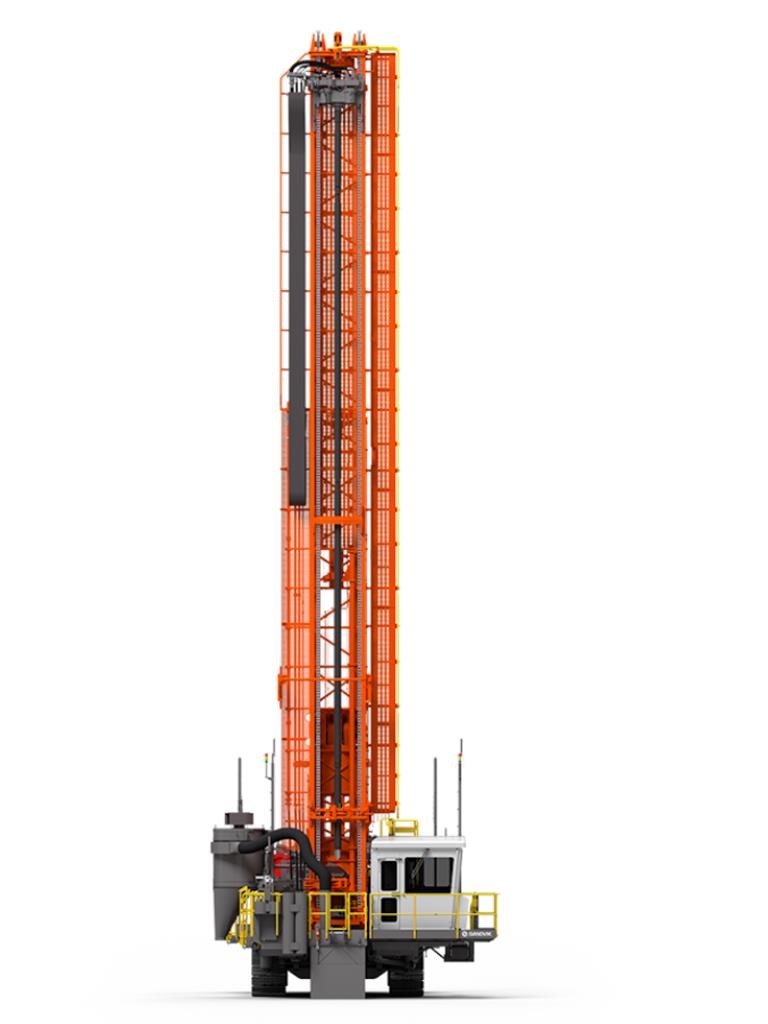

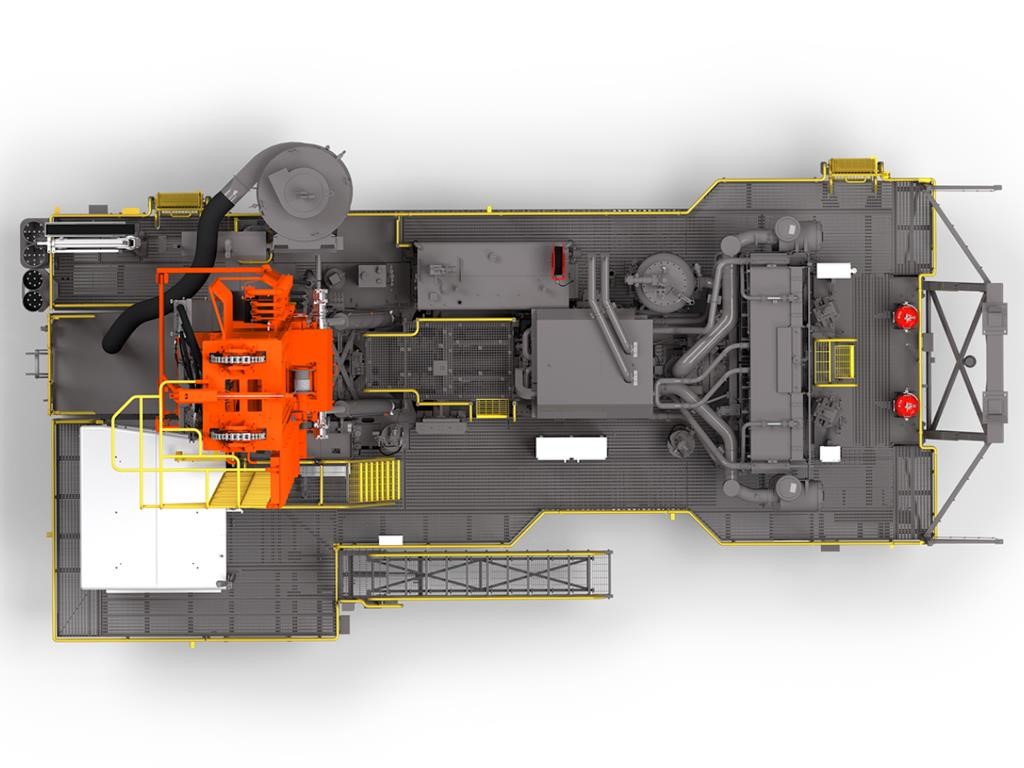

2025 SANDVIK DR413I

High-altitude Applications

• This rotary drill has a 17-meter mast and a hole diameter range of 250 mm to 349 mm. It provides the horsepower to meet high-altitude application requirements without system overload, which eliminates the need to purchase an oversized machine to meet added horsepower requirements.

Onboard Diagnostics

• The DR413i has intelligent features, helping operators take the guesswork out of daily activities. Features like Independent Cooler Control, Onboard Diagnostics, System Health, Wireless Remote Control, SICA Control System and Electronic Depth Counter help maintain operator awareness.

Arctic Enclosure Package

• Equipped with electric diesel-fired heaters and a robust steel enclosure, the optional Arctic enclosure package guarantees availability of warm fluids during cold weather applications and prioritizes the safety and well-being of maintenance personnel by providing an additional protective layer against harsh elements.

New Rotary Head Design

• A two-stage internal gear reduction eliminates the external planetary gearbox to deliver higher torque. This improves reliability and increases machine availability.

Traveling Centralizer

• The traveling centralizer reduces pipe flex, which leads to improved drilling accuracy, straighter holes and reduces vibration for a more comfortable operating environment.
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2025
• Manufacturer: SANDVIK
• Model: DR413I
• Condition: New

Other

• Performance Hole Diameter: 249 – 349 mm / 9.88 – 13.75 in
• Performance First Pass Hole Depth: 17 m / 55.7 ft.
• Performance First Pass Hole Depth (Std. Mast):
• Performance First Pass Hole Depth (Ext. Mast):
• Performance Max. Hole Depth: 24.6 m / 80.7 ft
• Performance Max. Hole Depth (Std. Mast):
• Performance Max. Hole Depth (Ext. Mast):
• Performance Pull Down Force: 444 kN / 100,000 lbf
• Performance Weight On Bit: 52,100 kg / 115,000 lbs.
• Power Group CAT C18 (Tier 4) (Optional):
• Power Group CAT C18 (Non Tier 4) (Optional):
• Power Group Cummins QSK19 (Non Tier 4) (Optional):
• Power Group CAT C27 (Tier 4) (Optional):
• Power Group CAT C27 (Tier 4 / Non Tier 4):
• Power Group Cummins QSK 23 (Tier 4 / Non Tier 4) 7:
• Power Group CAT C32 (Tier 4 / Non Tier 4): 839 kW / 1,125 HP
• Power Group Cummins QST30 (Non Tier 4/Tier 4): 783 kW / 1,050 HP
• Power Group Compressor: 73.6 m³/min. @ 5.5 bar / 2,600 SCFM @ 80 psi
• Power Group Fuel Tank: 3,407 l / 900 gal.
• Power Group Ambient Operating Range: -40° to 50°C / -40° to 122°F
• Power Group Compressor Options:
• Power Group Rotary Drilling:
• Power Group DTH Drilling:
• Hydraulic System Reservoir Capacity: 1,181 l / 312 gal.
• Hydraulic System :
• Frame And Integral Jacks Main Frame: Designed with wide flange beams and design verified by structural FEA calculations
• Frame And Integral Jacks Walkways: Slip resistant steel grip strut material
• Frame And Integral Jacks Leveling Jacks: 4
• Frame And Integral Jacks Pad Diameter: 762 mm / 30 in
• Frame And Integral Jacks Pad To Ground Clearance: 584 mm (rear) / 23 in 558 mm (front) / 22 in
• Undercarriage Model: S46HD
• Undercarriage Track Shoe Width: 900 mm / 35.4 in
• Undercarriage Track Shoe Type: Triple grouser
• Undercarriage Width Over Tracks: 4,573 mm / 180 in
• Undercarriage Track Length: 6,454 mm / 254.12 in
• Undercarriage Tram Speed: 2.1 kmph / 1.3 mph
• Mast Construction: Designed with rectangular structural tubing and design verified by structural FEA calculations
• Mast Angle Drilling: 0 - 20° for ext. mast
• Mast Hoist: 30.2 kN / 6,500 lbf.
• Mast Pipe Loader: 1 pod
• Mast Pipe Size: 194 mm / 7.63 in, 219 mm / 8.63 in, 235 mm / 9.25 in, 245 mm / 9.63 in 273 mm / 10.75 in
• Mast Pipe Length: 7.62 m / 25 ft.
• Feed Feed Type: Hydraulic motor with heavy duty roller chains
• Feed Chain Type:
• Feed Pull Down Force: 444 kN / 100,000 lbf.
• Feed Feed Rate: 0 – 42.6 m/min. / 0 - 140 fpm
• Feed Pull Back Force: 178 kN / 40,000 lbf.
• Feed Feed Up Rate:
• Feed Chain Tensioning: Manual - grease cylinders
• Rotary Head Model: MRH 12
• Rotary Head Rotary Power: 193 kW / 260 HP
• Rotary Head Speed: 0 - 150 RPM
• Rotary Head Bull Shaft Thread: 5.5 in API REG.
• Operator’S Cab Certification: FOPS rated (ISO 3449 level II)
• Operator’S Cab Sound Level: 80 dB or less
• Operator’S Cab Operator's Seat: Fully adjustable and swiveling with lumbar support, pneumatic suspension and 3 point seat belt
• Operator’S Cab Helper's Seat: With 2-point seat belt
• Operator’S Cab Camera Display: Tramming and pipe handling
• Operator’S Cab HVAC System: -40° to 50°C / -40° to 122°F | Standard – Single system | Optional – Dual system
• Operator’S Cab Cabin Filtration: HEPA filtration with pressure / CO2 monitoring system
• Operator’S Cab Sunshades: Standard on all windows – retractable
• Operator’S Cab AM/FM Radio: Standard w/ Bluetooth
• Operator’S Controls Location: Seat mounted left and right hand control panels for all drill functions
• Operator’S Controls GUI: Seat mounted 12” touch screen
• Dust Suppression Dust Collector: 198 m³/min. / 7,000 CFM
• Dust Suppression Water Injection (w/ DC):
• Dust Suppression Water Injection (w/o DC): 3,028 l / 800 gal.
• Dust Suppression Water Injection (w/ Or W/o DC):
• Dust Suppression Water Pump: 34 lpm / 9 GPM
• Dust Suppression Dust Hood: Hyd. cylinder actuated dust door and curtains
• Standard Features Lighting: LED lights for access and maintenance
• Standard Features Chain Lubrication: Electric, operated from cab
• Standard Features Central Grease Lubrication: Electric, automatic
• Standard Features Thread Lubrication: Electric, operated from cab
• Standard Features Cameras: 2 for tramming | 2 for pipe handling
• Standard Features Safety Features: Emergency stops near all ladders and on main elec. enclosure; pull type cable stop on mast; fuel fill isolator on fluid service center
• Standard Features Fluid Service Center: Remote fill points: Fuel, engine coolant, hyd. oil, central lube, chain lube Remote drain points: Engine oil, engine coolant, hyd. oil, compressor oil, pump drive oil
• Standard Features Strobe Lights: 2 (on mast and on frame)
• Standard Features Oil Sampling: Live SOS sampling points for: hydraulic oils and compressor oils
• Standard Features Diagnostics Package: Sensor package for key pump parameters
• Options Radio Remote: For tramming and hoist
• Options Mast Access: Steel grating infill on mast with mast access ladder
• Options Machine Access: Self levelling hyd. stair
• Options Wash Down: Water wash hose reel
• Options Hammer Lube / Bit Lube: 115 l / 30 gal.
• Options Deck Crane: For bit handling
• Options Fire Suppression: Sandvik eclipse wet fire suppression system
• Options Additional Cameras: 360° camera package for an all-around view of the machine
• Arctic Package Genset: 30 kW / 40 HP
• Arctic Package Electric Heaters: Hydraulic oil, water, chain lube, pump drive, compressor oil, engine oil, battery warmer
• Arctic Package Fuel Fire Heaters: Engine coolant, water
• Arctic Package Insulation Wrap: On water pump and receiver tank
• Arctic Package Arctic Enclosure: Steel enclosure to cover engine, compressor and hydraulic area with LED lighting inside
• Arctic Package Water Purging: Automatic water purging system to prevent water freezing during idle, maintenance and shutdown
• Automatic & Technology Features IDrill Performance : Auto level Auto Mast Adaptive Auto Drill
• Automatic & Technology Features IDrill Navigation: High precision TIM 3D navigation (Trimble / Leica)
• Automatic & Technology Features Automine® Readiness Package: Line of sight Control Room Autonomous
• Automatic & Technology Features Connectivity: Onboard Knowledge box® (4G / LTE , Wifi)
• Automatic & Technology Features ILink Interface: 3rd party interface through Rest API
• Automatic & Technology Features Digital Solutions: Driller’s office My Sandvik Onsite My Sandvik Productivity Remote Monitoring Service
• Dimensions Length Mast Up:
• Dimensions Length Mast Up (w/o Genset Deck): 14.86 m / 48 ft. 9 in
• Dimensions Length – Mast Up (w/ Genset Deck): 15.6 m / 51 ft. 2 in
• Dimensions Length Mast Down (std. Mast):
• Dimensions Length Mast Down (sext Mast):
• Dimensions Height Mast Down: 8.13 m / 26 ft. 8 in
• Dimensions Height Mast Up: 25.8 m / 84 ft. 8 in
• Dimensions Height Mast Up (std. Mast):
• Dimensions Height Mast Up (ext. Mast):
• Dimensions Width: 7.4 m / 24 ft. 3 in
• Dimensions Width W/ Dust Collector:
• Dimensions Width W/o Dust Collector:
• Dimensions Estimated Operating Weight: 116.5 – 127 tonnes / 257,000 – 280,000 lbs.
