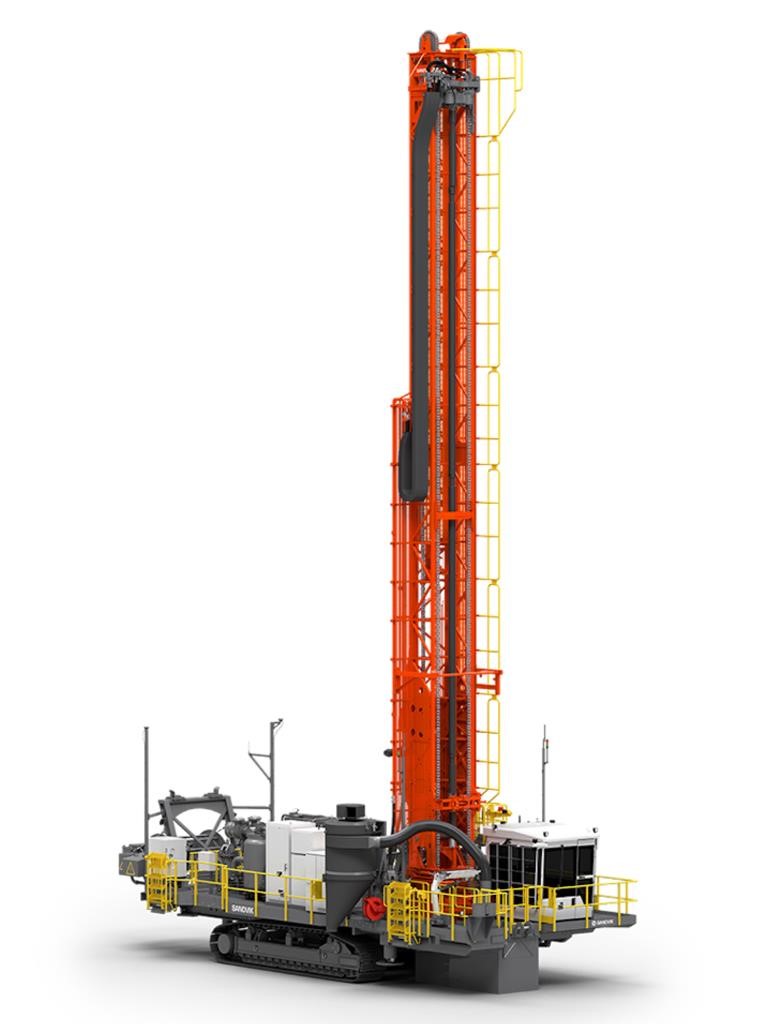

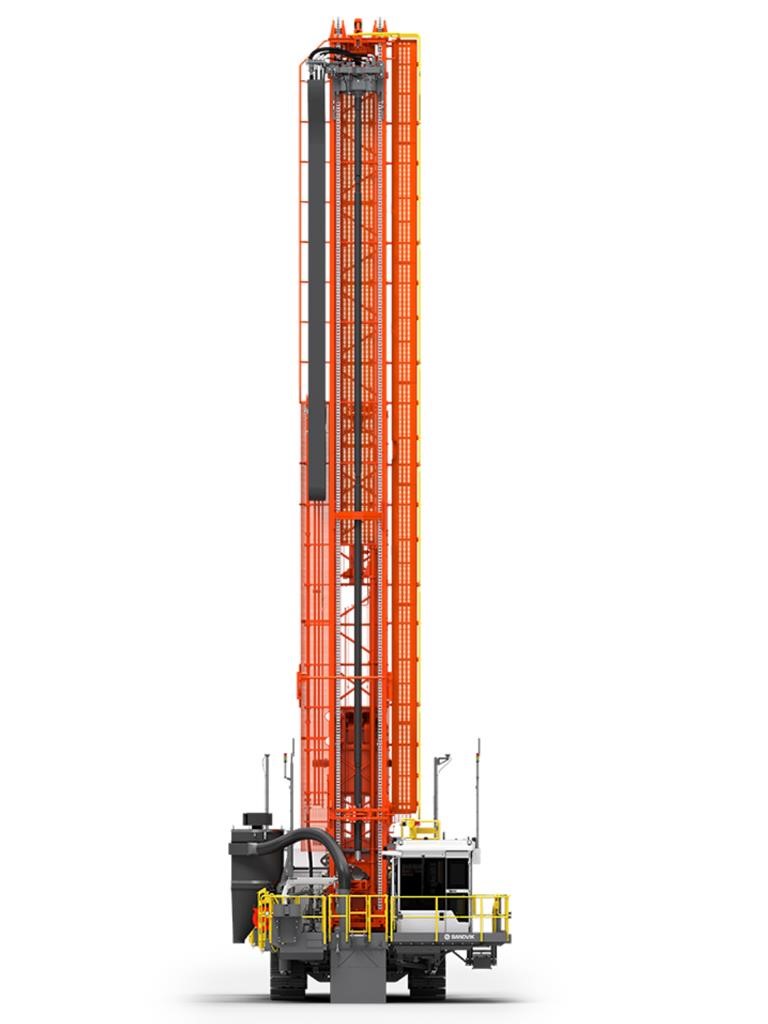

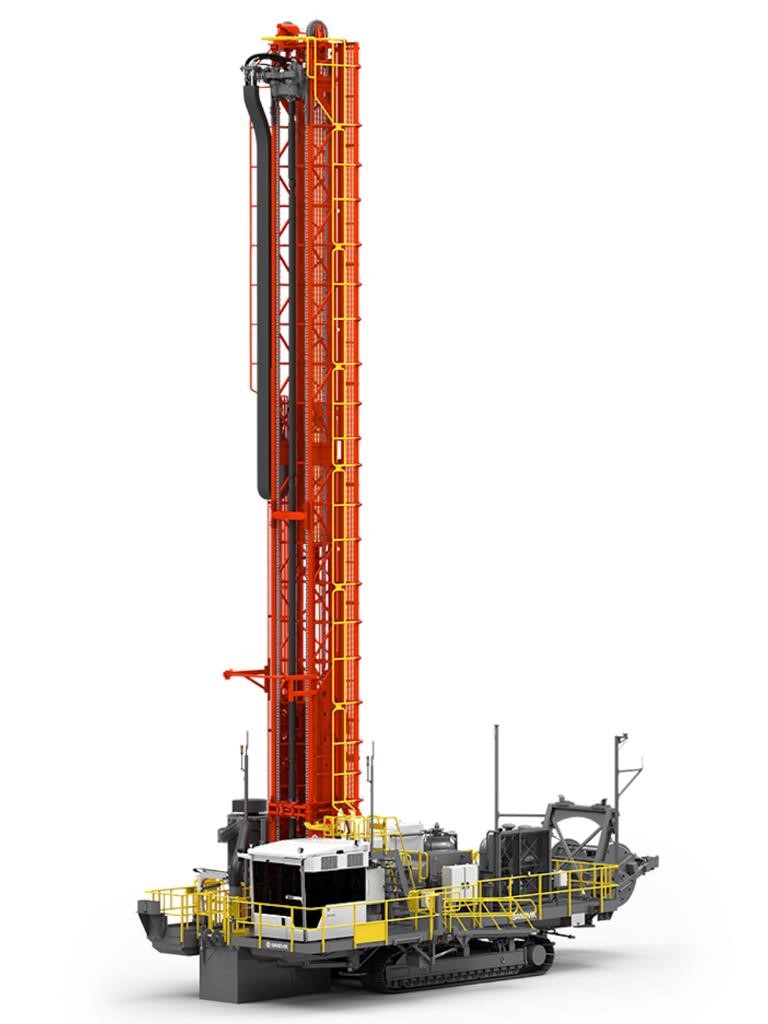

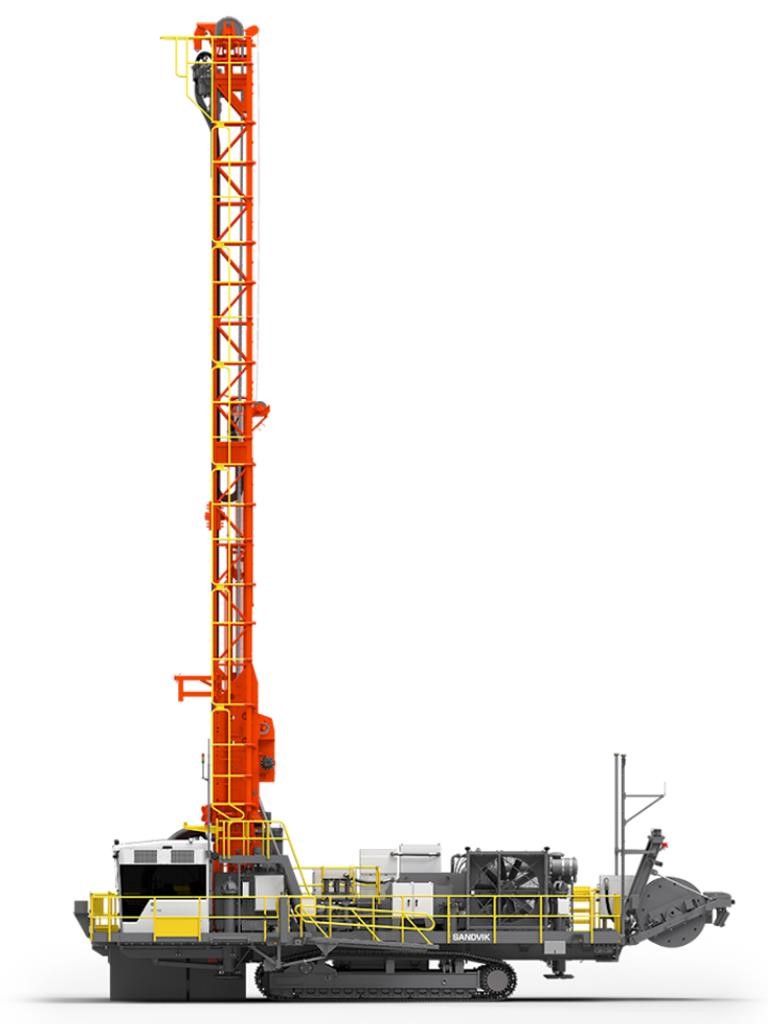

2025 SANDVIK DR413IE

Multi-voltage, Multi-frequency Power Pack With Soft Starter

• Sandvik iSeries electric rotary drills comes with flexibility in terms of electric motor. The electric motor is multi-voltage (4160-7200 V) and 50/60Hz rated to cover the global power supply needs. Onboard Soft starter is standard to reduce impact on mine power grid and affect the work on other machines.

Cable Reel-optional

• Optional 300m cable reel to connect to mine substation.

Traveling Centralizer

• The traveling centralizer reduces pipe flex, leading to improved drilling accuracy and straighter holes. It also reduces vibration, creating a more comfortable operating environment.

Designed With Safety In Mind

• Meets worldwide standards including Mining Design Guidelines (MDG) for mobile and transportable equipment in mines, Earth Moving Equipment Safety Round Table (EMESRT) design philosophies, ISO 3449 Level II and CE conformity marking.

Eliminates Manual Bit Handling (option)

• Operators can handle pipes from inside the cab using Sandvik’s carousel and breakout system, which features an optional hands-free bit changing capability, further improving safety.

Compressor Management

• Advanced compressor management reduces the load by controlling air volume to maximize efficiency and reduce fuel burn, decreasing your carbon footprint and extending engine and compressor life.

Precision-drilled Holes

• The scalable iDrill automation platform unlocks automation options and digital services to provide clean, precision-drilled holes, maximizing fragmentation and asset utilization.

Enhanced Accessibility (option)

• Ensure safety during inspection and maintenance with a dedicated ladder that provides easy access to mast components. Fiberglass Reinforced Plastic grating mast infill and certified tie-off points address working-at-height concerns, while the optional hydraulic main-access stairway facilitates stepping on and off the drill.

Operator Comfort And Control

• Operators receive an unobstructed view of the drill table from a raised, swivel-enabled chair with integrated touchscreens and keypads. Large, angled windows reduce glare and a safari-style roof keeps the cab cooler.
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2025
• Manufacturer: SANDVIK
• Model: DR413IE
• Condition: New

Engine

• Horsepower: 1000

Other

• HorsepowerUnit: horsepower
• Shippingwidth: 291.3385823800000
• ShippingwidthUnit: inch
• Shippingheight: 320.07873983100000
• ShippingheightUnit: inch
• Shippinglength: 1051.1811012900000
• ShippinglengthUnit: inch
• Performance Hole Diameter: 249 – 349 mm / 9.88 – 13.75 in
• Performance First Pass Hole Depth: 17 m / 55.7 ft.
• Performance First Pass Hole Depth (Std. Mast):
• Performance First Pass Hole Depth (Ext. Mast):
• Performance Max. Hole Depth: 24.6 m / 80.7 ft
• Performance Max. Hole Depth (Std. Mast):
• Performance Max. Hole Depth (Ext. Mast):
• Performance Pull Down Force: 444 kN / 100,000 lbf.
• Performance Weight On Bit: 52,100 kg / 115,000 lbs.
• Power Group Electric Motor: ABB – 746 kW / 1000 HP
• Power Group Operating Voltage: 4,160 – 7,200 V
• Power Group Operating Frequency: 50 / 60 Hz (Compressor output differs based on the frequency)
• Power Group Soft Starter: Standard
• Power Group Cable Reel: 300 m / 984 ft. (cable not included)
• Power Group Compressor Options:
• Power Group Rotary Drilling:
• Power Group DTH Drilling:
• Power Group Fuel Tank:
• Power Group Compressor: 73.6 m³/min @ 5.5 bar / 2,600 SCFM @ 80 ps
• Power Group Ambient Operating Range: -40° to 50°C / -40° to 122°F
• Hydraulic System Reservoir Capacity: 1,181 l / 312 gal.
• Hydraulic System :
• Frame And Integral Jacks Main Frame: Designed with wide flange beams and design verified by structural FEA calculations
• Frame And Integral Jacks Walkways: Slip resistant steel grip strut material
• Frame And Integral Jacks Leveling Jacks: 4
• Frame And Integral Jacks Pad Diameter: 762 mm / 30 in
• Frame And Integral Jacks Pad To Ground Clearance: 584 mm (rear) / 23 in 558 mm (front) / 22 in
• Undercarriage Model: S47HD
• Undercarriage Track Shoe Width: 900 mm / 35.4 in
• Undercarriage Track Shoe Type: Triple grouser
• Undercarriage Width Over Tracks: 4,573 mm / 180 in
• Undercarriage Track Length: 6,800 mm / 267.75 in
• Undercarriage Tram Speed: 2.1 kmph / 1.3 mph
• Mast Construction: Designed with rectangular structural tubing and design verified by structural FEA calculations
• Mast Angle Drilling: 0 - 20° for ext. mast
• Mast Hoist: 30.2 kN / 6,500 lbf.
• Mast Pipe Loader: 1 pod
• Mast Pipe Size: 194 mm / 7.63 in, 219 mm / 8.63 in, 235 mm / 9.25 in, 245 mm / 9.63 in, 273 mm / 10.75 in
• Mast Pipe Length: 7.62 m / 25 ft.
• Feed Feed Type: Hydraulic motor with heavy duty roller chains
• Feed Pull Down Force: 444 kN / 100,000 lbf.
• Feed Feed Rate: 0 – 42.6 m/min. / 0 - 140 fpm (Extended mast)
• Feed Feed Down Rate:
• Feed Pull Back Force: 178 kN / 40,000 lbf.
• Feed Feed Up Rate:
• Feed Chain Tensioning: Manual - grease cylinders
• Rotary Head Model: MRH 12
• Rotary Head Rotary Power: 193 kW / 260 HP
• Rotary Head Speed: 0 - 150 RPM
• Rotary Head Bull Shaft Thread: 5.5 in API REG.
• Operator’S Cab Certification: FOPS rated (ISO 3449 level II)
• Operator’S Cab Sound Level: 80 dB or less
• Operator’S Cab Operator's Seat: Fully adjustable and swiveling with lumbar support, pneumatic suspension and 3 point seat belt
• Operator’S Cab Helper's Seat: With 2-point seat belt
• Operator’S Cab Camera Display: Tramming and pipe handling
• Operator’S Cab HVAC System: -40° to 50°C / -40° to 122°F | Standard – Single system | Optional – Dual system
• Operator’S Cab Cabin Filtration: HEPA filtration with pressure / CO2 monitoring system
• Operator’S Cab Sunshades: Standard on all windows – retractable
• Operator’S Cab AM/FM Radio: Standard w/ Bluetooth
• Operator’S Controls Location: Seat mounted left and right hand control panels for all drill functions
• Operator’S Controls GUI: Seat mounted 12” touch screen
• Dust Suppression Dust Collector: 198 m³/min. / 7,000 CFM
• Dust Suppression Water Injection (w/ Or W/o DC): 3,028 l / 800 gal.
• Dust Suppression Water Pump: 30 lpm / 7.9 GPM
• Dust Suppression Dust Hood: Hyd. cylinder actuated dust door and curtains
• Standard Features Lighting: LED lights for access and maintenance
• Standard Features Chain Lubrication: Electric, operated from cab
• Standard Features Central Grease Lubrication: Electric, automatic
• Standard Features Thread Lubrication: Electric, operated from cab
• Standard Features Cameras: 2 for tramming | 2 for pipe handling
• Standard Features Safety Features: Emergency stops near all ladders and on main elec. enclosure; pull type cable stop on mast; fuel fill isolator on fluid service center
• Standard Features Fluid Service Center: Remote fill points: Hyd. oil, central lube, chain lube Remote drain points: Hyd. oil, compressor oil, pump drive oil
• Standard Features Strobe Lights: 2 (on mast and on frame)
• Standard Features Oil Sampling: Live SOS sampling points for: hydraulic compressor oils
• Standard Features Diagnostics Package: Sensor package for key pump parameters
• Options Radio Remote: For tramming and hoist
• Options Mast Access: Steel grating infill on mast with mast access ladder
• Options Machine Access: Self levelling hyd. stair
• Options Wash Down: Water wash hose reel
• Options Hammer Lube / Bit Lube: 115 l / 30 gal.
• Options Deck Crane: For bit handling
• Options Fire Suppression: Sandvik eclipse wet fire suppression system
• Options Additional Cameras: 360° camera package for an all-around view of the machine
• Arctic Package Electric Heaters: Hydraulic oil, water, chain lube, pump drive, compressor oil
• Arctic Package Insulation Wrap: On water pump
• Arctic Package Water Purging: Automatic water purging system to prevent water freezing during idle, maintenance and shutdown
• Automatic & Technology Features IDrill Performance : Auto level Auto Mast Adaptive Auto Drill
• Automatic & Technology Features IDrill Navigation: High precision TIM 3D navigation (Trimble / Leica)
• Automatic & Technology Features Automine® Readiness Package: Line of sight Control Room Autonomous
• Automatic & Technology Features Connectivity: Onboard Knowledge box® (4G / LTE , Wifi)
• Automatic & Technology Features ILink Interface: 3rd party interface through Rest API
• Automatic & Technology Features Digital Solutions: Driller’s office My Sandvik Onsite My Sandvik Productivity Remote Monitoring Service
• Dimensions Length Mast Up: 16.8 m / 55 ft. 2 in
• Dimensions Length Mast Down : 26.7 m / 87 ft. 7 in
• Dimensions Length Mast Down (std. Mast):
• Dimensions Length Mast Down (sext Mast):
• Dimensions Height Mast Down: 8.13 m / 26 ft. 8 in
• Dimensions Height Mast Up: 25.8 m / 84 ft. 8 in
• Dimensions Height Mast Up (std. Mast):
• Dimensions Height Mast Up (ext. Mast):
• Dimensions Width W/ Dust Collector: 7.4 m / 24 ft. 3 in
• Dimensions Width W/o Dust Collector: 6.93 m / 22 ft. 9 in
• Dimensions Estimated Operating Weight: 116.5 – 127 tonnes / 257,000 – 280,000 lbs
