2025 SANDVIK DR416IE

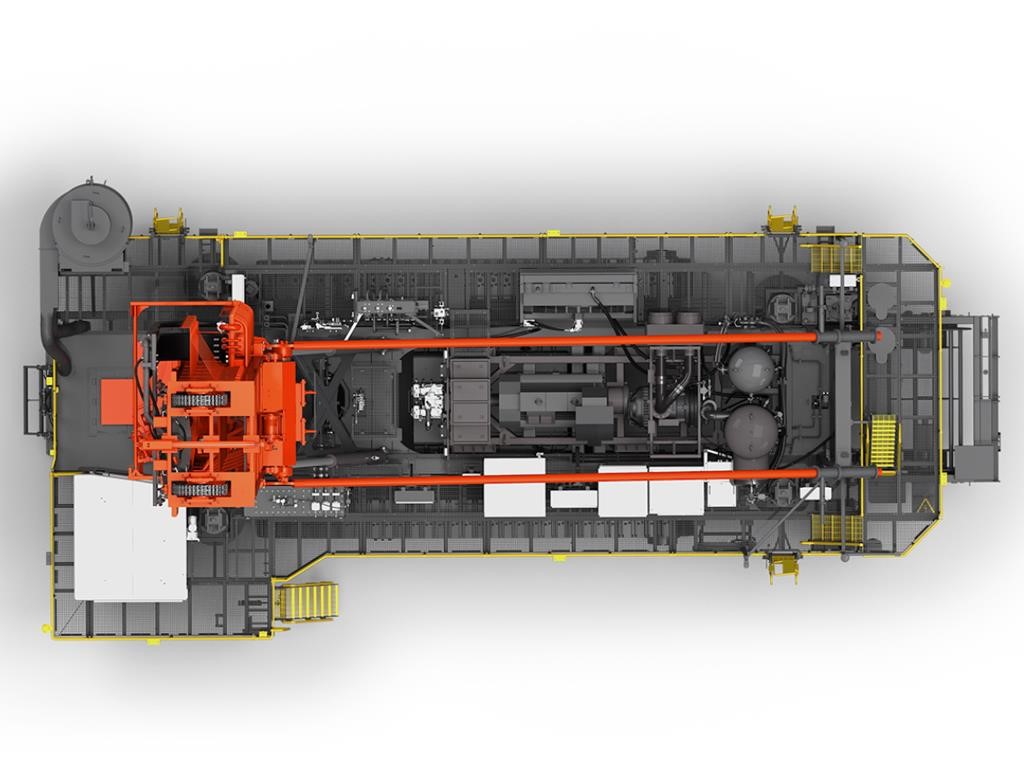

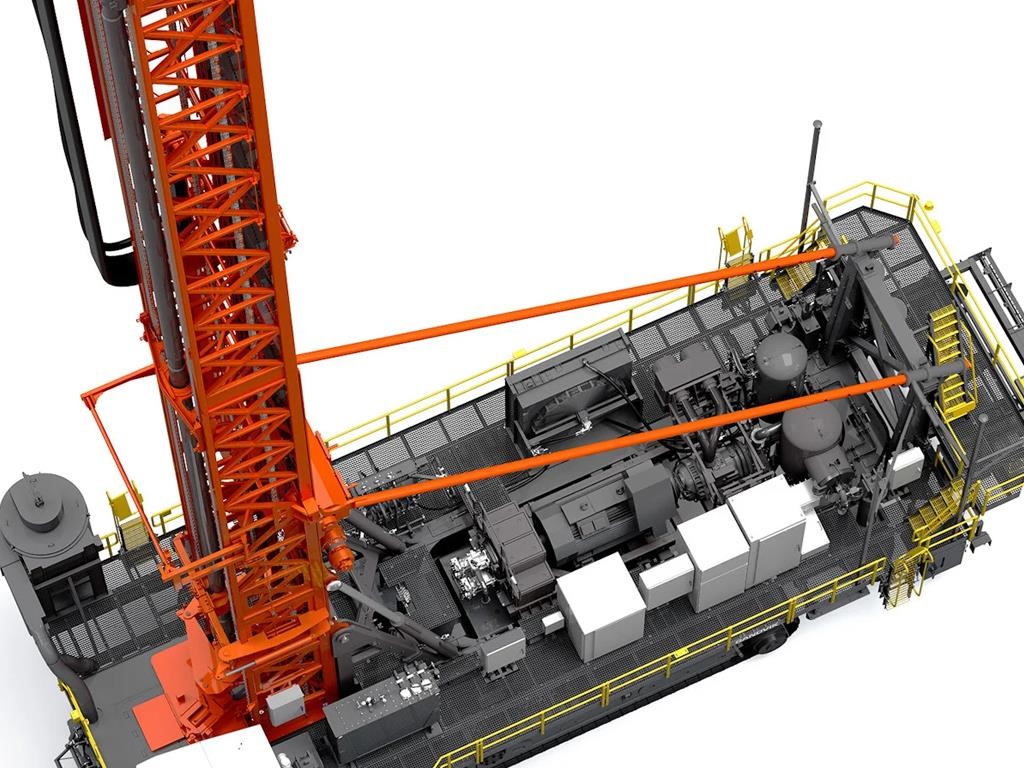

Multi-voltage, Multi-frequency Power Pack With Soft Starter

• Sandvik iSeries electric rotary drills comes with flexibility in terms of electric motor. The electric motor is multi-voltage (4160-7200 V) and 50/60Hz rated to cover the global power supply needs. Onboard Soft starter is standard to reduce impact on mine power grid and affect the work on other machines.

Cable Reel-optional

• Optional 420m cable reel to connect to mine substation.

Traveling Centralizer

• The traveling centralizer reduces pipe flex, leading to improved drilling accuracy and straighter holes. It also reduces vibration, creating a more comfortable operating environment.

Performance And Productivity

• Sandvik Intelligent Control System Architecture (SICA) provides real-time feedback on the machine’s performance and health, with tools for drill planning, reporting and analysis, improving availability and productivity.

Idrill Technology

• The iDrill technology is a scalable automation platform, which provides automation options and digital services designed to speed up production and support mine operations.
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2025
• Manufacturer: SANDVIK
• Model: DR416IE
• Condition: New

Other

• Performance Hole Diameter: 270 – 406 mm / 10.63 – 16.00 in
• Performance First Pass Hole Depth: 21 m / 69 ft.
• Performance First Pass Hole Depth (Std. Mast):
• Performance First Pass Hole Depth (Ext. Mast):
• Performance Max. Hole Depth: 42.4 m / 139 ft.
• Performance Max. Hole Depth (Std. Mast):
• Performance Max. Hole Depth (Ext. Mast):
• Performance Pull Down Force: 534 kN / 120,000 lbf.
• Performance Weight On Bit: 65,770 kg / 145,000 lbs.
• Power Group Electric Motor: ABB – 1044 kW / 1400 HP
• Power Group Operating Voltage: 4,160 – 7,200 V
• Power Group Operating Frequency: 50 / 60 Hz (Compressor output differs based on the frequency)
• Power Group Soft Starter: Standard
• Power Group Cable Reel: 420 m / 1,378 ft. (cable not included)
• Power Group Compressor Options:
• Power Group Rotary Drilling:
• Power Group DTH Drilling:
• Power Group Fuel Tank:
• Power Group Compressor: 109 m³/min @ 5.9 bar / 3,850 SCFM @ 85 ps
• Power Group Ambient Operating Range: -40° to 50°C / -40° to 122°F
• Hydraulic System Reservoir Capacity: 1,514 l / 400 gal.
• Hydraulic System :
• Frame And Integral Jacks Main Frame: Designed with wide flange beams and design verified by structural FEA calculations
• Frame And Integral Jacks Walkways: Slip resistant FRP grating on all maintenance areas
• Frame And Integral Jacks Leveling Jacks: 4
• Frame And Integral Jacks Pad Diameter: 1,219 mm / 48 in
• Frame And Integral Jacks Pad To Ground Clearance: 622 mm / 24.50 in
• Undercarriage Model: S61HD
• Undercarriage Track Shoe Width: 750 mm / 29.50 in
• Undercarriage Track Shoe Type: Double grouser
• Undercarriage Width Over Tracks: 5,460 mm / 215 in
• Undercarriage Track Length: 8,670 mm / 341.34 in
• Undercarriage Tram Speed: 1.6/0.8 kmph / 1/0.5 mph
• Mast Construction: Designed with rectangular structural tubing and design verified by structural FEA calculations
• Mast Angle Drilling: 0 - 20° for ext. mast
• Mast Hoist: 30.2 kN / 6,500 lbf.
• Mast Pipe Loader: 2 pod loader (only for 8.63-10.75 in. pipes)
• Mast Pipe Size: 219 mm / 8.63 in, 235 mm / 9.25 in, 273 mm / 10.75 in, 324 mm / 12.75 in, 340 mm / 13.38 in
• Mast Pipe Length: 10.67 m / 35 ft.
• Feed Feed Type: Hydraulic motor with heavy duty roller chains
• Feed Pull Down Force: 534 kN / 120,000 lbf.
• Feed Feed Rate: 0 – 41.1 m/min. / 0 – 135 fpm
• Feed Feed Down Rate:
• Feed Pull Back Force: 258 kN / 58,000 lbf.
• Feed Feed Up Rate:
• Feed Chain Tensioning: Manual - grease cylinders
• Rotary Head Model: MRH 16
• Rotary Head Rotary Power: 238 kW / 320 HP
• Rotary Head Speed: 0 - 180 RPM
• Rotary Head Bull Shaft Thread: 7.63 in API REG.
• Operator’S Cab Certification: FOPS rated (ISO 3449 level II)
• Operator’S Cab Sound Level: 80 dB or less
• Operator’S Cab Operator's Seat: Fully adjustable and swiveling with lumbar support, pneumatic suspension and 3 point seat belt
• Operator’S Cab Helper's Seat: With 2-point seat belt
• Operator’S Cab Camera Display: Tramming and pipe handling
• Operator’S Cab HVAC System: -40° to 50°C / -40° to 122°F | Standard – Single system | Optional – Dual system
• Operator’S Cab Cabin Filtration: HEPA filtration with pressure / CO2 monitoring system
• Operator’S Cab Sunshades: Standard on all windows – retractable
• Operator’S Cab AM/FM Radio: Standard w/ Bluetooth
• Operator’S Controls Location: Seat mounted left and right hand control panels for all drill functions
• Operator’S Controls GUI: Seat mounted 12” touch screen
• Dust Suppression Dust Collector: 254 m³/min. / 9,000 CFM
• Dust Suppression Water Injection (w/ Or W/o DC): 3,407 l / 900 gal.
• Dust Suppression Water Pump: 34 lpm / 9 GPM
• Dust Suppression Dust Hood: Hyd. cylinder actuated dust door and curtains
• Standard Features Lighting: LED lights for access and maintenance
• Standard Features Chain Lubrication: Operated from cab
• Standard Features Central Grease Lubrication: Automatic
• Standard Features Thread Lubrication: Operated from cab
• Standard Features Cameras: 6 for tramming | 2 for pipe handling
• Standard Features Safety Features: Emergency stops near all ladders and on main elec. enclosure; pull type cable stop on mast; fuel fill isolator on fluid service center
• Standard Features Fluid Service Center: Remote fill points: Hyd. oil, central lube, chain lube Remote drain points: Hyd. oil, compressor oil, pump drive oil
• Standard Features Strobe Lights: 2 (on mast and on frame)
• Standard Features Oil Sampling: Live SOS sampling points for: hydraulic compressor oils
• Standard Features Diagnostics Package: Sensor package for key pump parameters
• Options Radio Remote: For tramming and hoist
• Options Mast Access: FRP infill on mast with access ladder
• Options Machine Access: Self levelling hyd. stair
• Options Wash Down: Water wash hose reel
• Options Hammer Lube / Bit Lube: 115 l / 30 gal.
• Options Deck Crane: For bit handling
• Options Fire Suppression: Sandvik eclipse wet fire suppression system
• Options Additional Cameras:
• Arctic Package Electric Heaters: Hydraulic oil, water, chain lube, pump drive, compressor oil
• Arctic Package Insulation Wrap: On water pump
• Arctic Package Water Purging: Automatic water purging system to prevent water freezing during idle, maintenance and shutdown
• Automatic & Technology Features IDrill Performance : Auto level Auto Mast Adaptive Auto Drill
• Automatic & Technology Features IDrill Navigation: High precision TIM 3D navigation (Trimble / Leica)
• Automatic & Technology Features Automine® Readiness Package: Line of sight Control Room Autonomous
• Automatic & Technology Features Connectivity: Onboard Knowledge box® (4G / LTE , Wifi)
• Automatic & Technology Features ILink Interface: 3rd party interface through Rest API
• Automatic & Technology Features Digital Solutions: Driller’s office My Sandvik Onsite My Sandvik Productivity Remote Monitoring Service

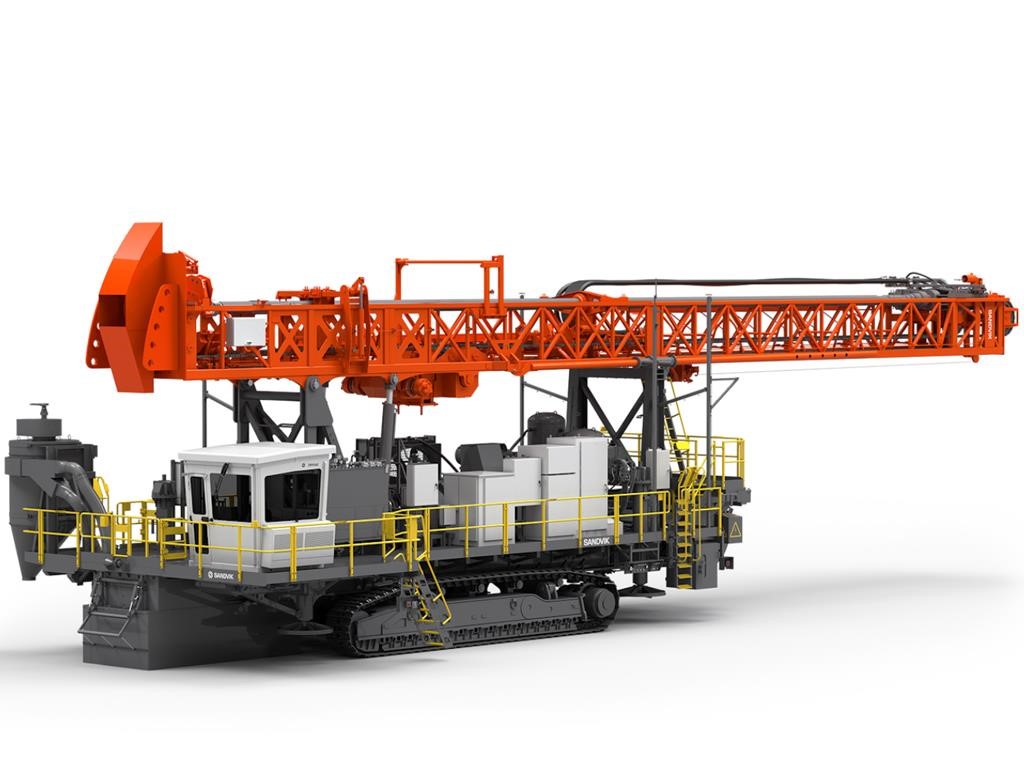

• Dimensions Length Mast Up: 19.2 m / 63 ft. 0 in
• Dimensions Length Mast Down : 31.4 m / 103 ft. 0 in
• Dimensions Length Mast Down (std. Mast):
• Dimensions Length Mast Down (sext Mast):
• Dimensions Height Mast Down: 9.35 m / 30 ft. 8 in

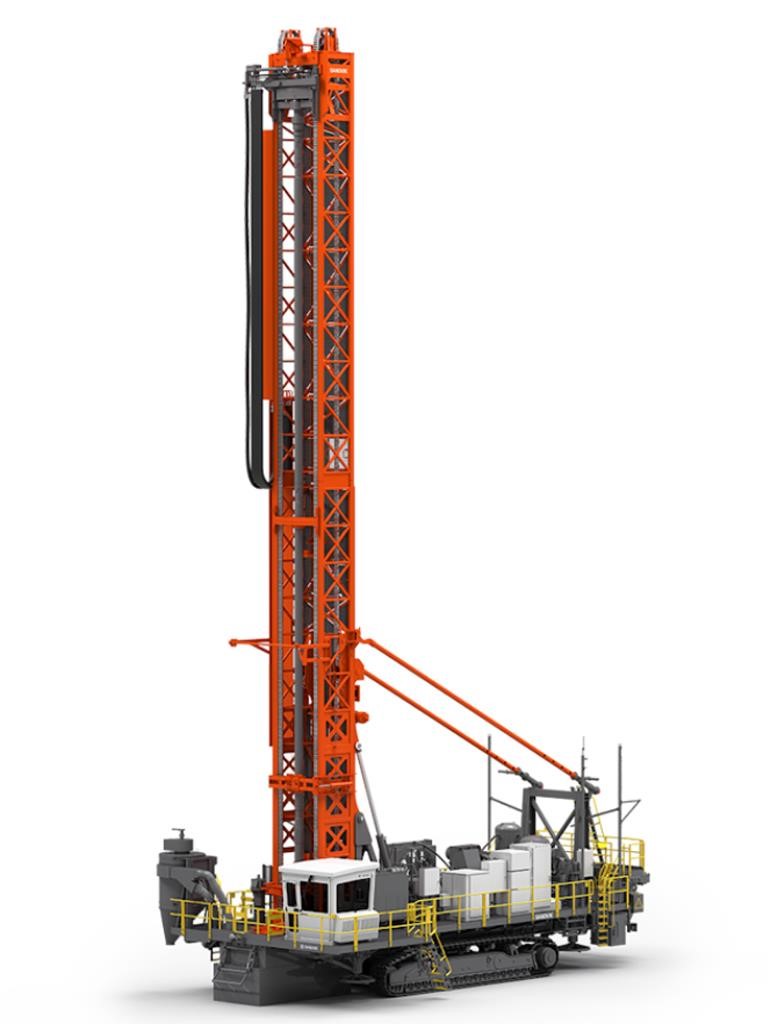

• Dimensions Height Mast Up: 32.5 m / 106 ft. 10 in
• Dimensions Height Mast Up (std. Mast):
• Dimensions Height Mast Up (ext. Mast):
• Dimensions Width W/ Dust Collector: 9.09 m / 29 ft. 10 in
• Dimensions Width W/o Dust Collector: 8.3 m / 27 ft. 2 in
• Dimensions Estimated Operating Weight: 190 – 219 tonnes / 430,000 – 483,000 lbs.
