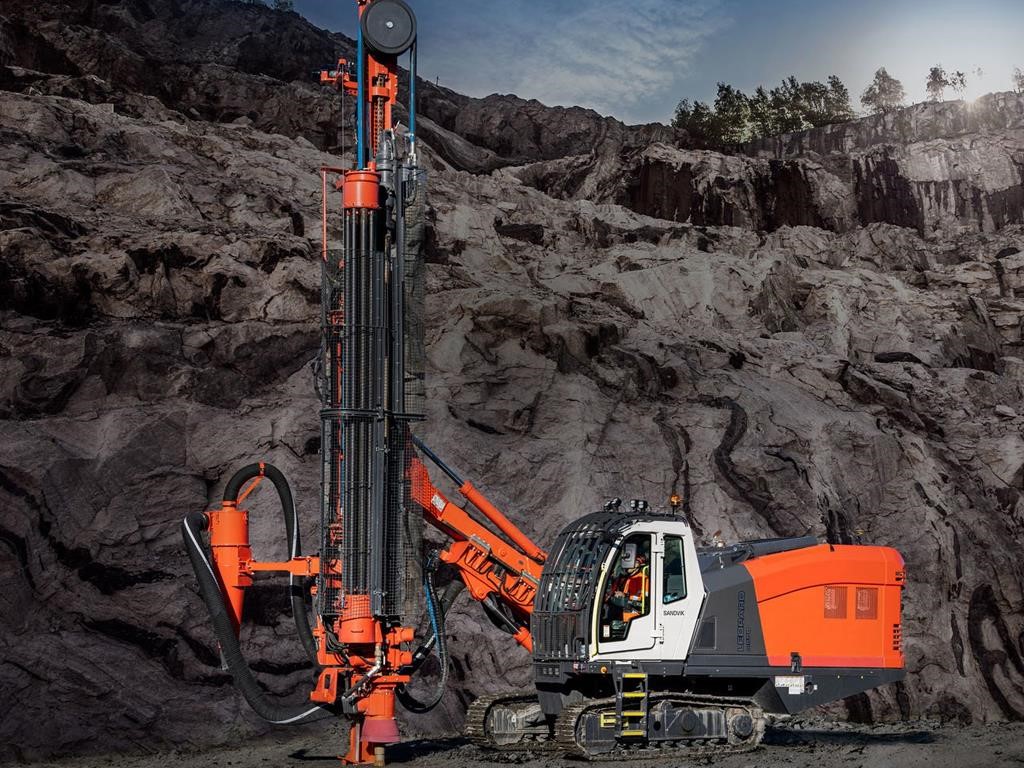

2025 SANDVIK LEOPARD DI550

Low Fuel Costs

• A new Caterpillar C13B engine with lower emissions and compressor pressure control with load sensing feature ensures sustainable and cost-effective drilling.

Robust Design And Easy Maintenance

• A modular structure gives easy ground-level access to daily maintenance and service points. Robust design is built to last and adds safety to daily work.

Easy Operation

• An accurate control system with simple icon displays makes drilling easy. Clear gauges for drilling parameters, compressed air, feed and rotation pressure are some of the features that also guide the operator for more productive drilling.

Ergonomic Cabin

• The modern, over pressurized and ROPS and FOPS-certified ergonomic cabin, with efficient filtration for incoming and recirculating air, excellent visibility and LED lighting – further add to operator comfort.

Efficient Dust Collector

• The efficient dust collector with non-stop cleaning decreases dust emissions into the environment. It also improves filter lifetime and therefore reduces the need for maintenance.

Data Collection And Tim3d Drill Navigation

• TIM3D graphical user interface with a 10.4” touch screen gives the possibility to collect production information through My Sandvik Digital Services. It is available as an option and can also be upgraded to a full TIM3D drill navigation system.
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2025
• Manufacturer: SANDVIK
• Model: LEOPARD DI550
• Condition: New

Other

• Specifications Hole Diameter: 90.0 - 165.0 mm (3.5 - 6.5 in.)
• Specifications DTH Hammer: 4, 5 and 6 in. (Sandvik RH550)
• Specifications Flushing Air Capacity: 24.4 m³/min at 24 bar
• Specifications Drill Rod/tube Diameter: 76, 89, 102 and 114 mm (3, 3.5, 4 and 4.5 in.)
• Specifications Rotary Head: HTRH6
• Specifications Engine Type: Caterpillar C13 (Tier 3) / Caterpillar C13B (Tier 4F / Stage)
• Specifications Engine Output Power: 328 kW /1800 rpm (Tier 3) / 340 kW /1800 rpm (Stage V / Tier 4F)
• Specifications Cabin: HVC550 (High visibility)
• Specifications Production Capacity: 1,85 Mt/a, one shift
• Specifications Transport Length: 12 m (38 ft)
• Specifications Transport Width: 2.5 m (8.2 ft)
• Specifications Transport Height: 3.3 m (11.0 ft)
• Specifications Weight: 23,700 kg (52,250 lb)
