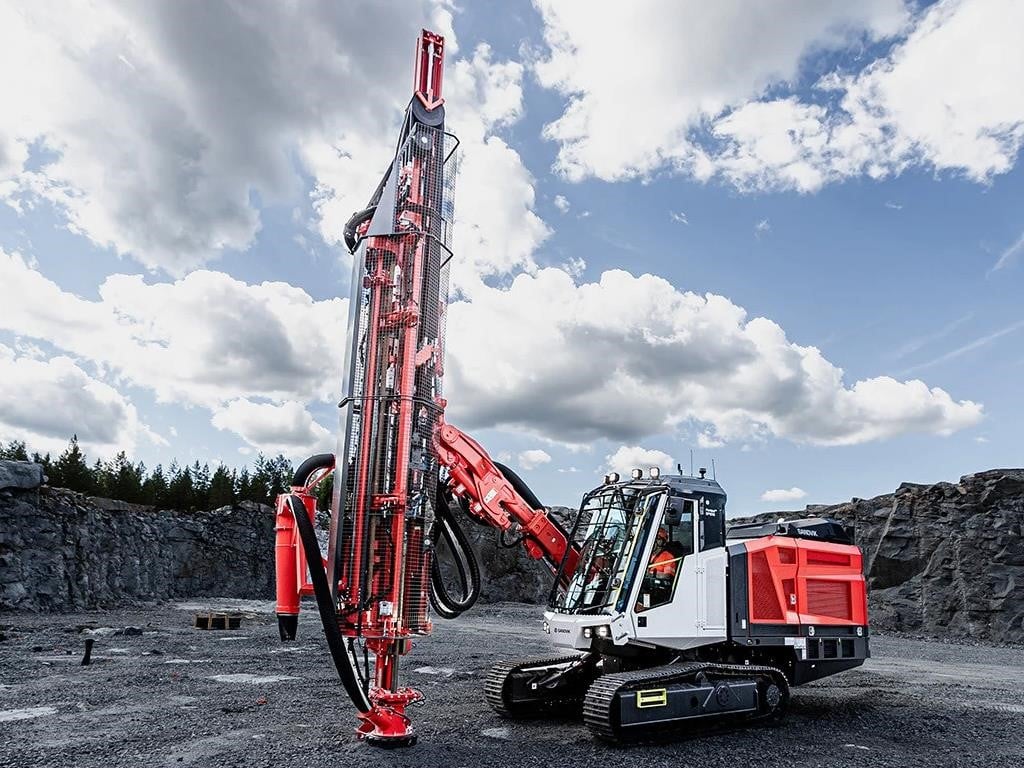

2025 SANDVIK PANTERA DP1110I
additional information

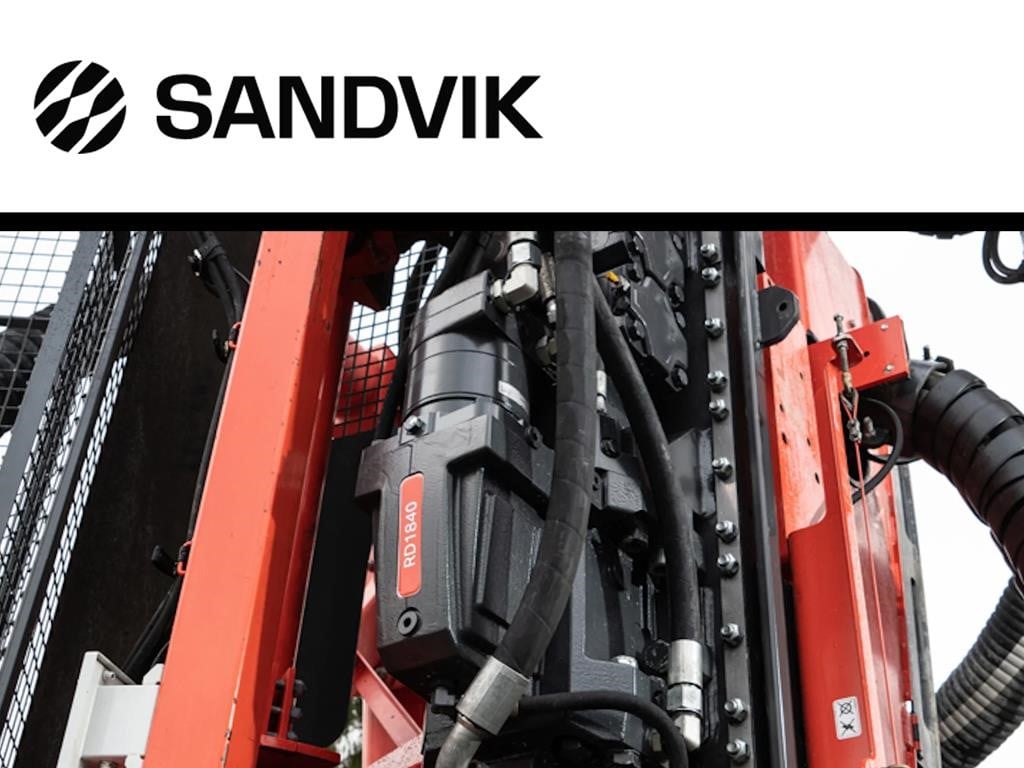

- At the core of Pantera™ DPi is the new RD1700 rock drill family, delivering optimal strikes and smooth drilling with its patented active stabilizer. With up to 40 kW of power and 15% better energy efficiency, it drives productivity. The iTorque drilling control system ensures hole accuracy. Paired with CT55 or CT67 rock tools and the RockPulse® system, drilling performance is maximized from bit to boom.
- Pantera™ DPi is built for reliability and uptime — even in extreme conditions. Upgraded components like the CSL system, reinforced boom, and heavy-duty parts extend service life and maintenance intervals. My Sandvik’s digital tools for machine health and consumables tracking boost efficiency and OPEX control.

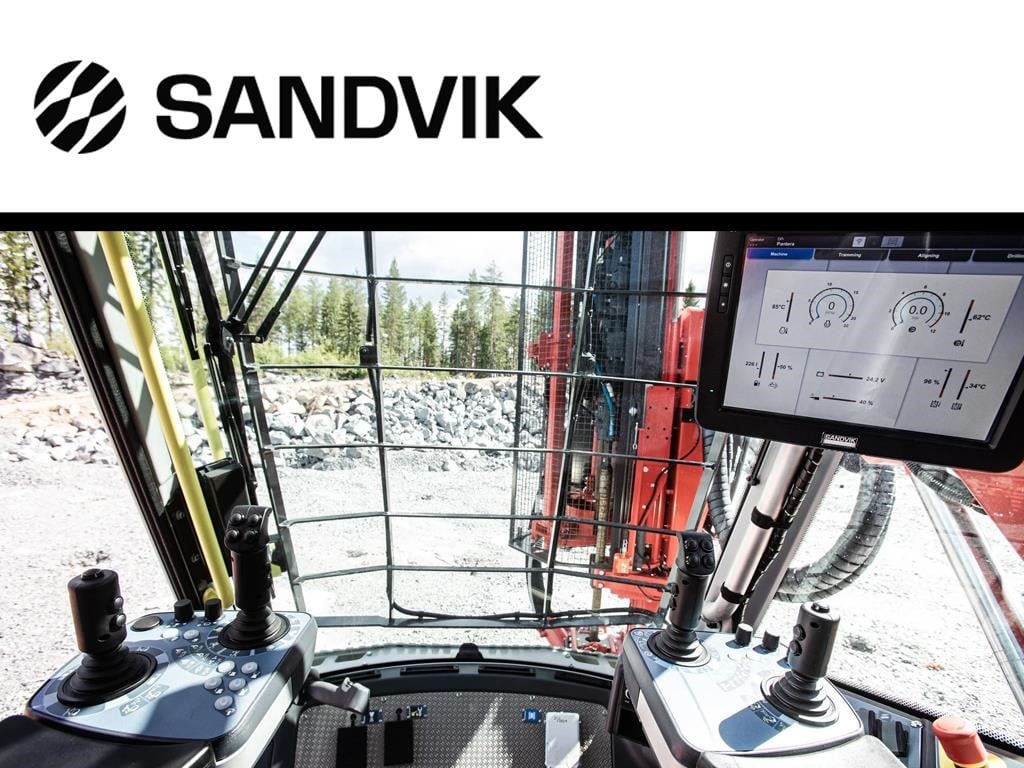

- Pantera™ DPi makes the operator’s job easier and safer with a new cabin that reduces noise and vibration. User-friendly touchscreen controls give easy access to all rig functions, while intelligent automation features like the iClean option lower stress by automating overburden drilling. Feed-to-tram automatics allow quick transitions between drilling and tramming with the push of a button.
- Pantera™ DPi is built for the digital era, offering solutions for production monitoring and seamless integration into your mine or quarry operations. Open Drill Interface supports integration with third-party Fleet Management Systems (FMS) and drill navigation solutions. My Sandvik Insight & Productivity provides fleet-wide productivity monitoring and supports proactive maintenance planning. My Sandvik Onsite acts as a local productivity monitoring solution, connecting drills to the broader systems and processes of open-pit and large quarry operations.

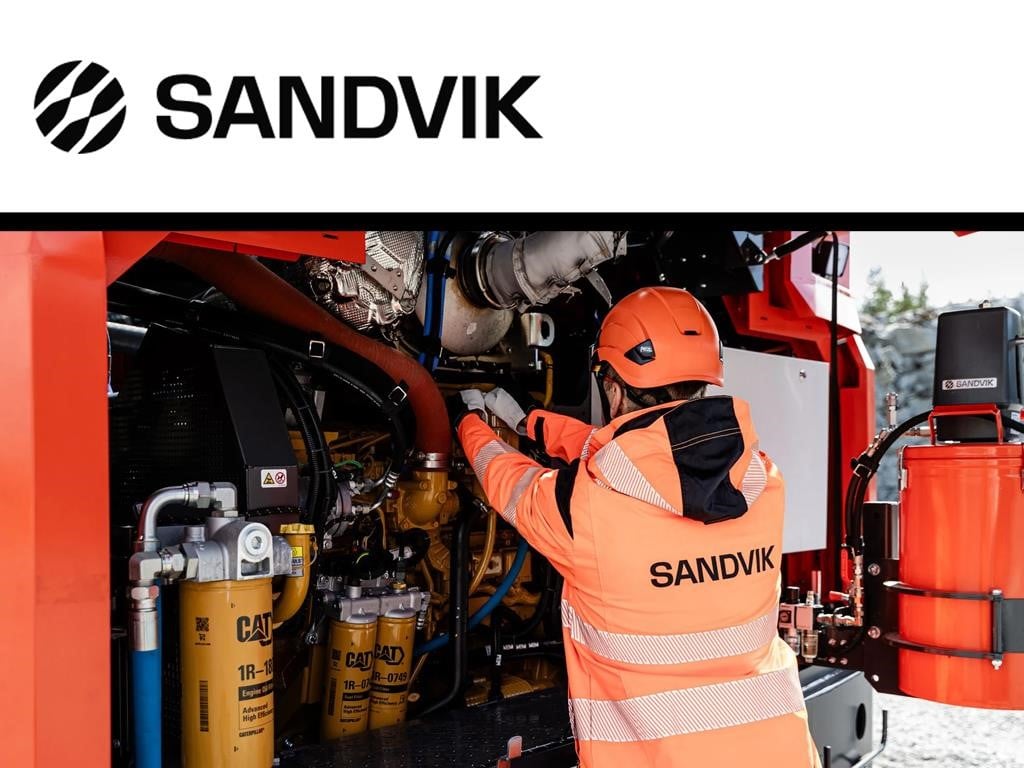

- Pantera™ smart component layout allows for ease of service. Two doors on the equipment’s right side ensure easy maintenance from ground level.

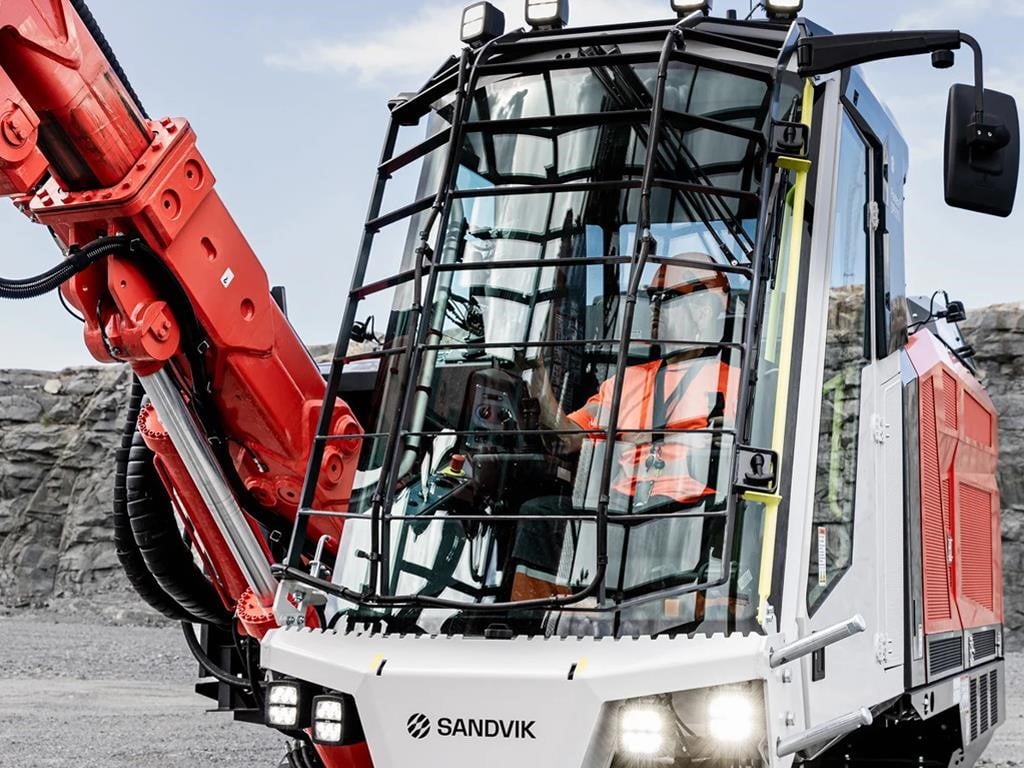

- The ROPS/FOPS-certified safety cabin provides excellent visibility while troubleshooting instructions make the equipment safe, operator-friendly and highly productive.
- Pantera™ DP1110i is compatible with AutoMine® Surface Drilling remote control.
- Sandvik has designed a new system for heating the rock drill before starting it up. This feature dramatically increases the service life of the rock drill accumulator membranes.
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2025
- Manufacturer: SANDVIK
- Model: PANTERA DP1110I
- Condition: New
- TECHNICAL DATA Hole Diameter: 89.0 - 140.0 mm (3.5 - 5.5 in.)
- TECHNICAL DATA Rock Drill: 25 - 35 kW
- TECHNICAL DATA Flushing Air Capacity: 11 m³/min up to 10 bar
- TECHNICAL DATA Drill Rod/tube Diameter: 51 or 60 mm (2 or 2.36 in.)
- TECHNICAL DATA Hydraulic Rock Drill: RD1725 (25 kW) / RD1735C (35 kW)
- TECHNICAL DATA Engine: Caterpillar C9.3B, 250 kW (335hp) / 1 800 rpm (T4F/Stage V)
- TECHNICAL DATA Cabin: Ergo cool
- TECHNICAL DATA Transport Length: 11.5 m (37.7 ft)
- TECHNICAL DATA Transport Width: 2.50 m (8.20 ft)
- TECHNICAL DATA Transport Height: 3.2 m (10.5 ft)
- TECHNICAL DATA Weight: 22,900 kg (50,490 lb)
- HYDRAULIC ROCK DRILL Rock Drill: RD1725/ RD1735C (optional)
- HYDRAULIC ROCK DRILL Rock Tools: 51, 55, 60, 67 mm
- HYDRAULIC ROCK DRILL Operating Pressure: 90-160 bar
- HYDRAULIC ROCK DRILL Percussion Rate: 33-38 Hz
- HYDRAULIC ROCK DRILL Percussion Output Power: 25 / 35 kW
- HYDRAULIC ROCK DRILL Maximum Rotation Torque: 2160/2400 Nm OMT400/500
- HYDRAULIC ROCK DRILL Shank Lubrication: Air / oil mist
- HYDRAULIC ROCK DRILL Flushing: Air
- HYDRAULIC ROCK DRILL Weight: 490 kg
- FEED Feed Type: LF 1520 HR with hose reel
- FEED Total Length: 9770 mm
- FEED Rock Drill Travel: 5660 mm
- FEED Max. Length Of Starter Rod: 6096 mm (20')
- FEED Hose Reel: Standard
- FEED Feed Extension Travel: 1 480 mm
- FEED Feed/pull Out Force: 36 kN
- FEED Feed Swing: -56/+52° (-20/+94°)
- FEED Feed Tilt: 13-135°
- ROD CHANGER Rod Changer Type: RC 1514
- ROD CHANGER Storage Capacity: 7+1 (T51, GT60) | 6+1 (CT67,87mm tube)
- ROD CHANGER Rod Length: 3660, 4270 mm
- ROD CHANGER Max. Hole Depth: 33 m (7+1) x 14'
- BOOM Boom Type: ZB 1550 H, telescopic
- BOOM Boom Extension: 500 mm
- BOOM Boom Swing: -2/+30°
- BOOM Collaring Height: +1.24/-4.1 m
- BOOM Horizontal Holes: To the right hand side
- CABIN Cabin Type: Ergo cool
- CABIN Certificates: FOPS and ROPS
- CABIN Noise Level In The Cabin: 80 dB(A)
- CABIN Air Conditioning: Standard (A/C system contains fluorinated greenhouse gases HFC-134a)
- CABIN Pressurization: Standard
- CABIN Seat: Ergonomic, adjustable
- CABIN Vibration Dampening: Standard
- CABIN Windows: Safety laminated, tinted selective glass with wiper
- POWERPACK Engine Type: Caterpillar C 9.3B (Tier 4f/Stage V)
- POWERPACK DEF Tank: AdBlue 42 l
- POWERPACK Number Of Cylinders: 6
- POWERPACK Engine Output: 250 kW / 1800 rpm
- POWERPACK Transmission Type: Gear box
- POWERPACK Screw Compressor Type: Enduro 25
- POWERPACK Air Filters: 2 pcs, dry type with ejector and safety element
- POWERPACK Fuel Tank: 680 l
- HYDRAULIC SYSTEM Number Of Gear Pumps: 3 pcs. for dust collector and cooling
- HYDRAULIC SYSTEM Number Of Piston Pumps: 2 pcs. for drilling, tramming, boom and rodhandling
- HYDRAULIC SYSTEM Filtration Rate: 12 micron abs.
- HYDRAULIC SYSTEM Cooling Capacity: up to +50°C ambient
- HYDRAULIC SYSTEM Hydraulic Oil Tank: 390 l
- HYDRAULIC SYSTEM Shank Lubrication Device: SLU 50
- CONTROL SYSTEM Control System Type: Sandvik SICA, PLC controlled proportional electro-hydraulics
- CONTROL SYSTEM Tramming/boom/drilling Control: PLC controlled
- CONTROL SYSTEM User Interface: Electro proportional joysticks and touchscreen
- CONTROL SYSTEM Control System Diagnostics: Graphical flow chart type
- CONTROL SYSTEM Drilling Control System Type: iTorque
- CONTROL SYSTEM Antijamming System: For rotation and flushing
- CONTROL SYSTEM Collaring Control: Automatic
- CONTROL SYSTEM Preset Drilling Parameters: Adjustable for fine tuning for different rock conditions
- CONTROL SYSTEM Voltage: 24 VDC

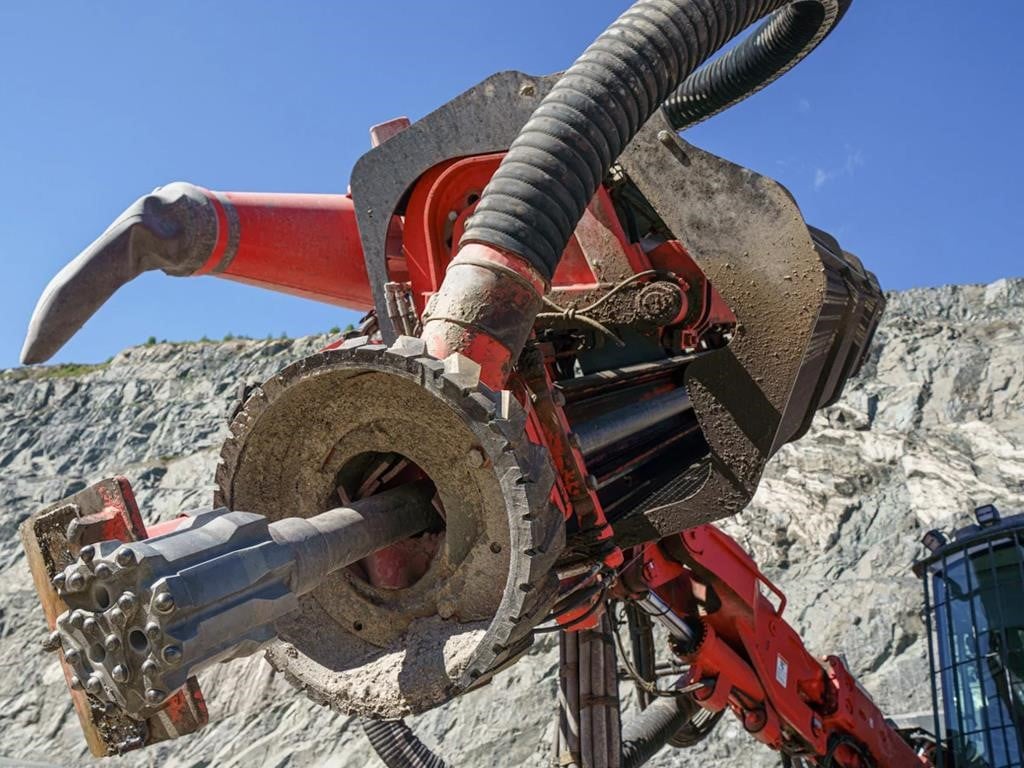

- DUST COLLECTOR Dust Collector Type: DC 1550
- DUST COLLECTOR Capacity/vacuum: 35 m³/min at 1200 mm vacuum H20
- DUST COLLECTOR Filter Elements/material: 20 pcs/fiber
- DUST COLLECTOR Total Filter Surface: 16 m²
- DUST COLLECTOR Primary Cyclone: PE 80
- DUST COLLECTOR Movable Suction Head: MS 250
- CARRIER Track Type: FL 6
- CARRIER Grouser Plate Width: 400 mm
- CARRIER Ground Contact Length: 2510 mm
- CARRIER Ground Pressure: 1.1 kg/cm²
- CARRIER Ground Clearance: 360 mm
- CARRIER Oscillation Angles: +/- 11°
- CARRIER Tramming Force: 150 kN
- CARRIER Max. Tramming Speed: 1.8/3.2 km/h
