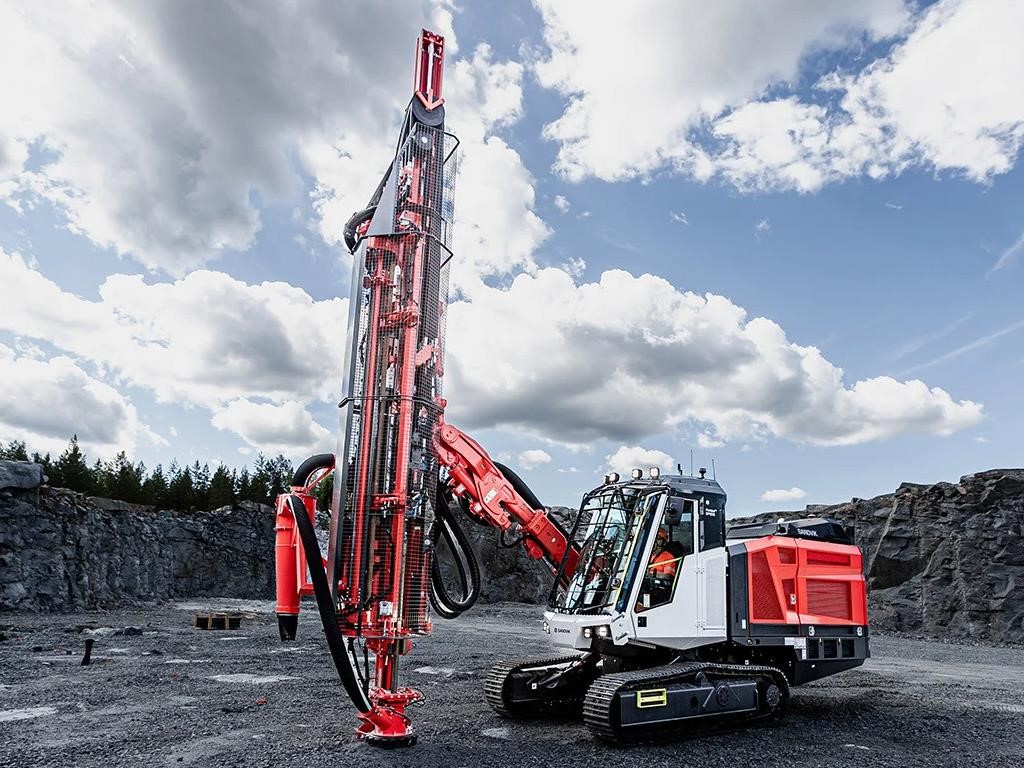

2025 SANDVIK PANTERA DP1610I
additional information

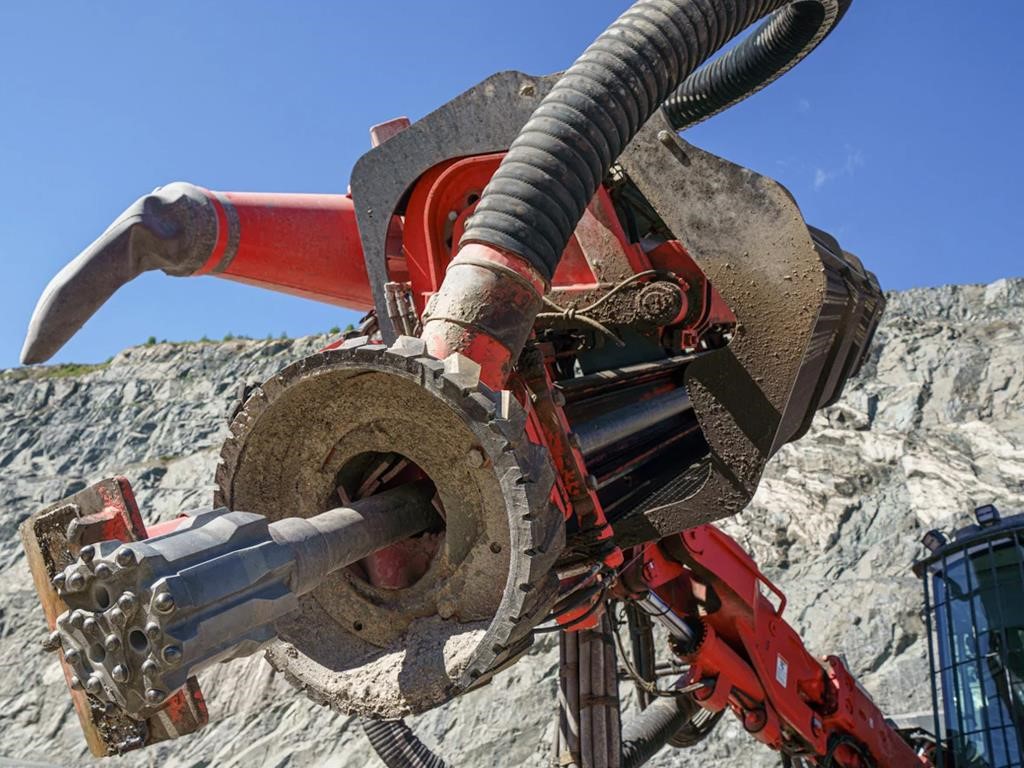

- Engineered for large hole drilling, Pantera™ DP1610i excels in drilling holes ranging from 102 to 178 mm (4 to 7 inches) in size. Together with RD1840C rock drill and robust LT90 rock tools, it has a high capacity for large hole drilling without increasing the rig’s physical footprint.
- Pantera™ DPi is built for reliability and uptime — even in extreme conditions. Upgraded components like the CSL system, reinforced boom, and heavy-duty parts extend service life and maintenance intervals. My Sandvik’s digital tools for machine health and consumables tracking boost efficiency and OPEX control.

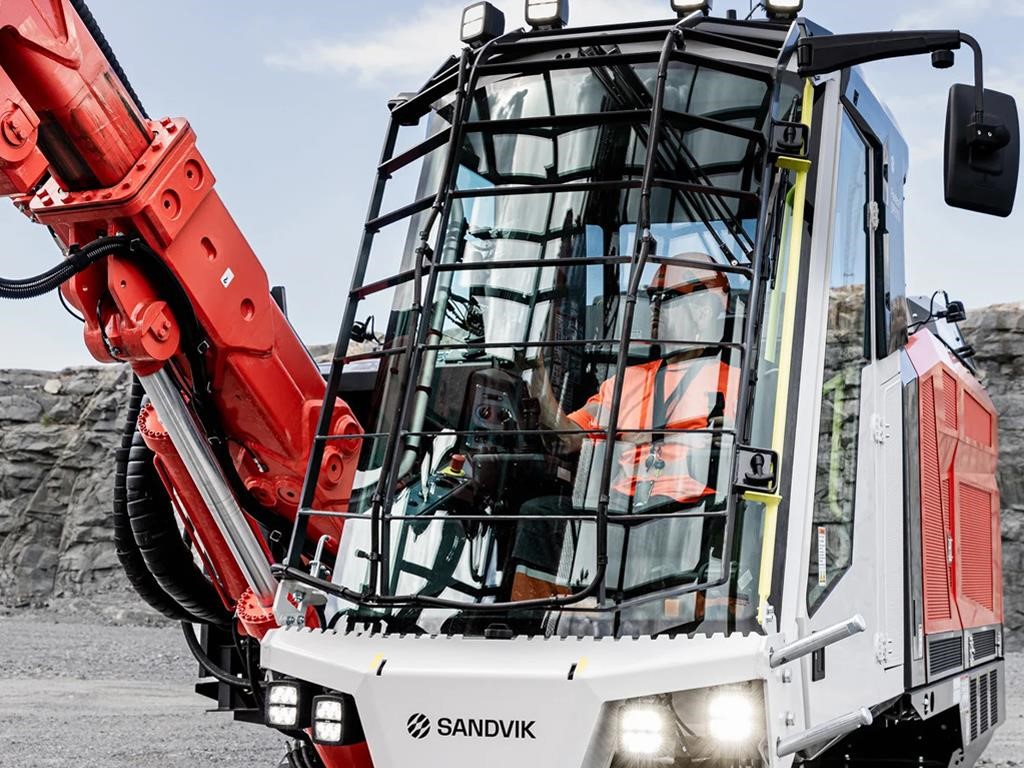

- Pantera™ DPi has been upgraded to make daily work easier and safer. A quieter, low-vibration cabin boosts operator comfort, while touchscreen controls give easy access to all rig functions - from drilling parameter setups to troubleshooting instructions. Smart features like iClean take care of overburden drilling automatically and feed-to-tram automation enables smooth switching between drilling and tramming at the push of a button. Other optional intelligence features include one-hole automation, TIM3D and Driller's Notes, for maximized drilling performance.
- Pantera™ DPi is built for the digital era, offering solutions for production monitoring and seamless integration into your mine or quarry operations. Open Drill Interface supports integration with third-party Fleet Management Systems (FMS) and drill navigation solutions. My Sandvik Insight & Productivity provides fleet-wide productivity monitoring and supports proactive maintenance planning. My Sandvik Onsite acts as a local productivity monitoring solution, connecting drills to the broader systems and processes of open-pit and large quarry operations.

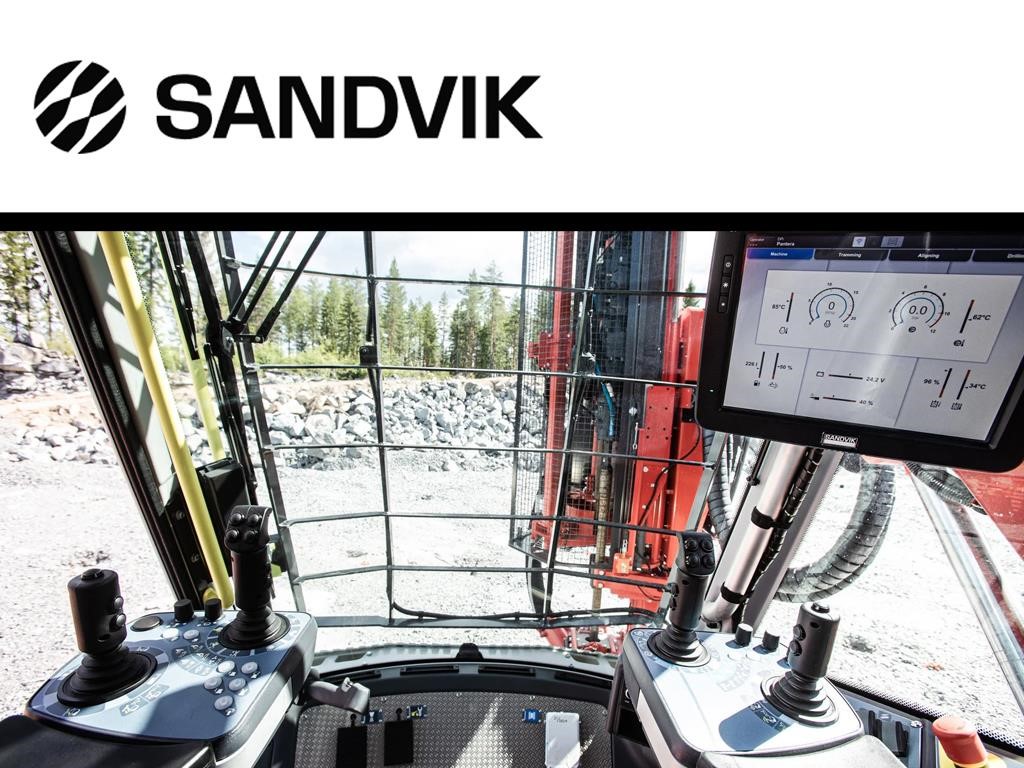

- An advanced touchscreen interface and iTorque drilling control system offer operators convenience and efficiency.

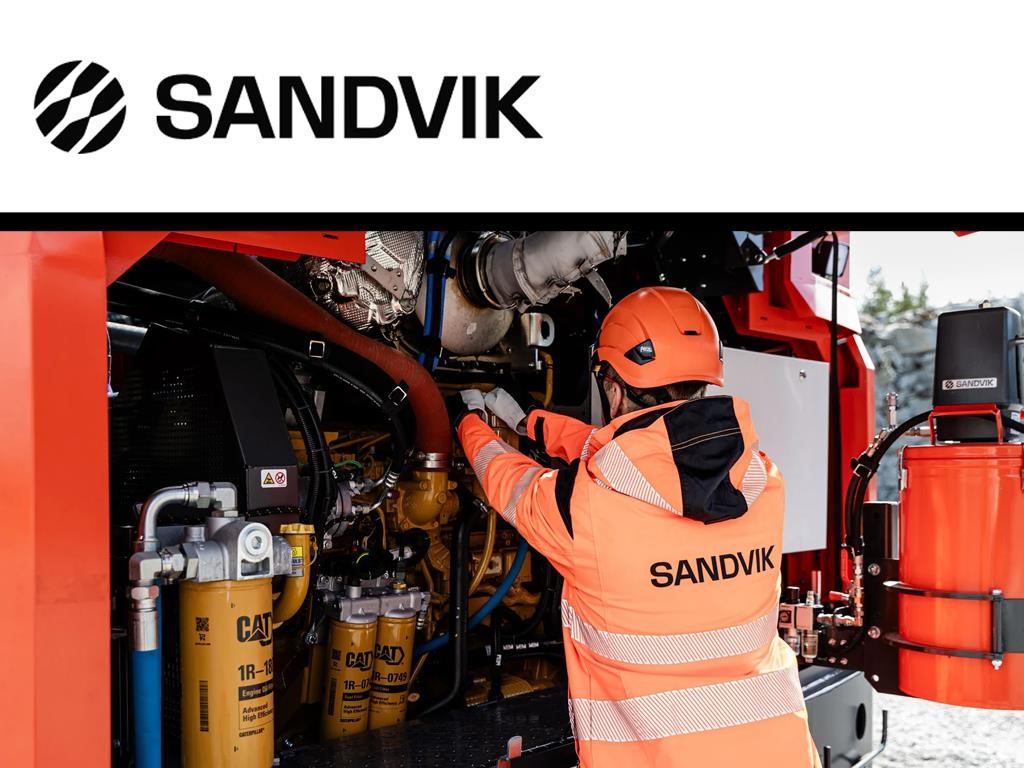

- Pantera™ DP1610i’s design provides excellent stability for smooth tramming and the smart component layout allows for efficient maintenance and service access.
- Pantera™ DP1610i lowers fuel consumption and CO2 emissions.
- Pantera™ DP1610i is compatible with AutoMine® Surface Drilling remote control.
- Sandvik has designed a new system for heating the rock drill before starting it up. This feature dramatically increases the service life of the rock drill accumulator membranes.
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2025
- Manufacturer: SANDVIK
- Model: PANTERA DP1610I
- Condition: New
- TECHNICAL DATA Hole Diameter: 102.0 - 178.0 mm (4.0 - 7.0 in.)
- TECHNICAL DATA Rock Drill: 49 kW
- TECHNICAL DATA Flushing Air Capacity: 14 m³/min up to 10 bar
- TECHNICAL DATA Drill Rod/tube Diameter: 51, 60 or 87 mm (2, 2.375 or 3.5 in.)

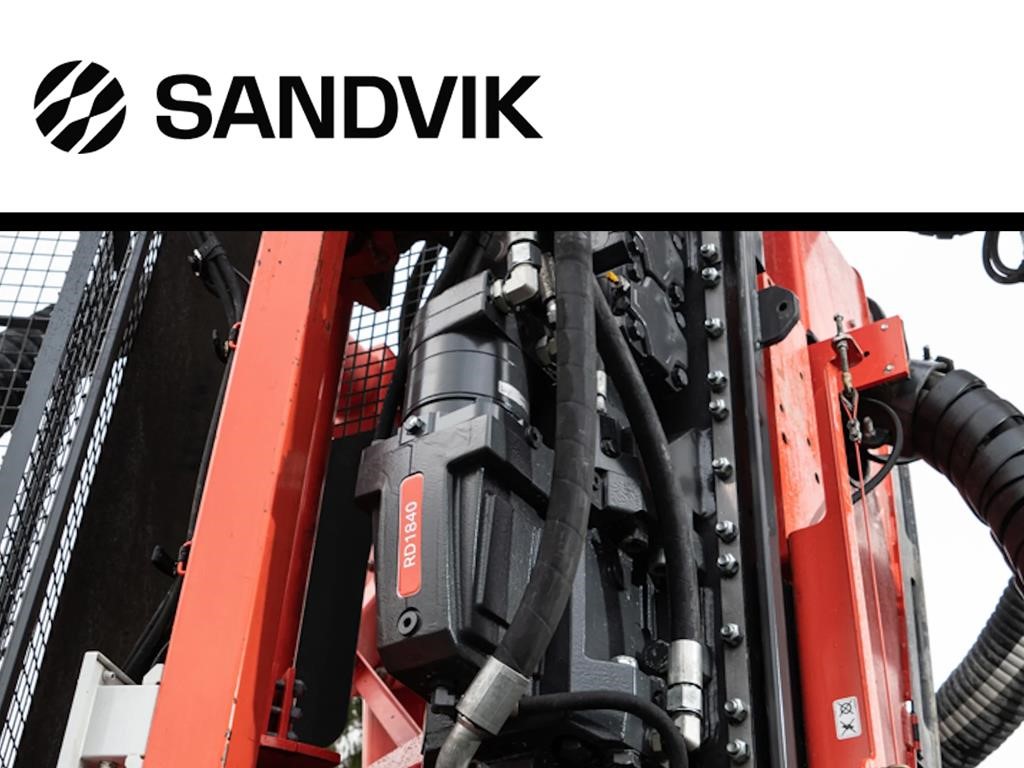

- TECHNICAL DATA Hydraulic Rock Drill: RD1840C (49 kW) / RD1740C (40kW) as option
- TECHNICAL DATA Engine: Caterpillar C9.3B 280 kW (375 hp) / 1 800 rpm (Tier 3) Caterpillar C9.3B, 280 kW (375 hp) / 1 800 rpm (Stage V)
- TECHNICAL DATA Cabin: Ergo cool
- TECHNICAL DATA Transport Length: 11.5 m (37.0 ft)
- TECHNICAL DATA Transport Width: 2.50 m (8.00 ft)
- TECHNICAL DATA Transport Height: 3.3 m (11.0 ft)
- TECHNICAL DATA Weight: 23,000 kg (50,706 lb)
- HYDRAULIC ROCK DRILL Rock Drill: RD1840C/ RD1740C (optional)
- HYDRAULIC ROCK DRILL Rock Tools: 60, 76, 87, LT90
- HYDRAULIC ROCK DRILL Operating Pressure: 140 - 280 (90-220) bar
- HYDRAULIC ROCK DRILL Percussion Rate: 35-40 Hz
- HYDRAULIC ROCK DRILL Percussion Output Power: 49 / 40 kW
- HYDRAULIC ROCK DRILL Maximum Rotation Torque: 2400 Nm
- HYDRAULIC ROCK DRILL Shank Lubrication: Air / oil mist
- HYDRAULIC ROCK DRILL Flushing: Air
- HYDRAULIC ROCK DRILL Weight: 570 kg
- FEED Feed Type: LF 1520 HR with hose reel
- FEED Total Length: 9770 mm
- FEED Rock Drill Travel: 5660 mm
- FEED Max. Length Of Starter Rod: 6096 mm (20')
- FEED Hose Reel: Standard
- FEED Feed Extension Travel: 1 480 mm
- FEED Feed/pull Out Force: 36 kN
- FEED Feed Swing: -56/+52° (-20/+94°)
- FEED Feed Tilt: 13-135°
- ROD CHANGER Rod Changer Type: RC 1514
- ROD CHANGER Storage Capacity: 7+1 (60 mm rods) | 6+1 (CT67) | 5+1 (LT90)
- ROD CHANGER Rod Length: 4270 mm
- ROD CHANGER Max. Hole Depth: 32.6 m (7+1) x 14', 24.2 m (5+1) x 14'
- BOOM Boom Type: ZB 1550 H, telescopic
- BOOM Boom Extension: 500 mm
- BOOM Boom Swing: -2/+30°
- BOOM Collaring Height: +1.24/-4.1 m
- BOOM Horizontal Holes: To the right hand side
- CABIN Cabin Type: Ergo cool
- CABIN Certificates: FOPS and ROPS
- CABIN Noise Level In The Cabin: 80 dB(A)
- CABIN Air Conditioning: Standard (A/C system contains fluorinated greenhouse gases HFC-134a)
- CABIN Pressurization: Standard
- CABIN Seat: Ergonomic, adjustable
- CABIN Vibration Dampening: Standard
- CABIN Windows: Safety laminated, tinted selective glass with wiper
- POWERPACK Engine Type: Caterpillar C 9.3B (Tier 4f/Stage V)
- POWERPACK DEF Tank: AdBlue 42 l
- POWERPACK Number Of Cylinders: 6
- POWERPACK Engine Output: 280 kW / 1800 rpm
- POWERPACK Transmission Type: Gear box
- POWERPACK Screw Compressor Type: Enduro 25
- POWERPACK Air Filters: 2 pcs, dry type with ejector
- POWERPACK Fuel Tank: 680 l
- HYDRAULIC SYSTEM Number Of Gear Pumps: 3 pcs. for dust collector and cooling
- HYDRAULIC SYSTEM Number Of Piston Pumps: 2 pcs. for drilling, tramming, boom and rodhandling
- HYDRAULIC SYSTEM Filtration Rate: 12 micron abs.
- HYDRAULIC SYSTEM Cooling Capacity: up to +50°C ambient
- HYDRAULIC SYSTEM Hydraulic Oil Tank: 390 l
- HYDRAULIC SYSTEM Shank Lubrication Device: CSL
- CONTROL SYSTEM Control System Type: Sandvik SICA, PLC controlled proportional electro-hydraulics
- CONTROL SYSTEM Tramming/boom/drilling Control: PLC controlled
- CONTROL SYSTEM User Interface: Electro proportional joysticks and touchscreen
- CONTROL SYSTEM Control System Diagnostics: Graphical flow chart type
- CONTROL SYSTEM Drilling Control System Type: iTorque
- CONTROL SYSTEM Antijamming System: For rotation and flushing
- CONTROL SYSTEM Collaring Control: Automatic
- CONTROL SYSTEM Preset Drilling Parameters: Adjustable for fine tuning for different rock conditions
- CONTROL SYSTEM Voltage: 24VDC
- DUST COLLECTOR Dust Collector Type: DC 1550
- DUST COLLECTOR Capacity/vacuum: 35 m³/min at 1200 mm vacuum H20
- DUST COLLECTOR Filter Elements/material: 20 pcs/fiber
- DUST COLLECTOR Total Filter Surface: 16 m²
- DUST COLLECTOR Primary Cyclone: PE 80
- DUST COLLECTOR Movable Suction Head: MS 250
- CARRIER Track Type: FL 6
- CARRIER Grouser Plate Width: 400 mm
- CARRIER Ground Contact Length: 2510 mm
- CARRIER Ground Pressure: 1.1 kg/cm²
- CARRIER Ground Clearance: 360 mm
- CARRIER Oscillation Angles: +/- 11°
- CARRIER Tramming Force: 150 kN
- CARRIER Max. Tramming Speed: 1.8/3.2 km/h
