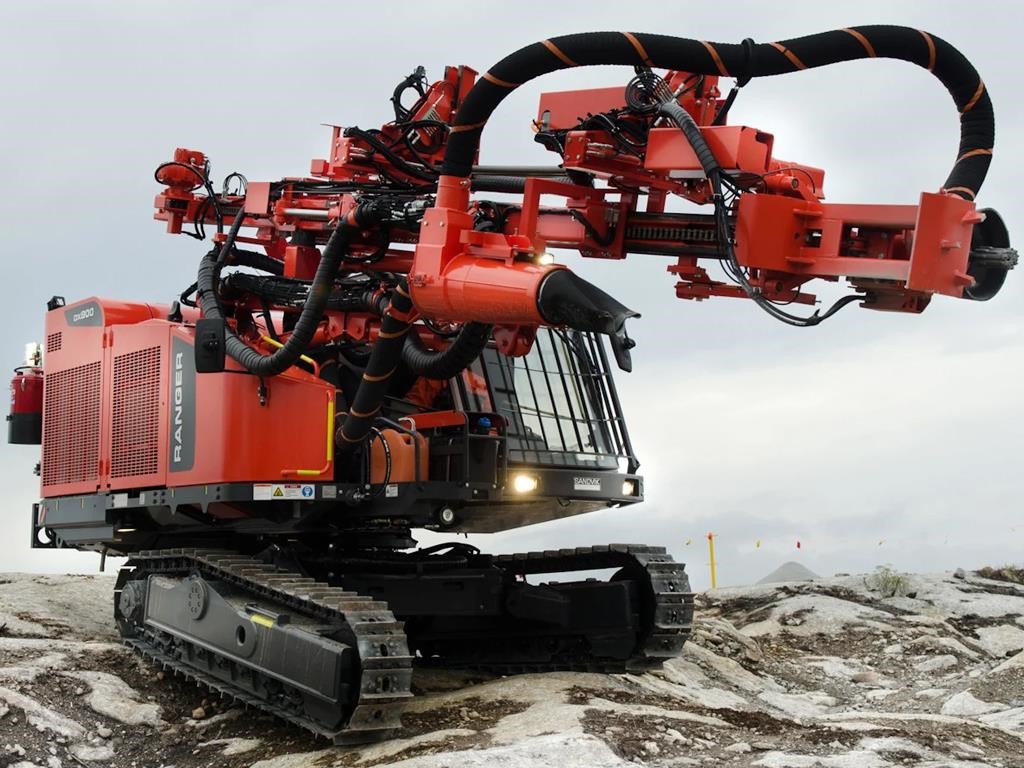

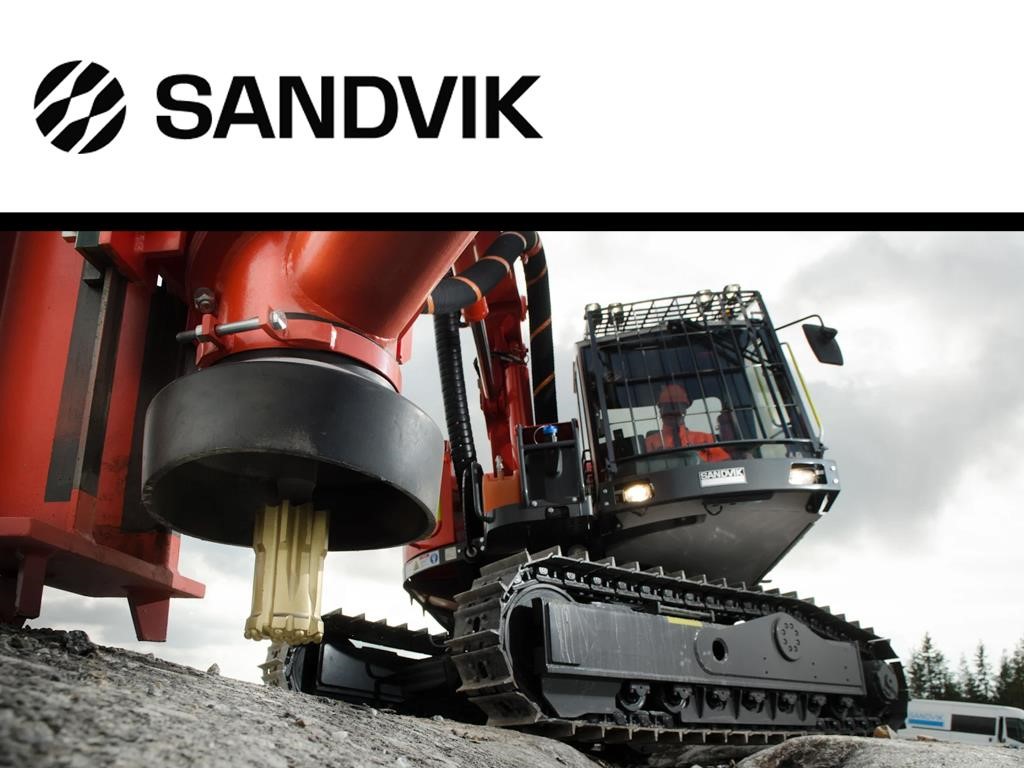

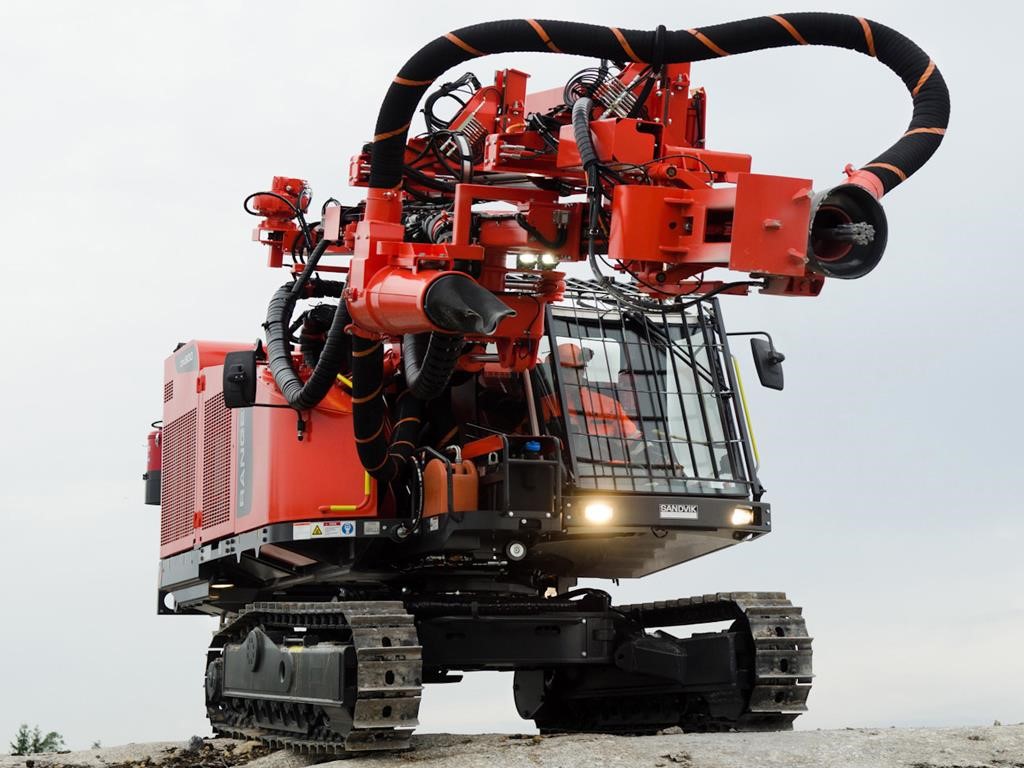

2025 SANDVIK RANGER DX600
additional information
- Ranger™ DX600 features a revolving superstructure for large drilling coverage area of 17.6 m² (optionally 26.4 m²).
- Ranger™ DX600’s innovative counterweight solution affords powerful tramming and excellent stability on the toughest terrain. The ROPS and FOPS-certified cabin enhances operator safety.
- Rock Pilot+ drilling control system allows for solid rock contact, straight holes and fast penetration in varying rock conditions.

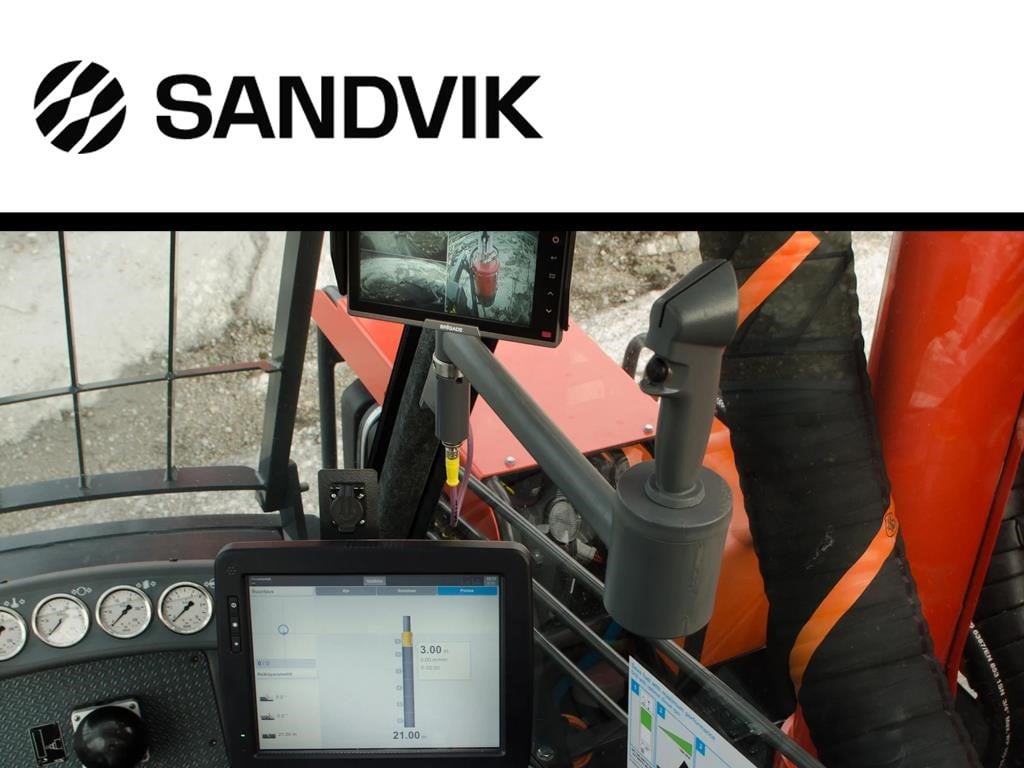

- Ranger™ DX600 features an ergonomic, high-visibility cabin and a rod handling system, prioritizing operator safety and experience.
- Decrease maintenance downtime and related costs through DX600’s high suction capacity dust collectors.
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2025
- Manufacturer: SANDVIK
- Model: RANGER DX600
- Condition: New
- Specifications Hole Diameter: 64.0 - 102.0 mm (2.5 - 4.0 in.)
- Specifications Rock Drill: 18 kW
- Specifications Flushing Air Capacity: 6.2 m³/min up to 10 bar
- Specifications Drill Rod/tube Diameter: 38, 45 or 51 mm (1.5, 1.75 or 2 in.)
- Specifications Hydraulic Rock Drill: HL650 (17.5 kW)
- Specifications Engine: Caterpillar C7.1, 168 kW (225 hp) / 1 800 rpm (Tier 3 / Tier 4F /Stage V)
- Specifications Cabin: Ergo cool
- Specifications Transport Length: 10.7 m (33.0 ft)
- Specifications Transport Width: 2.50 m (8.00 ft)
- Specifications Transport Height: 3.6 m (11.8 ft)
- Specifications Weight: 15,600 kg (34,392 lb)
