2026 TAKEUCHI TW95
additional information

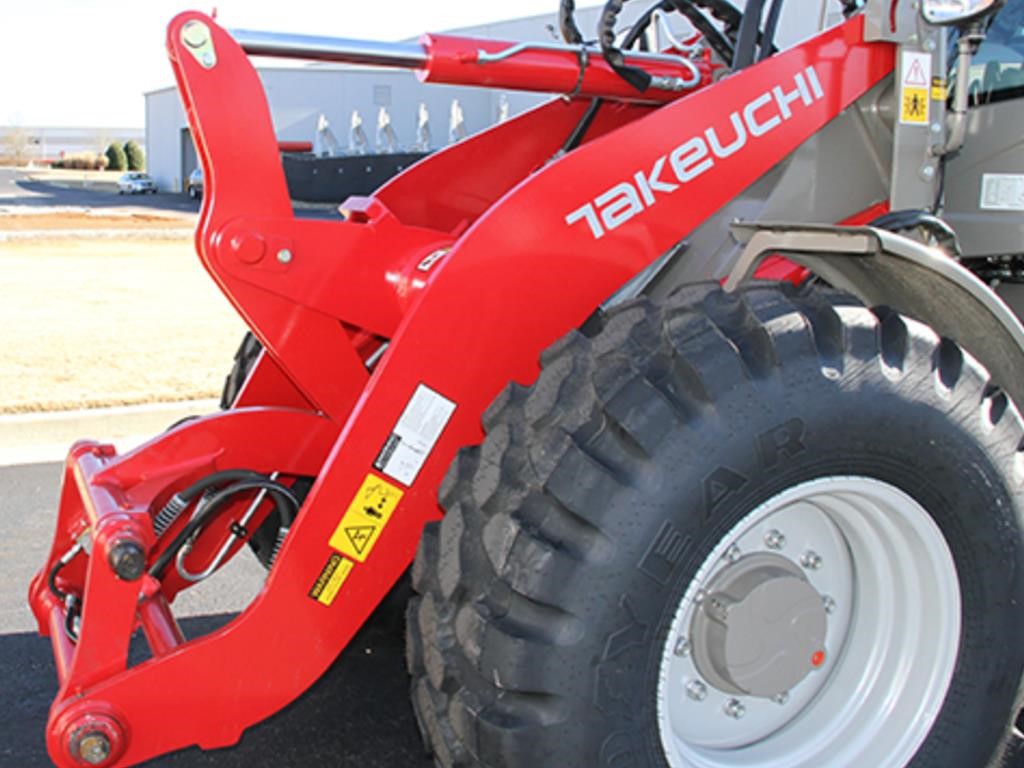

- Greater bucket breakout and lift arm forces - excels in grading and dirt work applications.
- Higher hinge-pin heights - ideal for loading dump trucks over the side.
- 12 degrees of oscillation keeps the operators station stable while the working equipment oscillates.
- With 40 degrees of articulation these units are highly maneuverable in tight spaces.
- True center pivot steering allows the rear wheels to follow the same tracks and the front making less impact to the job site.
- Hydrostatic Drive with 100% Inching pedal keeps engine RPMs high while precisely metering machine speed.
- 100% Locking Differentials: Front and Rear for added peace of mind when in unstable soil conditions.
- 2 Speed Travel with optional road gear with speeds up to 17.4 mph.

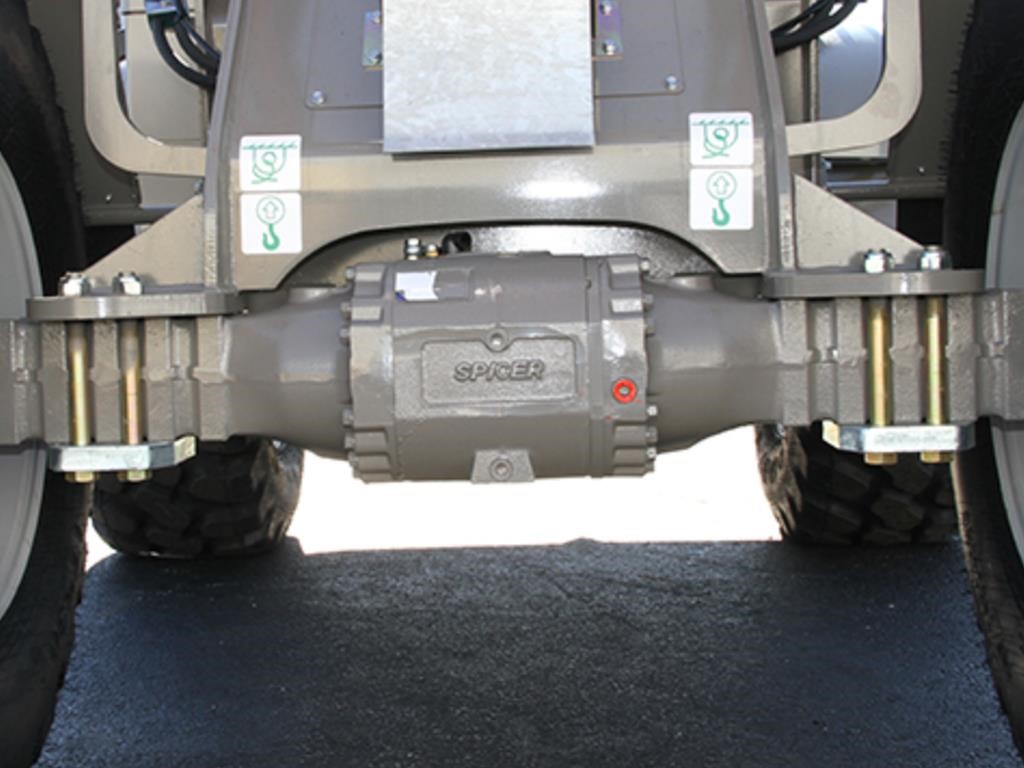

- Rigid Heavy Duty Spicer Axles with Outboard Planetary Reduction Drives provide exceptional torque and durability.
- Hydrostatic Drive with 100% Inching Pedal
- 100% Locking Differentials: Front and Rear
- Outboard Planetary Drives
- 2 Speed Travel
- Spring Applied Parking Brake
- Multi-Wet Disc Brake
- High Speed Road Gear with Ride Control (24.9 mph)
- Heavy Duty Radial Tire Assembly (optional)
- Air Conditioning, Heat, Front and Rear Wipers, Front and Rear Washers, and Rear Defrost keep the operator comfortable year round.

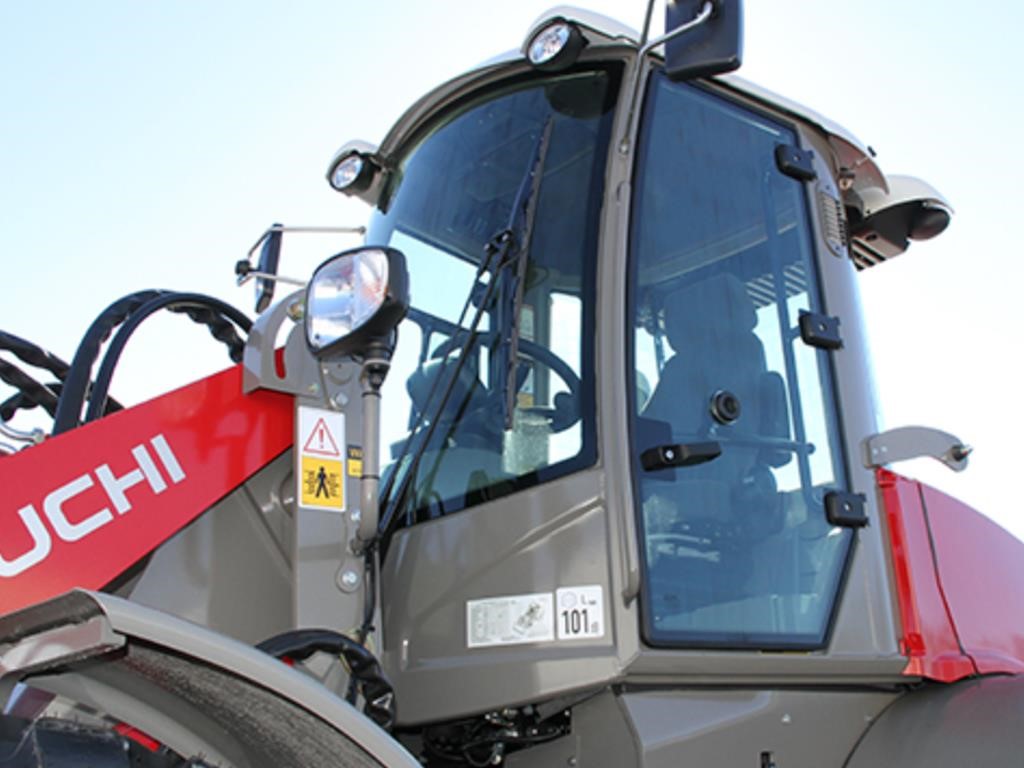

- Elevated Operators Station with Panoramic Glass provides 360 degree view of worksite.
- Deluxe Lighting Package includes Work, Driving and Signal Lights that keep the work area and machine visible in low light conditions.
- Deluxe Air Ride Suspension Seat with Arm Rests keeps the operator comfortable and properly positioned over the controls.

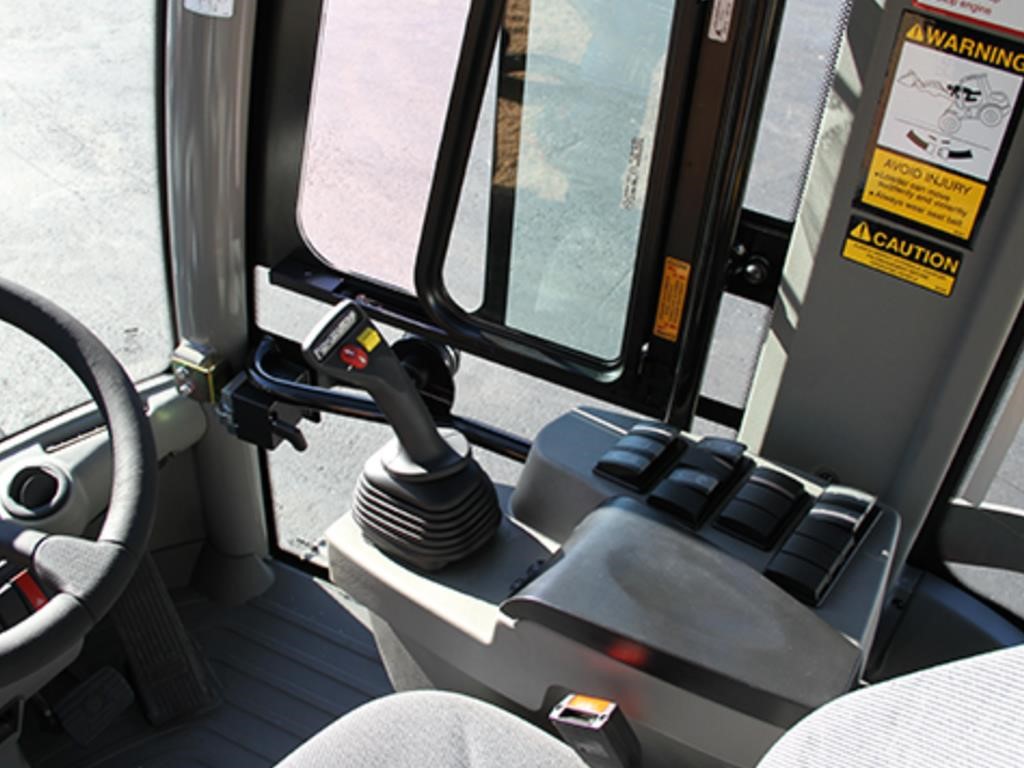

- Multi-Functional Joystick for Machine Direction, Bucket Control, Loader Arms, Diff Lock, High Speed, and Auxiliary Controls are low effort and precise.
- Standard 15.8 GPM system allows for maximum attachment versatility.
- Over-sized Hydraulic reservoir - optimal hydraulic system cooling.
- Outboard Planetary Drives makes service and oil changes easy.

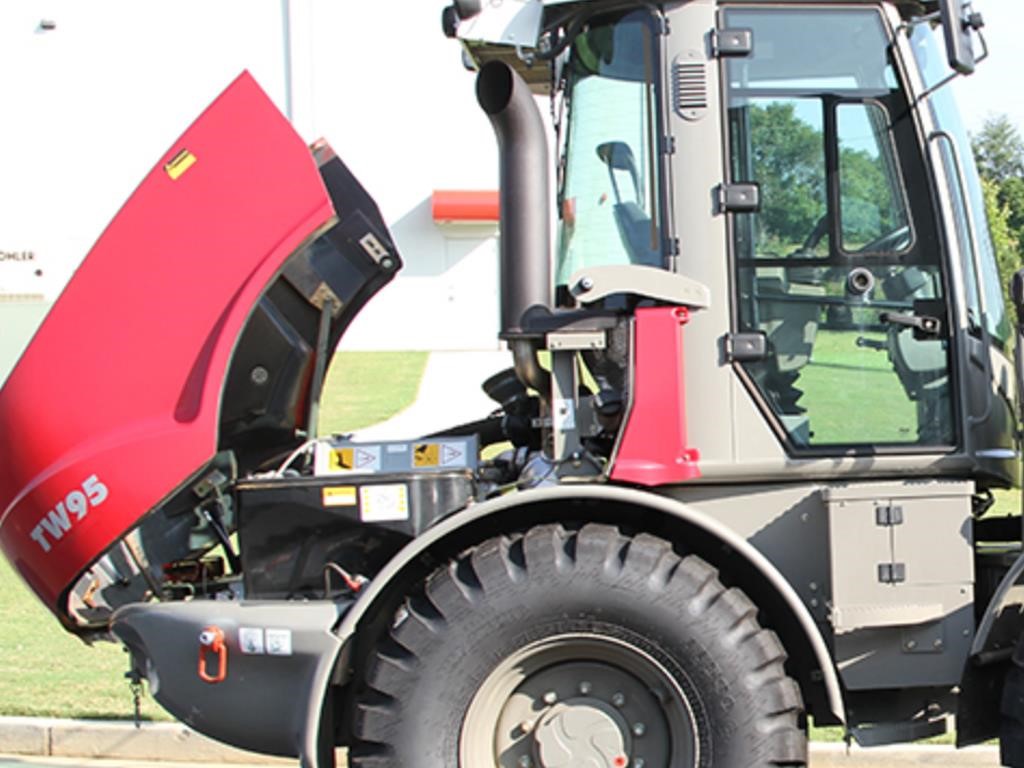

- Ground level serviceability-engine service and daily maintenance check points are easily accessed through the rear hood.
- Tier 4 Final DOC only exhaust aftertreatment – No DPF filter to maintain or clean.
- No Spin turn causes less tire wear and is easier on driveline components.
- Better Visibility - 360 degree panoramic view from elevated operator station.
- Lighter Footprint - better flotation results in less impact to soil.
- 114 HP DEUTZ Turbo Diesel
- Bucket Breakout Force of 15,873 lb
- Tipping Load of 14,307 lb
- EPA Final Tier 4 Emission Compliant
- DOC / SCR Exhaust After Treatment
- Turbocharged
- Water Cooled
- Dual Element Air Cleaner with Restriction Indicator

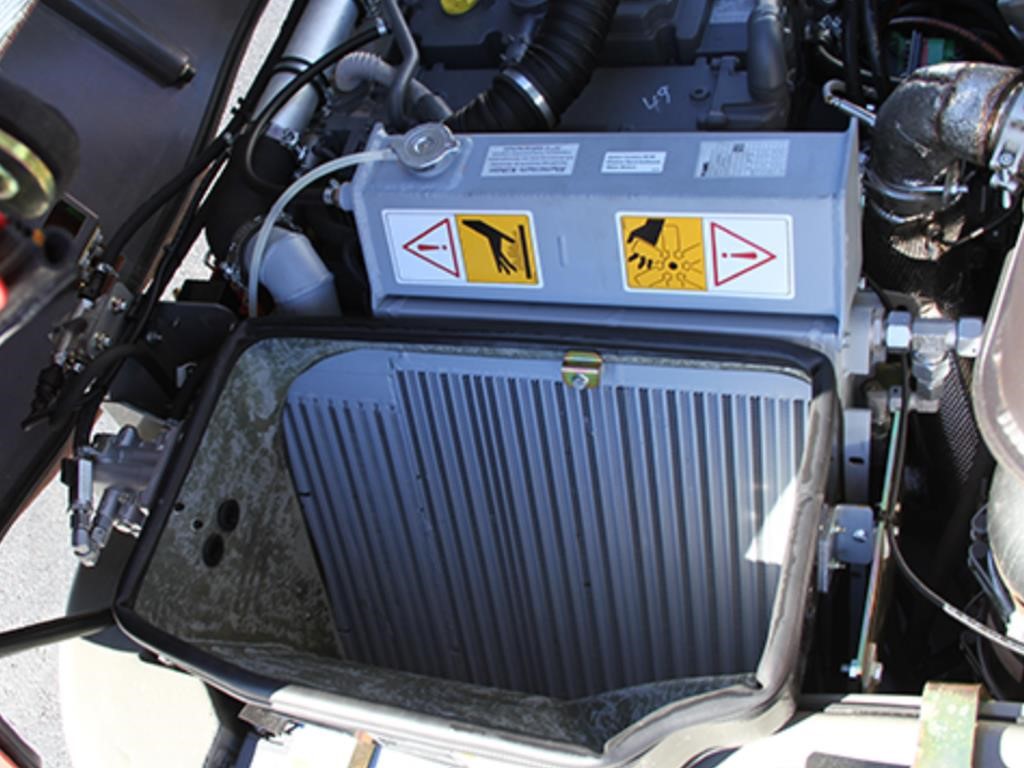

- High Capacity Radiator
- Multi-Informational Monitor
- 12-volt System with 95 amp Alternator
- Work Lights: Front and Rear
- Driving Lights and Turn Signals
- Directional Lights: Fwd / Rev
- Engine Preheat
- Back-up Alarm
- Precise and Responsive Pilot Controls
- Proportional Thumb Wheel Located in Loader Joystick for Auxiliary Hydraulic Circuit
- Auxiliary Hydraulic Lines Plumbed to End of Loader Arms
- Auxiliary Hydraulic Detent
- Hydraulic Oil Level Sight Gauge
- High Capacity Hydraulic Oil Cooler
- Auxiliary Hydraulics (26.4 gpm)

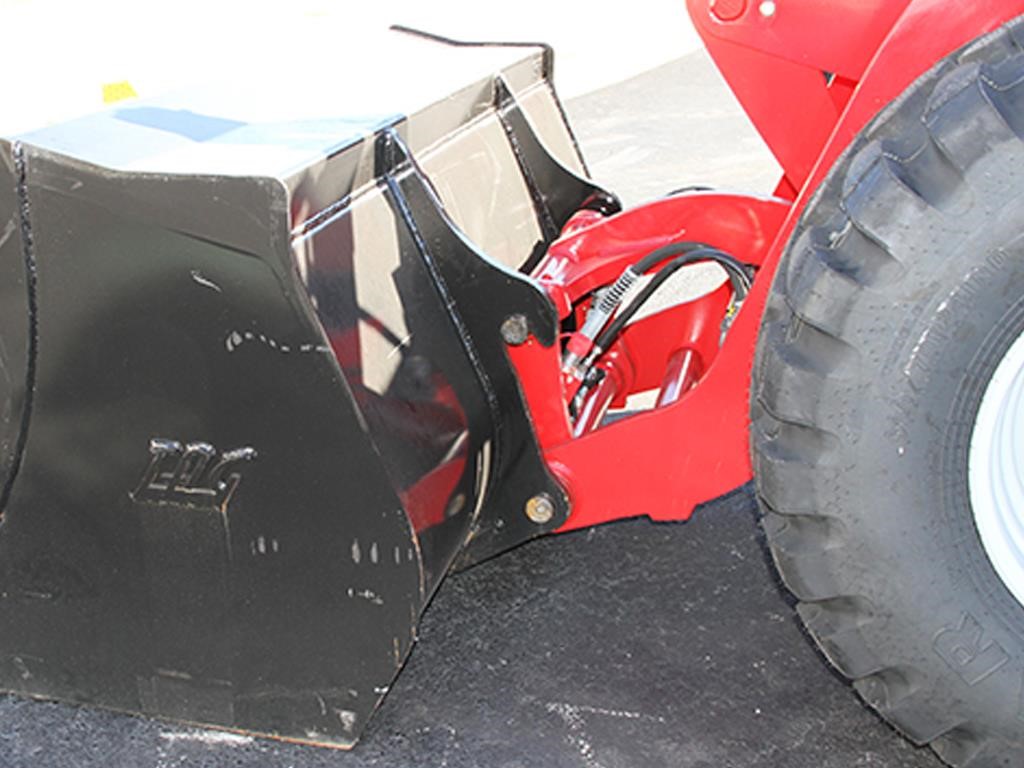

- Z-Bar Linkage
- Bucket Float Function
- Mechanical Bucket Positioning
- Heavy Duty Hydraulic Bucket Quick Coupler
- Heavy Duty Self Aligning Loader Bushings with Oversized Pins
- 95" GP Bucket (2.00 yd3) (optional)
- 95" Light Duty Bucket w/ BOE (2.75 yd3)
- 95" Light Duty Bucket (8 tooth) (2.62 yd3) (optional)
- HD 48" Pallet Forks and Frame (optional)
- Enclosed Cab with Air Conditioning, Heat, Front and Rear Wipers, Front and Rear Washers, and Rear Defrost
- ROPS / FOPS Protection
- 2" Retractable Seat Belt
- Deluxe Air Suspension Seat with Heat
- Large Steps and Grab Handles
- Elevated Operator's Station
- Multi-Functional Joystick for Machine Direction, Bucket Control, Loader Arms, Diff Lock, High Speed, and Auxiliary Controls
- 3" Retractable Seat Belt (optional)
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: TAKEUCHI
- Model: TW95
- Condition: New
- ROPS Type: Enclosed
- Operating Performance Operating Weight: 18,188 lb (8,250 kg)
- Operating Performance Operating Weight Canopy:
- Operating Performance Operating Weight Cab:
- Operating Performance Tipping Load: Straight: 14,307 lb (6,490 kg)
- Operating Performance Tipping Load: Full Turn: 12,652 lb (5,739 kg)
- Operating Performance Operating Capacity: SAE J818*: 6,326 lb (2,870 kg)
- Operating Performance Bucket Breakout Force: 15,873 lb (7,200 kg)
- Operating Performance Lift Arm Breakout Force: 18,077 lb (8,200 kg)
- Operating Performance Traction Force: 13,592 lb (6,165 kg)
- Operating Performance Max Travel Speed:
- Operating Performance Travel Speed Low Range: 4.0 mph (6.5 km/hr)
- Operating Performance Travel Speed High Range: 12.4 mph (20.0 km/hr)
- Operating Performance Optional High Speed Travel: 24.9 mph (40.0 km/hr)
- Operating Performance NOTE: *Rate Operating Capacity (ROC) for wheel loaders is rated with a bucket according to SAE J818 at no more than 50% of the full turn tipping load.
- Hydraulic System Auxiliary Flow Standard Flow:
- Hydraulic System System Operating Pressure:
- Hydraulic System Auxiliary Flow Primary Circuit: 26.4 gpm (100.0 Lpm)
- Hydraulic System Auxiliary Flow Optional Circuit: 26.0 gpm (98.0 Lpm)
- Hydraulic System Auxiliary Flow Optional High Flow:
- Hydraulic System Hydraulic System Pressure: 3,336 psi (23.0 MPa)
- Engine Make/Model: Deutz / TD 3.6 L4
- Engine Emission Standard:
- Engine Engine Displacement: 176.0 cu in (3.6 L)
- Engine Horsepower @ 2,800 Rpm: 114.0 hp (85.0 kW)
- Engine Maximum Torque @ 1,600 Rpm: 339.9 ft-lb (460.0 Nm)
- Engine Maximum Torque @ 1,800 Rpm:
- Engine Horsepower:
- Engine Maximum Torque:
- Fluid Capacities Engine Lubrication: 9.5 qt (8.0 L)
- Fluid Capacities Cooling System: 22.2 qt (21.0 L)
- Fluid Capacities Fuel Tank Capacity: 31.7 gal (120.0 L)
- Fluid Capacities Fuel Consumption (65% Of Full Load): 6.5 gal/hr (24.6 L/hr)
- Fluid Capacities Hydraulic Reservoir Capacity: 28.0 gal (106.0 L)
- Fluid Capacities Front Axle Lubrication: 7.6 qt (7.2 L)
- Fluid Capacities Rear Axle Lubrication: 7.6 qt (7.2 L)
- Fluid Capacities Planetary Capacity (each):
- Machine Dimensions Max. Lift Height To Bucket Pin: 11 ft 10.5 in (6,187 mm)
- Machine Dimensions Dump Height Fully Raised: 9 ft 3.3 in (2,828 mm)
- Machine Dimensions Max. Reach Fully Raised: 2 ft 8.2 in (820 mm)
- Machine Dimensions Dump Angle: 45°
- Machine Dimensions Rollback Angle: 48°
- Machine Dimensions Overall Length With Bucket: 20 ft 5.2 in (6,230 mm)
- Machine Dimensions Overall Height: 9 ft 7.4 in (2,932 mm)
- Machine Dimensions Overall Operating Height: 13 ft 10.0 in (4,220 mm)
- Machine Dimensions Bucket Clearance Height: 9 ft 11.0 in (3,025 mm)
- Machine Dimensions Wheel Base: 8 ft 2.4 in (2,500 mm)
- Machine Dimensions Ground Clearance: 1 ft 9.2 in (540 mm)
- Machine Dimensions Overall Width Without Bucket: 7 ft 1.8 in (2,180 mm)
- Machine Dimensions Turning Radius At Bucket Edge:
- Machine Dimensions Outside Turning Radius: 15 ft 1.4 in (4,610 mm)
- Machine Dimensions Inside Turning Radius: 7 ft 10.0 in (2,385 mm)
- Machine Dimensions Recommended Bucket Width: 95.0 in (2,413 mm)
