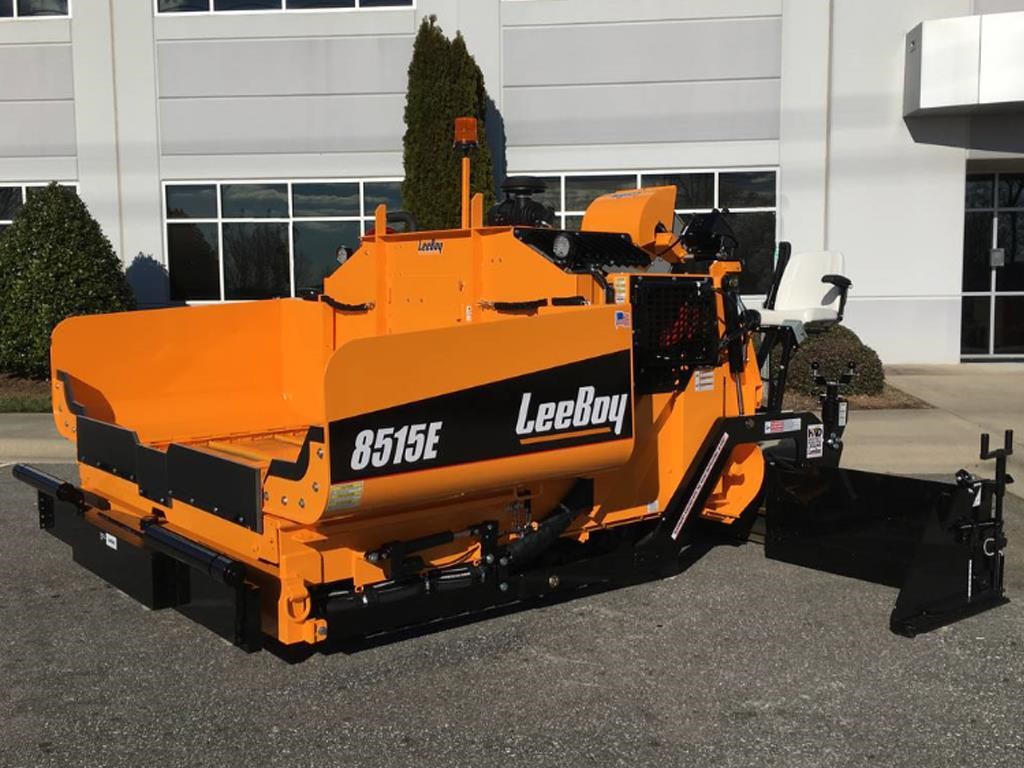

2026 LEEBOY 8515E

LEEBOY 8515E — ASPHALT PAVERS

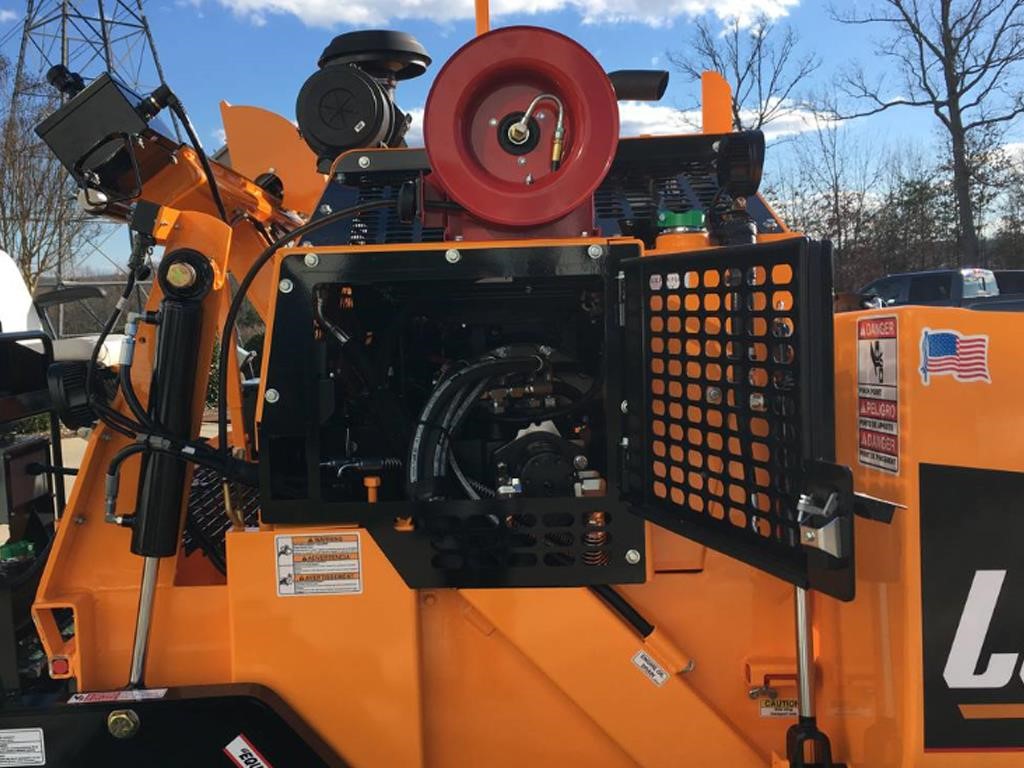

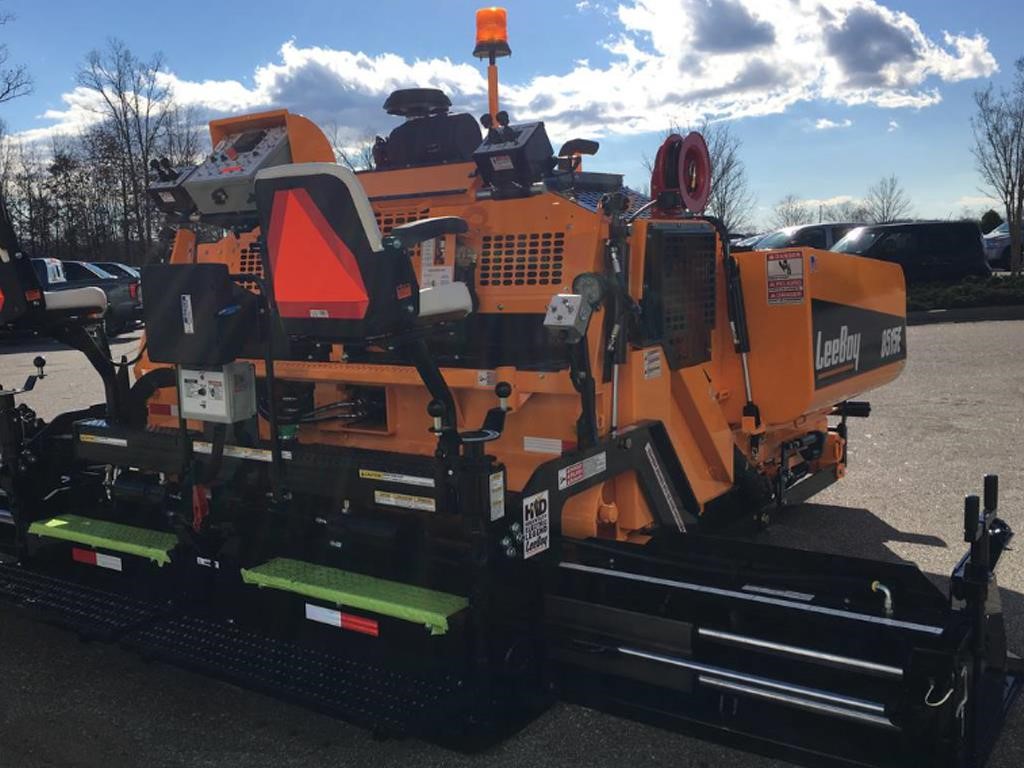

Sleek, modern and low-profile are three words that immediately come to mind when evaluating the LeeBoy 8515E Asphalt Paver. Featuring an engine hood height of 69 inches (1.75 m) and a sliding control station, the 8515E gives the operator an extremely clear and comfortable view of their surroundings. With a class-leading tunnel size and self-cleaning conveyor bars, this machine is built to perform at the highest level. Easy-to-access, convenient maintenance areas are also a highlight of machine ownership.

PERFORMANCE FEATURES
• 74 hp (48 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 15’
• Low Profile Engine Hood For Better Visibility
• Choice of High Deck or Low Deck Configuration
• Sliding Operator Control Station
• Ultra-efficient Material Management System

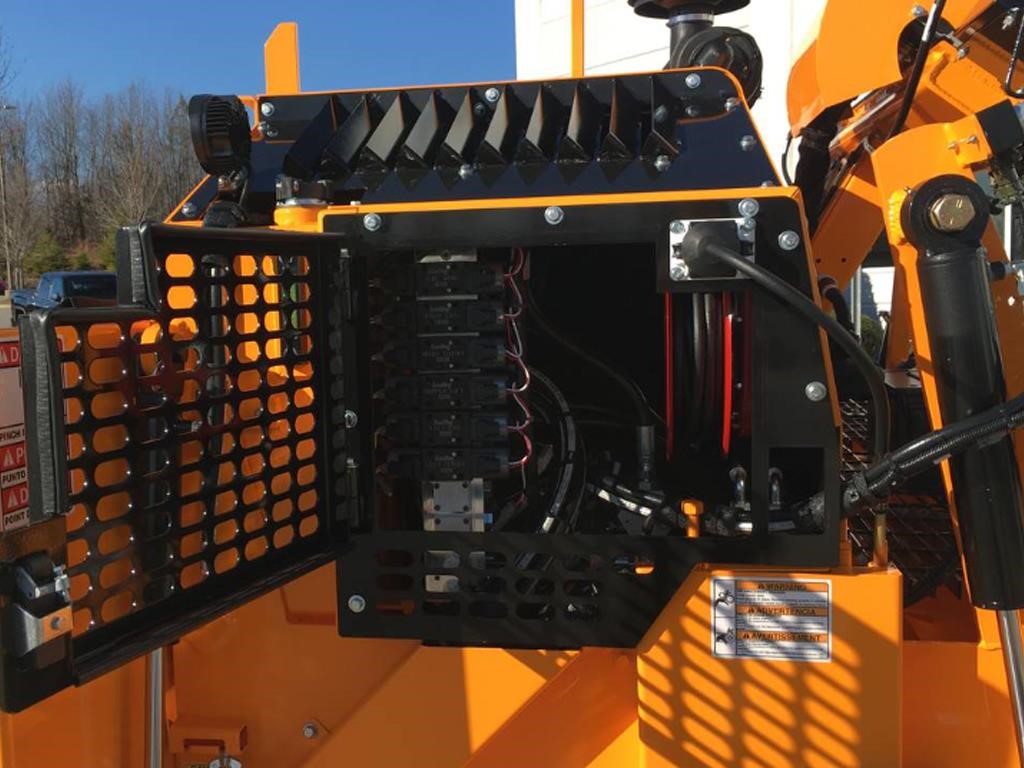

• Pressure Ports for Diagnostics and Testing

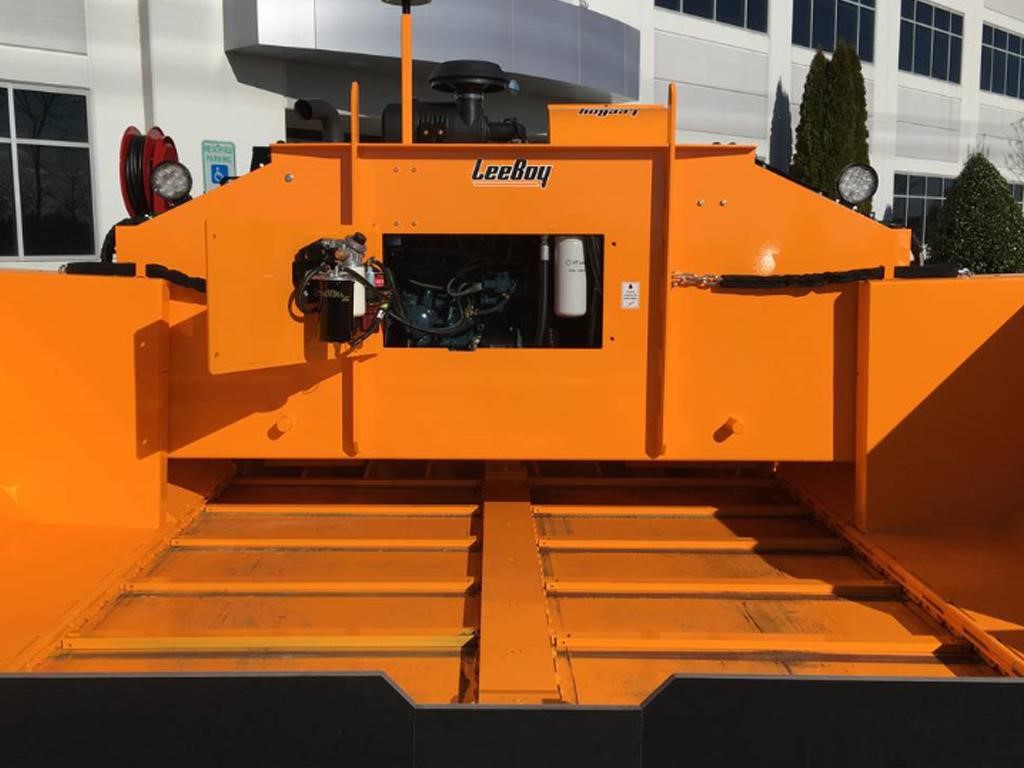

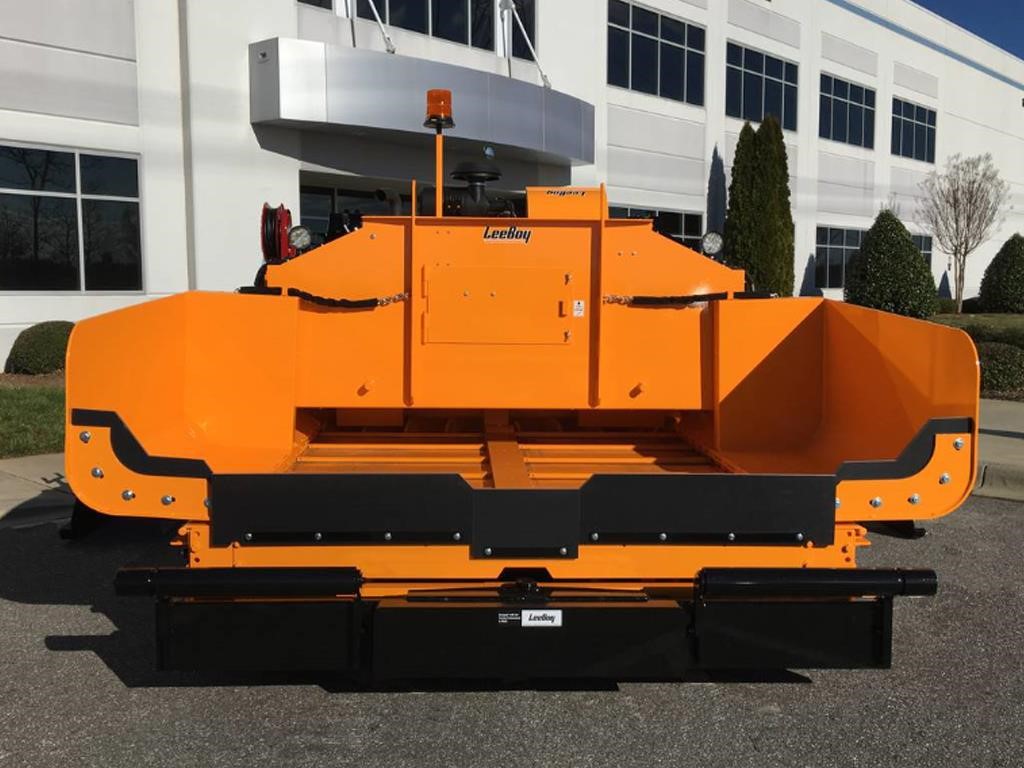

• 7.5 Ton Capacity Material Hopper
• Proven Legend Screed System
• Electric Screed Heat, 10 kw Generator
• Heavy-duty Undercarriage and Track System

ENGINE
• Kubota turbocharged diesel,
• Tier 4 Final – 74 hp (55.4 kw)

HOPPER
• Hopper size: 7.5 ton

PAVING WIDTHS
• Variable up to 15’

PAVING DEPTHS
• Manual flight screws positioned on the screed to control material thickness
• Depth: 0” to 6”

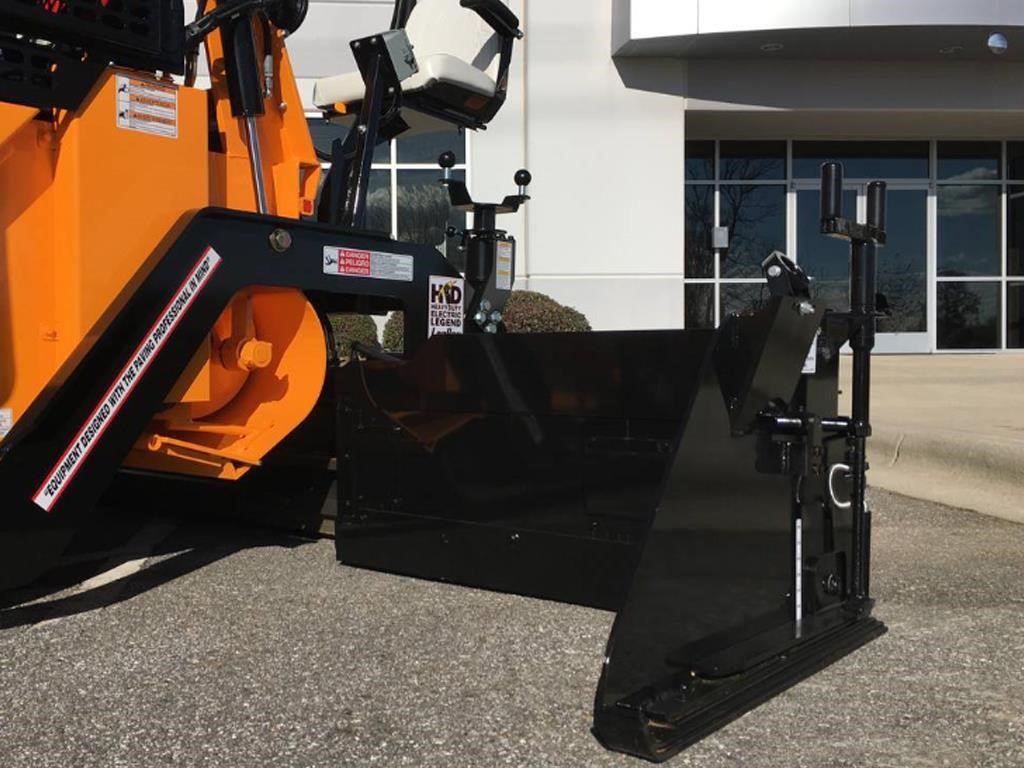

SCREED
• Legend Electric screed
• Consisting of a main screed and two hydraulically operated screed extensions
• Equipped with two electric vibrators

SCREED HEAT
• Legend electric screed heat, 10kw generator
• Electric timer and automatic RPM control system
• 2 Blade heating elements in main, 1 blade element in each extension

SCREED CROWN/VALLEY
• Equipped with a crown/invert adjustment
• Includes a levelling indicator for the operator

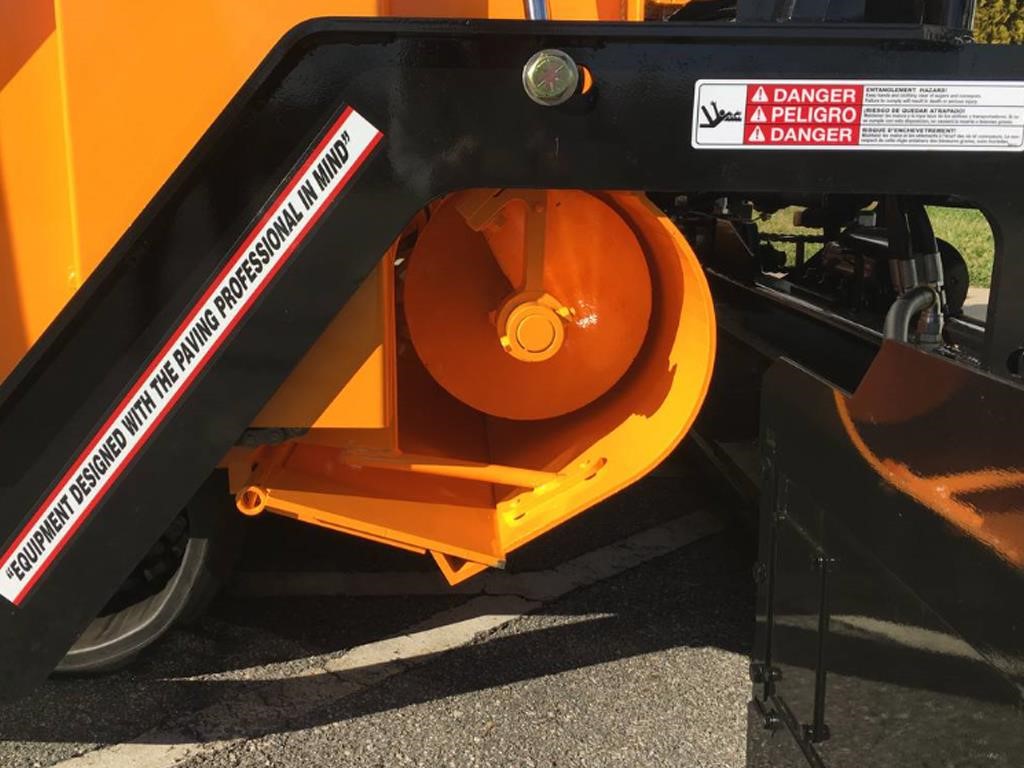

MATERIAL HANDLING
• Two independentaly controled, hydraulically operated under auger material cutoff
• Two 12” diameter independent hydraulically operated cast augers

OPERATOR’S PLATFORM
• Full machine width platform
• Walkboard extensions slide outs, left and right

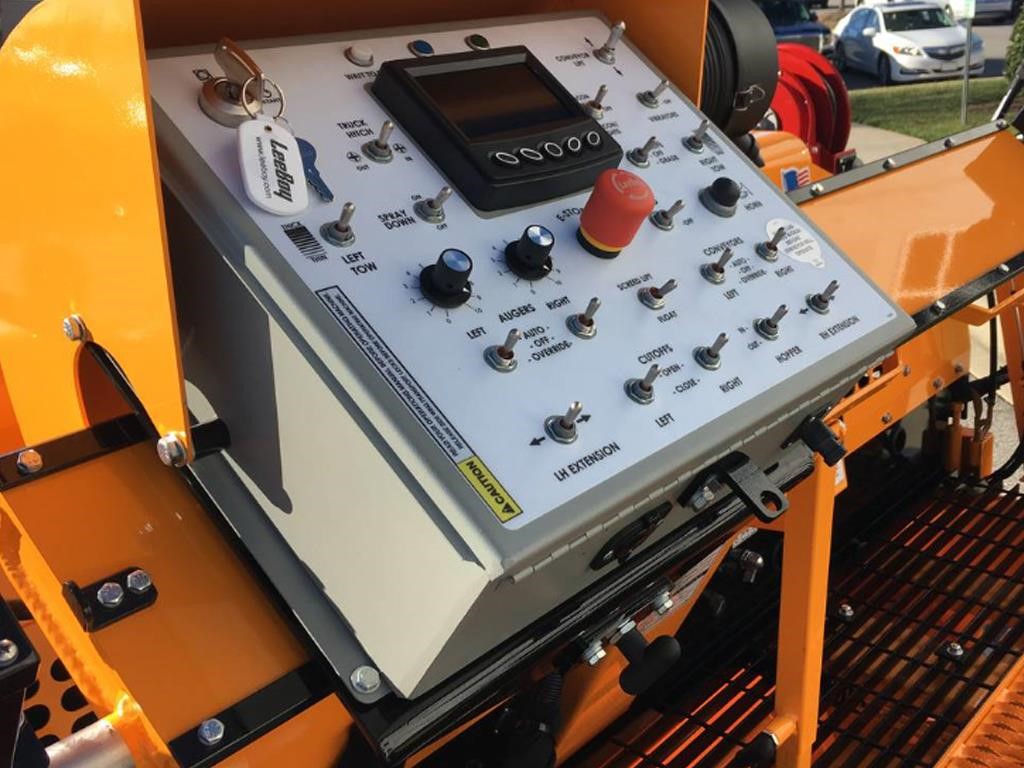

OPERATOR’S CONTROLS
All control switches are in a single control box which can be moved from right side to left side

STEERING

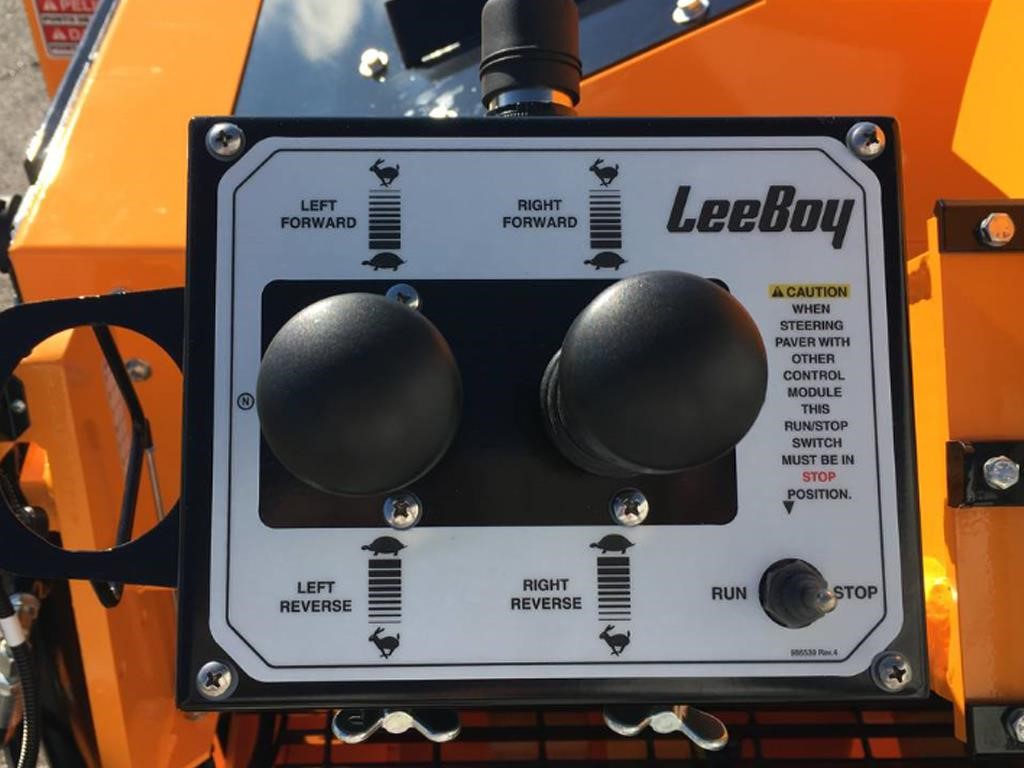

• Dual electronic steering
• Electronically controlled pumps operated by the forward/reverse joysticks

WASHDOWN SYSTEM
• Electric HD pump and two hose reels

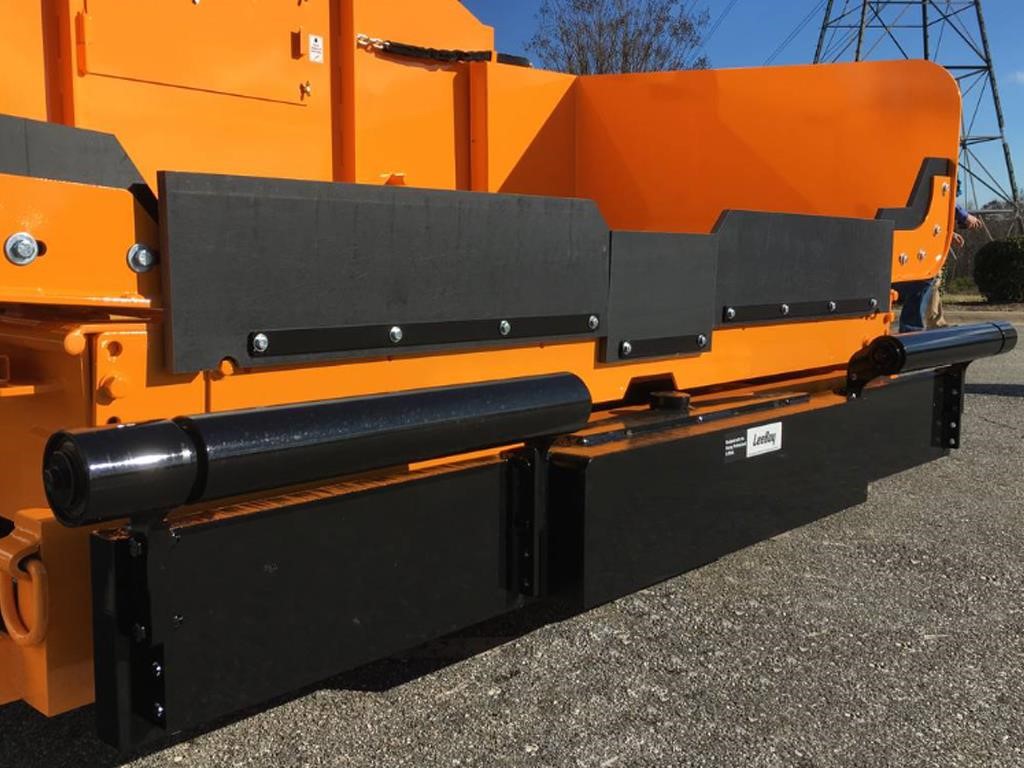

PUSH ROLLERS
• Two vertically adjustable rollers with sealed bearings mounted to allow pivoting on frame.

TRACK DRIVE SYSTEM
• Hydrostatically powered, self-cleaning crawler type
• Track size: 14” wide x 77” long poly
• Paving speed: 0 to 150’ per minute (1.7 mph)
• Travel speed: 0 to 300’ per minute (3.4 mph)

ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• LED work light package
• Vandalism protection covers
• Electronic gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, level warning)

OPTIONAL EQUIPMENT
• Legend HD Screed, 8’ to 15’, 10kw generator

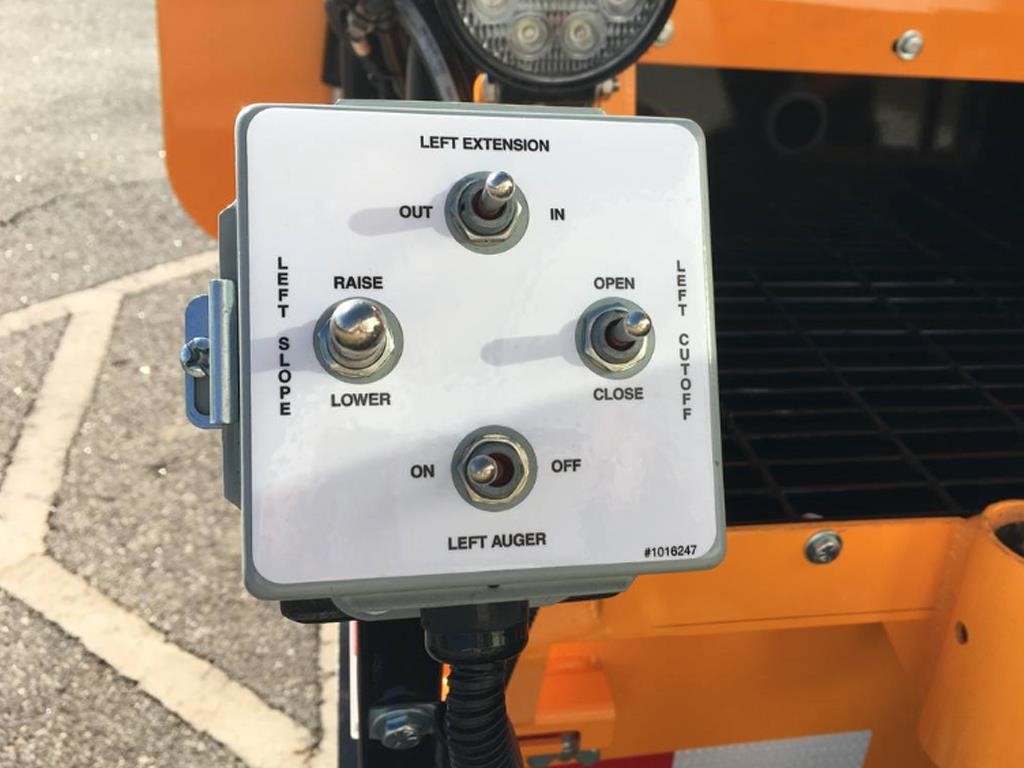

• Remote screed control
• Automatic screed temperature controls
• Screed extension vibration
• Rubber track, continuous – in lieu of poly
• Steel track – in lieu of poly
• Sloping screed extensions
• Heated end gates
• Truck hitch
• Power crown
• Steering wheel drive controls (in lieu of joysticks)
• Wiring only, grade controls, includes A/M module
• Sonic grade control both sides
• Sonic grade control, one side (TopCon)
• Dual sonic grade (Topcon)
• Dual sonic grade and slope (Topcon)
• 12” x 4.5” berm extension, left and right
• Other options available

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
