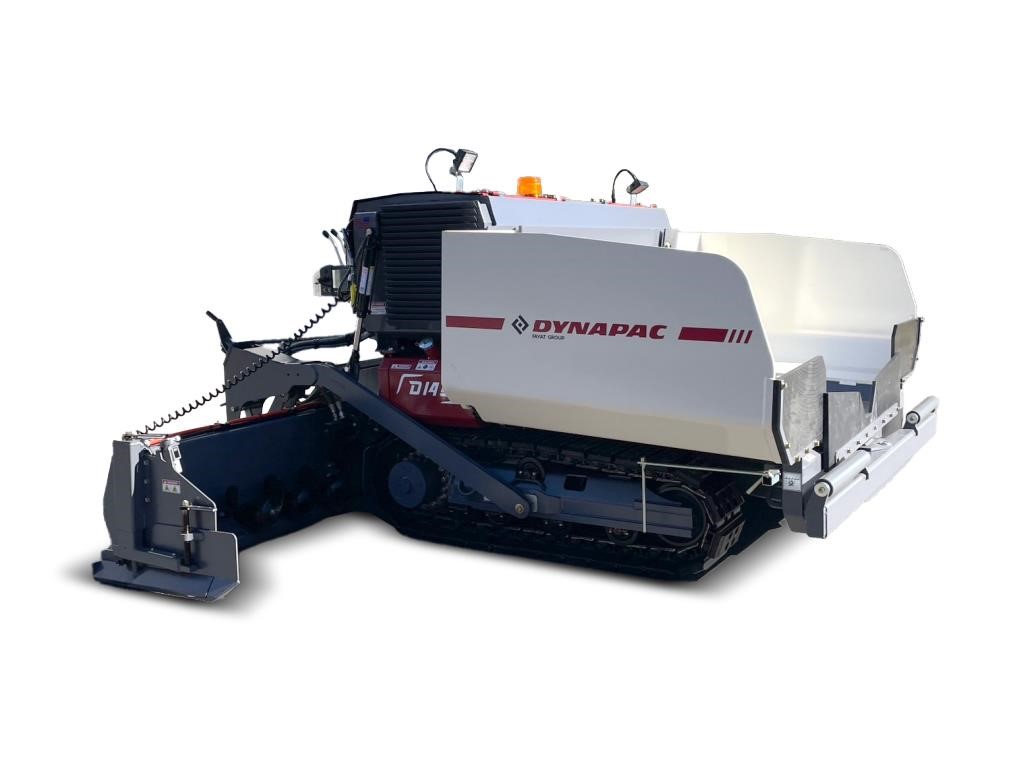

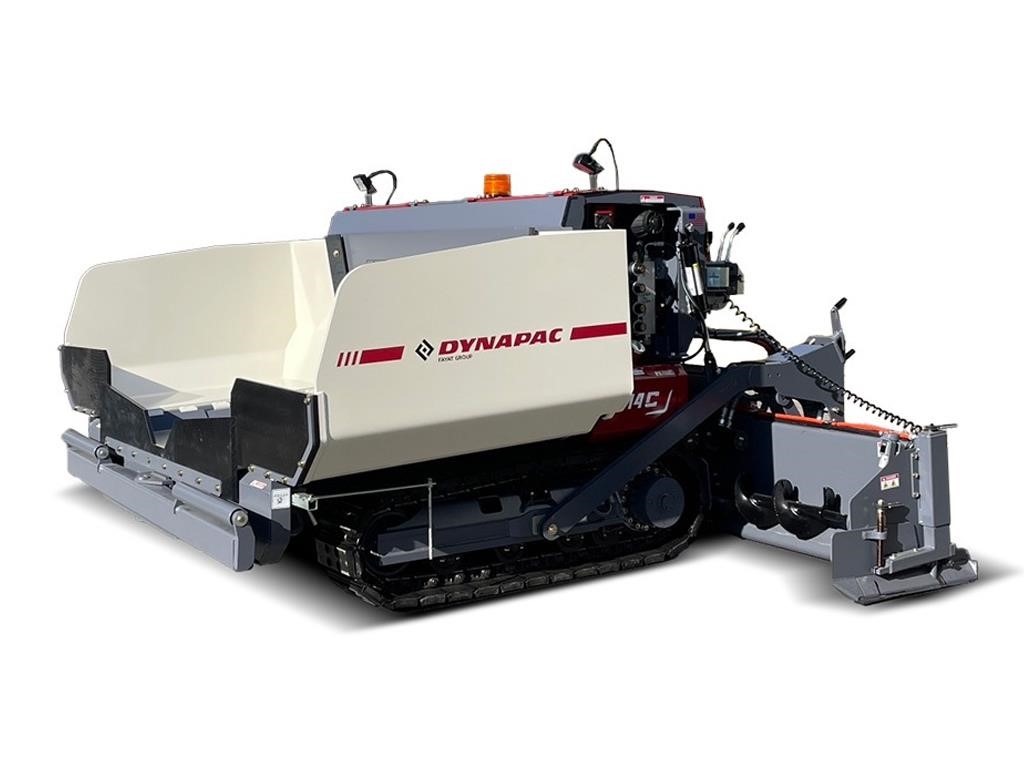

DYNAPAC D14C — COMMERCIAL PAVER
COMMERCIAL PAVERS
The Dynapac Commercial class paver range, are designed to provide best in class paving quality, reliability and longevity. The extra heavy duty Dynapac screeds attached with these pavers provide unparalleled pre compaction and mat quality.
D14C EQUIPMENT (STANDARD AND OPTIONS)
• Standard: LED Work Lights, Backup Alarm & Rotating Beacon, Reversible auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Dyn@Link Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics
• Optional: Cut-Off plates, Truck Hitch, Umbrella
— COMMERCIAL CLASS PAVER RANGE —
HEAVY DUTY BEST PRECOMPACTION
• Heaviest screed in it’s class for excellent paving quality
• High performance tractor with additional reserve capacity
• Unique Quad Auger system to pave extra wide
• Simplified operating concept with 2 full functional consoles
• Fail-safe automatic heating control for uninterrupted paving
• Added value with premium standard features
Dynapac Commercial class paver range is a perfect match for contractors looking for high quality paving results with ease of operation and long lasting results. The three models FC1300C-II, D14C and D17C are designed to excel in wide variety of demanding job site needs from small drive ways to large commercial parking lots. In additional to these applications these pavers help contractors and municipalities to maintain city streets and county roads.
RELIABILITY & LONGEVITY
D14C 8 – 14 FT (24 – 4.3 M) – DUAL CONEVYOR PAVER
• Simple Operator Control System
• Strongest Screed In Its Class 3,200 Lbs (1,450 Kg)
• Optimized Fail-Safe Zonal Electric Screed Heating System
• Patented Automatic Match Height System
• 74 Hp (54 Kw) T4f Kubota Engine With Direct Drive 12 Kw Generator
• One Piece Bent 6 Tonnes Capacity Hopper
• Chamfered Corners For Easy Clean Out
• Innovative 4 Auger System For Best In Class Material Feed At Wider Widths
• Heavy Duty, Individual Replacement Segments
• Wear Resistance, Bolt On Replaceable Conveyor Floor Plate
• Independent Left And Right Control.
• Reversible Conveyor As Standard
• Wide Steel Track On Poly Pads.
• 2 Speed Planetary Drive System
• Automatic Track Tension System
• Simplified Cable Drive System
Dynapac D14C is designed to pave drive ways and small or large parking lots. The paver features rebuildable conveyors, augers and extra heavy duty screed and hopper to greatly increase the longevity. The heavy duty VF0814C screed weighs in at 3,200 lbs (1,450 kg) for best pre-compaction and heated with propane gas on the main and extensions. The screed includes the patented automatic match height feature eliminating the need of adjusting extension height. The simple operator controls with cable drive and toggle switches makes it very easy to learn and operate the paver.
EXCELLENT PAVING QUALITY
Extra heavy VF0814C vibration screed weighs 3,200 lbs (1,450 kg) for best density results immediately after the paver.
Automatic extension match height for seamless pavement, eliminating manual work.
Engine mounted 12 kW generator for fast, even and efficient heat-up time. The independent left and right feed system is controlled automatically by using standard ultrasonic sensors mounted at the end gate.
PAVE EXTRA WIDE WITHOUT SHOVELING
Dynapac Innovative screed mounted 4-auger system moves with extensions to maintain optimal head of material at all paving widths, which eliminates the need of asphalt shoveling while paving wide widths.
UNMATCHED EASE OF OPERATION
With Cable drive and toggle switch controls the operators quickly learns to operate the paver. The New electric heat screed reduces the need to frequently change gas tanks.
HIGH MANEUVERABILITY
The two-speed drive is standard which makes paving or transportation between jobsites extremely easy.
The standard poly-pad tracks moves quickly whether paving on soft surfaces or traveling between jobsites
BUILT TO LAST
The Dynapac commercial pavers are robustly designed resulting in minimum replacement costs. From heavy-duty steel components to oversized power train and drive components, reliable long lasting results are continuous.
COST CONTROL THAT SAVES BIG
Being active in the Road Construction business requires considerable investment. Every square meter involves an operational cost composed of fixed costs such as interest on equipment acquired, labor costs, insurance and equipment depreciation, but also variable costs such as expenses for fuel, wear and maintenance.
• SERVICE COMMITTED TO YOUR FUTURE
Genuine Parts And Kits
– Preventive maintenance kits
– Genuine Filters
– Fluids and lubricants
– Wear and repair kits
– Upgrade Kits
Service
– Right competence
– Training program
– Inspection & service program
– Extended Warranty & Service Agreement
Consumables
– Road Milling Tools (bits)
• PREVENT THE COST OF A BREAKDOWN
Regular Maintenance Prevents Costly Standstills.
– Equipment breakdowns have a direct impact on your productivity. No production means no revenue, but the fixed costs stay the same, resulting in lower profitability. By avoiding breakdowns and increasing the reliability of your machine, you will be able to produce more per year, which will immediately improve your profitability
• PREVENTIVE MAINTENANCE KITS
Regular Maintenance Prevents Costly Standstills.
– Equipment breakdowns have a direct impact on your productivity. No production means no revenue, but the fixed costs stay the same, resulting in lower profitability. By avoiding breakdowns and increasing the reliability of your machine, you will be able to produce more per year, which will immediately improve your profitability.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
