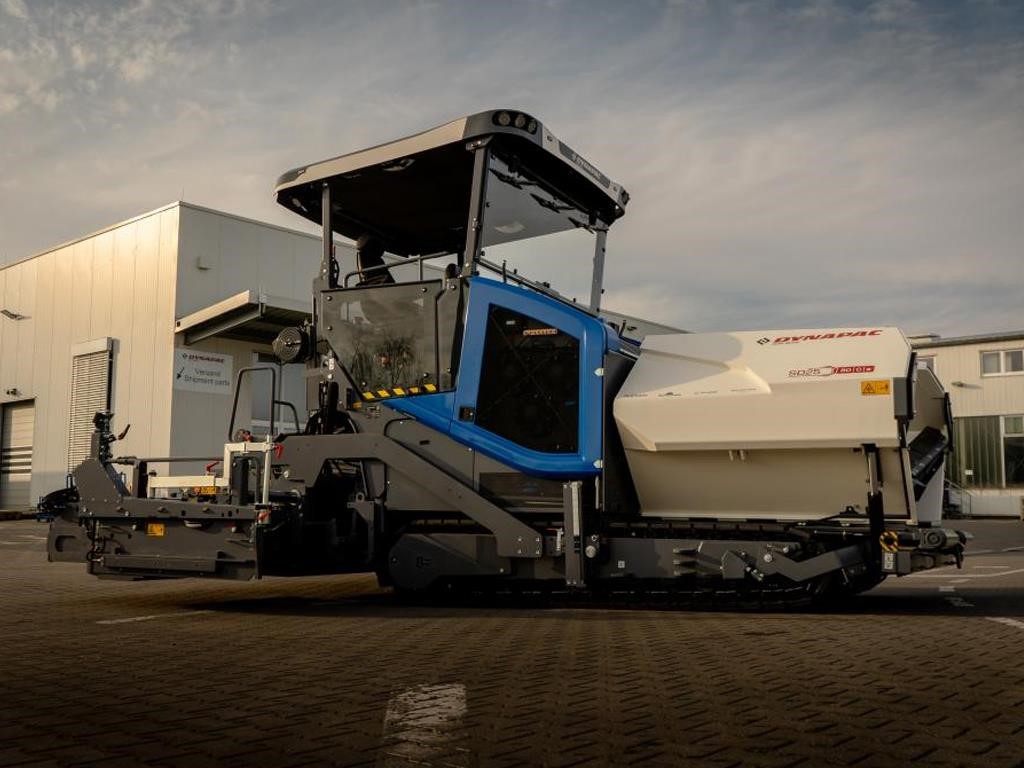

2026 DYNAPAC SD25 80CE
additional information
- All filters have been repositioned to the side doors. Furthermore, a service flap for oil checkup is located on the platform.
- The truck communication system TruckAssist is integrated in the hopper design.
- Dynapac transferred their proven swing out system from the feeders to the Highway Paver class.

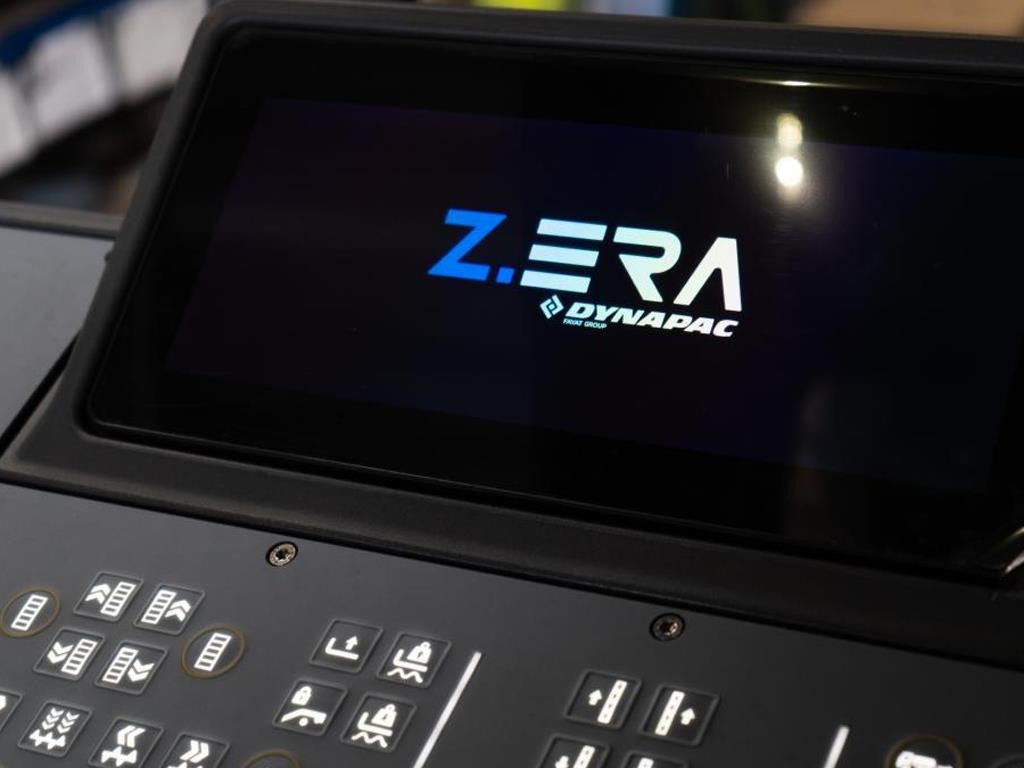

- The new Highway Paver Class is made for operators. Focus on the new machine are renewed HMI points, which means, a new dashboard, new remote controls and a new customizable software called PaveOS.
- Enjoy the same HMI Concept, the same well-known paving quality as you know from your Diesel Paver.

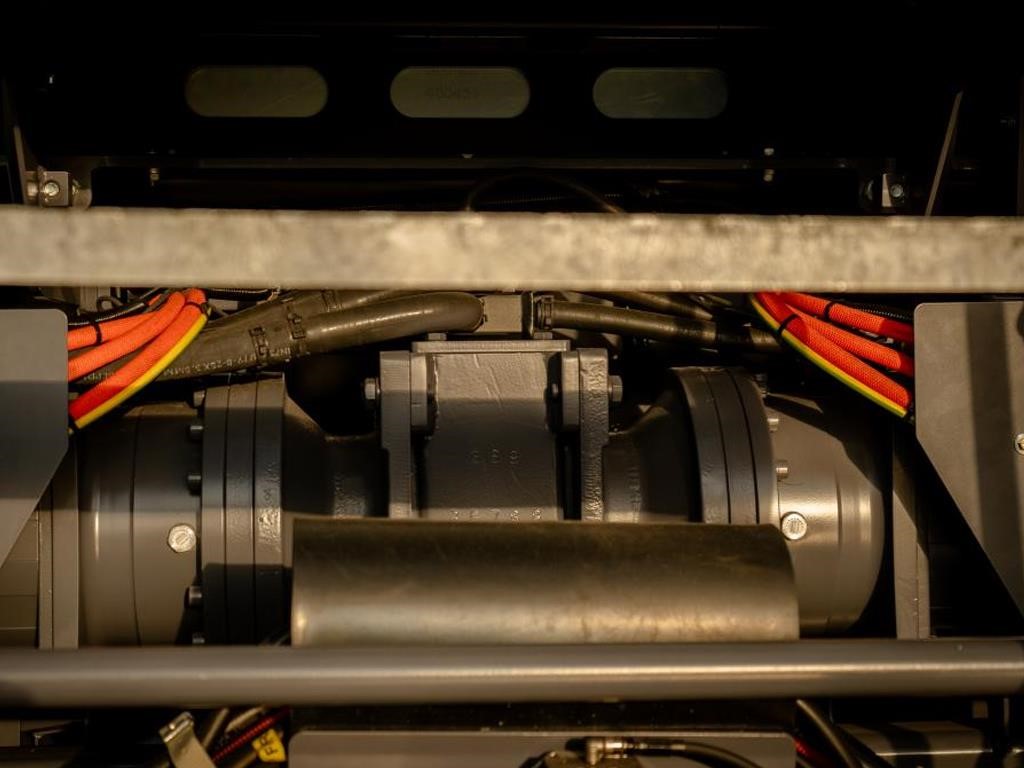

- Be the operator of the most efficient paver of the market. With 5 electric drives, this machine operates the hydraulics, conveyor and auger, leading to 3 times higher efficiency compared to Diesel.
- Enjoy 20% lower noise levels while operating the electric paver. Win more tenders by offering CO2 neutral paving jobs.
- With 294 kWh of battery capacity, you can operate this machine up to 8 hours. Additionally, you can use the Dynapac Bypass for Screed Heating while re-charging the machine.
- A free field of view is crucial for the operator. The Dynapac Highway Class Pavers offers an excellent all-around visibility.

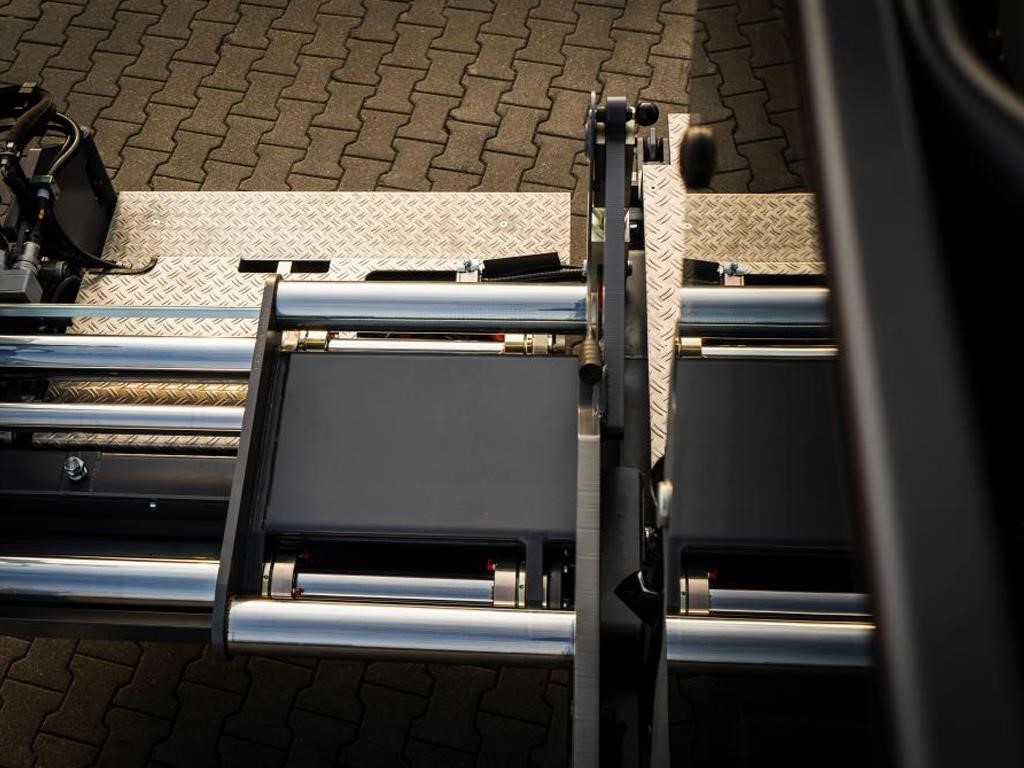

- Keep your surface quality high! Beside all new features, Dynapac kept his well-known stable screed design with the 4-tube system.

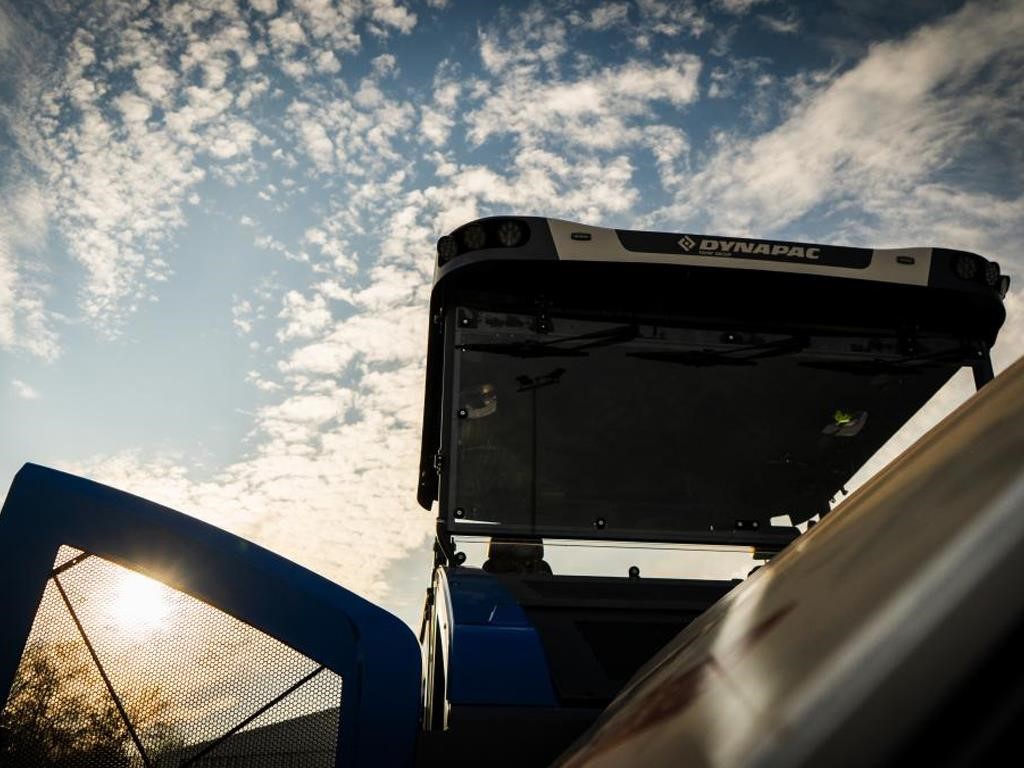

- Protect yourself against all kind of weather conditions, by having the possibility to close the cabin to the sides and front. Furthermore, the side windows are available in a tinted version.
- Automate your screed with adjustment with the MatTracker System. The sensor will detect an existing edge, for example a previously laid asphalt layer, and will adjust the screed width accordingly.
- VarioSpeed
- Pave OS
- OpenInterface
- Distance Dependent Slope and Crowning
- Hydraulic Crowning
- Fume Ventilation System
- SafeImpact truck damping system
- MatTracker
- Fuel Safe Hydraulics
- Sun Umbrellas for Side Shield
- Magentic Storage Compartments
- LightAssist incl. Home Coming
- TruckAssist
- Hydraulic controlled side shields
- Camera System
- MatManager Job Site Documentation System
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: DYNAPAC
- Model: SD25 80CE
- Condition: New
- Dimensions Basic Paving Width: 8.37 ft
- Dimensions Max. Layer Thickness: 12.20 in
- Dimensions Max. Paving Width: 19.69 ft
- Dimensions Theor Placement Cap: 800 t/h
- Masses Tractor Weight (incl. Standard Screed): 46,297.32 lbs
- Conveyor Conveyor Control: Proportional with paddle sensor
- Conveyor Conveyor Type: Conveyor, reversible
- Conveyor Conveyor Width: 2x 25.78 in
- Electrical System Auxiliary Battery Voltage: 25 V
- Electrical System Battery Capacity (gross): 294 kWh
- Electrical System Battery Type: Lithium-Ion (NMC)
- Electrical System Motor Type: Permanent Magnet Synchronous Motor (PMSM)
- Electrical System Nominal Battery Voltage: 665 V
- Electrical System System Power (Peak): 235 kW
- Electrical System :
- Charging 5 – 80 % @ 235 KW (DC): ~ 40 min
- Charging 5 – 80 % @ 400 V, 43 KW (AC, Type II): ~ 4.5 h
- Charging :
- Dimensions Axle Track: 9.51 ft
- Dimensions Width, Max.: 11.15 ft
- Dimensions Width, Standard: 8.36 ft
- Dimensions Width, Center Of Tracks: 6.53 ft
- Dimensions Crawler Width: 1.05 ft
- Dimensions Height, Max.: 12.79 ft
- Dimensions Height, Transport: 10.17 ft
- Dimensions Push Roller Height: 1.60 ft
- Dimensions Length: 20.18 ft
- Dimensions Length, Hopper: 6.95 ft
