2026 DYNAPAC XD25 80C
additional information
- All filters have been repositioned to the side doors. Furthermore, a service flap for oil checkup is located on the platform.
- The truck communication system TruckAssist is integrated in the hopper design.

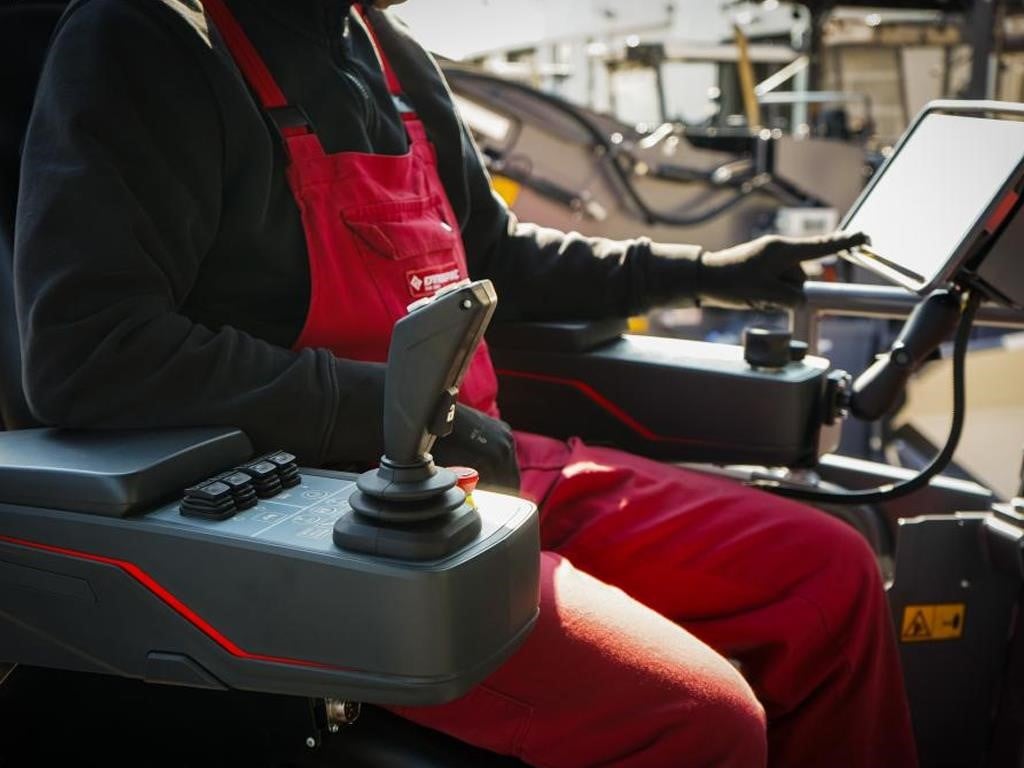

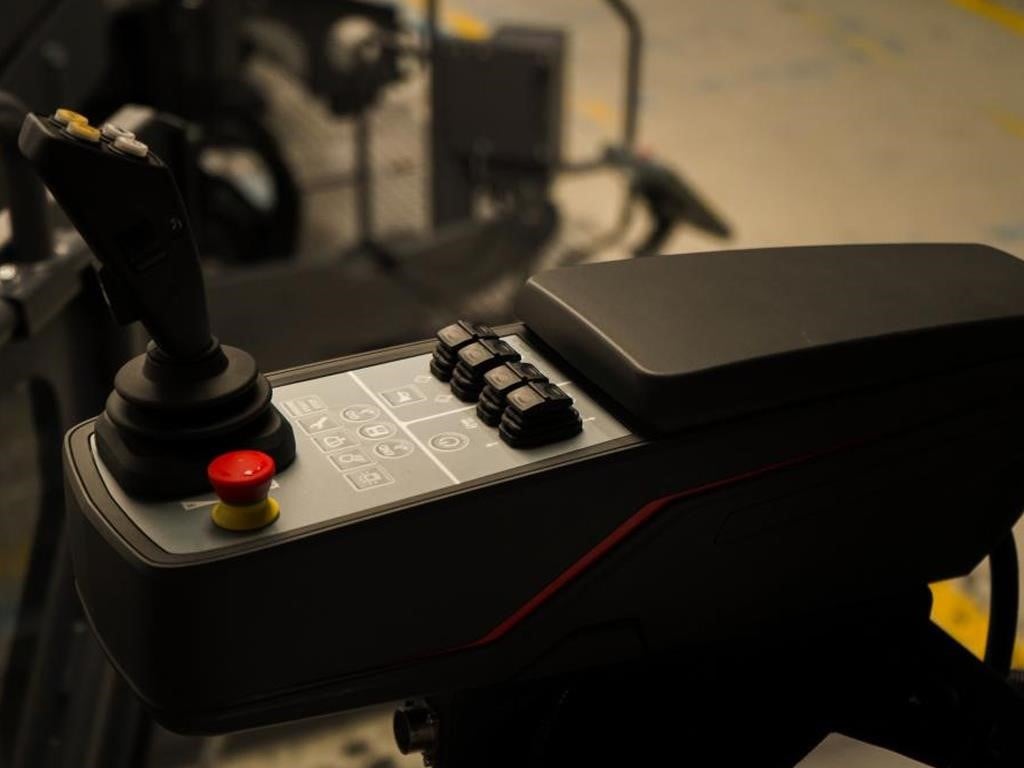

- Dynapac introduced a new operating concept with one seat on the platform. All controls are in the armrest to enhance operator comfort to new levels.
- The new Highway Paver Class is made for operators. Focus on the new machine are renewed HMI points, which means, a new dashboard, new remote controls and a new customizable software called PaveOS.
- A free field of view is crucial for the operator. The Dynapac Highway Class Pavers offers an excellent all-around visibility.
- Keep your surface quality high! Beside all new features, Dynapac kept his well-known stable screed design with the 4-tube system.
- Protect yourself against all kind of weather conditions, by having the possibility to close the cabin to the sides and front. Furthermore, the side windows are available in a tinted version.
- Automate your screed with adjustment with the MatTracker System. The sensor will detect an existing edge, for example a previously laid asphalt layer, and will adjust the screed width accordingly.
- VarioSpeed
- Pave OS
- OpenInterface
- Distance Dependent Slope and Crowning
- Hydraulic Crowning
- Fuel Safe Hydraulics
- SafeImpact truck damping system
- MatTracker
- Fume Ventilation System
- Sun Umbrellas for Side Shield
- Magentic Storage Compartments
- LightAssist incl. Home Coming
- TruckAssist
- Hydraulic controlled side shields
- Camera System
- MatManager Job Site Documentation System
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: DYNAPAC
- Model: XD25 80C
- Condition: New
- Dimensions Basic Paving Width: 0.10 in
- Dimensions Max. Layer Thickness: 14.17 in
- Dimensions Max. Paving Width: 393.70 in
- Dimensions Theor Placement Cap: 800 t/h
- Masses Tractor Weight (incl. Standard Screed): 44,092.68 lbs
- Engine Manufacturer/Model: Cummins B6.7-C200
- Engine Emissions According To: Stage V / US EPA T4f
- Engine Rated Power, SAE J1995: 149 kW @ 2200 rpm
- Engine Peak Power: 157 kW
- Engine DEF Tank Capacity: 10 gal
- Engine Fuel Tank Capacity: 96 gal
- Engine Average Fuel Consumption: 9.45 l/h
- Engine After Treatment: DOC + DPF + SCR
- Alternate Engine Manufacturer/Model: Cummins QSB6.7-C190
- Alternate Engine Emissions According To: Tier 3
- Alternate Engine Rated Power, SAE J1995: 149 kW @ 2200 rpm
- Alternate Engine Peak Power:
- Alternate Engine DEF Tank Capacity:
- Alternate Engine Fuel Tank Capacity: 95.64 gal
- Alternate Engine Average Fuel Consumption: 9.45 l/h
- Conveyor Conveyor Control: Proportional with paddle sensor
- Conveyor Conveyor Type: Dual Conveyor, reversible
- Conveyor Conveyor Width: 2x 655 mm
- Dimensions Axle Track: 2.90 m
- Dimensions Width, Max.: 3.40 m
- Dimensions Width, Standard: 2.55 m
- Dimensions Width, Center Of Tracks: 1.99 m
- Dimensions Crawler Width: 0.32 m
- Dimensions Height, Max.: 3.94 m
- Dimensions Height, Transport: 3.10 m
- Dimensions Push Roller Height: 0.49 m
- Dimensions Length: 6.15 m
- Dimensions Length, Hopper: 2.12 m
