2026 LEEBOY 6150

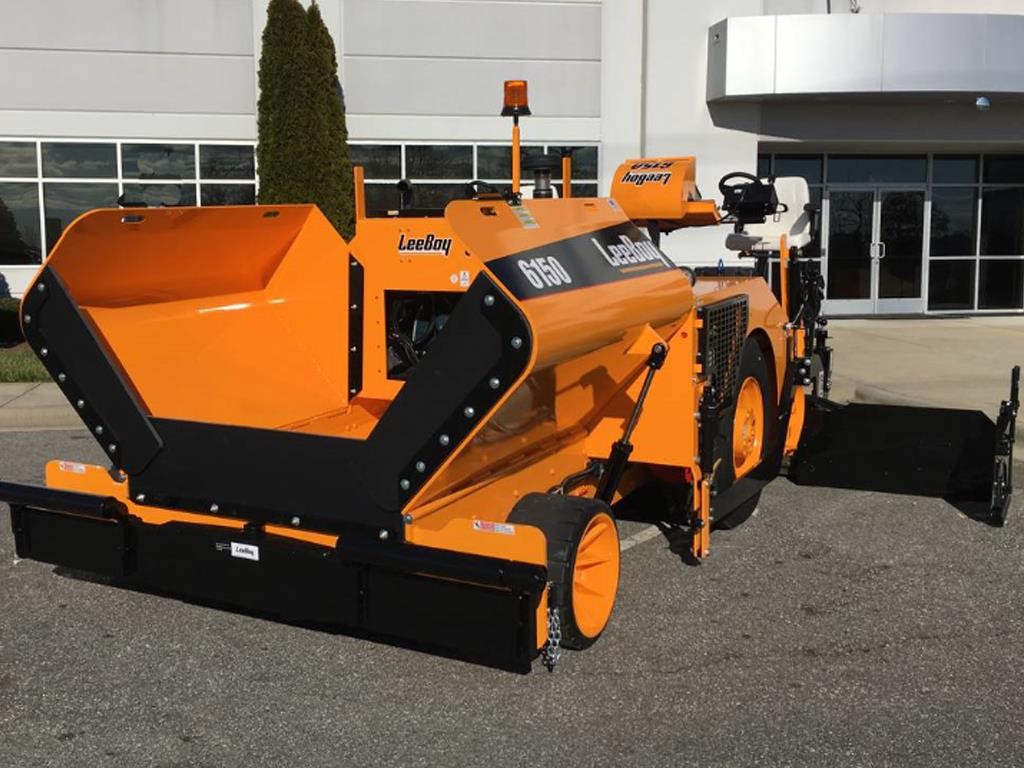

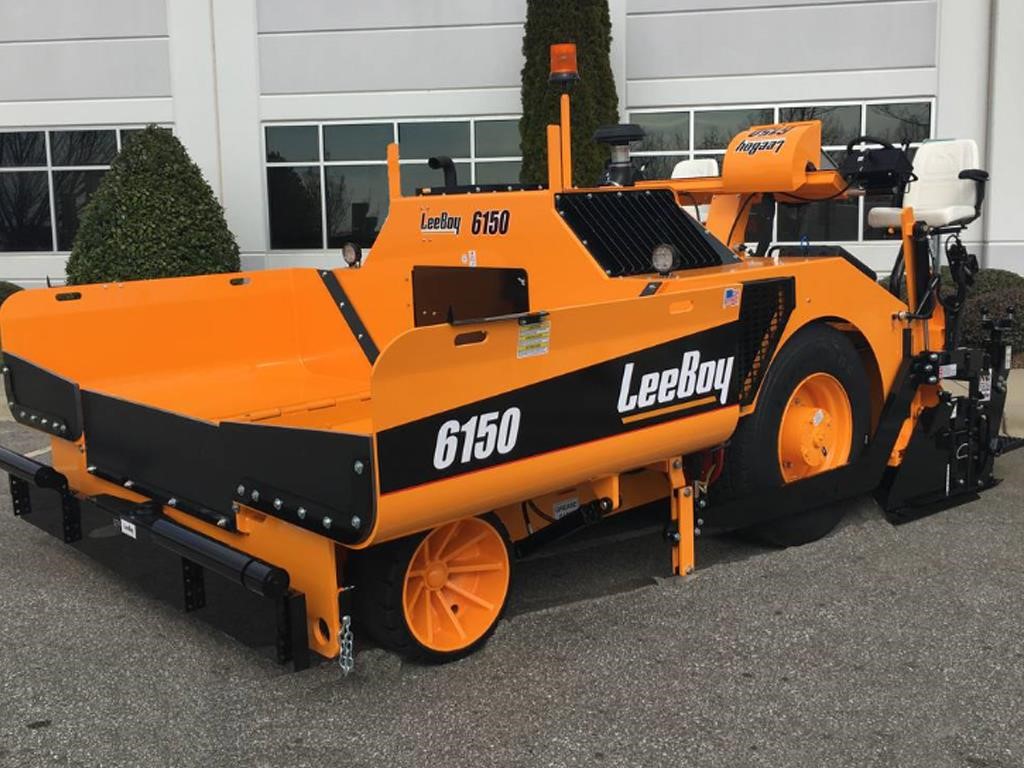

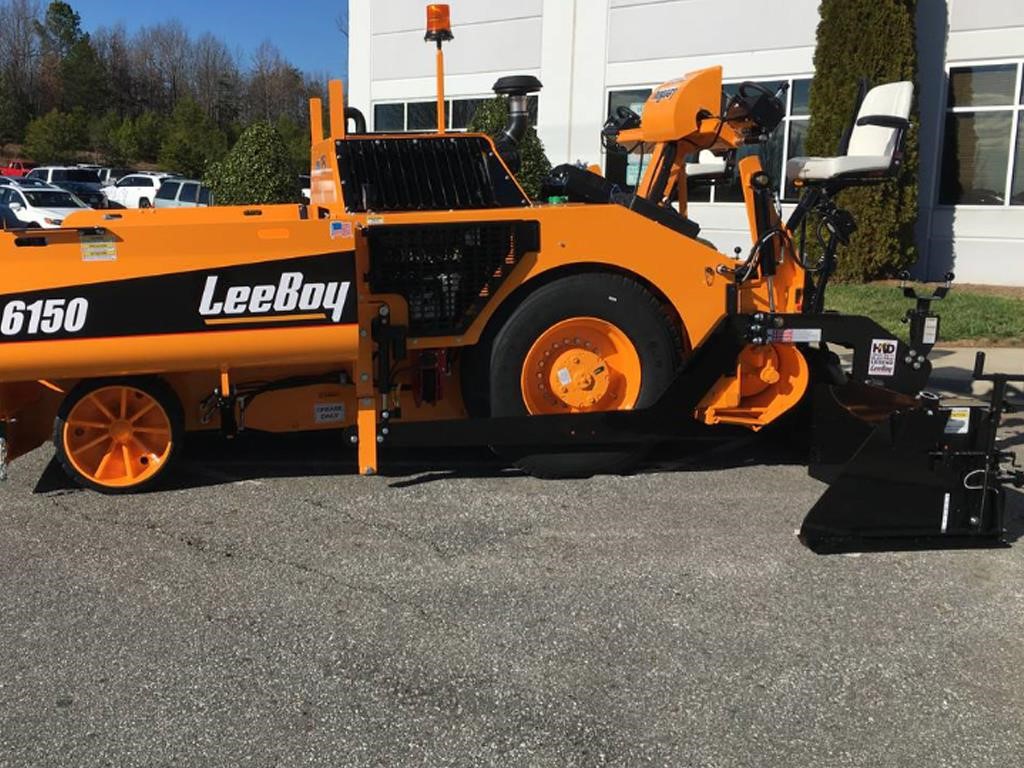

LEEBOY 6150 — ASPHALT PAVER

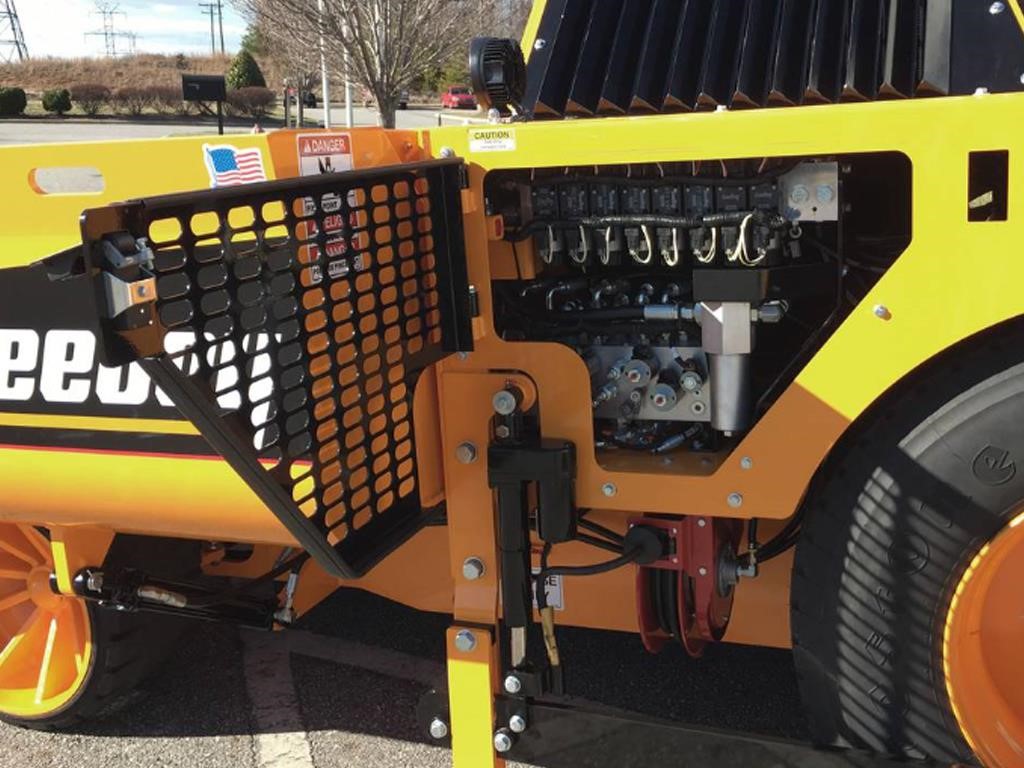

The LeeBoy 6150 wheeled asphalt paver was truly designed with the paving professional in mind. With a quicker travel speed, this paver delivers a quality mat while easily maneuvering from point to point. Given traditional LeeBoy style and operation, the operator has a choice of working in a high-deck or low-deck configuration which can greatly benefit visibility depending on the application. Improved easy-to-reach service compartments allows quick access for regular maintenance requirements.

PERFORMANCE FEATURES
• 74 hp (55 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 15’
• Paving Speeds: 0 to 228’ per minute
• Travel Speed: 0 to 660’ per minute
• Operator’s Choice: High or Low Deck Configuration
• Dual Electronic Steering Wheels
• Sliding Operator Control Station
• 7 Ton Capacity Material Hopper
• Electric Screed Heat
• Vertically Adjustable Oscillating Push Rollers
• Under Auger Material Cutoff

ENGINE
• Kubota turbocharged diesel,
• Tier 4 Final – 74hp (55 kw) @ 2,200 RPM

HOPPER
• Hopper size: 7.0 ton

PAVING WIDTHS
• Variable up to 15’

PAVING DEPTHS
• Manual flight screws positioned on the screed to control material thickness
• Depth: 0” to 6”

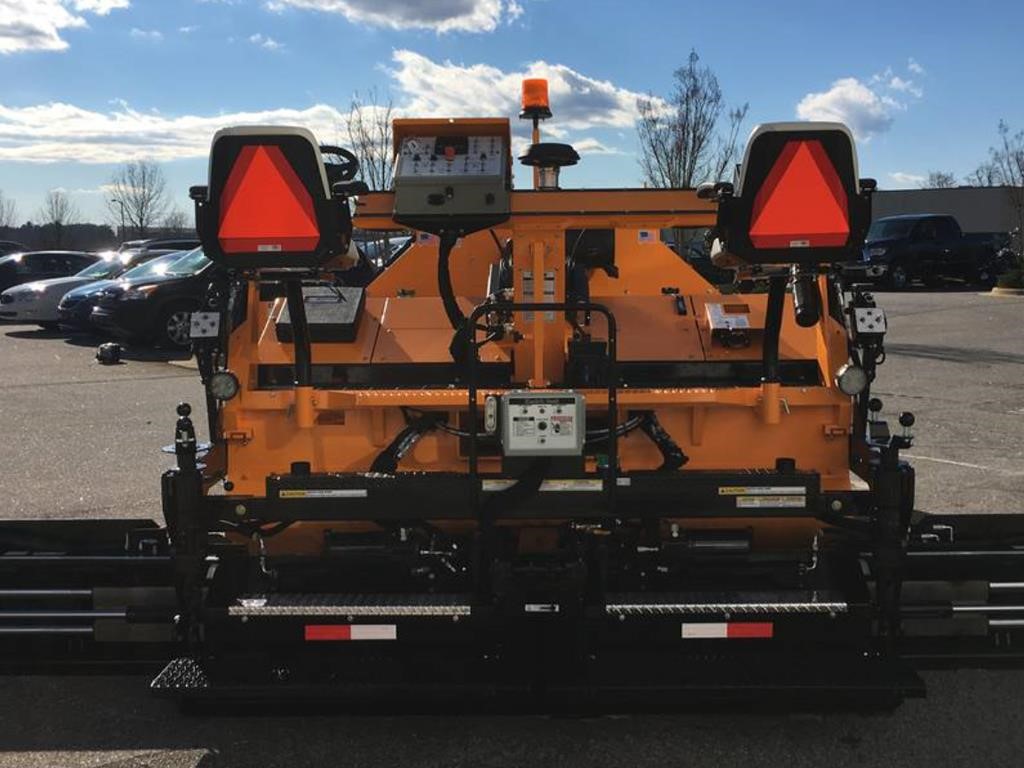

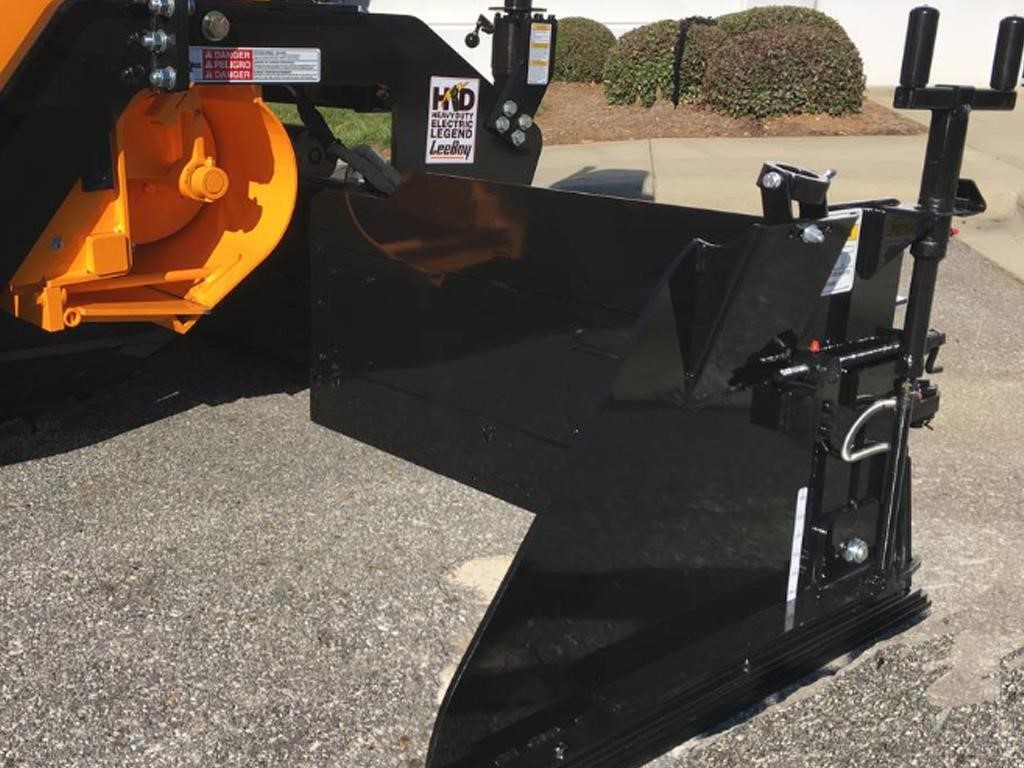

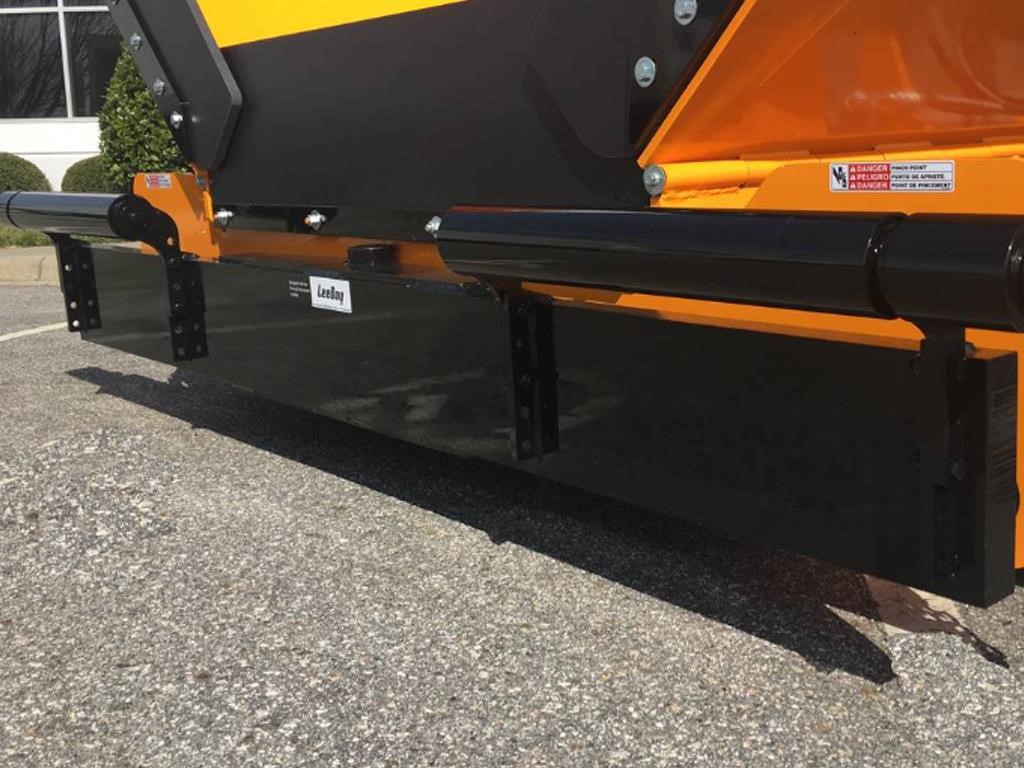

SCREED
• Legend Electric screed
• Consisting of a main screed and two hydraulically operated screed extensions
• Equipped with two electric vibrators

SCREED HEAT
• Legend electric screed heat, 10kw generator
• Electric timer and automatic RPM control system
• 2 Blade heating elements in main, 1 blade element in each extension

SCREED CROWN/VALLEY
• Equipped with a crown/invert adjustment
• Includes a levelling indicator for the operator

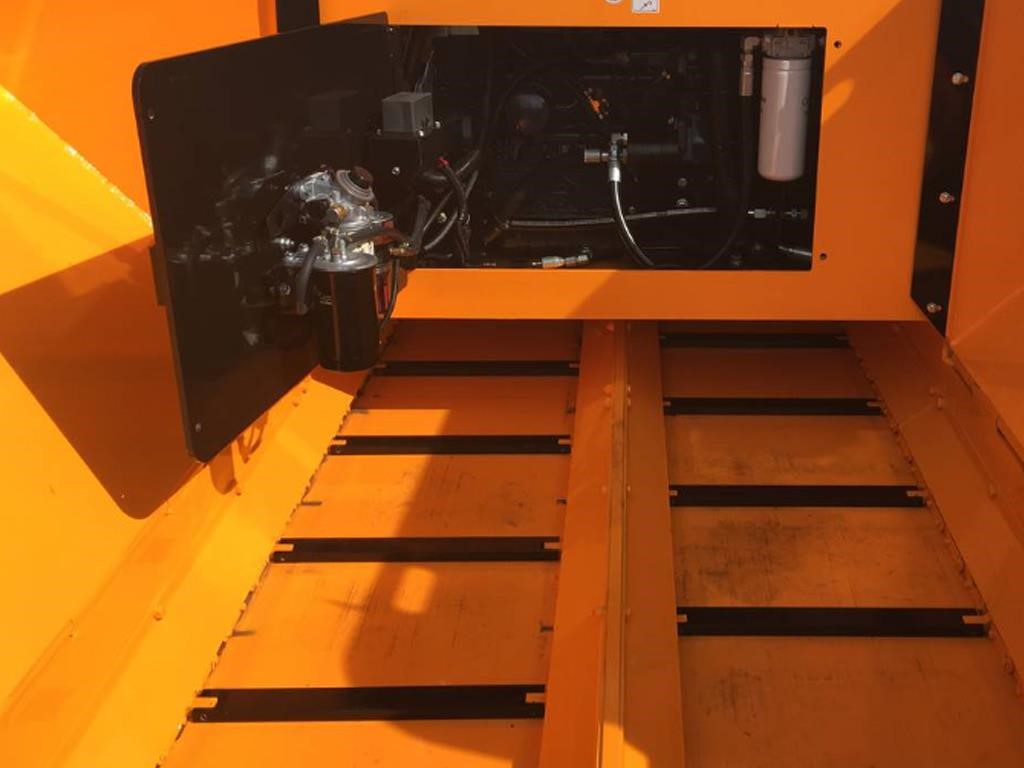

MATERIAL HANDLING

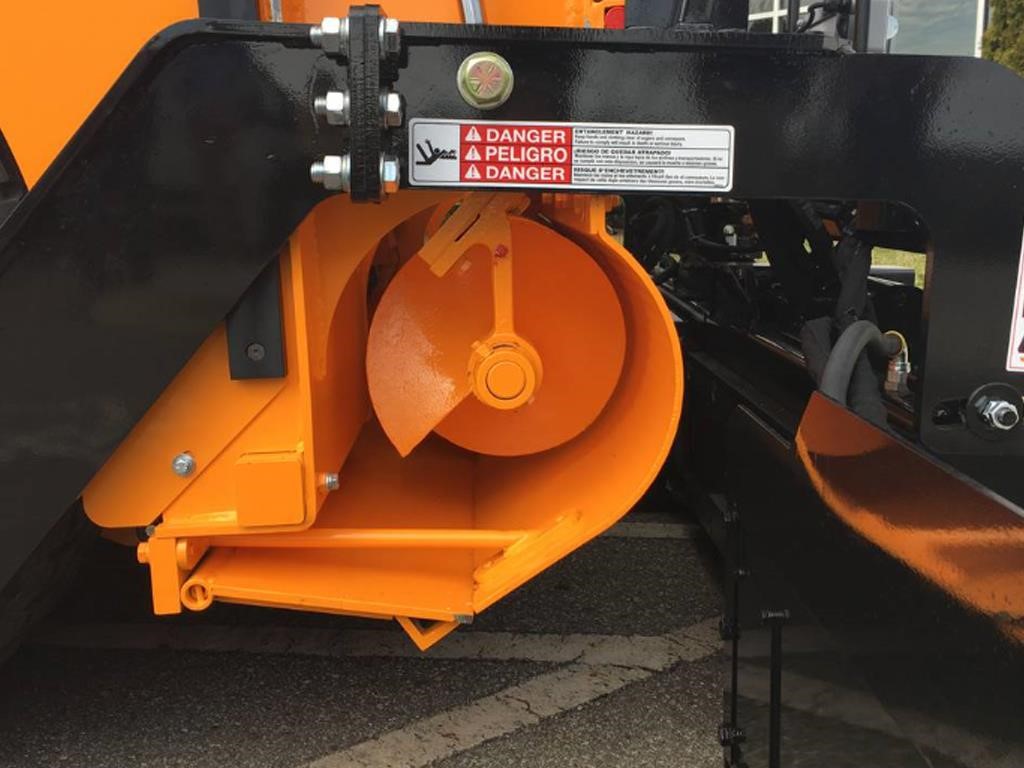

• Two independentaly controled, hydraulically operated under auger material cutoff
• Two 12” diameter independent hydraulically operated cast augers
• Single point lube system

OPERATOR’S PLATFORM
• Full machine width platform
• Walkboard extensions slide outs, left and right

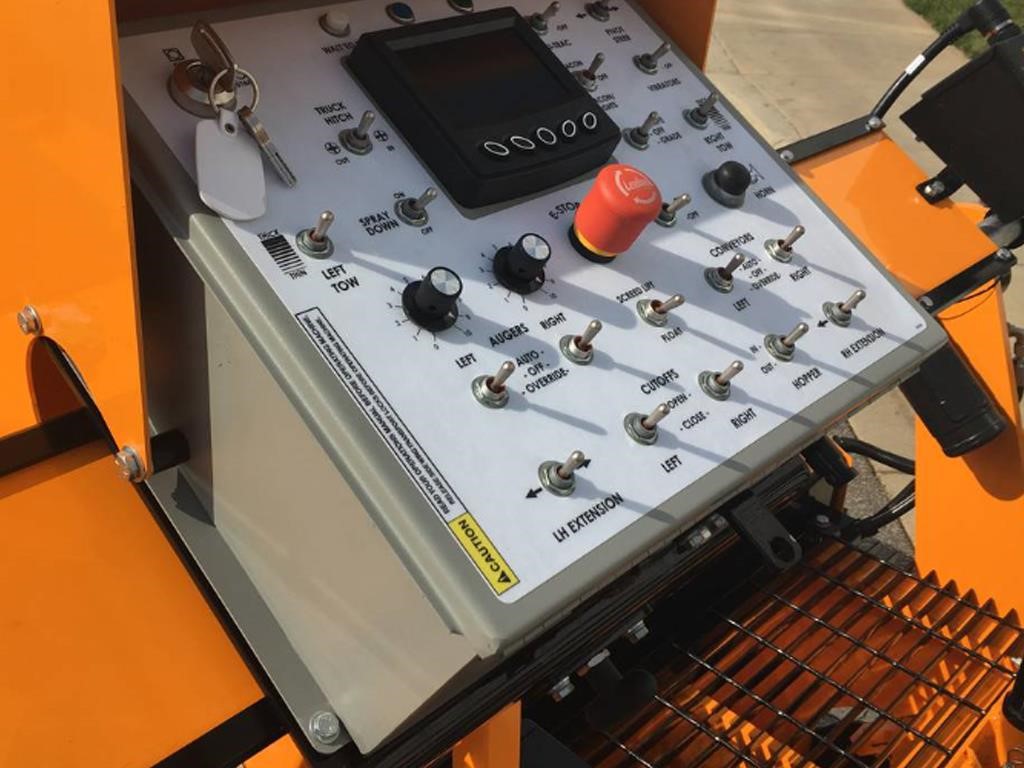

OPERATOR’S CONTROLS
All control switches are in a single control box which can be moved from right side to left side

STEERING
• Dual electronic steering
• Electronically controlled pumps operated by the forward/reverse joysticks

WASHDOWN SYSTEM
• Electric HD pump and two hose reels

PUSH ROLLERS
• Two vertically adjustable rollers with sealed bearings mounted to allow pivoting on frame

WHEELED DRIVE SYSTEM
• Hydrostatic drive using hydrostatic pump which drives left and right sides
• Rear: 385/65 R22.5 heavy-duty hydroinflated truck tires

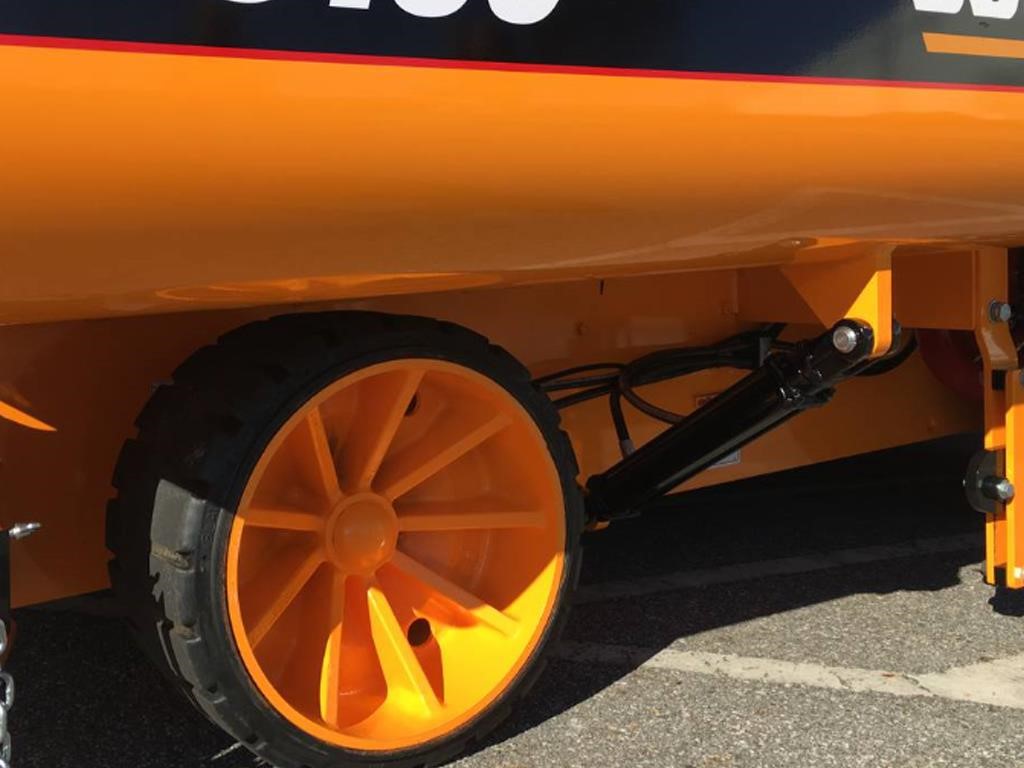

• Front: steerable wheels, 12” x 22” diameter solid rubber tires
• Paving speed: 0 to 228’ per minute (2.6 mph)
• Travel speed: 0 to 660’ per minute (7.5 mph)

ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• Lockable fuel and hydraulic caps
• LED work light package

OPTIONAL EQUIPMENT
• Legend HD Screed, 8’ to 15’
• Remote screed controls
• Automatic screed temperature controls
• Screed extension vibration
• Sloping screed extensions
• Power crown
• Heated endgates
• 12” x 4.5” berm extensions, right and left
• Single point lube system, conveyors
• Single point lube system, screed
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• Truck Hitch
• Truck Hitch Valving Only

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
