2026 TAKEUCHI TCR50-2
additional information

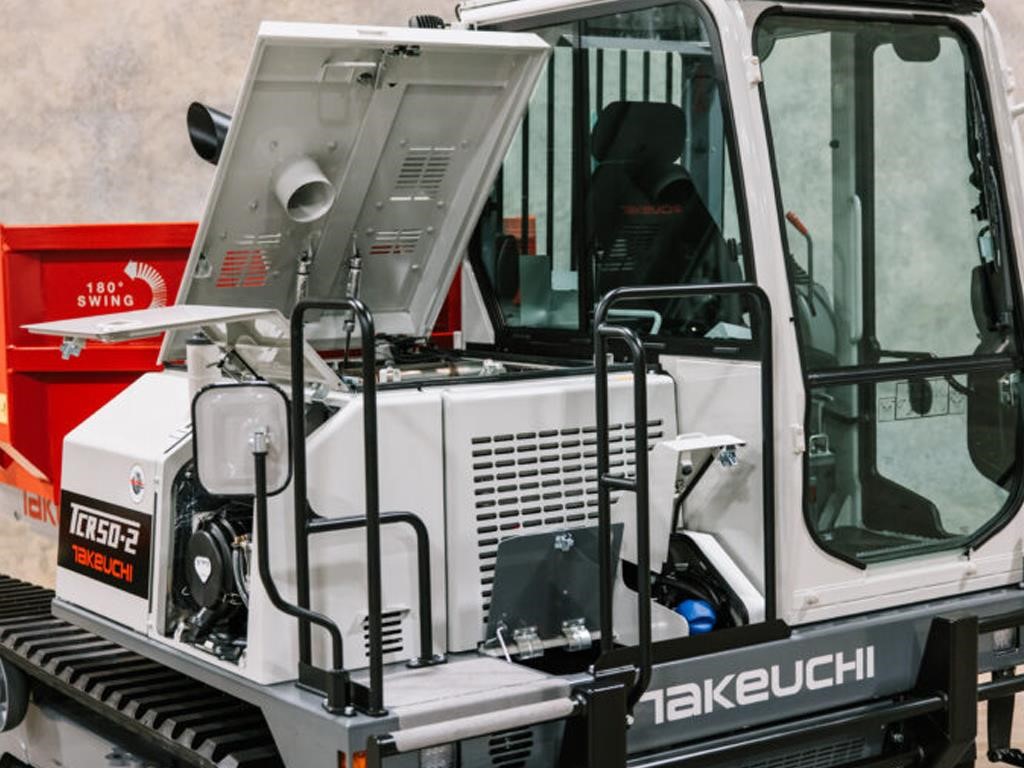

- Ground level access includes fuel water separator, dual element air cleaner, fuel filter, fuel fill, DEF fill, and battery.
- Top side access includes oil fill and dip stick, DPF and SCR, cooling module, cooling fan, and engine.
- Additionally, large removable belly pans allow for clean out and access to the bottom side of the engine compartment.
- 2 Year Standard service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Personalized Fault Alerts
- Control Costs
- Geofencing
- The dump bed will rotate 90 degrees to both the left and right sides making it extremely versatile when operating on job sites with limited space requirements.
- Dual dump cylinders and oversized ring gear provide the power to handle even the heaviest of loads.
- Moving across mixed terrain is made easy with the TCR50-2 with its ground clearance of 17" and gradeability of up to 30 degrees.
- At the center of the TCR50-2 is a purpose built, fully welded one-piece boxed frame design with corner gussets that provides superior strength and rigidity.
- All steel construction ensures body integrity through greater strength and rigidity provides exceptional protection.

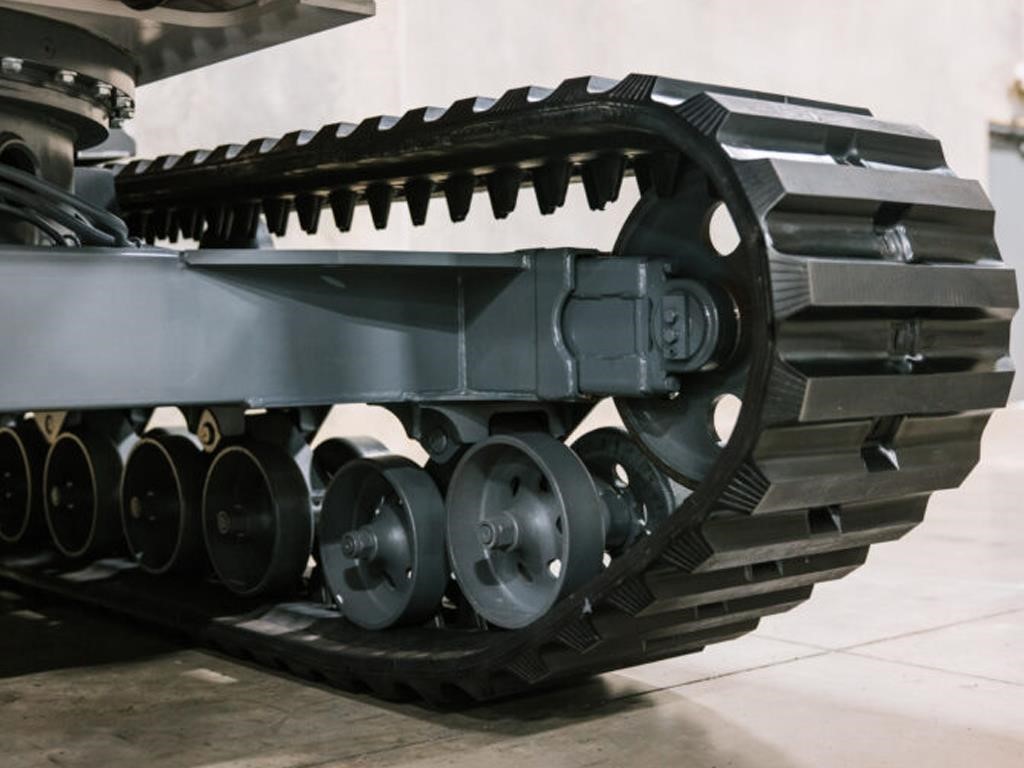

- Rides on a bogie style undercarriage featuring double flange track rollers for outstanding ride quality that makes the TCR50-2 less susceptible to de-tracking.
- All rollers are permanently sealed and have metal face seals to prohibit damage from dirt and other contaminants.
- A large side entry door, roll up front window, and sliding side windows allow work to be performed with the cabin open or closed.

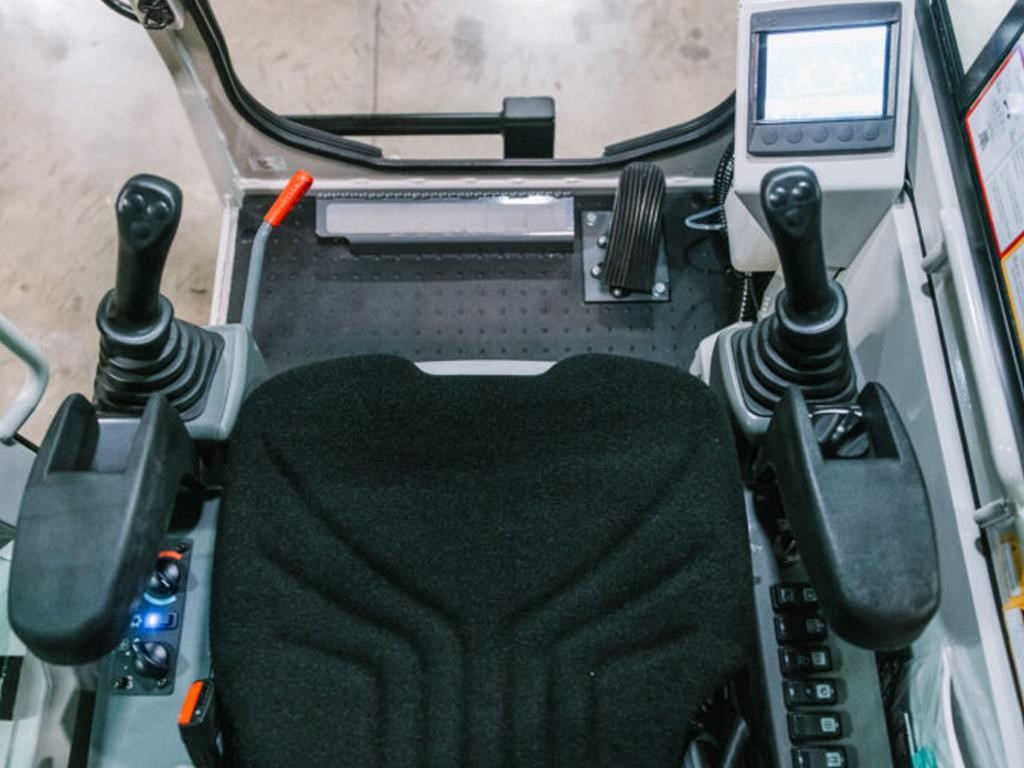

- The interior features an intuitive set of rocker switches, a 5.7" color monitor to view machine vitals, rear-view camera display, and two-speed travel with foot throttle.
- Pilot controls are low effort and precise, reducing operator fatigue while increasing productivity.
- The all steel removable brush guard provides exceptional protection for both the front of the machine and its LED lighting package.

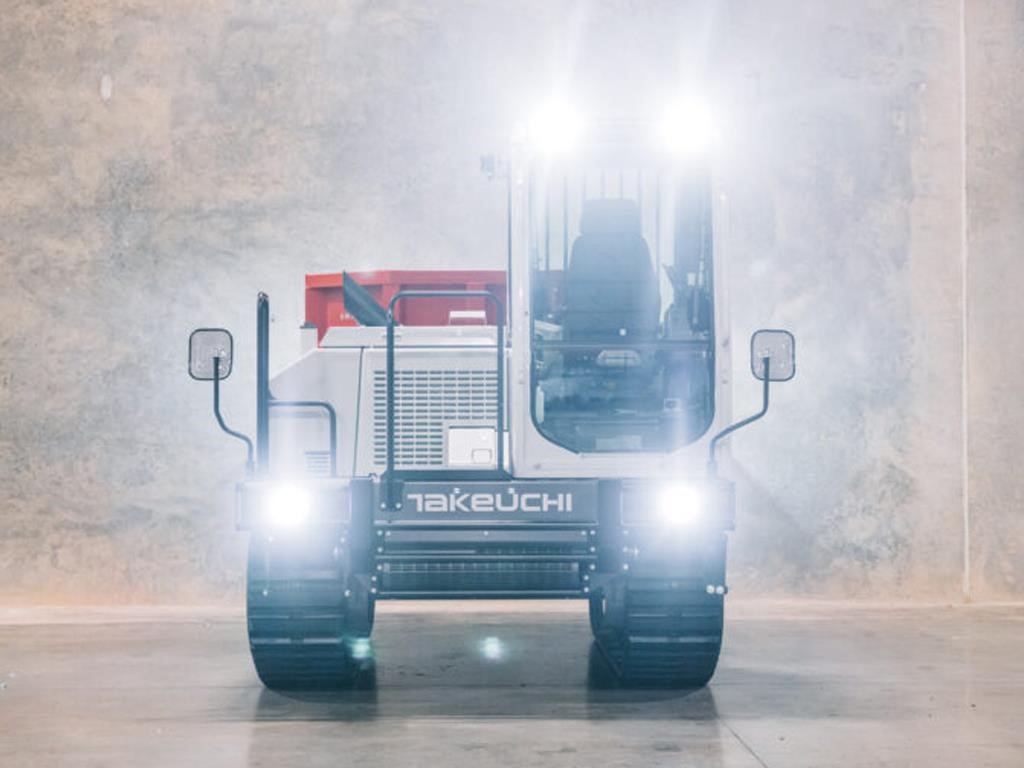

- Standard LED lighting provides exceptional visibility in low light conditions.
- Rearview camera is standard equipment on the TCR50-2 allowing the operator to see behind the dump bed in any position through out the rotation cycle.
- EU Stage V / EPA Tier 4 Compliant
- Turbocharged
- DOC+DPF+SCR Exhaust After Treatment
- Automatic Fuel Bleed System
- Double Element Air Cleaner
- Automatic Deceleration
- High Capacity Fuel Tank
- Engine Safety Start System on Left Console
- Engine Auto Stop
- Parking Brake
- Double Flanged Track Rollers
- 2-Speed Travel with Automatic Shift
- High Torque Planetary Final Drive
- 18” Rubber Crawlers
- ROPS/FOPS (TOP Guard, Level II)
- Deluxe High Back Adjustable Suspension Seat with Head Rest
- 12V Power Outlet
- 2’’ Retractable Seat Belt
- Cab with Front / Rear Windshield Wiper and Washer, Skylight with Sunshade, Radio with Bluetooth
- Air Conditioner
- Hydraulic Joystick Controls
- Hydraulic Tank with Fluid Sight Gauge
- Air Breather, Hydraulic Tank
- 180 Degree Turning Dump
- 5.7’’ Color Multi-Informational Display
- Sealed Rocker Switches
- 12 volt System with 80 amp Alternator
- LED Light Package; 2 Forward Facing and Front and Rear Cab
- Travel Alarm
- Beacon Lamp Switch
- TFM (Takeuchi Fleet Management; GPS)
- 180° Rearview Camera
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: TAKEUCHI
- Model: TCR50-2
- Condition: New
- ROPS Type: Enclosed
- Operating Performance Operating Weight: 14,440 lb (6,550 kg)
- Operating Performance Dump Body Capacity Heaped: 2.7 cu yd (2.055 m3)
- Operating Performance Dump Body Capacity Struck: 1.5 cubic yd (1.15 m3)
- Operating Performance Maximum Loading Weight: 8,157 lb (3,700 kg)
- Operating Performance Travel Speed 1st: 4.3mph (7.0 km/h)
- Operating Performance Travel Speed 2nd: 5.9mph (9.5 km/h)
- Operating Performance Gradeability: 30°
- Operating Performance Ground Pressure W/ Dump Body Full: 6.1 psi (42.0 kPa)
- Operating Performance Ground Pressure W/ Dump Body Empty: 3.9 psi (27.0 kPa)
- Operating Performance Travel Traction Force: 8,116 lbf (36.1 kN)
- Engine Make/Model: Yanmar 4TNV94FHT
- Engine Displacement: 186 cu in (3,053 ml)
- Engine Rated Output (ISO 14396): 118 hp (88.4 kW / 2,500 min-1)
- Engine Maximum Torque: 302 ft lb (410.0 Nm / 1,700 min-1)
- Engine Alternator: 12 V - 0.96 kW
- Engine Battery (IEC 60095 1): 12 v 90 A • h
- Fluid Capacities Engine Lubrication: 11.1 qt (10.5 L)
- Fluid Capacities Cooling System: 19.5 qt (18.5 L)
- Fluid Capacities Fuel Tank Capacity: 33.5 gal (127 L)
- Fluid Capacities Hydraulic Reservoir Capacity: 11.6 gal (44 L)
- Fluid Capacities Hydraulic System Capacity: 22.2 gal (84 L)
- Fluid Capacities DEF Tank Capacity: 3.6 gal (13.8 L)
- Machine Dimensions Overall Height: 8 ft 11.3 in (2,725 mm)
- Machine Dimensions Height Of Bumper: 3 ft 4.9 in (1,040 mm)
- Machine Dimensions Overall Length: 15 ft 3.5 in (4,660 mm)
- Machine Dimensions Length Of Track Ground: 8 ft 2.4 in (2,500 mm)
- Machine Dimensions Track Base: 10 ft 3.8 in (3,145 mm)
- Machine Dimensions Dump Body Floor Height: 4 ft 4.4 in (1,330 mm)
- Machine Dimensions Dump Body Flap Height From Ground: 5 ft 7.5 in (1,715 mm)
- Machine Dimensions Overall Width: 7 ft 2.6 in (2,200 mm)
- Machine Dimensions Track Shoe Width: 18 in (450 mm)
- Machine Dimensions Ground Clearance Of Undercarriage: 17 in (435 mm)
- Machine Dimensions Cab Width: 38.9 in (990 mm)
- Machine Dimensions Dump Body Length (Inside): 8 ft 6.9 in (2,615 mm)
- Machine Dimensions Dump Body Width: 5 ft 10.7 in (1,795 mm)
- Machine Dimensions Height Of Dump Body Gate: 15 in (385 mm)
- Machine Dimensions Height Of Dump Body Front Gate: 29.5 in (750 mm)
