2026 SANDVIK RANGER DQ500

Hydraulic Roll-over Boom

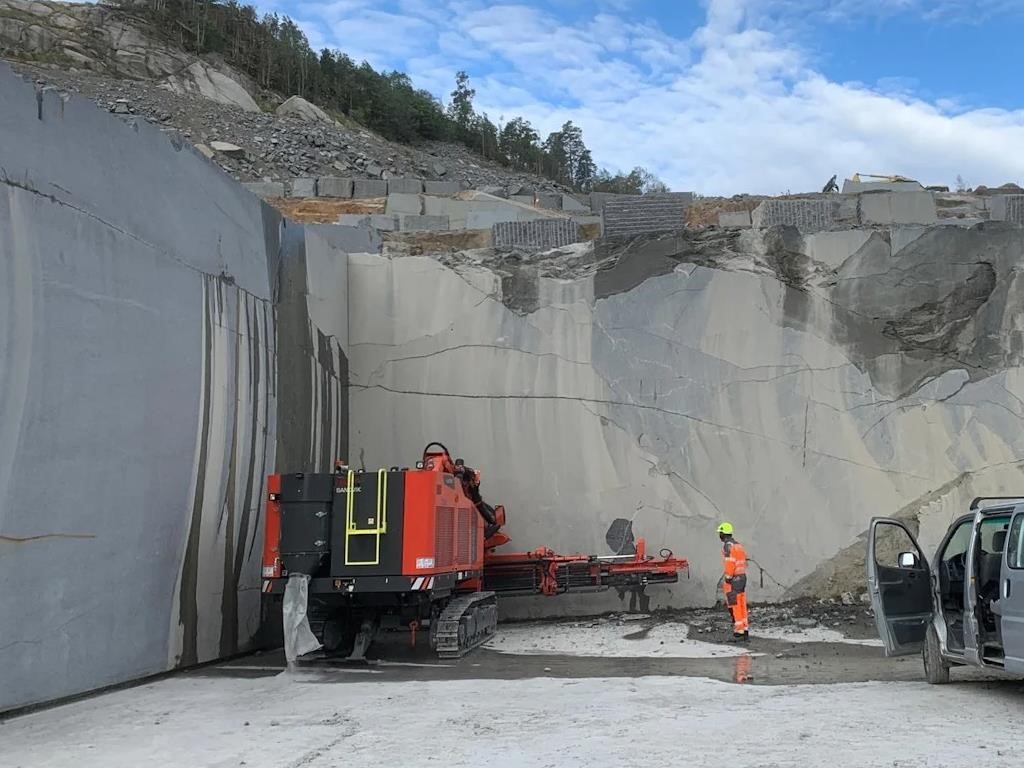

• The rig’s hydraulic roll-over boom gives operators excellent flexibility while horizontal drilling.

Extensive Coverage

• The turning upper structure provides a large drilling coverage in horizontal and vertical drilling.

Full Remote Access To The Rig

• The rig provides an easy and safe operation with full remote control capabilities, including drilling, boom movements and tramming.

Minimum Ground Clearance

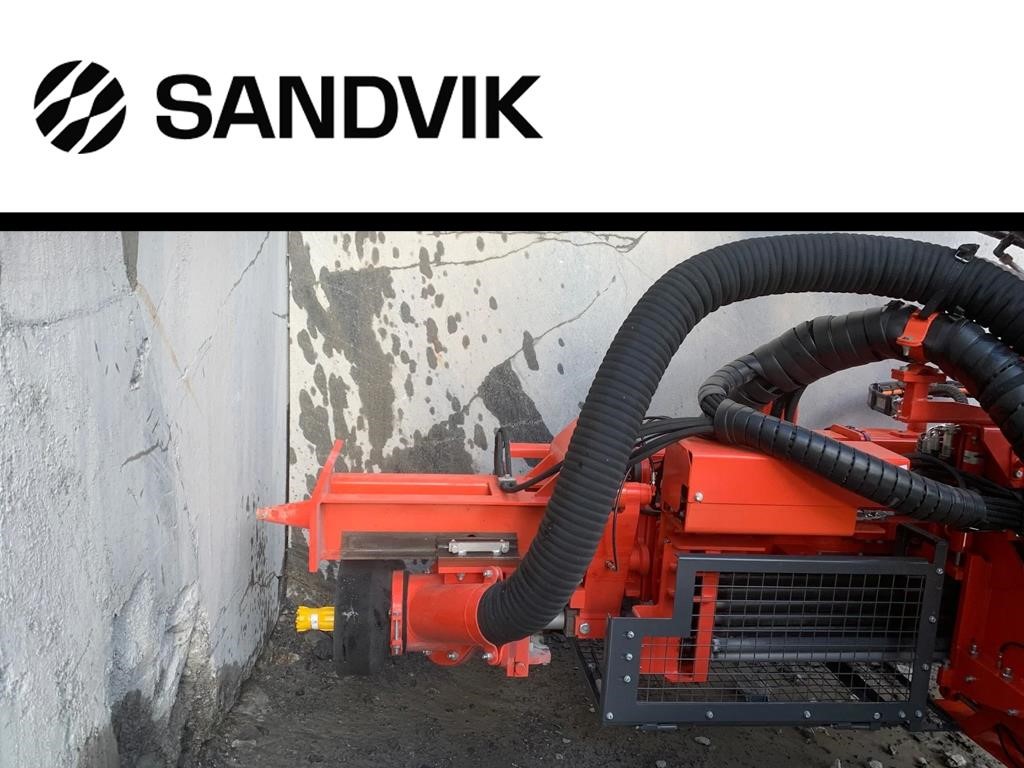

• Achieve minimum ground clearance thanks to the drill rig’s customized chain feed and rod handler.

Extra Stability

• Extra support legs for the feed contribute added stability during drilling, improving operational safety.
• Specifications and data shown are subject to change with or without prior notice.

General

• Year: 2026
• Manufacturer: SANDVIK
• Model: RANGER DQ500
• Condition: New

Other

• Specifications Hole Diameter: 45.00 - 89.00 mm (1.75 - 3.50 in.)
• Specifications Rock Drill: 15.5 kW
• Specifications Flushing Air Capacity: 6.2 m³/min up to 10 bar
• Specifications Drill Rod/tube Diameter: 32, 38 and 45 mm (1.25, 1.5 and 1.75 in.)
• Specifications Hydraulic Rock Drill: HL 510, 15.5 kW
• Specifications Engine Type: Caterpillar C 7.1 Tier 3 / Tier 4F / Stage V
• Specifications Engine Output Power: 168 kW / 1800 rpm
• Specifications Cabin: Ergo
• Specifications Transport Length: 7.2 m (23.6 ft)
• Specifications Transport Width: 2.5 m (8.2 ft)
• Specifications Transport Height: 3.600 m (11.800 ft)
• Specifications Weight: 15,400.000 kg (33,950.000 lb)
