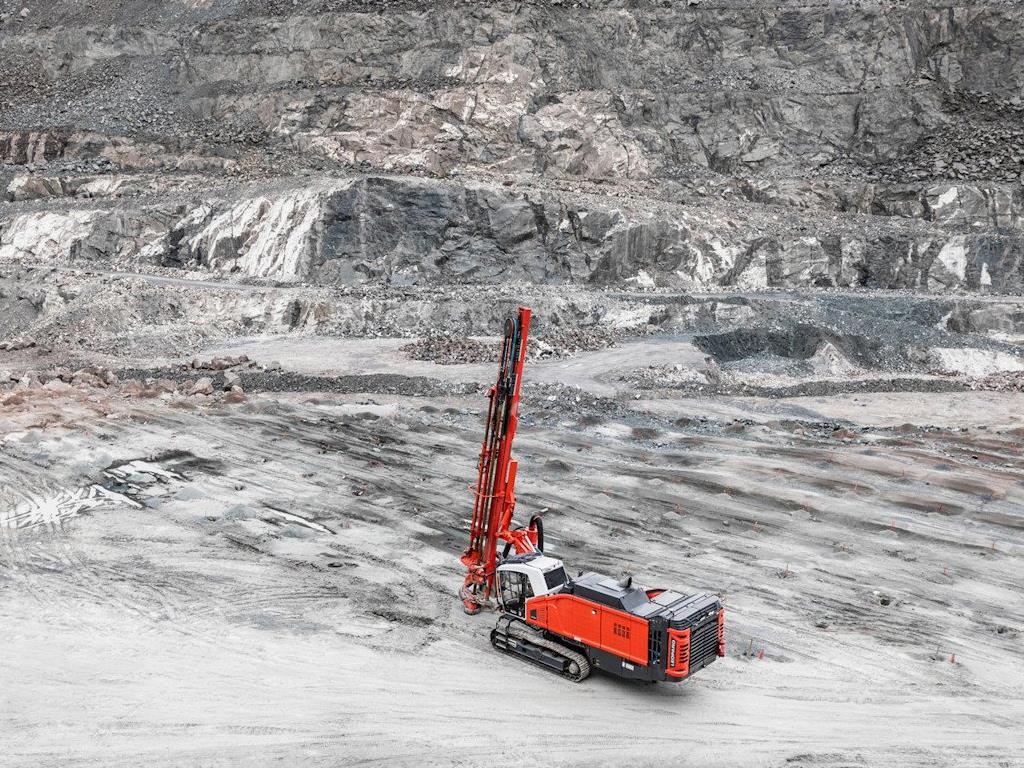

2026 SANDVIK LEOPARD DI650I

Extreme Automation Options

• Leopard™ DI650i features scalable automation packages to fully automate systems and increase overall productivity. iDrill onboard automatics cover all steps of the automated drilling cycle, ensuring consistent high-quality drilled holes. It is compatible with AutoMine® Surface Drilling to enable fully autonomous fleet operation from a control room.

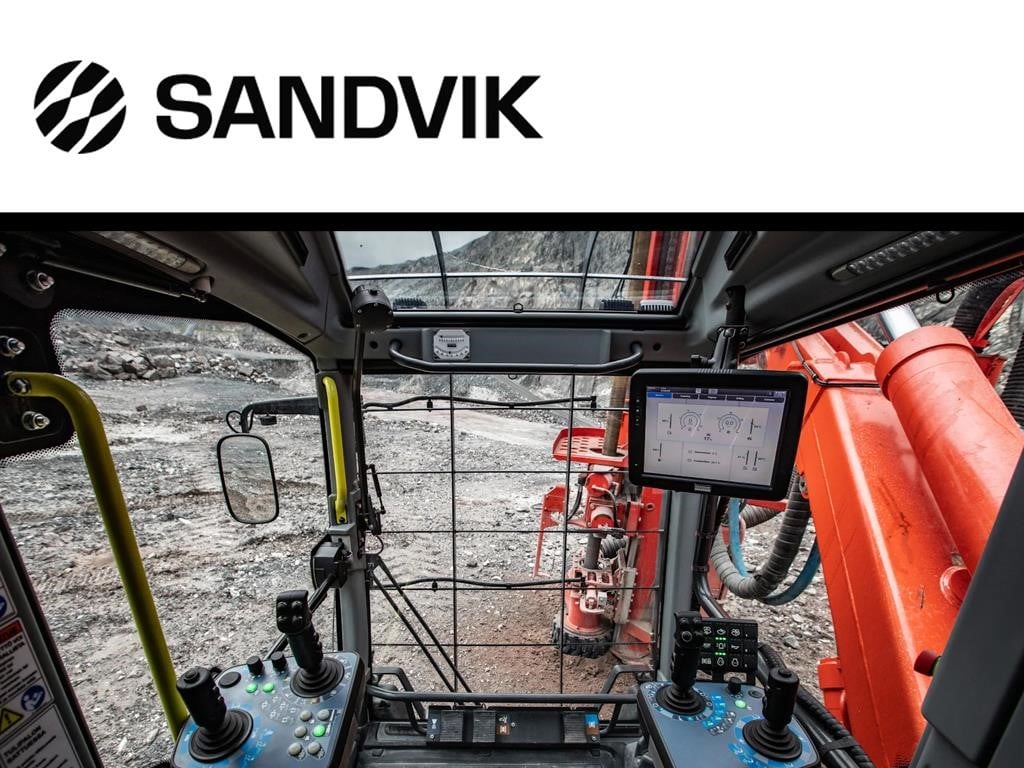

Ergonomic Icab Cabin

• iCab cabin offers an optimized driller experience with excellent visibility of the drilling area. iCab is FOPS & ROPS certified with HEPA and optional HEPA H13 filter. It is the most silent and ergonomic cabin across down-the-hole (DTH) drill rigs. Machine information is integrated on one touch display and a trainer or service technician can fit behind the operator seat.

Robust Main Components

• This rig’s durable main components, outstanding mobility and powerful tramming contribute to operational productivity and operating stability.

Data Is Key To Perfect Holes

• In addition to its intelligent drilling control system, Leopard™ DI650i offers solutions with GPS-based navigation and data collection from basic to advanced systems.

Ground-level Access To Daily Service Points

• Leopard™ DI650i provides excellent serviceability and easy maintenance by providing ground-level access to all daily maintenance and service points.

Drill Faster With Rh560 Hammer

• The perfect match for our RH560 6” DTH hammer, making it productive while keeping fuel consumption and operating costs to a minimum. Drill faster because of the hammer’s improved air cycle. Less air is needed, making the penetration rate higher.

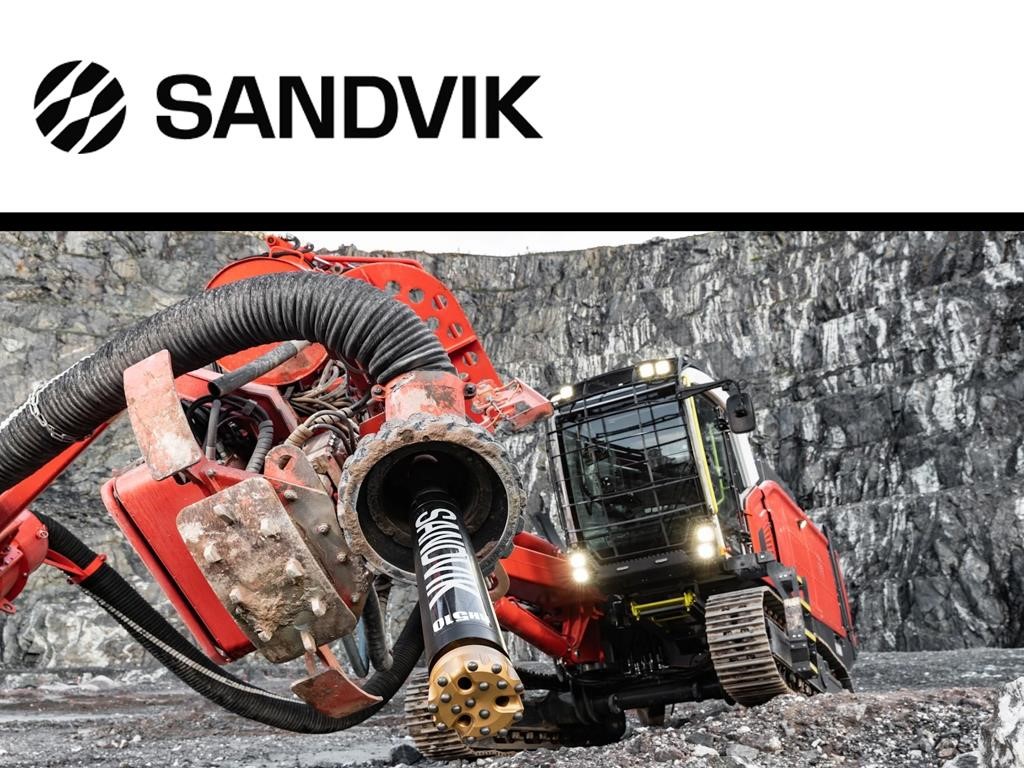

Rotation Head Options

• Rotation head is a key component in DTH drill rigs that ensures the drill rig’s high availability and reliability. Leopard™ DI650i has two rotation head models available to fit your needs: a standard HTRH6 and a heavy-duty version MRH6 as an option.
• Specifications and data shown are subject to change with or without prior notice.

General

• Year: 2026
• Manufacturer: SANDVIK
• Model: LEOPARD DI650I
• Condition: New

Other

• Specifications Hole Diameter: 115.0 - 229.0 mm (4.5 - 9.0 in.)
• Specifications DTH Hammer: 4, 5 and 6 in. (Sandvik RH460 & RH560)
• Specifications Flushing Air Capacity: 28.3 m³/min at 24 bar
• Specifications Drill Rod/tube Diameter: 89, 102, 114, 127 and 140mm (3.5, 4, 4.5, 5 and 5.5 in.)
• Specifications Rotary Head: MRH6
• Specifications Engine Type: Caterpillar C15 (Tier 3) / Caterpillar C15 (Stage 5, Tier4F)
• Specifications Engine Output Power: 403 kW /1800 rpm (Tier 3, Tier 4F / Stage V)
• Specifications Cabin: iCab
• Specifications Production Capacity: 2,1 Mt/a, one shift
• Specifications Transport Length: 12 m (41 ft)
• Specifications Transport Width: 3.0 m (11.5 ft)
• Specifications Transport Height: 3.5 m (11.5 ft)
• Specifications Weight: 25,100 kg (55,336 lb)
