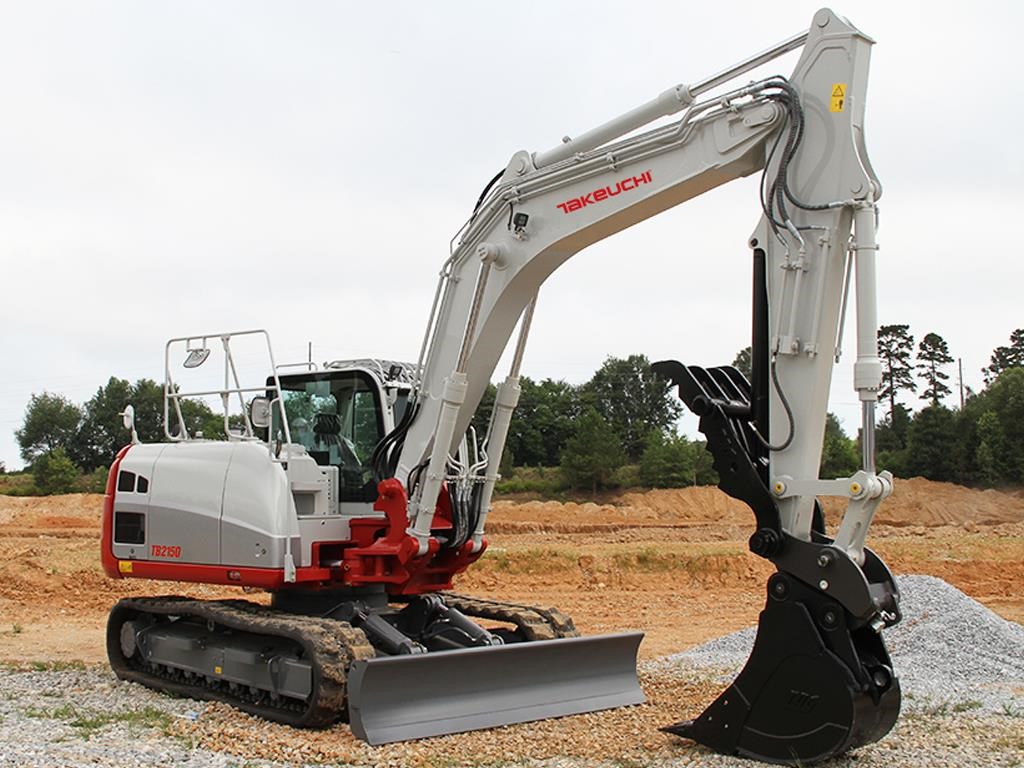

2026 TAKEUCHI TB2150

Heavy Design

• The largest and most capable excavator, the TB2150 delivers the productivity required on large scale construction sites while retaining feature like the backfill blade and boom swing found on smaller machines.

Ease Of Maintenance

• Rear engine hood and right and left side access panels open high overhead providing exceptional access to inspection and maintenance points.

Operator Focused

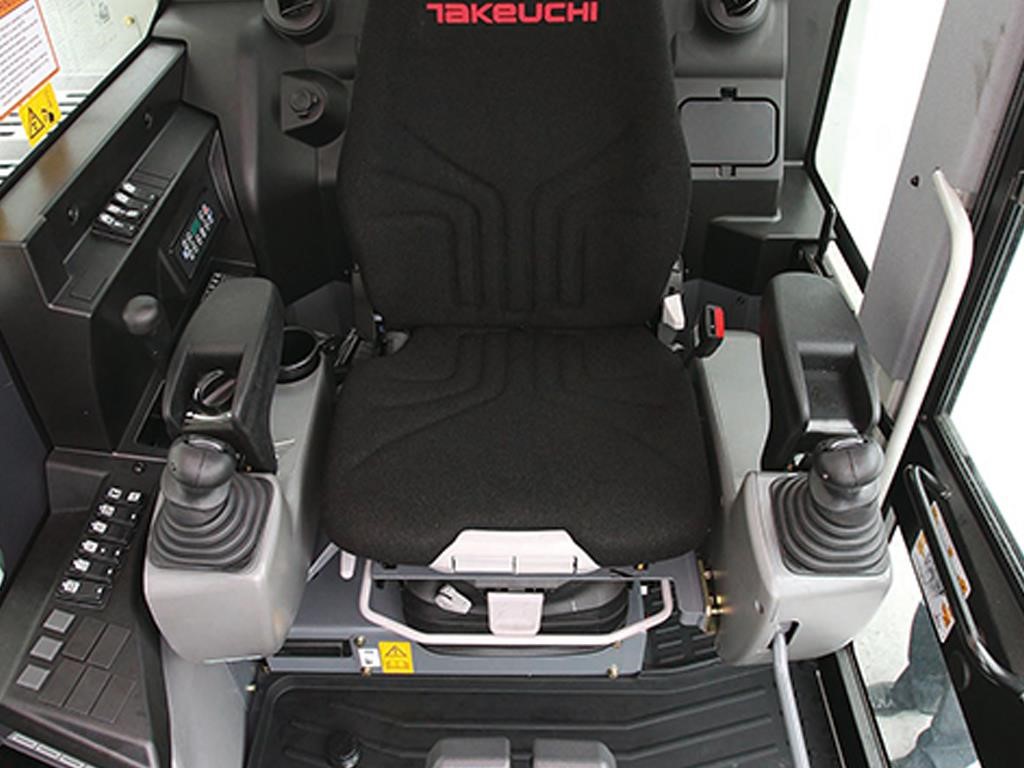

• Deluxe air ride suspension seat with heat reduces operator fatigue while providing greater visibility to the work equipment and surrounding job site.
• The large 7″ multifunction color monitor provides you with machine vitals and it has both flow and pressure adjustments for attachment set-up. It also features a split screen mode so you can view the area around the rear of the machine using the rearview camera.
• Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.

Function And Efficiency

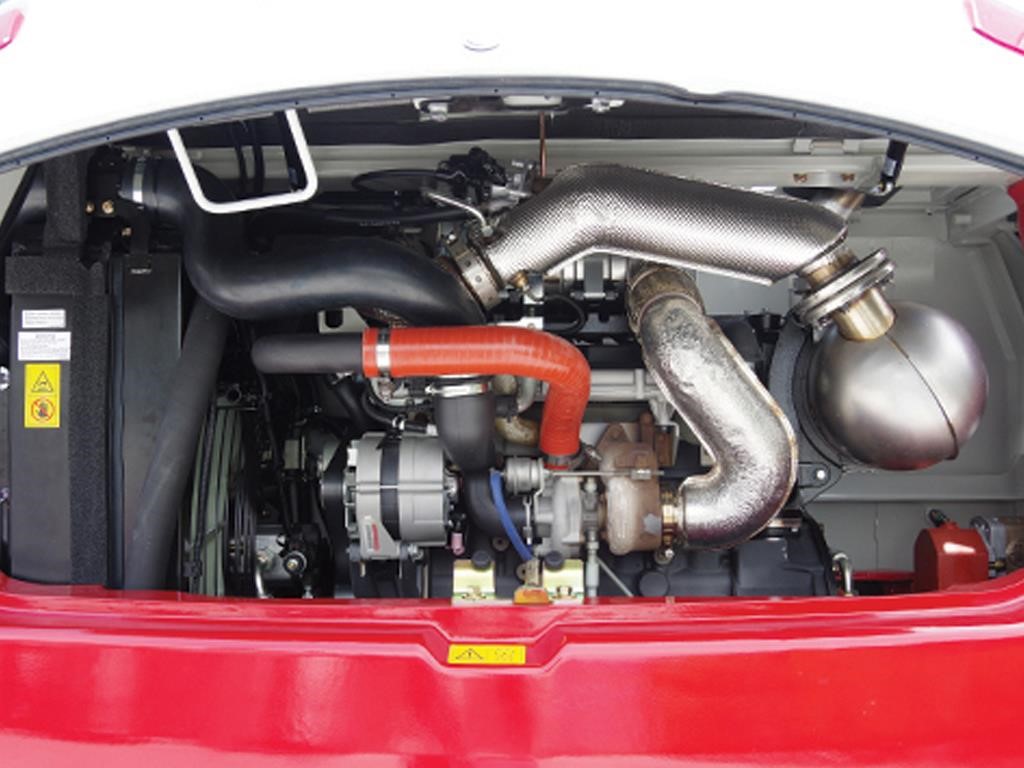

• The DEUTZ TCD 3.6 liter, turbocharged engine features a DOC + SCR diesel exhaust aftertreatment system that has no DPF to maintain.
• The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
• The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
• Having three auxiliary circuits allows you to run a wide range of hydraulically driven attachments and have a dedicated hydraulic coupler circuit.
• High flow capabilities of the primary auxiliary circuit will allow you to operate a broader range of hydraulically driven attachments, such as mowers, mulchers, and plate compactors.
• Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
• Large slew bearing provides greater longevity and stability over the life of the machine.
• Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
• Available case drain line kit is recommended for use with an excavator mulcher.

Increased Protection

• All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
• Heavy duty counterweight protects vital engine and hydraulic components from damage.
• Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.

Takeuchi Fleet Management

• 2 Year Standard Service
• Minimize Downtime
• Remote Diagnostics
• Utilization Tracking
• Proactive Maintenance
• Control Costs
• Geofencing

Peace Of Mind

• The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
• Using the rearview camera, you are able to see hazards around the rear of the machine via the multifunction monitor.
• The boom and arm holding valves and overload alarm are designed to keep the boom and arm from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity.
• Available drop-in 1/2″ poly carbonate glass or heavy duty 1/2″ poly carbonate window guard with steel frame, and steel front guard group provide the added protection you need when using hydraulically driven attachments.

Engine

• EPA Final Tier 4 Emission Compliant
• Turbocharged
• High Pressure Common Rail Fuel Injection
• DOC+SCR Exhaust After Treatment
• Automatic Fuel Bleed System
• Dual Element Air Cleaner
• Automatic Deceleration
• Working Modes: Standard, Power and High Altitude
• Automatic Belt Tensioner
• Variable Speed Hydraulic Fan Drive
• High Efficiency Fuel Filters
• Automatic Preheat

Electrical

• 7" Multi-Informational Display
• Sealed Rocker Switches
• Rear View Camera
• Beacon Socket and Lamp Switch
• Hour Meter
• Deluxe LED Light Package
• Side Halogen Work Lights
• Travel Alarm
• Horn

Undercarriage And Frame

• Triple Flanged Track Rollers
• 2-Speed Travel with Automatic Shift
• High Torque Planetary Final Drive
• Heavy Duty Dozer Blade with Float
• Wrap Around Counterweight
• 20" Rubber Tracks
• 24" Steel Tracks (optional)
• 20" Segmented Rubber Crawlers (optional)

Operator's Station

• Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Polycarbonate Skylight with Sunshade, AM / FM / MP3 Radio, 24v and 12v Power Outlet
• ROPS / OPG Level 2 Protection
• Deluxe High Back Air Ride Suspension Heated Seat
• Adjustable Arm Rests
• 2" Retractable Seat Belt
• Roof Guard
• Front Window Guard (optional)

Hydraulic & Working Equipment

• Variable Displacement, Open Center Hydraulics
• Independent Boom Swing
• Cushioned Boom and Arm Cylinders
• Hydraulic Pilot Controls
• Proportional Auxiliary Controls with Detent
• Adjustable Auxiliary Flow
• Dual Boom Cylinders
• Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm
• High Pressure Third Auxiliary Circuit
• Multiple Attachment Presets
• Flow Selector Valve, Primary Auxiliary Circuit
• Pattern Change Valve (ISO or SAE)
• High Capacity Hydraulic Oil Cooler
• Pilot Accumulator
• Long Arm with Thumb Mount
• Arm and Boom Holding Valve with Lift Alarm
• Pin Grabber Bucket Coupler (optional)
• Main Pin Hydraulic Thumb (optional)
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2026
• Manufacturer: TAKEUCHI
• Model: TB2150
• Condition: New

Other

• Operating Performance Operating Weight Canopy:
• Operating Performance Operating Weight Cab :
• Operating Performance Operating Weight Cab (Rubber): 34,646 lb (15,715 kg)
• Operating Performance Operating Weight Cab (Steel): 35,274 lb (16,000 kg)
• Operating Performance Operating Weight Cab (Segmented Rubber) : 34,976 lb (15,865 kg)
• Operating Performance Maximum Bucket Breakout Force: 22,256 lb (10,095 kg)
• Operating Performance Maximum Arm Digging Force: 14,590 lb (6,618 kg)
• Operating Performance Arm Length: 8 ft 5.0 in (2,570 mm)
• Operating Performance Slew Speed: 10.8 rpm
• Operating Performance Traction Force: 32,600 lb (14,786 kg)
• Operating Performance Ground Pressure Cab (Rubber): 6.83 psi (47.1 kPa)
• Operating Performance Ground Pressure Cab (Steel): 6.92 psi (47.7 kPa)
• Operating Performance Travel Speed Low Range: 1.9 mph (3.1 km / hr)
• Operating Performance Travel Speed High Range: 3.4 mph (5.5 km / hr)
• Engine Make / Model: Deutz / TCD 3.6 L4 - Turbo
• Engine Displacement: 221.0 cu in (3.6 L)
• Engine Horsepower @ 2,400 Rpm:
• Engine Horsepower @ 2,000 Rpm: 114.0 hp (85.0 kW)
• Engine Maximum Torque @ 1,600 Rpm: 339.3 ft-lb (460.0 Nm)
• Engine Maximum Torque @ 1,560 Rpm:
• Engine Maximum Torque @ 1,300 Rpm:
• Hydraulic System Total Hydraulic Flow: 78.9 gpm (293.0 Lpm)
• Hydraulic System Auxiliary Flow Primary Circuit: 59.0 gpm (224.0 Lpm)
• Hydraulic System Auxiliary Flow Secondary Circuit: 14.5 gpm (55.0 Lpm)
• Hydraulic System Hydraulic System Pressure: 4,977 psi (34.3 MPa)
• Fluid Capacities Engine Lubrication: 10.6 qt (10.0 L)
• Fluid Capacities Cooling System: 21.1 qt (20.0 L)
• Fluid Capacities Fuel Tank Capacity: 73.4 gal (278.0 L)
• Fluid Capacities DEF Fluid Tank Capacity: 5.3 gal (20.0 L)
• Fluid Capacities Fuel Consumption (65% Of Full Load): 3.84 gal / hr (14.5 L / hr)
• Fluid Capacities Hydraulic Reservoir Capacity: 28.1 gal (107.0 L)
• Fluid Capacities Hydraulic System Capacity: 61.8 gal (234.0 L)
• Machine Dimensions Maximum Reach: 28 ft 8.9 in (8,760 mm)
• Machine Dimensions Maximum Reach At Ground Level: 28 ft 1.2 in (8,565 mm)
• Machine Dimensions Maximum Digging Depth: 18 ft 0.0 in (5,486 mm)
• Machine Dimensions Maximum Vertical Digging Depth: 15 ft 2.5 in (4,635 mm)
• Machine Dimensions Maximum Dig Height: 28 ft 5.0 in (8,670 mm)
• Machine Dimensions Maximum Dumping Height: 20 ft 4.9 in (6,220 mm)
• Machine Dimensions Front Swing Radius: 9 ft 11.0 in (3,015 mm)
• Machine Dimensions Front Swing Radius With Boom Offset: 7 ft 10.0 in (2,405 mm)
• Machine Dimensions Tail Swing (Slew) Radius:
• Machine Dimensions Slew Radius: 6 ft 6.7 in (2,000 mm)
• Machine Dimensions Transport Length: 25 ft 7.3 in (7,805 mm)
• Machine Dimensions Transport Height: 9 ft 8.5 in (2,960 mm)
• Machine Dimensions Ground Clearance: 1 ft 7.0 in (475 mm)
• Machine Dimensions Undercarriage Length:
• Machine Dimensions Track Overall Length: 11 ft 10.3 in (3,615 mm)
• Machine Dimensions Track Width (Rubber): 20.0 in (500 mm)
• Machine Dimensions Track Overall Width: 8 ft 2.0 in (2,490 mm)
• Machine Dimensions Undercarriage Width:
