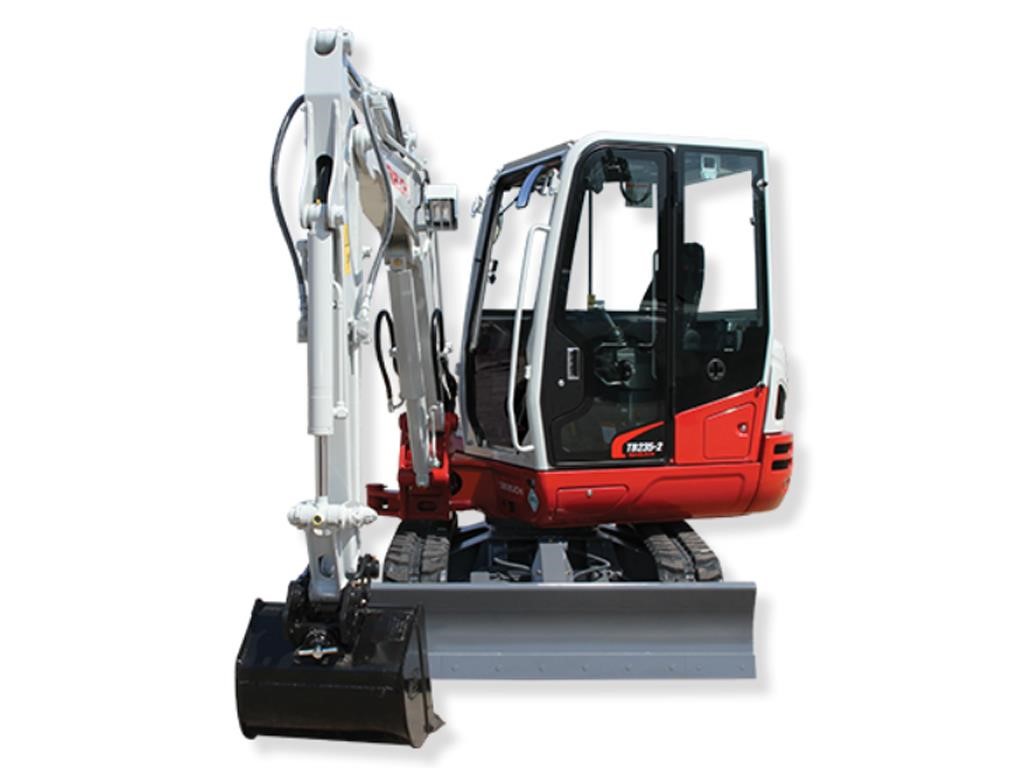

2026 TAKEUCHI TB235-2

Compact Design

• Enables you to work in a wide range of applications and the conventional tail swing provides greater stability and larger operator’s station.

Peace Of Mind

• The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.

Increased Protection

• All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.

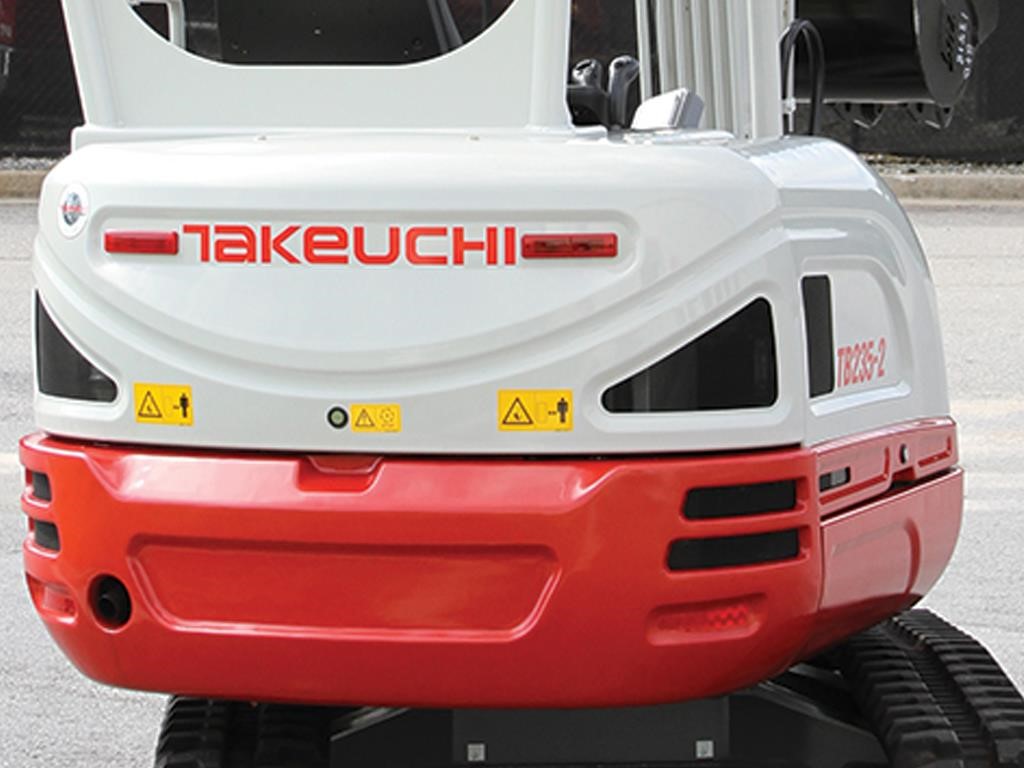

• Heavy duty counterweight protects vital engine and hydraulic components from damage.
• Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.

Operator Focused

• Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
• Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.

Function And Efficiency

• The lower horsepower rating of the TB235-2 does not require the use of a DOC/DPF exhaust aftertreatment system.
• The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
• The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
• Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
• Large slew bearing provides greater longevity and stability over the life of the machine.
• Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.

Takeuchi Fleet Management

• 2 Year Standard Service
• Minimize Downtime
• Remote Diagnostics
• Utilization Tracking
• Proactive Maintenance
• Control Costs
• Geofencing

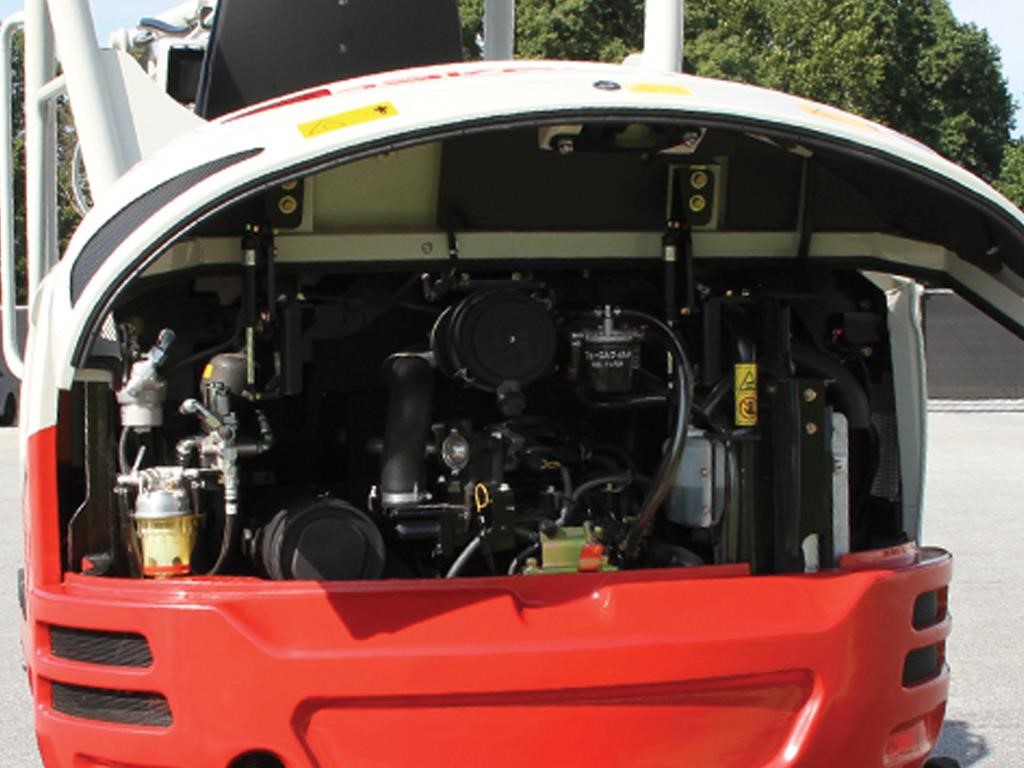

Ease Of Maintenance

• Rear hood and right side cover open high overhead providing exceptional access to inspection and maintenance points.

Engine

• EPA Final Tier 4
• Automatic Fuel Bleed System
• Dual Element Air Filter
• Automatic Idle

Electrical

• LCD Multi-Informational Display (Canopy)
• 5.7” Multi-Informational Display (Cab)
• Sealed Rocker Switches
• 12 volt System with 55 amp Alternator
• Halogen Work Lights: Two Forward Facing
• Engine Preheat
• Hour Meter
• Travel Alarm
• Horn

Undercarriage And Frame

• Triple Flanged Track Rollers
• Automatic Load Sensing Two-Speed Travel
• Sloped Frame with Open Centers
• Heavy Duty Dozer Blade with Float
• Large Wrap Around Counterweight
• 11.8” Rubber Tracks
• Power Angle Blade with Float, and Bolt-on Cutting Edge (optional)

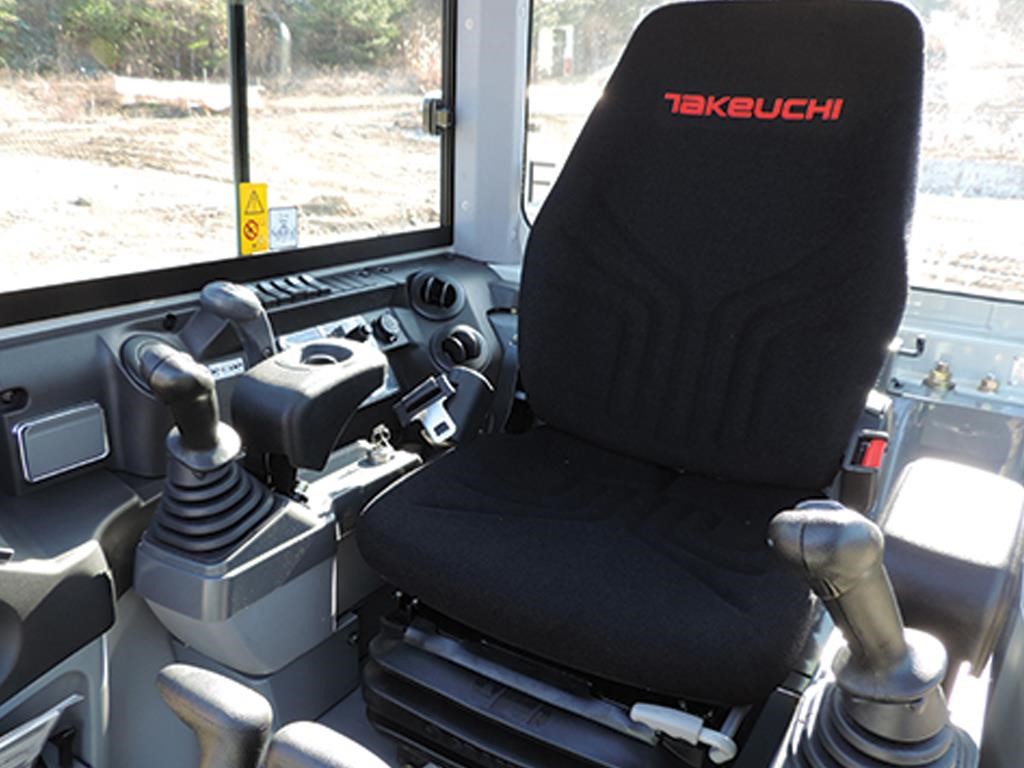

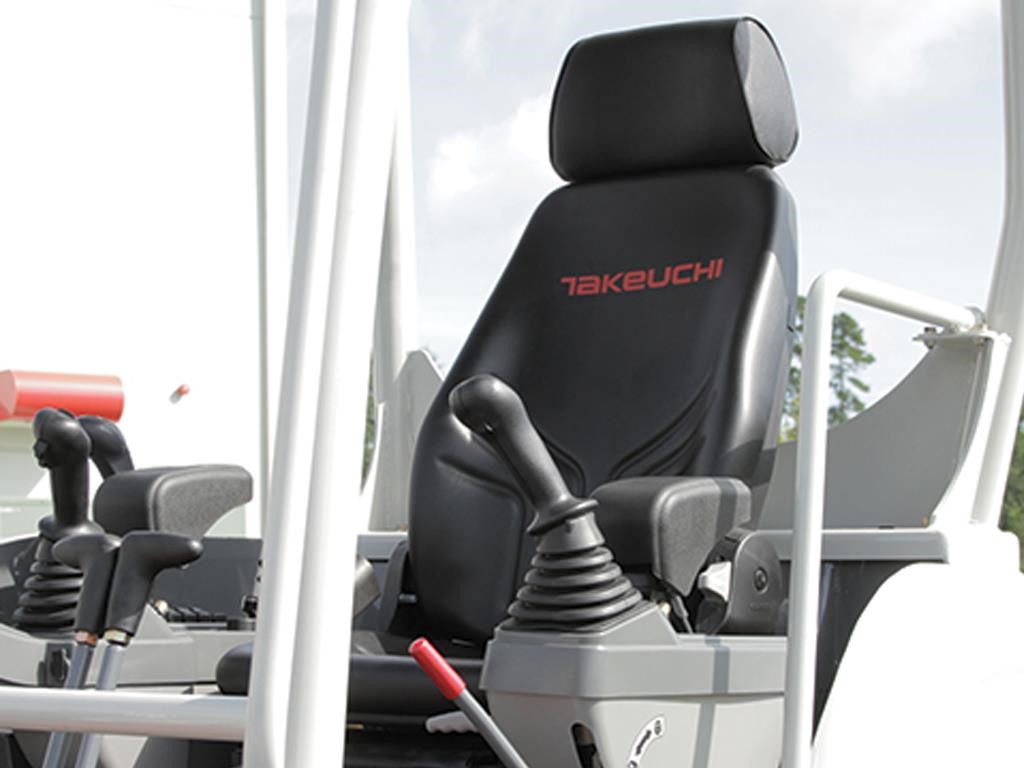

Operator’s Station

• ROPS / TOPS / OPG Four Post Canopy
• Deluxe High Back Suspension Seat
• Adjustable Arm Rests
• 2” Retractable Seat Belt
• 3” Retractable Seat Belt (optional)
• Cab with A/C, Heat, Defrost, Windshield Wiper and Washer, Skylight w/ Sunshade, AM / FM / MP3 Radio, 12v Power Outlet (optional)

Hydraulic & Working Equipment

• Variable Displacement, Open Center Hydraulics
• Cushioned Boom and Swing Cylinders
• Hydraulic Pilot Controls
• Proportional Auxiliary Controls with Detent
• Auxiliary Flow Adjustable from Operator’s Seat
• Hydraulic Reservoir with Fluid Level Sight Gauge
• Primary Auxiliary Hydraulic Circuit Plumbed to Arm
• Multiple Attachment Presets
• Flow Selector Valve
• Pattern Change Valve (ISO or SAE)
• Pilot Accumulator
• Long Arm with Integrated Thumb Mount
• Main Boom Cylinder Guard
• Dual Pin Position Bucket (optional)
• Mechanical Bucket Quick Coupler (optional)
• Main Pin Hydraulic Thumb (optional)
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2026
• Manufacturer: TAKEUCHI
• Model: TB235-2
• Condition: New

Exterior

• ROPS Type: Open

Other

• Operating Performance Operating Weight (Canopy): 7,418 lb (3,365 kg)
• Operating Performance Operating Weight (Cab): 7,639 lb (3,465 kg)
• Operating Performance Operating Weight:
• Operating Performance Max. Bucket Breakout Force: 9,127 lb (4,140 kg)
• Operating Performance Max. Arm Digging Force: 3,889 lb (1,764 kg)
• Operating Performance Arm Length: 4 ft 9.0 in (1,445 mm)
• Operating Performance Slew Speed: 9.3 rpm
• Operating Performance Traction Force: 9,112 lb (4,130 kg)
• Operating Performance Ground Pressure:
• Operating Performance Ground Pressure (Canopy): 4.4 psi (30.4 kPa)
• Operating Performance Ground Pressure (Cab): 4.6 psi (31.4 kPa)
• Operating Performance Travel Speed Low: 1.7 mph (2.8 km / hr)
• Operating Performance Travel Speed High: 2.6 mph (4.2 km / hr)
• Hydraulic System Total Hydraulic Flow: 28.6 gpm (108.4 L / min)
• Hydraulic System Auxiliary Flow Primary Circuit: 15.8 gpm (60.0 L /min)
• Hydraulic System Hydraulic System Pressure: 3,553 psi (24.5 MPa)
• Engine Model / Make: Yanmar / 3TNV88F
• Engine Displacement: 100.0 cu in (1.6 L)
• Engine Horsepower @ 2,400 Rpm: 24.4 hp (18.2 kW)
• Engine Horsepower @ 2200 Rpm:
• Engine Max. Torque @ 1900 Rpm:
• Engine Max. Torque @ 1800 Rpm:
• Engine Max. Torque @ 1,440 Rpm: 68.0 ft-lb (92.2 Nm)
• Engine Output Diesel Engine:
• Engine Horsepower:
• Engine Max. Torque:
• Electric Motor Output Electric Motor:
• Electric Motor Electrical Connection:
• Fluid Capacities Engine Lubrication: 5.0 qt (4.7 L)
• Fluid Capacities Cooling System: 4.2 qt (4.0 L)
• Fluid Capacities Fuel Tank Capacity: 12.2 gal (46.0 L)
• Fluid Capacities Fuel Consumption (65% Of Full Load): 0.90 gal / hr (3.4 L / hr)
• Fluid Capacities Hydraulic Reservoir Capacity: 9.2 gal (35.0 L)
• Fluid Capacities Hydraulic System Capacity: 18.0 gal (68.0 L)
• Machine Dimensions Maximum Reach: 17 ft 2.9 in (5,255 mm)
• Machine Dimensions Maximum Reach At Ground Level: 16 ft 10.0 in (5,130 mm)
• Machine Dimensions Maximum Digging Depth: 10 ft 7.8 in (3,245 mm)
• Machine Dimensions Maximum Vertical Digging Depth: 8 ft 2.2 in (2,495 mm)
• Machine Dimensions Maximum Dig Height: 16 ft 5.2 in (5,010 mm)
• Machine Dimensions Maximum Dumping Height: 11 ft 9.5 in (3,595 mm)
• Machine Dimensions Front Swing Radius: 6 ft 6.9 in (2,005 mm)
• Machine Dimensions Front Swing Radius With Boom Offset: 5 ft 5.4 in (1,660 mm)
• Machine Dimensions Tail Swing (Slew) Radius: 4ft 4.4 in (1,330 mm)
• Machine Dimensions Transport Length: 16 ft 0.9 in (4,900 mm)
• Machine Dimensions Transport Height: 8 ft 2.8 in (2,510 mm)
• Machine Dimensions Ground Clearance: 11.6 in (295 mm)
• Machine Dimensions Undercarriage Length: 6 ft 11.1 in (2,110 mm)
• Machine Dimensions Track Width (Rubber): 11.8 in (300 mm)
• Machine Dimensions Undercarriage Width Track Retracted:
• Machine Dimensions Undercarriage Width Track Extended:
• Machine Dimensions Undercarriage Width: 5 ft 2.2 in (1,580 mm)
