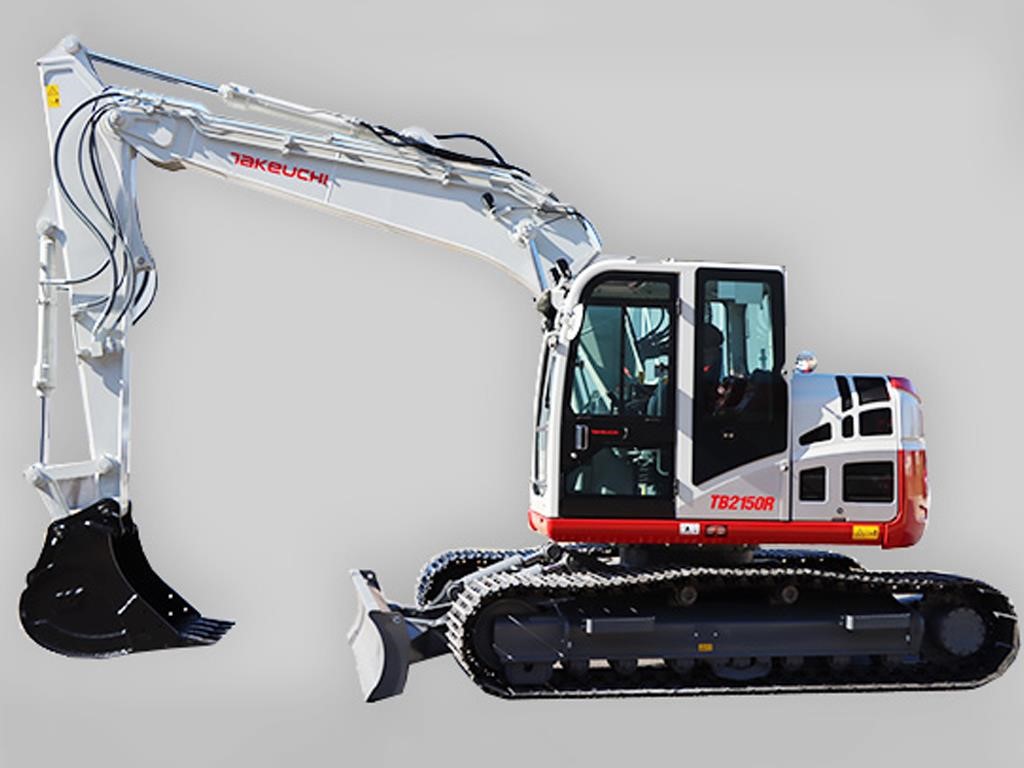

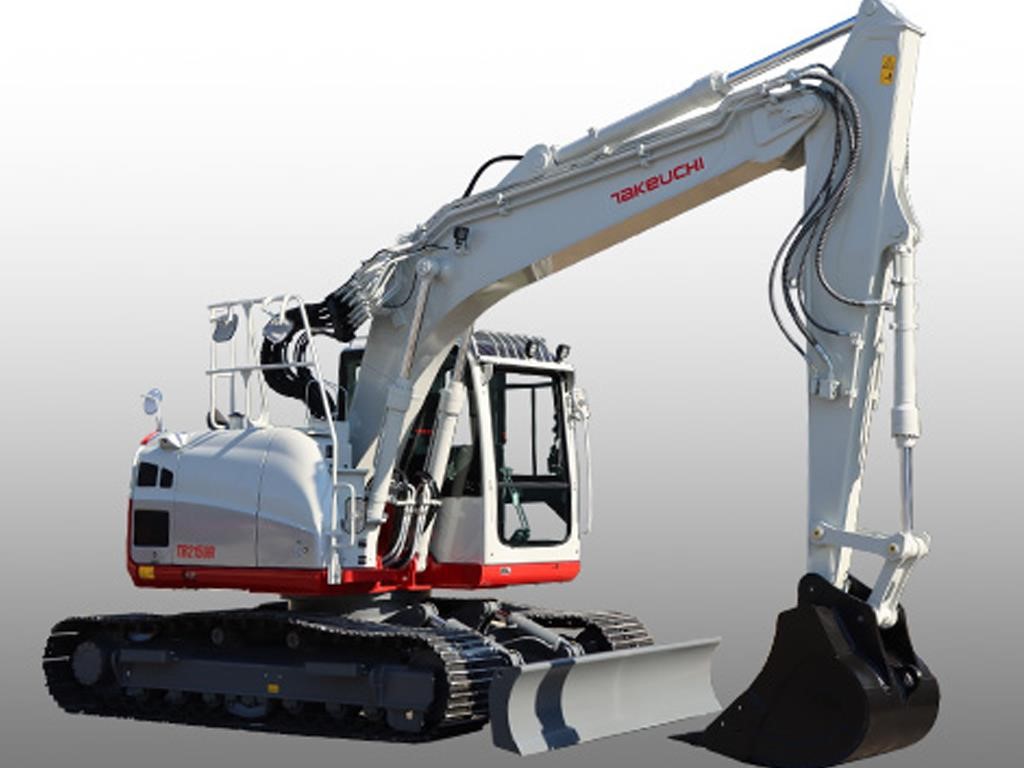

2026 TAKEUCHI TB2150R

Peace Of Mind

• The safe start system requires the safety lockout lever be in the raised position to start the excavator ensuring hydraulic functions are inactive at startup.
• Using the 2700 view camera, you are able to see hazards around side and the rear of the machine via the split screen monitor.
• The boom and arm holding valves and overload alarm are designed to keep the boom and arm from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity.

Heavy Design

• The TB2150R features a heavy duty design that includes all steel construction, large wrap around counterweight designed to protect key engine and hydraulic components, a variable speed hydraulic fan to optimize fan speed improving cooling efficiency and performance, and large ring gear to improve stability and longevity over the life of the machine.

Ease Of Maintenance

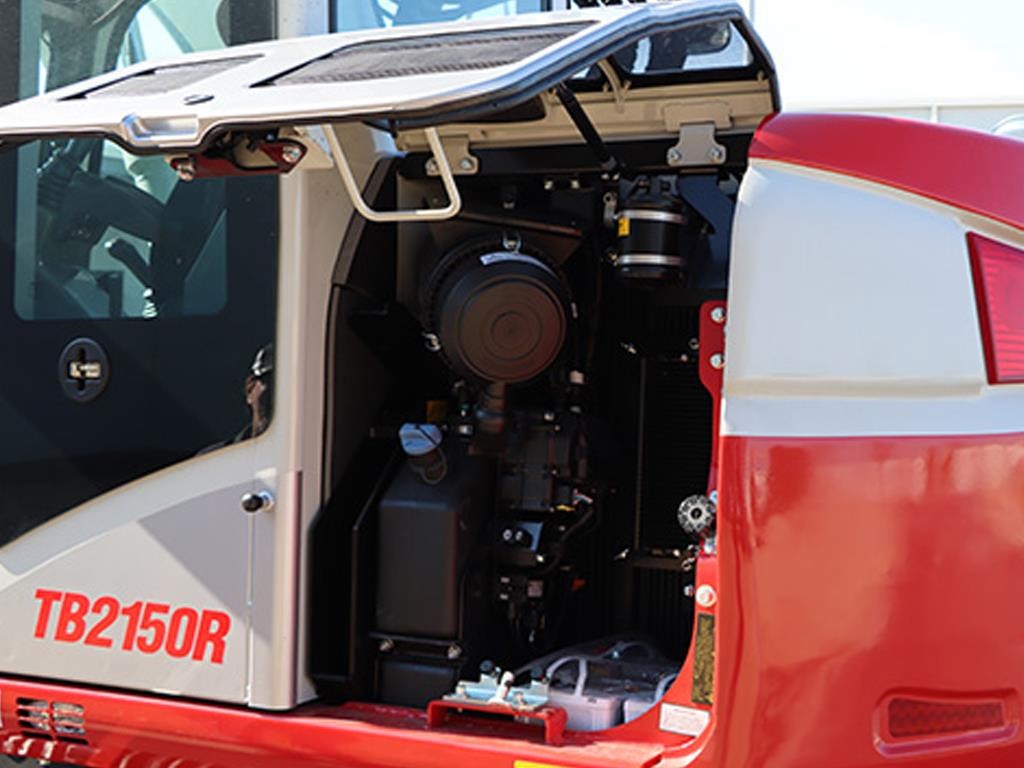

• Rear access panel swings open providing access to the engine oil fill and filter while the right and left side access panels open high overhead providing excellent access to inspection and maintenance points.

Operator Focused

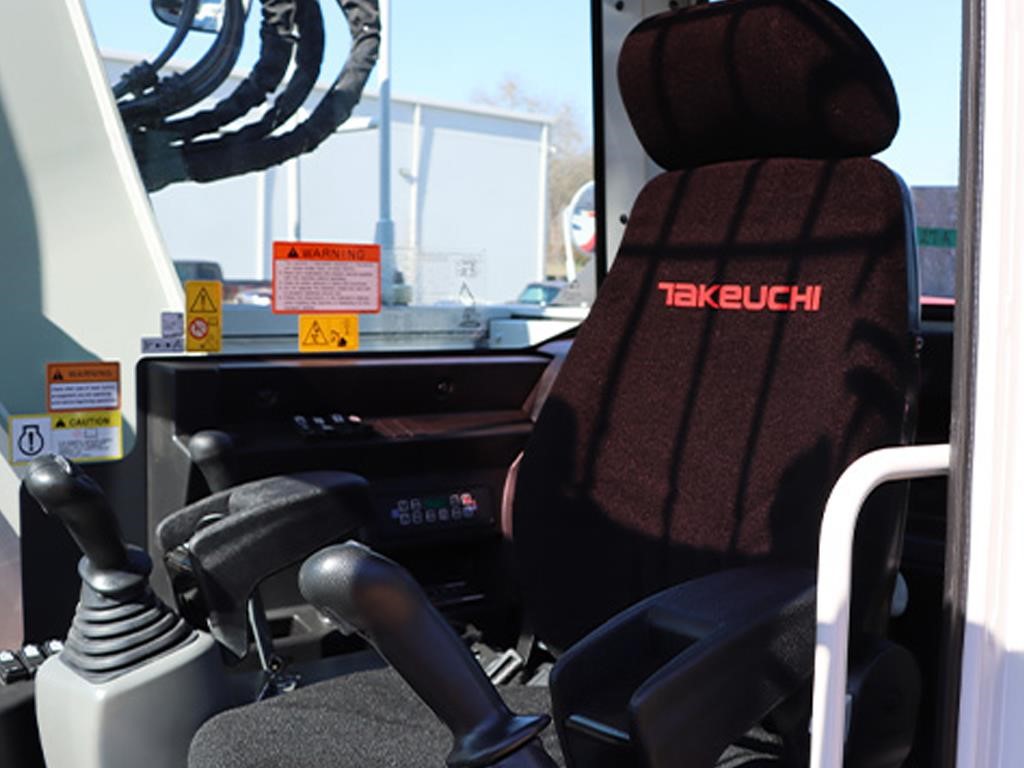

• Deluxe air ride suspension seat with heat provides a wide range of adjustments for greater comfort and reduced operator fatigue while providing excellent visibility to the work equipment and surrounding job site.
• The large 7" multifunction color monitor provides you with machine vitals and it has both flow and pressure adjustments for attachment set-up. It also features a split screen mode so you can view the area around the rear of the machine using the 2700 view camera system.
• Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds improving fuel efficiency.

Function And Efficiency

• The DEUTZ TCD 3.6 liter, turbocharged engine features a DOC + SCR diesel exhaust aftertreatment system that has no DPF to maintain.
• The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with little reduction in speed.
• The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
• Having three auxiliary circuits allows you to run a wide range of hydraulically driven attachments and have a dedicated hydraulic coupler circuit.
• High flow capabilities of the primary auxiliary circuit will allow you to operate a broader range of hydraulically driven attachments.
• Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
• Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.

Takeuchi Fleet Management

• 2 Year Standard Service
• Minimize Downtime
• Remote Diagnostics
• Utilization Tracking
• Proactive Maintenance
• Control Costs
• Geofencing

Engine

• EPA Final Tier 4 Emission Compliant
• Turbocharged
• Automatic Fuel Priming System
• DOC+SCR Exhaust After Treatment
• Dual Element Air Cleaner
• Automatic Cold Start Device
• Working Modes: Standard, Power and High Altitude
• Engine Safe Start System

Electrical

• 7" Multi-Informational Display
• Sealed Rocker Switches
• 270 Degree Rear View Camera
• Deluxe LED Light Package

Undercarriage And Frame

• Triple Flanged Track Rollers
• 2-Speed Axial Piston Travel Motors with Counter Balance Valves
• High Torque Planetary Final Drive
• Heavy Duty Backfill Blade with Float
• Large Wrap Around Counterweight
• Load Sensing Automatic Shift Down
• Automatic Slew Brake with Shock-less Relief Valve

Operator's Station

• Cab with Air Conditioner, Heat, Defrost, Windshield Wiper and Washer, Polycarbonate Skylight with Sunshade, AM / FM / MP3 Radio, 24v and 12v Power Outlet
• ROPS/OPG Level 2 Protection
• Deluxe High Back Air Ride Suspension Seat
• Adjustable Arm Rests
• 2" Retractable Seat Belt
• Roof Guard
• Front Window Guard (optional)

Hydraulic & Working Equipment

• Cushioned Boom and Arm Cylinders
• Arm and Boom Holding Valve with Lift Alarm
• Fixed Boom Swing
• Hydraulic Pilot Controls
• Pattern Change Valve (ISO or SAE)
• High Capacity Hydraulic Oil Cooler
• Pilot Accumulator
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2026
• Manufacturer: TAKEUCHI
• Model: TB2150R
• Condition: New
• Power Type: Engine Powered

Engine

• Horsepower: 113.98687765
• Engine Make: DEUTZ
• Engine Model: TCD3.6L4

Attachments

• Blade: 1
• Screens: 1

Category Specific

• Quick Attach: 1
• Coupler: 1

Chassis

• Ground Pressure: 6.7007556
• Number of Forward Speeds: 2
• Track Type: Steel

Dimensions

• Operating Weight: 34215.7430624
• Shipping Weight: 34215.7430624
• Tail Swing Configuration: Reduced
• Counterweight: 1

Exterior

• Air Conditioning: 1
• Heater: 1
• Hydraulic Auxiliary: 1
• ROPS Type: Enclosed
• Hydraulic High Flow: 1
• Pattern Changer: 1
• Exterior Light Type: LED
• Heated Seat: 1

Other

• HorsepowerUnit: horsepower
• OperatingweightUnit: pound
• Basedrivespeed: 3.1689921
• BasedrivespeedUnit: miles/hour
• Fuelcapacity: 58.382023492
• FuelcapacityUnit: gallon
• Shippingheight: 125.59055
• ShippingheightUnit: inch
• Shippinglength: 291.53543
• ShippinglengthUnit: inch
• ShippingweightUnit: pound
• Shippingwidth: 105.90551
• ShippingwidthUnit: inch
• Tailswingradius: 66.92913
• TailswingradiusUnit: inch
• Digdepth: 238.58268
• DigdepthUnit: inch
• GroundpressureUnit: pound/square inch
• Maxreach: 341.1417319355
• MaxreachUnit: inch
• Trackshoewidth: 27.55905509
• TrackshoewidthUnit: inch
• Dumpheightmax: 281.102361918
• DumpheightmaxUnit: inch
• Undercarriagelength: 147.637795125
• UndercarriagelengthUnit: inch
• Arm: Long
• Armlength: 99.59843
• ArmlengthUnit: inch
• Operating Performance Operating Weight Canopy:
• Operating Performance Operating Weight Cab :
• Operating Performance Operating Weight Cab (Rubber): 34,215 lb
• Operating Performance Operating Weight Cab (Steel): 34,435 lb
• Operating Performance Operating Weight Cab (Segmented Rubber) : 34,403 lb
• Operating Performance Maximum Bucket Breakout Force: 22,256 lb
• Operating Performance Maximum Arm Digging Force: 13,490 lb
• Operating Performance Arm Length: 8 ft 3.6 in
• Operating Performance Slew Speed: 11.0 rpm
• Operating Performance Traction Force: 35,230 lb
• Operating Performance Ground Pressure Cab (Rubber): 6.6 psi
• Operating Performance Ground Pressure Cab (Steel): 6.7 psi
• Operating Performance Ground Pressure Cab (Segmented Rubber): 6.7 psi
• Operating Performance Travel Speed Low Range: 1.8 mph
• Operating Performance Travel Speed High Range: 3.4 mph
• Engine Make / Model: Deutz / TCD 3.6 L4
• Engine Displacement: 221.0 cu in
• Engine Horsepower @ 2,400 Rpm:
• Engine Horsepower @ 2,000 Rpm: 114.0 hp
• Engine Maximum Torque @ 1,600 Rpm: 338 ft-lb
• Engine Maximum Torque @ 1,560 Rpm:
• Engine Maximum Torque @ 1,300 Rpm:
• Hydraulic System Total Hydraulic Flow: 78.9 gpm
• Hydraulic System Auxiliary Flow Primary Circuit: 59.2 gpm
• Hydraulic System Auxiliary Flow Secondary Circuit: 14.5 gpm
• Hydraulic System Hydraulic System Pressure: 4,974 psi
• Fluid Capacities Engine Lubrication: 10.6 qt
• Fluid Capacities Cooling System: 28.5 qt
• Fluid Capacities Fuel Tank Capacity: 58.4 gal
• Fluid Capacities DEF Fluid Tank Capacity: 5.3 gal
• Fluid Capacities Fuel Consumption (65% Of Full Load): 3.88 gal / hr
• Fluid Capacities Hydraulic Reservoir Capacity: 26.9 gal
• Machine Dimensions Maximum Reach: 28 ft 10.1 in
• Machine Dimensions Maximum Reach At Ground Level: 28 ft 5.2 in
• Machine Dimensions Maximum Digging Depth: 19 ft 9.4 in
• Machine Dimensions Maximum Vertical Digging Depth:
• Machine Dimensions Maximum Dig Height:
• Machine Dimensions Maximum Dumping Height: 23 ft 6.4 in
• Machine Dimensions Front Swing Radius:
• Machine Dimensions Front Swing Radius With Boom Offset:
• Machine Dimensions Tail Swing (Slew) Radius:
• Machine Dimensions Slew Radius:
• Machine Dimensions Transport Length: 25 ft 6.5 in
• Machine Dimensions Transport Height: 9 ft 8.5 in
• Machine Dimensions Ground Clearance:
• Machine Dimensions Undercarriage Length:
• Machine Dimensions Track Overall Length:
• Machine Dimensions Overall Width (Rubber): 8 ft 2.0 in
• Machine Dimensions Track Overall Width:
• Machine Dimensions Undercarriage Width:
