2026 SANDVIK PANTERA DP1110I
additional information

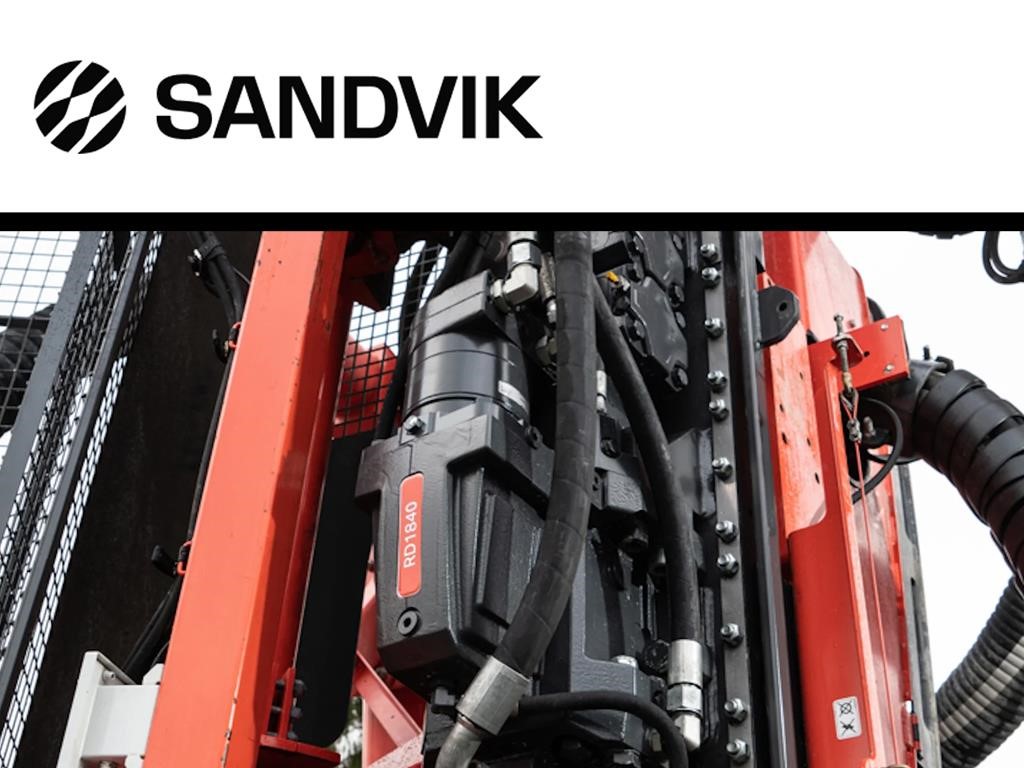

- At the core of Pantera™ DPi is the new RD1700 rock drill family, delivering optimal strikes and smooth drilling with its patented active stabilizer. With up to 35 kW of power and 15% better energy efficiency, it drives productivity. Paired with CT55 or CT67 rock tools and the iTorque drilling control system, the hole accuracy and drilling performance are maximized from bit to boom.
- The Pantera™ DPi series is built for high reliability and uptime, even in extreme conditions. Key upgrades — like the improved CSL lubrication system, stronger boom, and heavy-duty components — enable longer service intervals and extended lifetime. With My Sandvik’s digital tools for machine health and consumables tracking, efficiency and OPEX control reach new levels.

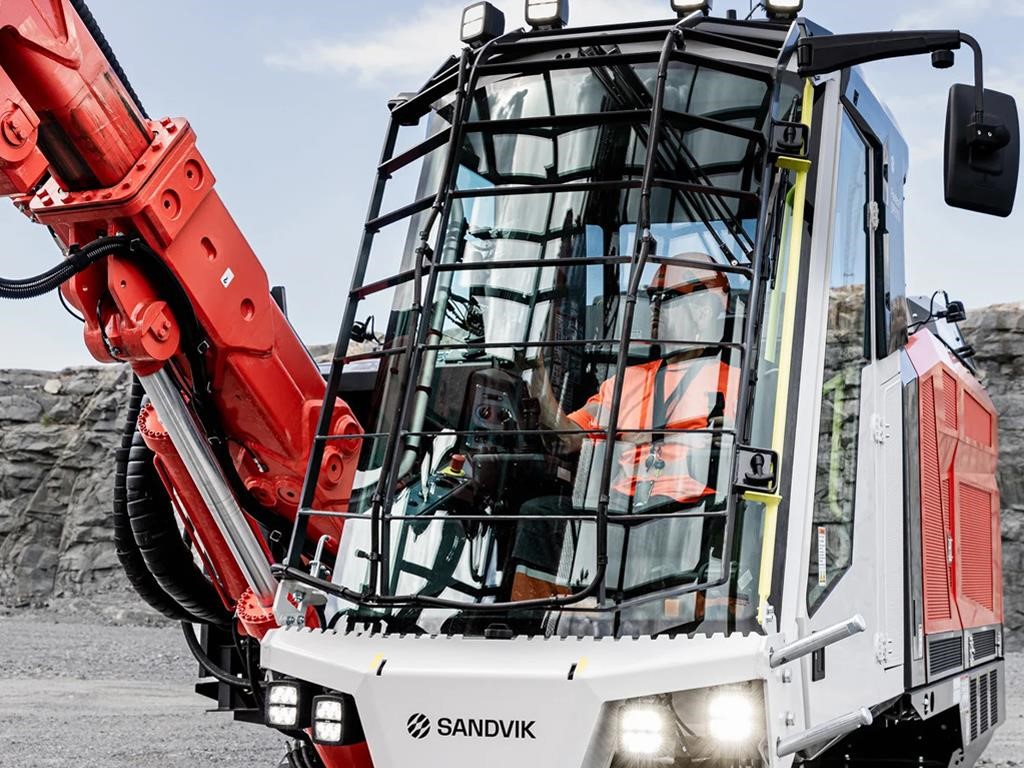

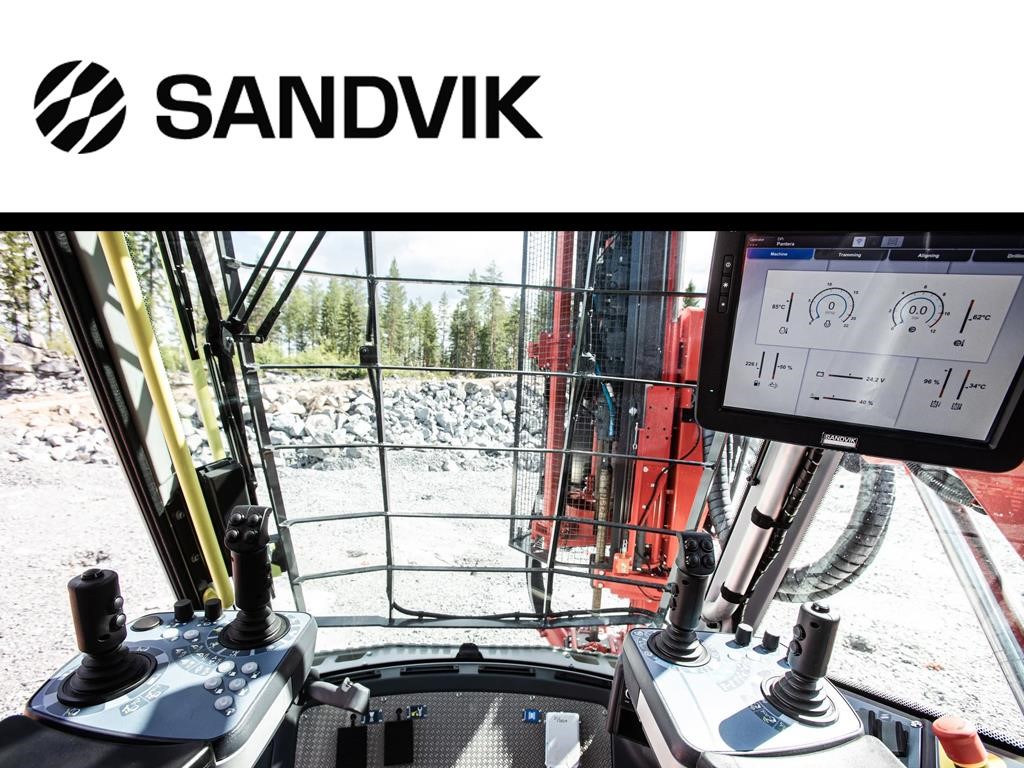

- Pantera™ DPi makes the operator’s job easier and safer with a new cabin that reduces noise and vibration. User-friendly touchscreen controls give easy access to all rig functions, while intelligent automation features like the iClean option lower stress by automating overburden drilling. Feed-to-tram automatics allow quick transitions between drilling and tramming with the push of a button.
- Pantera™ DPi is built for the digital era, offering solutions for production monitoring and seamless integration into your mine or quarry operations. Open Drill Interface supports integration with third-party Fleet Management Systems (FMS) and drill navigation solutions. My Sandvik Insight & Productivity provides fleet-wide productivity monitoring and supports proactive maintenance planning. My Sandvik Onsite acts as a local productivity monitoring solution, connecting drills to the broader systems and processes of open-pit and large quarry operations.

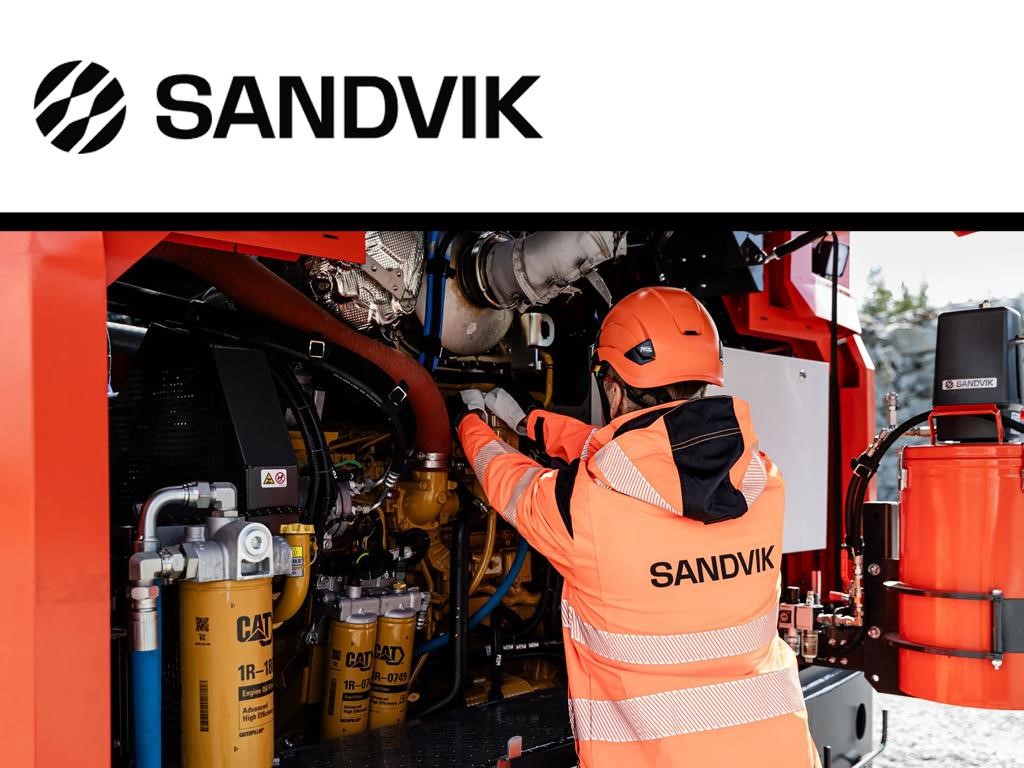

- Pantera™ smart component layout allows for ease of service. Two doors on the equipment’s right side ensure easy maintenance from ground level.
- The ROPS/FOPS-certified safety cabin provides excellent visibility while troubleshooting instructions make the equipment safe, operator-friendly and highly productive.
- Pantera™ DP1110i is compatible with AutoMine® Surface Drilling remote control.
- Sandvik has designed a new system for heating the rock drill before starting it up. This feature dramatically increases the service life of the rock drill accumulator membranes.
- Specifications and data shown are subject to change with or without prior notice.
- Year: 2026
- Manufacturer: SANDVIK
- Model: PANTERA DP1110I
- Condition: New
- Horsepower: 335.2555225
- Shipping Weight: 50485.857998
- HorsepowerUnit: horsepower
- Shippingwidth: 98.42519675
- ShippingwidthUnit: inch
- Shippingheight: 129.133858136
- ShippingheightUnit: inch
- Shippinglength: 452.75590505
- ShippinglengthUnit: inch
- ShippingweightUnit: pound
- TECHNICAL DATA Hole Diameter: 89.0 - 140.0 mm (3.5 - 5.5 in.)
- TECHNICAL DATA Rock Drill: 25 - 35 kW
- TECHNICAL DATA Flushing Air Capacity: 11 m³/min up to 10 bar
- TECHNICAL DATA Drill Rod/tube Diameter: 51 or 60 mm (2 or 2.36 in.)
- TECHNICAL DATA Hydraulic Rock Drill: RD1725 (25 kW) / RD1735C (35 kW)
- TECHNICAL DATA Engine: Caterpillar C9.3B, 250 kW (335hp) / 1 800 rpm (T4F/Stage V)
- TECHNICAL DATA Cabin: Ergo cool
- TECHNICAL DATA Transport Length: 11.5 m (37.7 ft)
- TECHNICAL DATA Transport Width: 2.50 m (8.20 ft)
- TECHNICAL DATA Transport Height: 3.2 m (10.5 ft)
- TECHNICAL DATA Weight: 22,900 kg (50,490 lb)
- HYDRAULIC ROCK DRILL Rock Drill: RD1725/ RD1735C (optional)
- HYDRAULIC ROCK DRILL Rock Tools: 51, 55, 60, 67 mm
- HYDRAULIC ROCK DRILL Operating Pressure: 90-160 bar
- HYDRAULIC ROCK DRILL Percussion Rate: 33-38 Hz
- HYDRAULIC ROCK DRILL Percussion Output Power: 25 / 35 kW
- HYDRAULIC ROCK DRILL Maximum Rotation Torque: 2160/2400 Nm OMT400/500
- HYDRAULIC ROCK DRILL Shank Lubrication: Air / oil mist
- HYDRAULIC ROCK DRILL Flushing: Air
- HYDRAULIC ROCK DRILL Weight: 490 kg
- FEED Feed Type: LF 1520 HR with hose reel
- FEED Total Length: 9770 mm
- FEED Rock Drill Travel: 5660 mm
- FEED Max. Length Of Starter Rod: 6096 mm (20')
- FEED Hose Reel: Standard
- FEED Feed Extension Travel: 1 480 mm
- FEED Feed/pull Out Force: 36 kN
- FEED Feed Swing: -56/+52° (-20/+94°)
- FEED Feed Tilt: 13-135°
- ROD CHANGER Rod Changer Type: RC 1514
- ROD CHANGER Storage Capacity: 7+1 (T51, GT60) | 6+1 (CT67,87mm tube)
- ROD CHANGER Rod Length: 3660, 4270 mm
- ROD CHANGER Max. Hole Depth: 33 m (7+1) x 14'
- BOOM Boom Type: ZB 1550 H, telescopic
- BOOM Boom Extension: 500 mm
- BOOM Boom Swing: -2/+30°
- BOOM Collaring Height: +1.24/-4.1 m
- BOOM Horizontal Holes: To the right hand side
- CABIN Cabin Type: Ergo cool
- CABIN Certificates: FOPS and ROPS
- CABIN Noise Level In The Cabin: 80 dB(A)
- CABIN Air Conditioning: Standard (A/C system contains fluorinated greenhouse gases HFC-134a)
- CABIN Pressurization: Standard
- CABIN Seat: Ergonomic, adjustable
- CABIN Vibration Dampening: Standard
- CABIN Windows: Safety laminated, tinted selective glass with wiper
- POWERPACK Engine Type: Caterpillar C 9.3B (Tier 4f/Stage V)
- POWERPACK DEF Tank: AdBlue 42 l
- POWERPACK Number Of Cylinders: 6
- POWERPACK Engine Output: 250 kW / 1800 rpm
- POWERPACK Transmission Type: Gear box
- POWERPACK Screw Compressor Type: Enduro 25
- POWERPACK Air Filters: 2 pcs, dry type with ejector and safety element
- POWERPACK Fuel Tank: 680 l
- HYDRAULIC SYSTEM Number Of Gear Pumps: 3 pcs. for dust collector and cooling
- HYDRAULIC SYSTEM Number Of Piston Pumps: 2 pcs. for drilling, tramming, boom and rodhandling
- HYDRAULIC SYSTEM Filtration Rate: 12 micron abs.
- HYDRAULIC SYSTEM Cooling Capacity: up to +50°C ambient
- HYDRAULIC SYSTEM Hydraulic Oil Tank: 390 l
- HYDRAULIC SYSTEM Shank Lubrication Device: SLU 50
- CONTROL SYSTEM Control System Type: Sandvik SICA, PLC controlled proportional electro-hydraulics
- CONTROL SYSTEM Tramming/boom/drilling Control: PLC controlled
- CONTROL SYSTEM User Interface: Electro proportional joysticks and touchscreen
- CONTROL SYSTEM Control System Diagnostics: Graphical flow chart type
- CONTROL SYSTEM Drilling Control System Type: iTorque
- CONTROL SYSTEM Antijamming System: For rotation and flushing
- CONTROL SYSTEM Collaring Control: Automatic
- CONTROL SYSTEM Preset Drilling Parameters: Adjustable for fine tuning for different rock conditions
- CONTROL SYSTEM Voltage: 24 VDC
- DUST COLLECTOR Dust Collector Type: DC 1550
- DUST COLLECTOR Capacity/vacuum: 35 m³/min at 1200 mm vacuum H20
- DUST COLLECTOR Filter Elements/material: 20 pcs/fiber
- DUST COLLECTOR Total Filter Surface: 16 m²
- DUST COLLECTOR Primary Cyclone: PE 80
- DUST COLLECTOR Movable Suction Head: MS 250
- CARRIER Track Type: FL 6
- CARRIER Grouser Plate Width: 400 mm
- CARRIER Ground Contact Length: 2510 mm
- CARRIER Ground Pressure: 1.1 kg/cm²
- CARRIER Ground Clearance: 360 mm
- CARRIER Oscillation Angles: +/- 11°
- CARRIER Tramming Force: 150 kN
- CARRIER Max. Tramming Speed: 1.8/3.2 km/h
