2026 TAKEUCHI TB20E
additional information
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Control Costs
- Geofencing

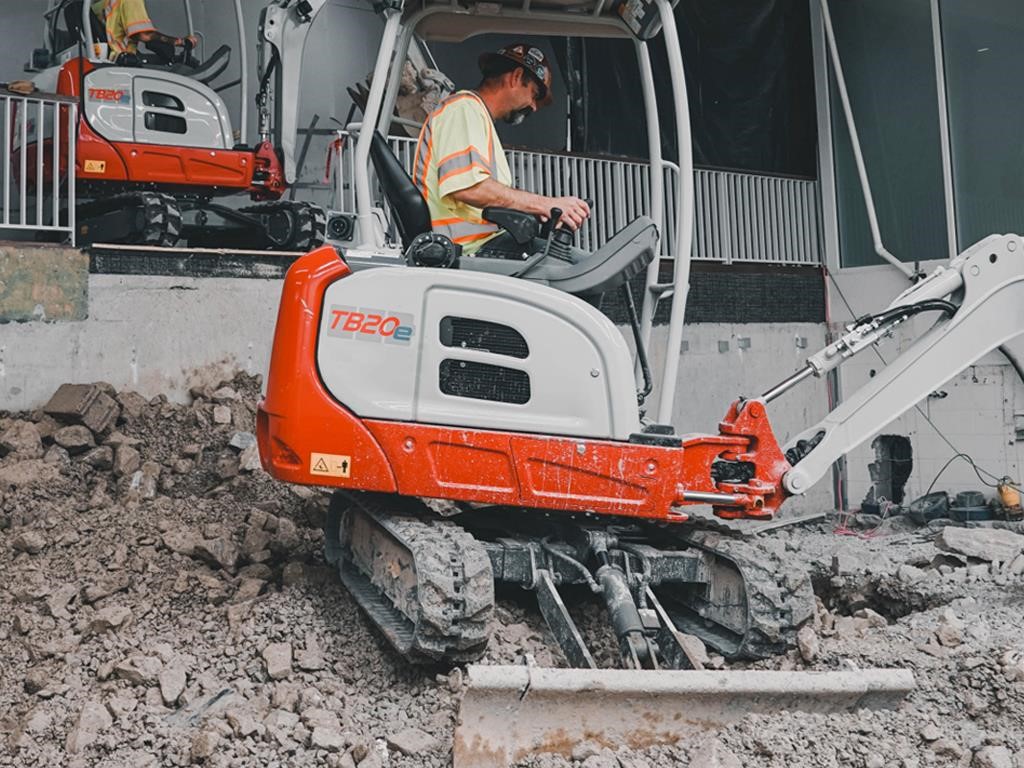

- 100% Lithium-Ion battery power ensures zero emission operation making the TB20e ideal for working in a wide range of applications that include food processing facilities, indoor demolition, hospitals, and schools.
- Reduced noise and vibration levels enable the operator to work in areas sensitive to noise pollution.
- Impressive run times and the ability to operate while tethered ensure you can complete jobs in a timely and efficient manner.

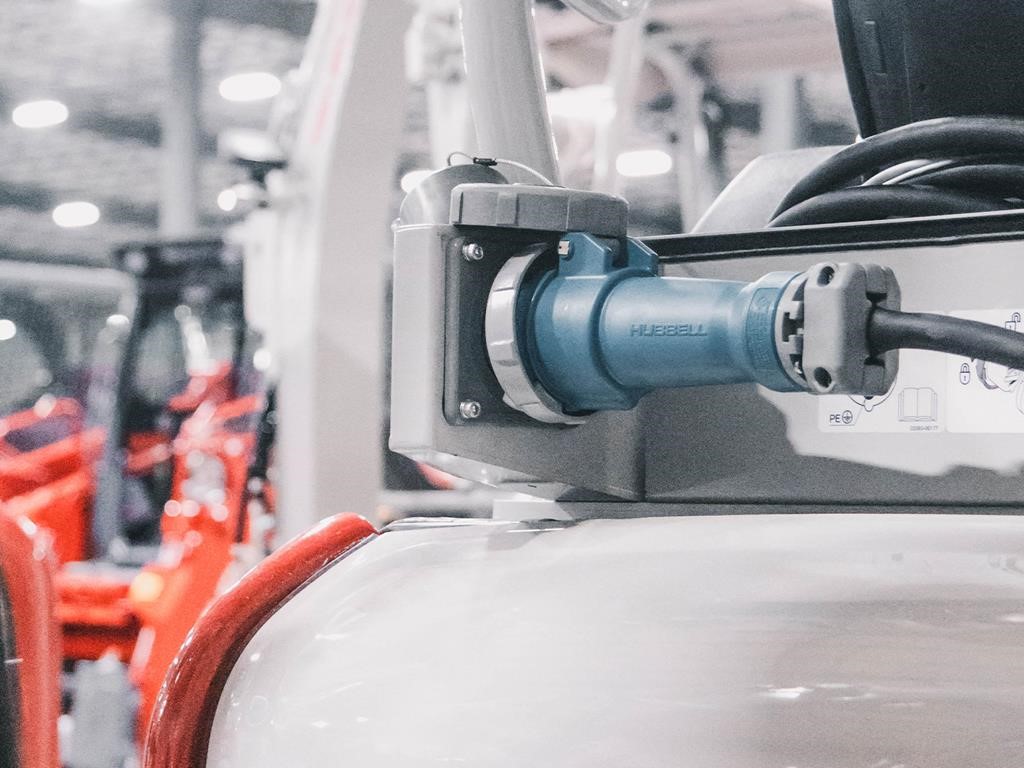

- The onboard charger allows the TB20e to be charged using 95v – 265v single phase power.
- An available offboard charger will charge the TB20e using 408v to 552v three phase power.
- All operational controls such as key switch, speed control, joysticks, blade, and travel levers are the same as the diesel powered TB216.

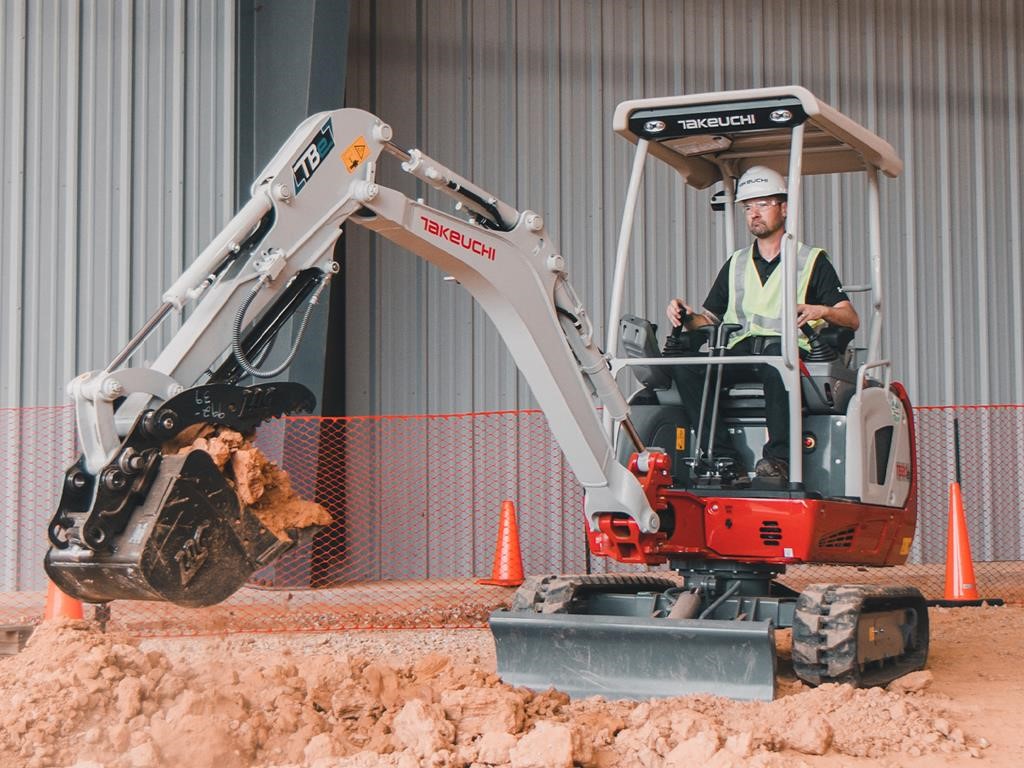

- A standard long arm provides the operator with a wider working range and dig depth while the thumb mount enables a thumb to be installed easily enhancing the machines capability.
- Load sensing, two speed travel will shift from low torque/high speed mode to high torque/low speed automatically when turning, pushing, or traveling up an incline.
- A retractable undercarriage and blade allow the operator to work in applications with limited access.
- Easily move the TB20e from one jobsite to another.
- All operational controls such as key switch, speed control, joysticks, blade, and travel levers are the same as the diesel powered TB216.
- A High definition, multifunction color monitor allows the operator to view machine vitals and performance levels as they work.

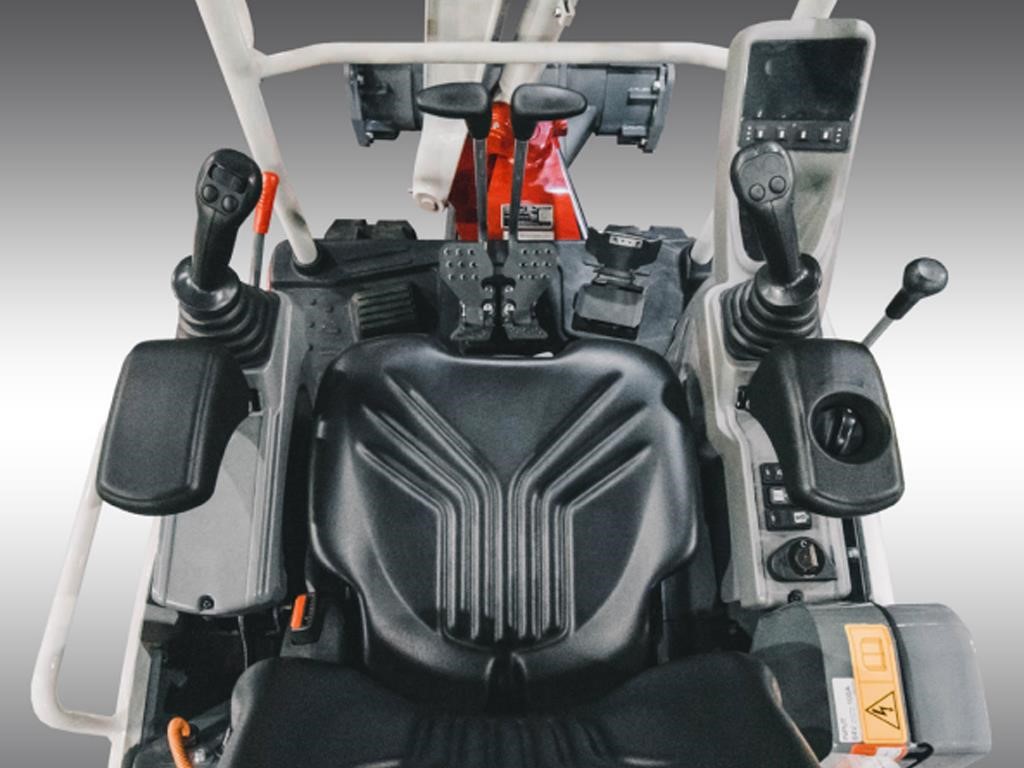

- EH joystick controls are low effort and precise.
- The ISO/SAE pattern change is accessed via the monitor panel enabling the operator to set the TB20e quickly and easily to their preferred operating pattern.
- The suspension seat and adjustable armrests ensure operator comfort throughout the workday.
- A spacious, open floor area provides more foot space and makes it easier to enter and exit the machine.
- Top mounted boom cylinder and hydraulic lines that are routed through the boom and arm delivers exceptional protection from jobsite hazards.
- Body integrity is due to all steel construction of the TB20e which provides greater rigidity and strength and protects key components from damage.
- A heavy-duty counterweight protects vital components from damage.
- Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
- Triple flange track rollers improve track life by providing greater support of the track system, and they maintain multiple contact points during operation reducing the risk of de-tracking.
- Reduced maintenance intervals ensure more uptime which enhances the bottom line.
- Greasing the work equipment daily is easy to perform with all grease points highlighted in yellow and run down one side of the machine.
- 24.7 kWh Lithium-Ion Battery
- 100% Battery Powered with Zero Exhaust Emissions
- Reduced Sound and Vibration Levels
- Maintenance Free Lithium Ion Battery
- ECO Mode
- Weather Resistant Rocker Switch
- LED Light Package; Boom, Canopy, Rear
- Travel Alarm
- 12v Battery Disconnect Switch
- TFM (Takeuchi Fleet Management)
- Hour Meter/Trip Meter
- 12v Power Outlet
- On-board Charger, 95v to 265v Single Phase
- Portable Offboard Charger, 408v to 552v (3) Phase (Optional)
- 4.3 in. High Definition, Multifunction Color Display
- ISO/SAE Pattern Change Valve via Monitor
- ROPS/TOPS/OPG (Level 1)
- High Back Adjustable Suspension Seat
- 2 in. Retractable Seat Belt
- 3 in. Non-Retractable Seat Belt (Optional)
- Foldable Travel Pedals
- Boom Swing Pedal with Foldable Footrest
- Emergency Stop Switch
- Safe Start System (Left Console)
- Triple Flanged Track Rollers
- Hydraulically Retractable Undercarriage (38.6 in to 51.2 in)
- Adjustable Width Backfill Blade
- Integrated Load Sensing Automatic Shift Down
- Wraparound Protective Counterweight
- 9 in. Rubber Tracks
- Mono Boom Swing
- Cushioned Boom & Swing Cylinders
- Top Mount Boom Cylinder
- 3 ft. 8.5 in. Arm
- Boom Holding Valve
- 2 Electric Motors
- Load Sensing System for Operation
- Two Motor Linked Fixed Displacement Gear Pumps
- P1 - Bucket, Boom, Travel, Arm, 1st Auxiliary, Boom Swing, Blade Pilot Pressure
- P2 - Slew
- Electro-Hydraulic Joysticks
- Primary Auxiliary Circuit with Proportional Control
- Detent for Primary Auxiliary Circuit
- Primary Auxiliary Plumbed to Arm
- Steel Hydraulic Tank with Fluid Level Sight Gauge
- Pilot Accumulator
- Air Breather, Hydraulic Tank
- Adjustable Hydraulic Flow on Primary Auxiliary
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: TAKEUCHI
- Model: TB20E
- Condition: New
- ROPS Type: Open
- Operating Performance Operating Weight Canopy: 4,255 lb (1,930 kg)
- Operating Performance Operating Weight Cab:
- Operating Performance Maximum Bucket Breakout: 4,226 lbf (1,917 kgf)
- Operating Performance Maximum Arm Crowd Force: 1,820 dbf (862 kgf)
- Operating Performance Arm Length: 3 ft. 8.5 in. (1,130 mm)
- Operating Performance Slew Speed: 7.6 rpm
- Operating Performance Traction Force: 4,655 lbf (2,116 kgf)
- Operating Performance Ground Pressure Canopy: 4.7 psi (32.1 kPa)
- Operating Performance Ground Pressure Cab:
- Operating Performance Max Travel Speed Low Range: 1.3 mph (2.1 km/h)
- Operating Performance Max Travel Speed High Range: 2.5 mph (4.0 km/h)
- Hydraulic System Total Hydraulic Flow:
- Hydraulic System Auxiliary Flow Primary Circuit: 8.9 gpm (33.6 L/min)
- Hydraulic System Hydraulic System Pressure:
- Hydraulic System Auxiliary 1 Pressure:
- Engine Make / Model:
- Engine Displacement:
- Engine Horsepower @ 2,000 Rmp:
- Engine Maximum Torque @ 1,700 Rpm:
- Engine Maximum Torque @ 1,600 Rpm:
- Engine Maximum Torque @ 1,500 Rpm:
- Engine Maximum Torque @ 1,300 Rpm:
- Fluid Capacities Engine Lubrication:
- Fluid Capacities Cooling System:
- Fluid Capacities Fuel Tank :
- Fluid Capacities Fuel Consumption (65% Of Full Load):
- Fluid Capacities Hydraulic Reservoir : 3.7 gal (14.1 L)
- Fluid Capacities Hydraulic System : 6.3 gal (24 L)
- Machine Dimensions Maximum Reach: 13 ft. 4.9 in. (4,090 mm)
- Machine Dimensions Maximum Reach At Ground Level: 12 ft. 2.9 in. (4,035 mm)
- Machine Dimensions Maximum Digging Depth: 7 ft. 10.0 in. (2,390 mm)
- Machine Dimensions Maximum Vertical Digging Depth: 6 ft. 9.0 in. (2,390 mm)
- Machine Dimensions Maximum Height Of Cutting Edge: 12 ft. 3.3 in. (3,740 mm)
- Machine Dimensions Maximum Dumping Height: 8 ft. 10.5 in. (2,705 mm)
- Machine Dimensions Front Swing Radius: 4 ft. 10.2 in. (1,480 mm)
- Machine Dimensions Front Swing Radius With Boom Offset: 3 ft. 9.4 in. (1,155 mm)
- Machine Dimensions Tail Swing Radius: 3 ft. 6.3 in. (1,075 mm)
- Machine Dimensions Transport Length: 12 ft. 8.8 in. (3,880 mm)
- Machine Dimensions Transport Height: 7 ft. 5.8 in. (2,280 mm)
- Machine Dimensions Ground Clearance: 8 in. (205 mm)
- Machine Dimensions Crawler Base:
- Machine Dimensions Undercarriage Length: 4 ft. 11.9 in. (1,520 mm)
- Machine Dimensions Undercarriage Width Tracks Retracted: 38.6 in. (980 mm)
- Machine Dimensions Undercarriage Width Tracks Extended: 51.2 in. (1,300 mm)
- Machine Dimensions Undercarriage Width:
- Machine Dimensions Track Width (Rubber): 9.1 in. (230 mm)
