2026 TAKEUCHI TB216H
additional information
- A retractable undercarriage and compact dimensions allow you to access job sites with limited access.

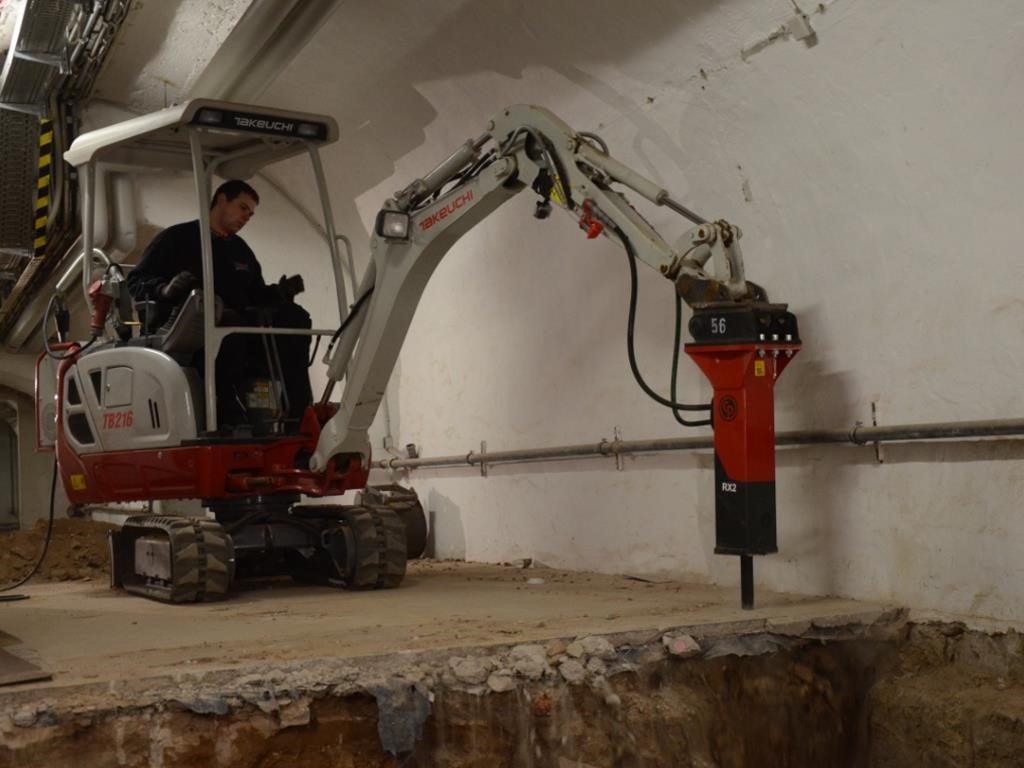

- Electric motor enables low noise operation and allows you to work on job sites with zero emissions requirements, such as, indoor demolition, food processing facilities, hospitals, and schools.
- Independent pump groups of equal displacement ensure that there is no loss in performance regardless of operating mode (diesel/electric).
- All operational controls such as key switch, throttle, joysticks, blade, and travel levers are the same regardless of operating mode (diesel/electric).
- The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
- Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
- Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
- Top mounted boom cylinder and hydraulic lines routed through the boom and arm ensures exceptional protection from job site hazards.
- All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
- Heavy duty counterweight protects vital engine and hydraulic components from damage.
- Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
- Pilot controls are low effort and precise.
- ISO/SAE pattern change valve allows you to choose your preferred operational controls.
- Suspension seat reduces operator fatigue and features fore/aft, tilt, and weight adjustments.
- Multifunction, LED monitor provides the operator with machine vitals.
- The overhead opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.
- The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
- EPA Final Tier 4 Emission Compliant
- Engine Preheat
- Dual Element Air Filters
- Automatic Fuel Bleed System
- Electric Motor with High Voltage Connection Provides 100% Emission Free Operation and Full Functionality.
- Multi-Informational Display
- Visual Indicator for Engine Preheat, High Speed, Water Temp and Fuel Gauge
- Function Keys Transition Between Hour / Trip Meter, Time and Alarm, and Contrast Adjustment
- Hour Meter
- Travel Alarm
- Triple Flanged Track Rollers
- Hydraulically Retractable Track Frame
- Automatic Load Sensing 2 Speed Travel
- Adjustable Width Backfill Blade
- Cast Iron Wrap Around Protective Counterweight
- 9" Rubber Track
- ROPS / TOPS / FOPS Four Post Canopy
- Suspension Seat with Fore and Aft Adjustments
- Auxiliary Hydraulics Controlled with Foot Pedal
- 2" Retractable Seat Belt
- 3" Non-retractable Seat Belt (optional)
- Variable Displacement Piston Pumps
- Cushioned Boom and Swing Cylinders
- Pattern Change Valve (ISO or SAE)
- Pilot Operated Joystick Controls
- Hydraulic Oil Cooler
- Steel Hydraulic Tank with Fluid Level Sight Gauge
- Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation
- Top Mount Boom Cylinder
- Hydraulic Hoses Protected Inside of Boom and Arm
- Long Arm with Integrated Thumb Mount
- Dual Pin Position Bucket (optional)
- Mechanical Bucket Quick Coupler (optional)
- Main Pin Hydraulic Thumb (optional)
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: TAKEUCHI
- Model: TB216H
- Condition: New
- ROPS Type: Open
- Operating Performance Operating Weight: 4,277 lb (1,940 kg)
- Operating Performance Max. Bucket Breakout Force: 4,250 lb (1,928 kg)
- Operating Performance Max. Arm Digging Force: 1,843 lb (836 kg)
- Operating Performance Arm Length: 3 ft 8.5 in (1,130 mm)
- Operating Performance Slew Speed: 9.2 rpm
- Operating Performance Traction Force: 4,361 lb (1,978 kg)
- Operating Performance Ground Pressure: 4.3 psi
- Operating Performance Travel Speed Low: 1.4 mph (2.2 km / hr)
- Operating Performance Travel Speed High: 2.6 mph (4.2 km / hr)
- Hydraulic System Total Hydraulic Flow: 13.4 gpm (50.9 L / min)
- Hydraulic System Auxiliary Hydraulic Flow: 8.9 gpm (33.6 L / min)
- Hydraulic System Hydraulic System Pressure: 3,046 psi (21.0 Mpa)
- Engine / Electric Motor Model / Make: Yanmar / 3TNV74
- Engine / Electric Motor Displacement: 60.0 cu in (.99 L)
- Engine / Electric Motor Horsepower @ 2200 Rpm:
- Engine / Electric Motor Max. Torque @ 1900 Rpm:
- Engine / Electric Motor Max. Torque @ 1800 Rpm: 38.2 ft-lb (51.8 Nm)
- Engine / Electric Motor Output Diesel Engine: 14.9 hp 11.1 kW / 2,400 rpm
- Engine / Electric Motor Output Electric Motor: 14.2 hp 10.6 kW/2400 rpm
- Engine / Electric Motor Electrical Connection: 400 - 480 V/47 - 63 Hz / Fused w/ min. 32A
- Fluid Capacities Engine Lubrication: 4.5 qt (4.3 L)
- Fluid Capacities Cooling System: 4.0 qt (3.8 L)
- Fluid Capacities Fuel Tank Capacity: 5.8 gal (22.0 L)
- Fluid Capacities Fuel Consumption (65% Of Full Load):
- Fluid Capacities Hydraulic Reservoir Capacity: 4.2 gal (16.0 L)
- Fluid Capacities Hydraulic System Capacity: 6.5 gal (24.5 L)
- Machine Dimensions Maximum Reach: 13 ft 5.0 ft (4,090 mm)
- Machine Dimensions Maximum Reach At Ground Level: 13 ft 2.9in (4,035 mm)
- Machine Dimensions Maximum Digging Depth: 7 ft 10.0 in (2,390 mm)
- Machine Dimensions Maximum Vertical Digging Depth: 6 ft 9.1 in (2,060 mm)
- Machine Dimensions Maximum Dig Height: 12 ft 3.2 in (3,740 mm)
- Machine Dimensions Maximum Dumping Height: 8 ft 10.5 in (2,705 mm)
- Machine Dimensions Front Swing Radius: 4 ft 10.3 in (1,480 mm)
- Machine Dimensions Front Swing Radius With Boom Offset: 3 ft 9.4 in (1,155 mm)
- Machine Dimensions Tail Swing (Slew) Radius: 4 ft 4.6 in (1,335 mm)
- Machine Dimensions Transport Length: 13 ft 6.8 in (4,135 mm)
- Machine Dimensions Transport Height: 7 ft 4.8 in (2,255 mm)
- Machine Dimensions Ground Clearance: 8.1 in (205 mm)
- Machine Dimensions Undercarriage Length: 4 ft 11.9 in (1,520 mm)
- Machine Dimensions Track Width (Rubber): 9.0 in (230 mm)
- Machine Dimensions Undercarriage Width Track Retracted: 38.6 in (980 mm)
- Machine Dimensions Undercarriage Width Track Extended: 51.2 in (1,300 mm)
- Machine Dimensions Undercarriage Width:
