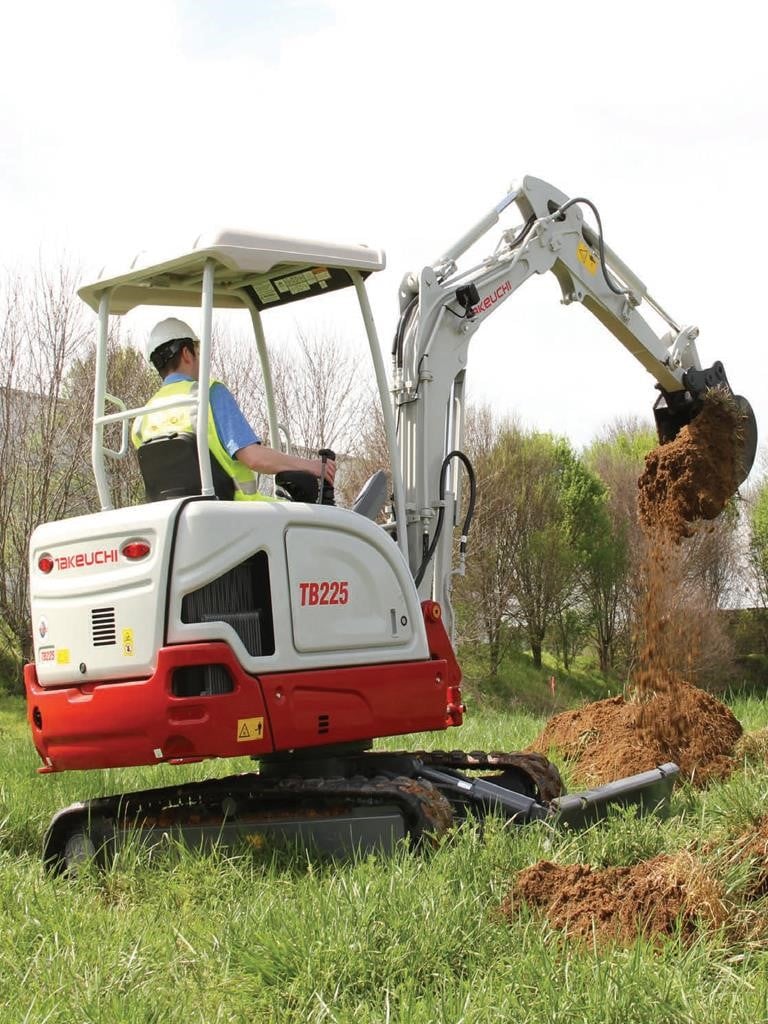

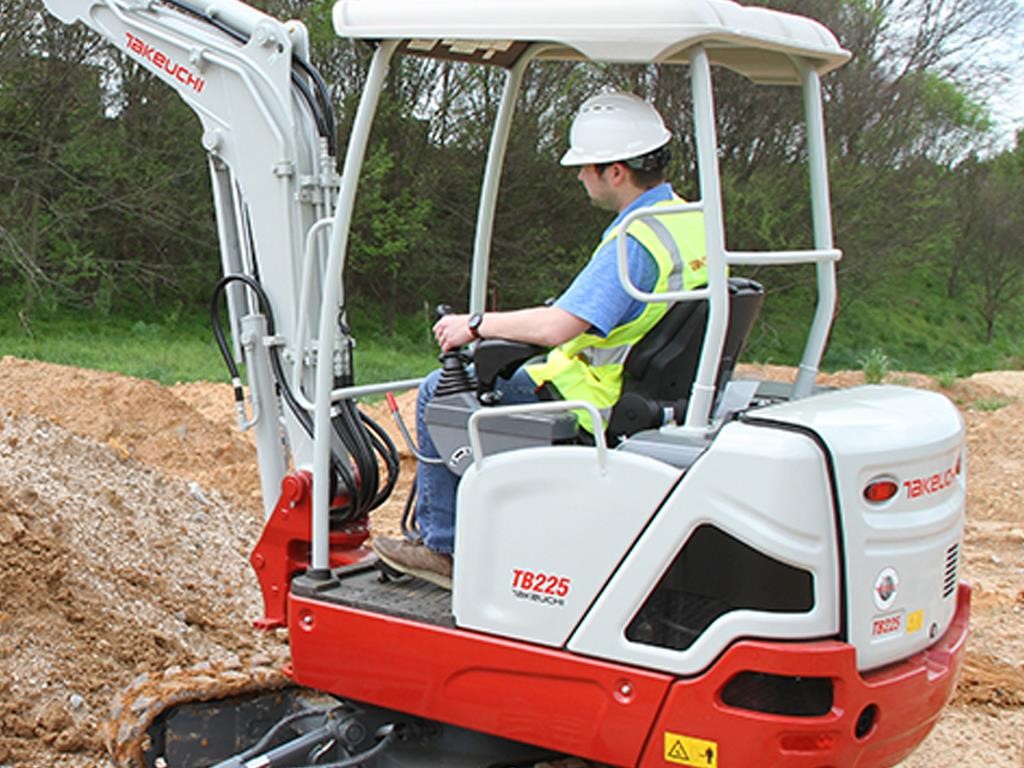

2026 TAKEUCHI TB225

Peace Of Mind

• The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.

Compact Design

• A retractable undercarriage and compact dimensions allow you to access job sites with limited access.

Ease Of Maintenance

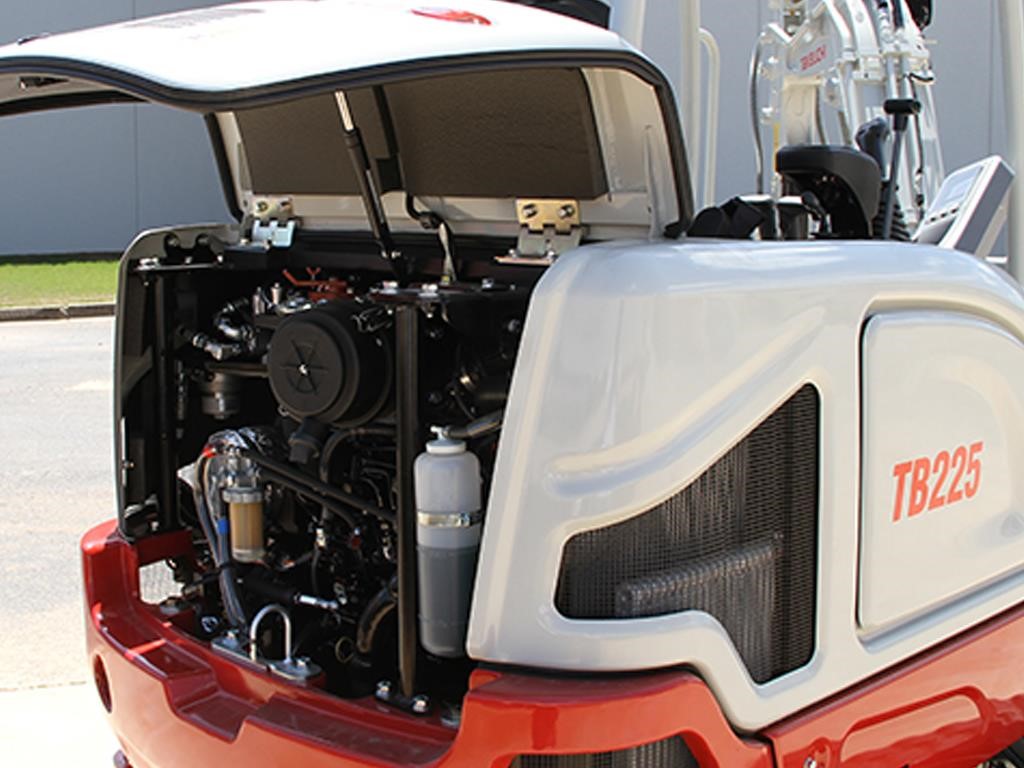

• The overhead opening engine hood and multiple access panels provide excellent access to daily maintenance and inspection points.

Function And Efficiency

• The lower horsepower rating of the TB225 does not require the use of a DOC/DPF exhaust aftertreatment system.
• The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.
• The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
• Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
• Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.

Takeuchi Fleet Management

• 2 Year Standard Service
• Minimize Downtime
• Remote Diagnostics
• Utilization Tracking
• Proactive Maintenance
• Control Costs
• Geofencing

Increased Protection

• All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.
• Heavy duty counterweight protects vital engine and hydraulic components from damage.
• Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.

Operator Focused

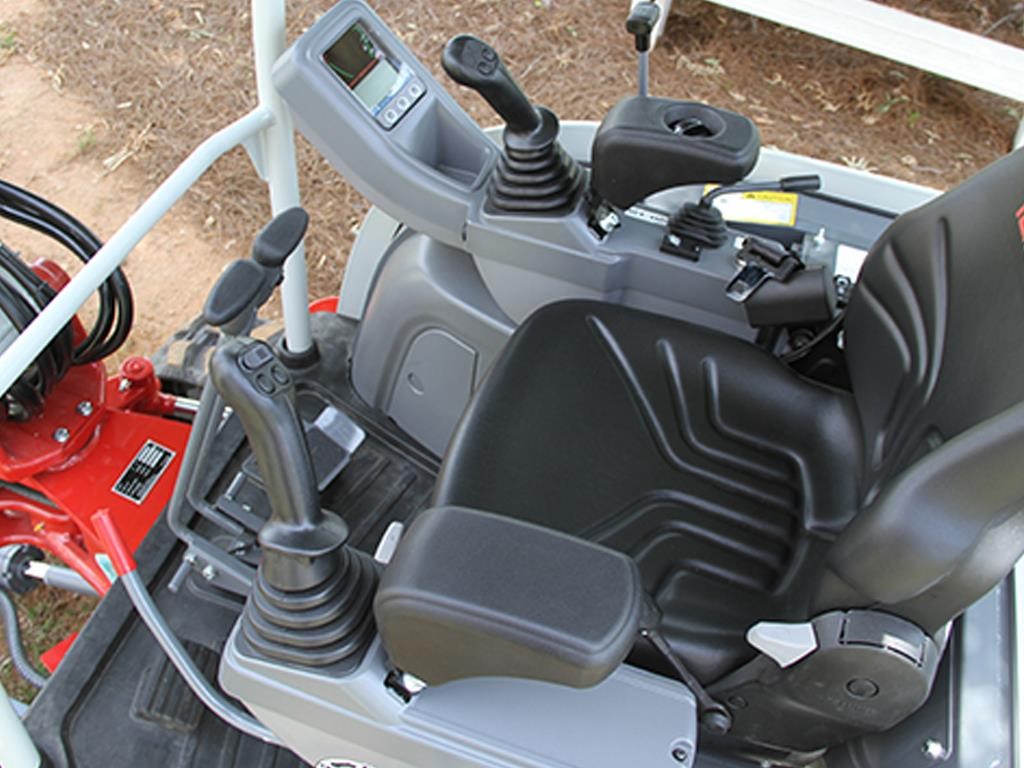

• Pilot controls are low effort and precise.
• Suspension seat reduces operator fatigue and features fore/aft, tilt, and weight adjustments.
• Multifunction, LED monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
• Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.

Engine

• Yanmar 3TNV80F
• U.S. EPA Tier 4 Final Diesel
• Automatic Fuel Priming System
• Automatic Engine Idle Feature
• Automatic Cold Start Device
• Engine Safe Start System
• Dual Element Air Cleaner
• 12 Volts System with 40 amp Alternator

Undercarriage And Frame

• Hydraulically Retractable Track Frame
• Two Speed Axial Piston Travel Motors with Counterbalance Valves
• Integrated Load Sensing, Automatic Downshift
• Triple Flange Track Rollers

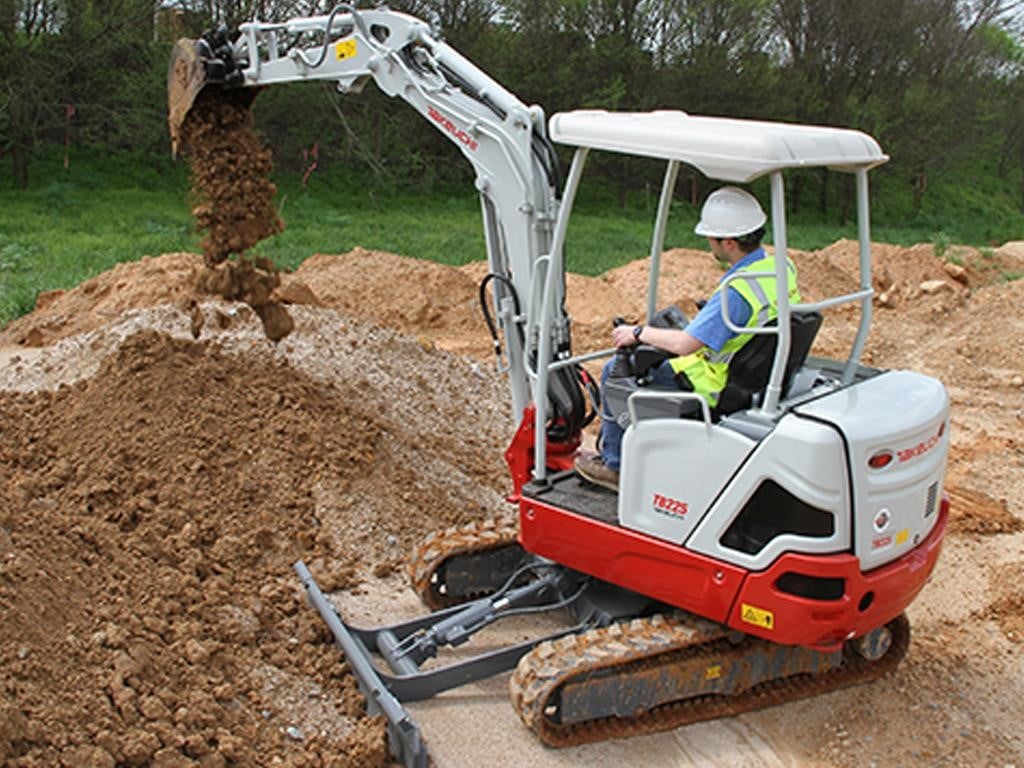

• Backfill Blade with Pin-on Extensions
• Wrap Around Counterweight
• 9.8" Rubber Track

Operator's Station

• ROPS / TOPS / OPG Level 1 Four Post Canopy
• Multifunction LCD Display
• Preheat and High Speed Travel Indicators, Coolant Temperature and Fuel Gauges
• Function Keys on Monitor for Hour/Trip Meter, Time/Alarm, and Contrast
• Foot Controlled Auxiliary Hydraulics and Boom Swing
• Hour Meter
• 2" Retractable Seat Belt

Hydraulic & Working Equipment

• Variable Displacement, Open Center Hydraulics
• Hydraulic Pilot Controls
• Pilot Control Pattern Change Valve (ISO or SAE)
• Auxiliary Hydraulics Plumbed to Arm
• Pilot Pressure Accumulator Valve
• LED Work Lights
• Long Arm with Integrated Thumb Mount
• Auxiliary Flow Adjustable from Monitor
• Multiple Attachment Presets
• Primary Auxiliary Circuit Flow Selector Valve
• Dual Pin Position Bucket (optional)
• Mechanical Bucket Quick Coupler (optional)
• Main Pin Hydraulic Thumb (optional)
• Serviceability
• Overhead Opening Rear Engine Access
• Right Side Service Access
• Easy Access Battery
• Steel Hydraulic Tank with Oil Level Sight Gauge
• Coolant Reserve Tank
• Easy Access Filters
• Access to Pump Group
• Lockable Service Access and Fuel Fill
• Similar models may be shown in addition to the featured model. Equipment may be shown with options.

General

• Year: 2026
• Manufacturer: TAKEUCHI
• Model: TB225
• Condition: New

Engine

• Horsepower: 19.6
• Engine Make: YANMAR
• Engine Model: 3TNV80F

Attachments

• Thumb Type: Hydraulic

Chassis

• Drive: Track
• Ground Pressure: 4.2
• Track Type: Rubber
• Number of Forward Speeds: 2

Dimensions

• Operating Weight: 5291.094288
• Shipping Weight: 5291.094288

Exterior

• ROPS Type: Open
• Hydraulic Auxiliary: 1
• Exterior Light Type: LED

Other

• HorsepowerUnit: horsepower
• OperatingweightUnit: pound
• Basedrivespeed: 2.6
• BasedrivespeedUnit: miles/hour
• Digdepth: 101.5
• DigdepthUnit: inch
• Dumpheightmax: 113.2
• DumpheightmaxUnit: inch
• Fuelcapacity: 8.1
• FuelcapacityUnit: gallon
• GroundpressureUnit: pound/square inch
• Shippingheight: 95.66929
• ShippingheightUnit: inch
• Shippinglength: 164.56693
• ShippinglengthUnit: inch
• ShippingweightUnit: pound
• Shippingwidth: 43.30709
• ShippingwidthUnit: inch
• Trackshoewidth: 9.8
• TrackshoewidthUnit: inch
• Maxreach: 172.2
• MaxreachUnit: inch
• Cuttingheight: 159.8
• CuttingheightUnit: inch
• Armlength: 49
• ArmlengthUnit: inch
• Operating Performance Operating Weight: 4,993 lb (2,265 kg)
• Operating Performance Max. Bucket Breakout Force: 4,339 lb (1,968 kg)
• Operating Performance Max. Arm Digging Force: 2,877 lb (1,305 kg)
• Operating Performance Arm Length: 4’ 1.0” (1,245 mm)
• Operating Performance Slew Speed: 8.9 min-1
• Operating Performance Traction Force: 6,003 lb (2,723 kg)
• Operating Performance Ground Pressure: 4.2 psi (29 kPa)
• Operating Performance Travel Speed Low: 1.6 mph (2.5 km/h)
• Operating Performance Travel Speed High: 2.6 mph (4.2 km/h)
• Hydraulic System Total Hydraulic Flow: 16.6 gpm (62.8 Lpm)
• Hydraulic System Auxiliary Hydraulic Flow: 9.96 gpm (37.7 Lpm)
• Hydraulic System Hydraulic System Pressure: 3,045 psi (21.0 MPa)
• Engine Model / Make: Yanmar / 3TNV80F
• Engine Displacement: 77.3 cu in (1,267 cc)
• Engine Horsepower @ 2400 Rpm: 19.6 hp (14.6 kW)
• Engine Max. Torque @ 1900 Rpm:
• Engine Max. Torque @ 1800 Rpm: 49.7 ft-lb (67.4 Nm)
• Engine Output Diesel Engine:
• Engine Alternator:
• Engine Battery (IEC 60095 1):
• Electric Motor Output Electric Motor:
• Electric Motor Electrical Connection:
• Fluid Capacities Engine Lubrication: 3.6 qt (3.4 L)
• Fluid Capacities Cooling System: 4.2 qt (4.0 L)
• Fluid Capacities Fuel Tank Capacity: 8.1 gal (30.5 L)
• Fluid Capacities Fuel Consumption (65% Of Full Load): .80 gal/hr (3.03 Lph)
• Fluid Capacities Hydraulic Reservoir Capacity: 6.87 gal (26.0 L)
• Fluid Capacities Hydraulic System Capacity: 11.9 gal (45.0 L)
• Machine Dimensions Maximum Reach: 14’ 4.2” (4,375 mm)
• Machine Dimensions Maximum Reach At Ground Level: 13’ 11.3” (4,250 mm)
• Machine Dimensions Maximum Digging Depth: 8’ 5.5” (2,580 mm)
• Machine Dimensions Maximum Vertical Digging Depth: 6’ 10.7” (2,100 mm)
• Machine Dimensions Maximum Height Of Cutting Edge: 13’ 3.8” (4,060 mm)
• Machine Dimensions Maximum Dumping Height: 9’ 5.2” (2,875 mm)
• Machine Dimensions Front Swing Radius: 6’ 0.0” (1,830 mm)
• Machine Dimensions Front Swing Radius With Boom Offset: 4’ 10.4” (1,485 mm)
• Machine Dimensions Slew Radius: 4’ 0.8” (1,240 mm)
• Machine Dimensions Overall Length: 13’ 8.5” (4,180 mm)
• Machine Dimensions Overall Height : 7’ 8.8” (2,355 mm)
• Machine Dimensions Upper Structure Overall Width : 3’ 7.3” (1,100 mm)
• Machine Dimensions Ground Clearance: 7.5” (190 mm)
• Machine Dimensions Track Ground Contact Length: 4’ 7.7” (1,415 mm)
• Machine Dimensions Crawler Overall Length: 5’ 10.4” (1,790 mm)
• Machine Dimensions Crawler Retracted: 3’ 7.3” (1,100 mm)
• Machine Dimensions Crawler Overall Width: 4’ 11.0” (1,500 mm)
• Machine Dimensions Crawler Shoe Width: 9.8” (250 mm)
