2026 TAKEUCHI TB280FR
additional information

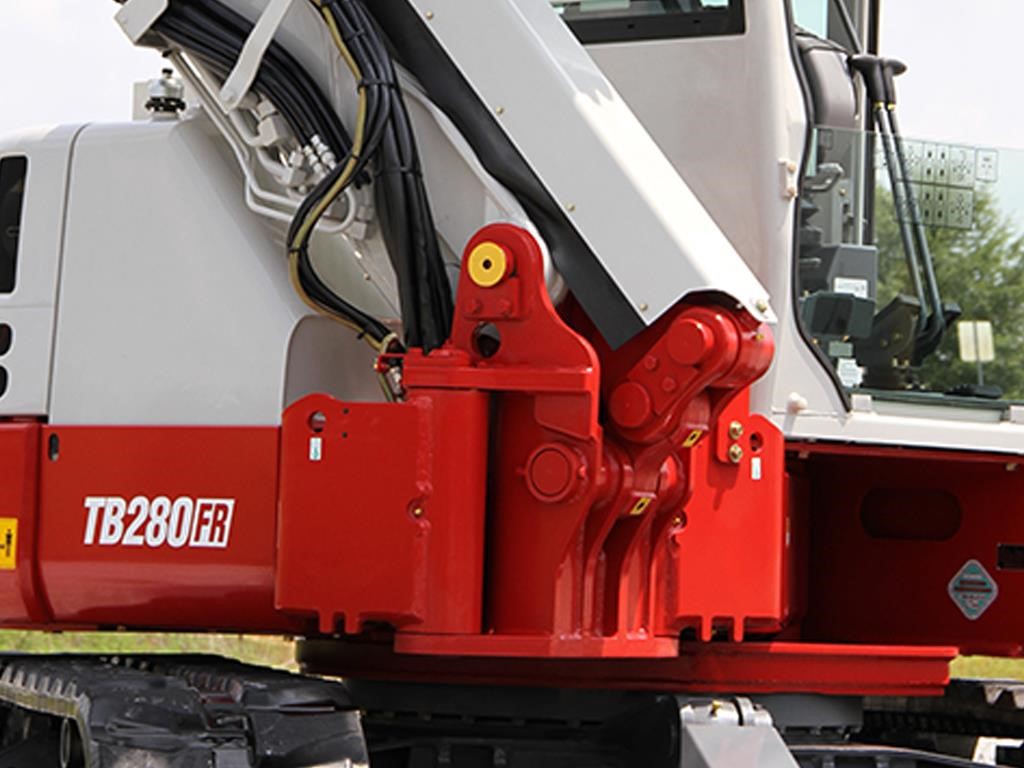

- Unique STS boom and short tail swing design combine to make the FR series excavators an outstanding platform for work in urban areas, road and bridge construction, and other applications with limited space.

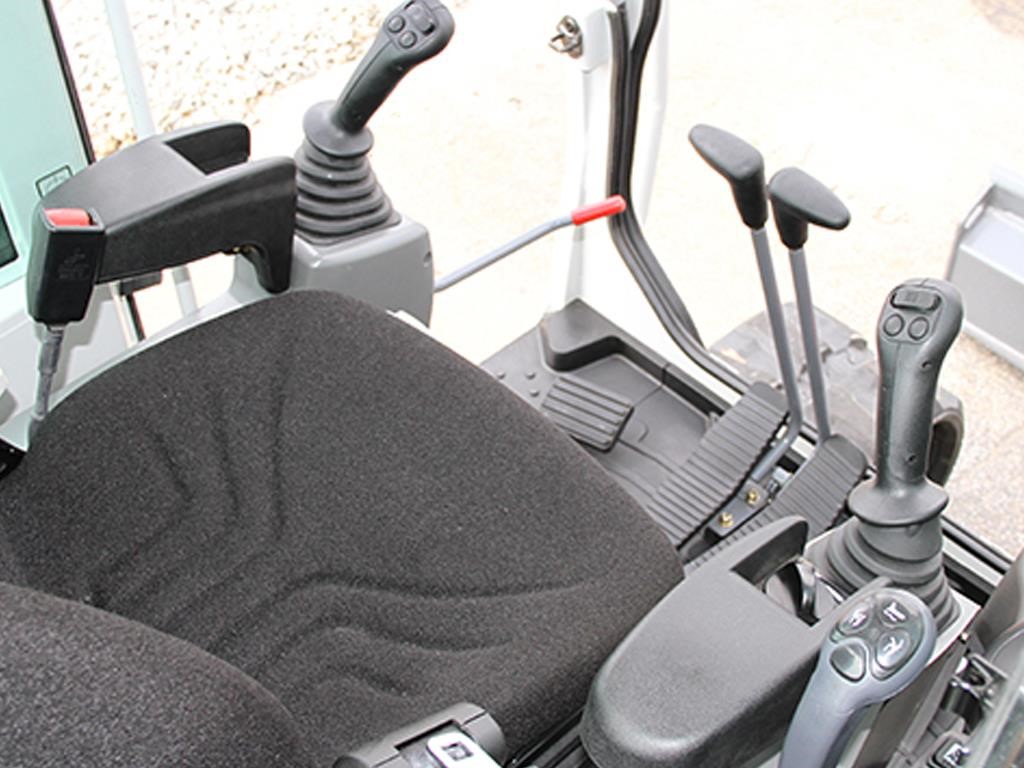

- Deluxe high back adjustable suspension seat reduces operator fatigue while providing greater visibility to the work equipment and surrounding job site.
- 5.7″ Multifunction, LED color monitor provides the operator with machine vitals, flow adjustments, and attachment presets.
- Electronic dial type throttle control allows the operator to quickly adjust engine speed, and the automatic engine idle feature will reduce engine speed to low idle automatically should the machine idle more than several seconds.
- The variable displacement axial piston pump delivers smooth, harmonized control of the work equipment with no reduction in speed.

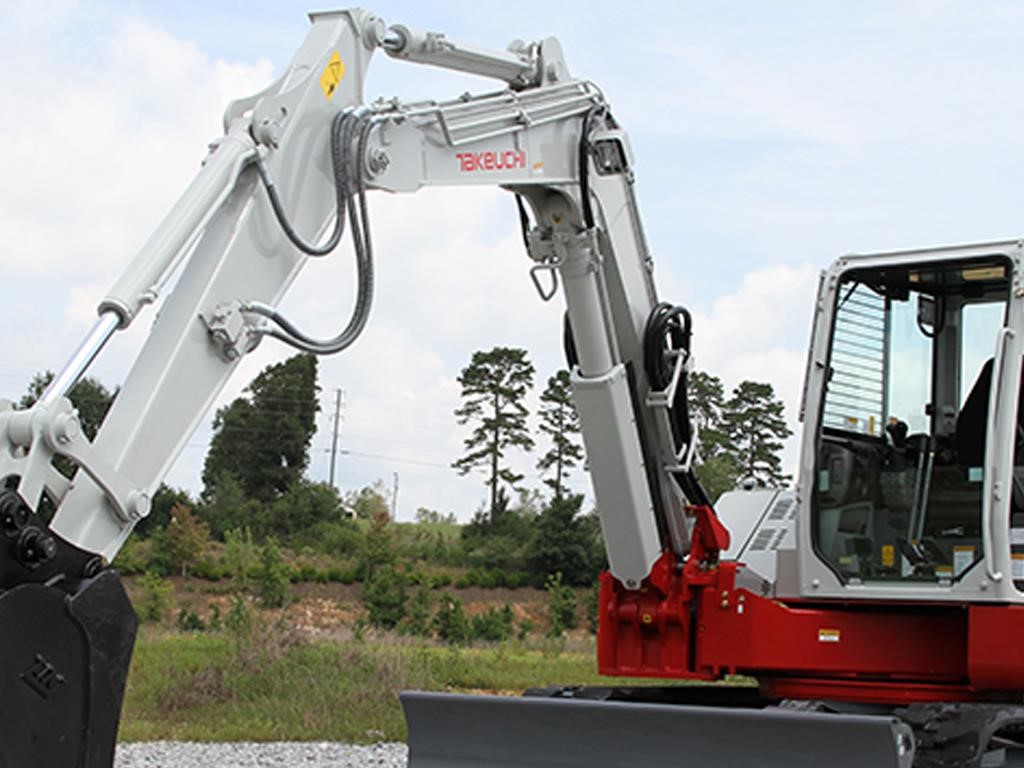

- The standard long arm provides you with a wider working range and dig depth.
- Having three auxiliary circuits allows you to run a wide range of hydraulically driven attachments and have a dedicated hydraulic coupler circuit.
- High flow capabilities of the primary auxiliary circuit will allow you to operate a broader range of hydraulically driven attachments, such as mowers, mulchers, and plate compactors.
- Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed travel automatically when turning, pushing dirt, or traveling up an incline.
- Large slew bearing provides greater longevity and stability over the life of the machine.
- Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.
- Available case drain line kit is recommended for use with an excavator mulcher.
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Control Costs
- Geofencing
- All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.

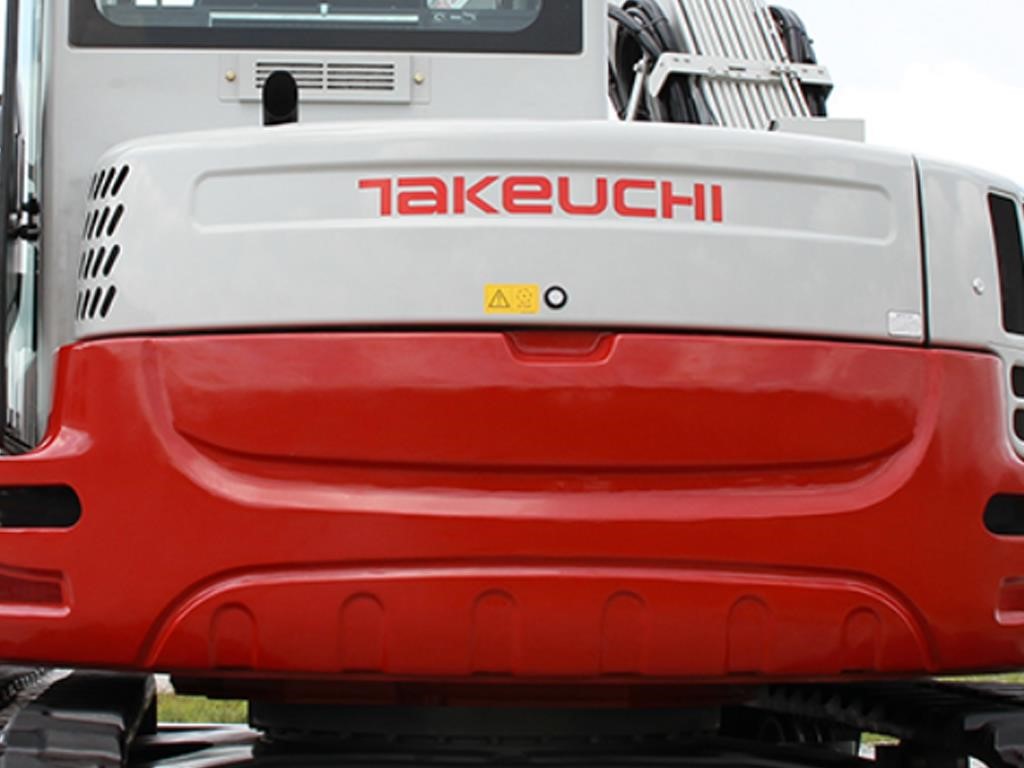

- Heavy duty counterweight protects vital engine and hydraulic components from damage.
- Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.
- Rear hood opens high overhead, and the right-side cover swings open providing exceptional access to inspection and maintenance points.

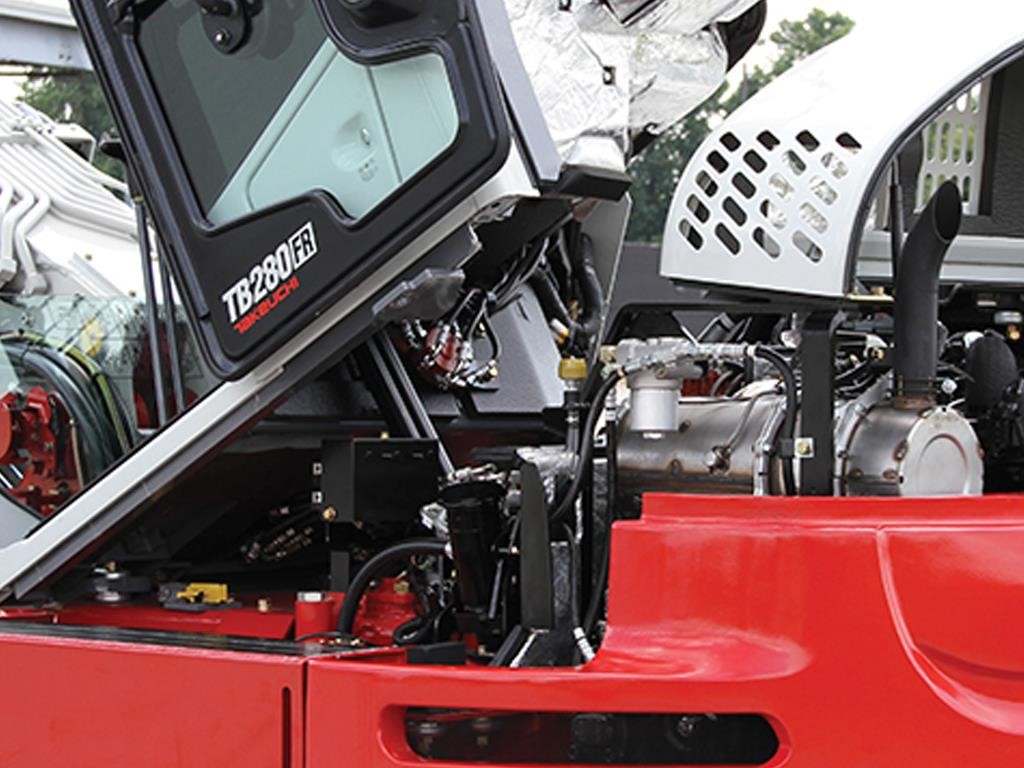

- Tilting the cabin forward will enable you to access the control valve, slew motor, and engine.
- The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
- The boom holding valve and overload alarm are designed to keep the boom from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity.
- Available drop-in 1/2″ poly carbonate glass or heavy duty 1/2″ poly carbonate window guard with steel frame, and steel front guard group provide the added protection you need when using hydraulically driven attachments.
- EPA Final Tier 4 Emission Compliant
- Turbocharged
- DOC+DPF Exhaust After Treatment
- High Pressure Common Rail Fuel Injection
- Automatic Fuel Bleed System
- Dual Element Air Filter
- Automatic Idle
- Working Modes: Power and High Altitude
- Engine Preheat Starting Aid
- High Capacity Radiator and Hydraulic Oil Cooler
- High Capacity Fuel Filters
- 5.7" Color Multi-Informational Display
- Sealed Rocker Switches
- 12 volt System with 80 amp Alternator
- Halogen Work Lights: Boom and Cab
- Travel Alarm
- Horn
- Triple Flanged Track Rollers
- Automatic Load Sensing 2 Speed Travel
- High Torque Planetary Final Drive
- Auto Track Tensioning
- Heavy Duty Dozer Blade with Float
- Large Wraparound Counterweight
- 17.7" Rubber Tracks
- 17.7" Steel Tracks (optional)
- 17.7" Segmented Rubber Tracks (optional)
- Cab with Air Conditioner, Heat Defrost, Windshield Wiper and Washer, Skylight with Sunshade, AM / FM / MP3 Radio, 12v Power Outlet
- ROPS and OPG Level 1
- Deluxe High Back Suspension Seat
- Adjustable Arm Rests
- 2" Retractable Seat Belt
- 3" Retractable Seat Belt (optional)
- Variable Displacement, Open Center Hydraulics
- Cushioned Boom, Arm, and Swing Cylinders
- Hydraulic Pilot Controls
- Proportional Auxiliary Controls with Detent
- Adjustable Auxiliary Flow
- Large Hydraulic Reservoir with Fluid Level Sight Gauge
- Primary and Secondary Auxiliary Hydraulic Circuit Plumbed to Arm
- Multiple Attachment Presets
- Flow Selector Valve, Primary Auxiliary Circuit
- Pilot Accumulator
- Pattern Change Valve (ISO or SAE)
- Main Boom Cylinder Guard
- Boom Holding Valve with Lift Overload Alarm
- Long Arm
- Full Rotation Capability and Patented STS Boom
- Dual Pin Position Bucket (optional)
- Mechanical Bucket Quick Coupler (optional)
- Main Pin Hydraulic Thumb (optional)
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: TAKEUCHI
- Model: TB280FR
- Condition: New
- Operating Performance Operating Weight Canopy:
- Operating Performance Operating Weight Cab :
- Operating Performance Operating Weight Cab (Rubber): 18,810 lb (8,530 kg)
- Operating Performance Operating Weight Cab (Steel): 19,240 lb (8,730 kg)
- Operating Performance Maximum Bucket Breakout Force: 16,335 lb (7,409 kg)
- Operating Performance Maximum Arm Digging Force: 7,037 lb (3,192 kg)
- Operating Performance Arm Length: 6 ft 7.0 in (2,000 mm)
- Operating Performance Slew Speed: 10.0 rpm
- Operating Performance Traction Force: 19,783 lb (8,973 kg)
- Operating Performance Ground Pressure Cab (Rubber): 5.5 psi (38.1 kPa)
- Operating Performance Ground Pressure Cab (Steel): 5.7 psi (39.5 kPa)
- Operating Performance Travel Speed Low Range: 1.7 mph (2.7 km / hr)
- Operating Performance Travel Speed High Range: 3.2 mph (5.2 km / hr)
- Hydraulic System Total Hydraulic Flow: 52.5 gpm (198.0 L / min)
- Hydraulic System Auxiliary Flow Primary Circuit: 39.0 gpm (148.0 L / min)
- Hydraulic System Auxiliary Flow Secondary Circuit: 15.0 gpm (58.0 L / min)
- Hydraulic System Hydraulic System Pressure: 3,990 psi (27.5 MPa)
- Engine Make / Model: Yanmar / 4TNV98CT
- Engine Displacement: 202 cu in (3.3 L)
- Engine Horsepower @ 2,400 Rpm:
- Engine Horsepower @ 2,000 Rpm: 69.2 hp (51.6 kW )
- Engine Maximum Torque @ 1,600 Rpm:
- Engine Maximum Torque @ 1,560 Rpm:
- Engine Maximum Torque @ 1,300 Rpm: 22.7.2 ft-lb (308 Nm )
- Fluid Capacities Engine Lubrication: 9.9 qt (9.4 L)
- Fluid Capacities Cooling System: 14.8 qt (14.0 L)
- Fluid Capacities Fuel Tank Capacity: 26.3 gal (100.0 L)
- Fluid Capacities Fuel Consumption (65% Of Full Load): 2.5 gal / hr (9.1 L / hr)
- Fluid Capacities Hydraulic Reservoir Capacity: 18.7 gal (71.0 L)
- Fluid Capacities Hydraulic System Capacity: 38.8 gal (147.0 L)
- Machine Dimensions Maximum Reach: 23 ft 7.2 in (7,195 mm)
- Machine Dimensions Maximum Reach At Ground Level: 23 ft 1.4 in (7,045 mm)
- Machine Dimensions Maximum Digging Depth: 14 ft 11.0 in (4,540 mm)
- Machine Dimensions Maximum Vertical Digging Depth: 11 ft 5.5 in (3,495 mm)
- Machine Dimensions Maximum Dig Height: 21 ft 2.0 in (6,465 mm)
- Machine Dimensions Maximum Dumping Height: 14 ft 8.4 in (4,480 mm)
- Machine Dimensions Front Swing Radius: 9 ft 5.4 in (2,880 mm)
- Machine Dimensions Front Swing Radius With Boom Offset: 5 ft 3.5 in (1,610 mm)
- Machine Dimensions Tail Swing (Slew) Radius: 4 ft 2.4 in (1,280 mm)
- Machine Dimensions Slew Radius:
- Machine Dimensions Transport Length: 20 ft 7.4 in (6,285 mm)
- Machine Dimensions Transport Height: 8 ft 11.4 in (2,725 mm)
- Machine Dimensions Ground Clearance: 12.3 in (315 mm)
- Machine Dimensions Undercarriage Length: 9 ft 4.0 in (2,855 mm)
- Machine Dimensions Track Overall Length:
- Machine Dimensions Track Width (Rubber): 17.7 in (450 mm)
- Machine Dimensions Track Overall Width:
- Machine Dimensions Undercarriage Width: 7 ft 7.0 in (2,300 mm)
