2026 TAKEUCHI TB370

Call for price

TAKEUCHI – TB370 − COMPACT EXCAVATOR

The TB370 is the first model of Takeuchi’s new generation line-up, which has been upgraded with state-of-the-art technology and a completely redesigned automotive styled interior with intuitive user operation. Features on the TB370 include 8” color touch screen, jog dial control, wraparound counterweight, multiple hydraulic lines, and large service hoods for easy maintenance. The TB370 offers a superior working range and excellent power that provides all-day productivity and performance.

Request a Quote

additional information

The closed center, load sensing hydraulic system with variable displacement piston pump delivers smooth harmonized control of the work equipment with no reduction in speed.
The standard long arm with integrated thumb mount provides you with a wider working range, dig depth, and simplifies thumb installation.
Having three auxiliary circuits allows you to run a wide range of hydraulically driven attachments and have a dedicated hydraulic coupler circuit.
High flow capabilities of the primary auxiliary circuit will allow you to operate a broader range of hydraulically driven attachments, such as mowers. mulchers, and plate compactors.
Load sensing, two speed travel down shifts from low torque/high speed mode to high torque/low speed mode automatically when turning. pushing dirt or traveling up an incline.
Large slew bearing provides greater longevity and stability over the life of the machine.
Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort,

All steel construction ensures body integrity through greater strength and rigidity and protects key components from damage.

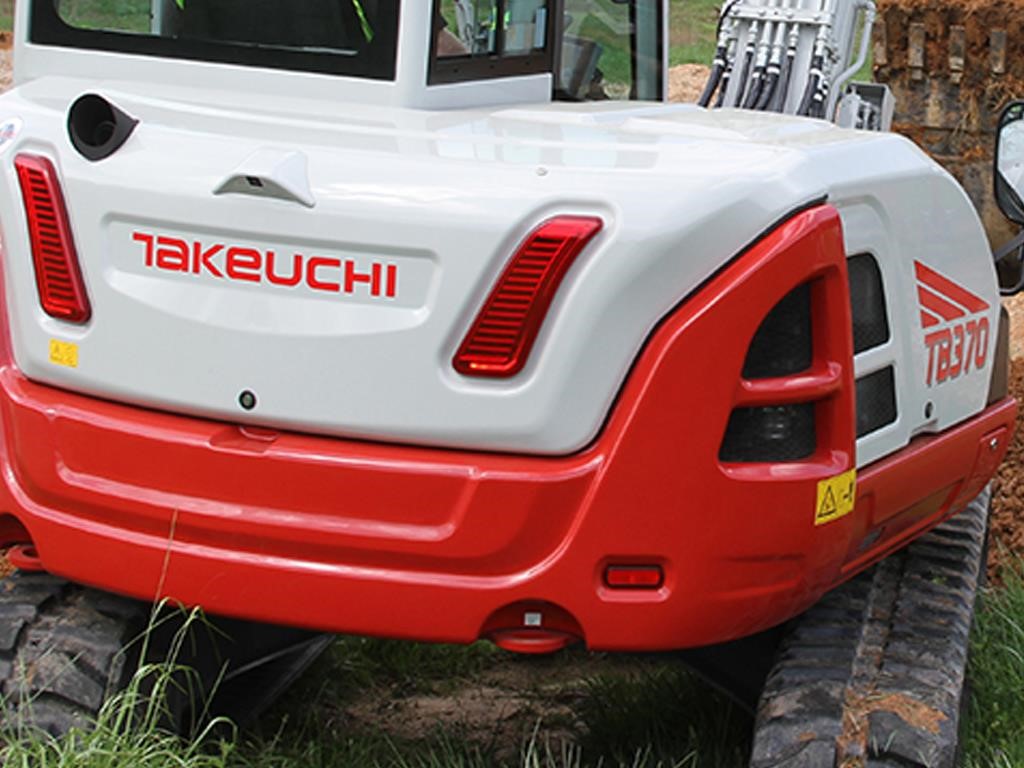

Heavy duty counterweight protects vital engine and hydraulic components from damage.
Triple flange track rollers improve track life by providing greater support, and they feature multiple contact points that reduce the risk of de-tracking.

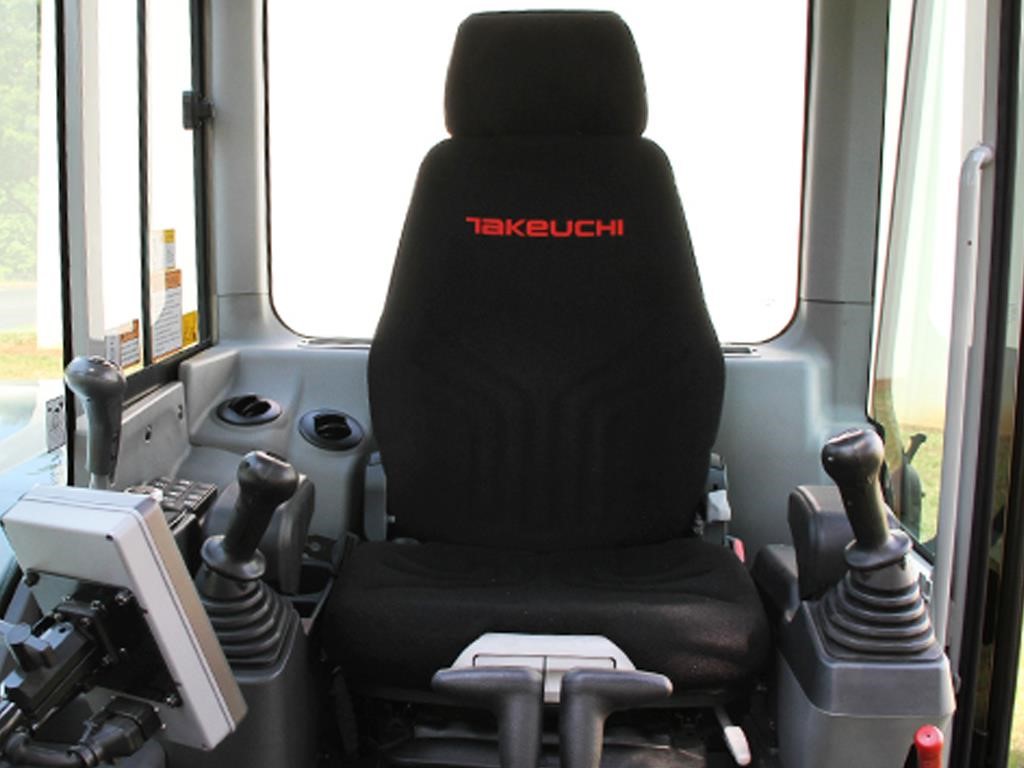

Deluxe high back adjustable suspension seat reduces operator fatigue while providing greater visibility to the work equipment and surrounding job site.
The large 8" touchscreen multifunction color monitor places a wide range of functions at your finger tips that include HVAC. radio, attachment presets, flow and pressure settings, and rear view camera monitoring.
The jog dial allows the operator to easily control throttle position and multiple machine functions.

The safe start system requires the safety lockout lever be in the raised position in order to start the excavator ensuring hydraulic functions are inactive at start-up.
Using the rear view camera, you are able to see hazards around the rear of the machine via the multifunction monitor.
The boom holding valve and overload alarm are designed to keep the boom from dropping if there is a sudden loss in pressure, and the overload alarm will sound (when ON) if you exceed hydraulic capacity.
Available drop-in 1/2" poly carbonate glass or heavy duty 1/2" poly carbonate window guard with steel frame, and steel front guard group provide the added protection you need when using hydraulically driven attachments.

Greater horsepower, powerful hydraulics, and larger footprints make these mid-size excavators more capable and better suited for applications requiring greater production and efficiency.

Rear hood and right side cover open high overhead providing exceptional access to inspection and maintenance points.

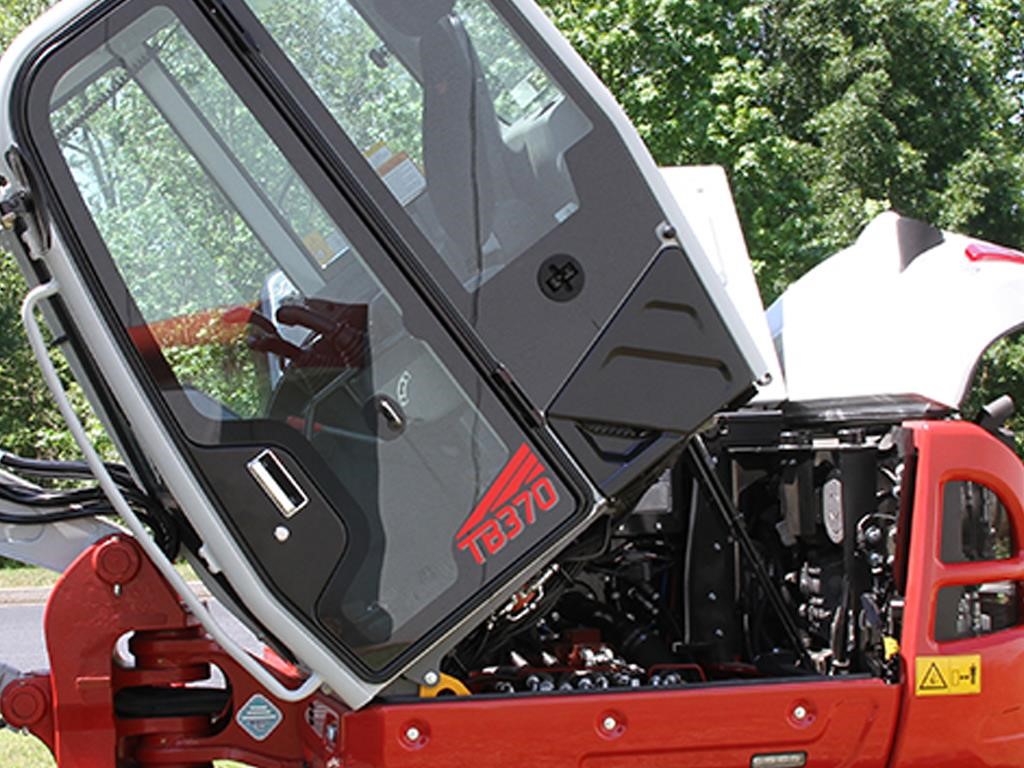

Tilting the cabin forward will enable you to access the control valve, slew motor, and engine.

2 Year Standard Service
Minimize Downtime
Remote Diagnostics
Utilization Tracking
Proactive Maintenance
Control Costs
Geofencing

EPA Tier 4 Final
Turbocharged
DOC+DPF Exhaust After Treatment
Automatic Fuel Priming System
Dual Element Air Cleaner
Working Modes: Standard and ECO
Automatic Cold Start Device
High Capacity Radiator and Hydraulic Oil Cooler
Engine Safe Start System
90 Amp Alternator

Triple Flanged Track Rollers
2-Speed Axial Piston Travel Motors with Counterbalance Valves
Integrated Load Sensing Automatic Shift Down
Integrated Fail-Safe Mechanical Parking Brake
Automatic Slew Break with Shock-less Relief Valve
Concealed in Frame Travel Motor Hoses
High Torque Final Planetary Drives
Heavy Duty Backfill Blade with Float
Large Wrap-Around Counterweight
Power Angle Blade (Optional)
15.7" Rubber Tracks
15.7" Steel Tracks (Optional)
15.7" Segmented Rubber Tracks (Optional)

Cab with Automatic Climate Control System
Windshield Wiper and Washer
Skylight with Sunshade
AM/FM Radio with Bluetooth
8" Color Multifunction LCD Touchscreen Display
Jog Dial with Multifunction Panel
Multifunction Joystick Controls
Hand Dial Electronic Throttle Control
Rear View Camera
Pilot Control Safety Lockout System
ROPS/FOPS/OPG Level 1 Cab
Deluxe High Back Suspension Seat
Removable Washable Floor Mat
Cup Holder
Adjustable Arm Rests
12 Volt Power Socket
2' Retractable Seat Belt
3' Retractable Seat Belt (Optional)

Variable Displacement, Axial Piston Hydraulic Pump with Tandem Gear Pumps
Closed Center, Load Sensing Hydraulic System
Cushioned Boom and Swing Cylinders
Boom Holding Valve with Integrated Lift Overload Alarm
Hydraulic Pilot Controls
High Flow Primary Auxiliary Circuit Plumbed to Mid-Arm with Shutoff Valves
Secondary Auxiliary Hydraulic Circuit Plumbed to Mid-Arm with Shutoff Valves
Integrated Hydraulic Attachment Quick Connect System (Couple Optional)
Automatic One-Way Flow Valve for Primary Auxiliary Circuit
Automatic Auxiliary Circuit Pressure Release Feature
Pilot Pressure Accumulator Valve
Pilot Control Pattern Change Valve (ISO/SAE)
LED Work Lights
Main Boom Cylinder Guard
Long Arm with Integrated Thumb Mount
Dual Pin Position Bucket (optional)
Hydraulic Pin Grabber Coupler (optional)
Mechanical Bucket Quick Coupler (optional)
Main Pin Hydraulic Thumb (optional)
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
