2026 TAKEUCHI TB395W
additional information
- The 270-degree camera system provides operators with peace of mind with its unmatched field of view around the rear and sides of the machine.
- The LED head lighting package both front and rear enhance visibility in low light conditions.
- Auto cruise control is a valuable feature that allows operators to set and adjust travel speed, whether in low or high range, through the convenient rocker switch set button.
- Large lockable overhead doors provide convenient access to essential components for maintenance and repairs, ensuring that technicians can quickly and efficiently address any maintenance needs.

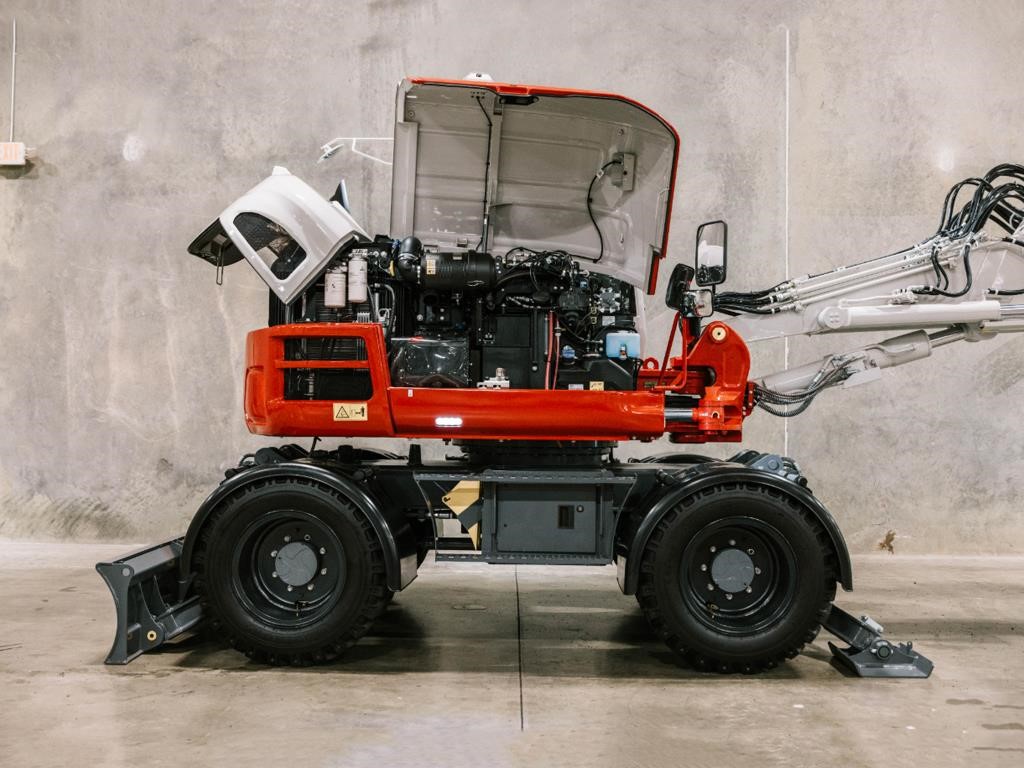

- Rear service access includes Pilot filter, DPF and SCR, hydraulic pumps, oil fill and filter, Dip Stick, Engine access, cooling package and fan.
- Right side service access includes fuel filter, dual element air cleaner, hydraulic tank, battery access, control valve, fuel tank and fuel fill, DEF tank and DEF fill, washer fluid, and pattern change valve.
- 2 Year Standard Service
- Minimize Downtime
- Remote Diagnostics
- Utilization Tracking
- Proactive Maintenance
- Personalized Fault Alerts
- Control Costs
- Geofencing
- The two-piece heavy-duty swing boom enhances the machine's versatility and productivity on the job site.
- The two-piece articulating boom extends the reach of the arm, enabling the operator to dig further away from the machine while also being able to dig closer to it when needed.
- The 2-wheel steer option provides excellent maneuverability for tight spaces, while the 4-wheel steer with crab steer feature allows for seamless movement and positioning in confined areas.
- Large jobsites can be easily navigated with the TB395W. With an impressive 1 8" of ground clearance and 100% locking differential this machine can handle rough and uneven surfaces with ease.

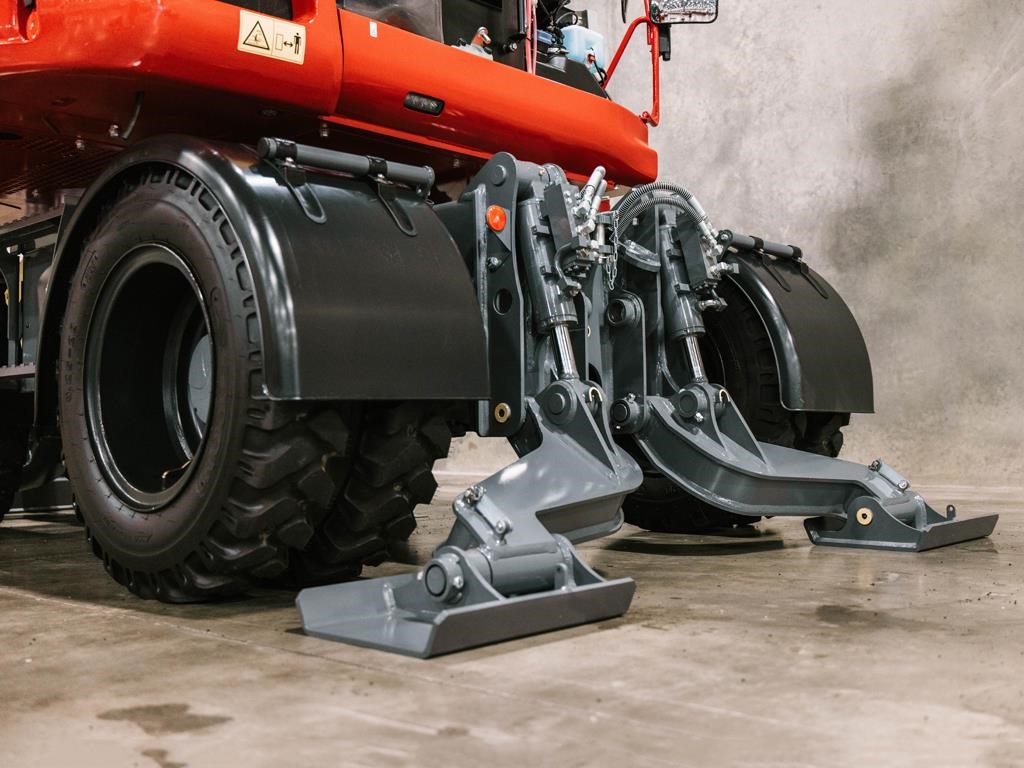

- Stability is greatly increased with the use of hydraulic outriggers and a dozer blade providing additional support and balance.
- The lockable digging brake and ram lock further contribute to improved stability by preventing unwanted movement and ensuring that the machine stays in place while digging.
- Wheel chocks are included to ensure that your machine stays in place while parked.

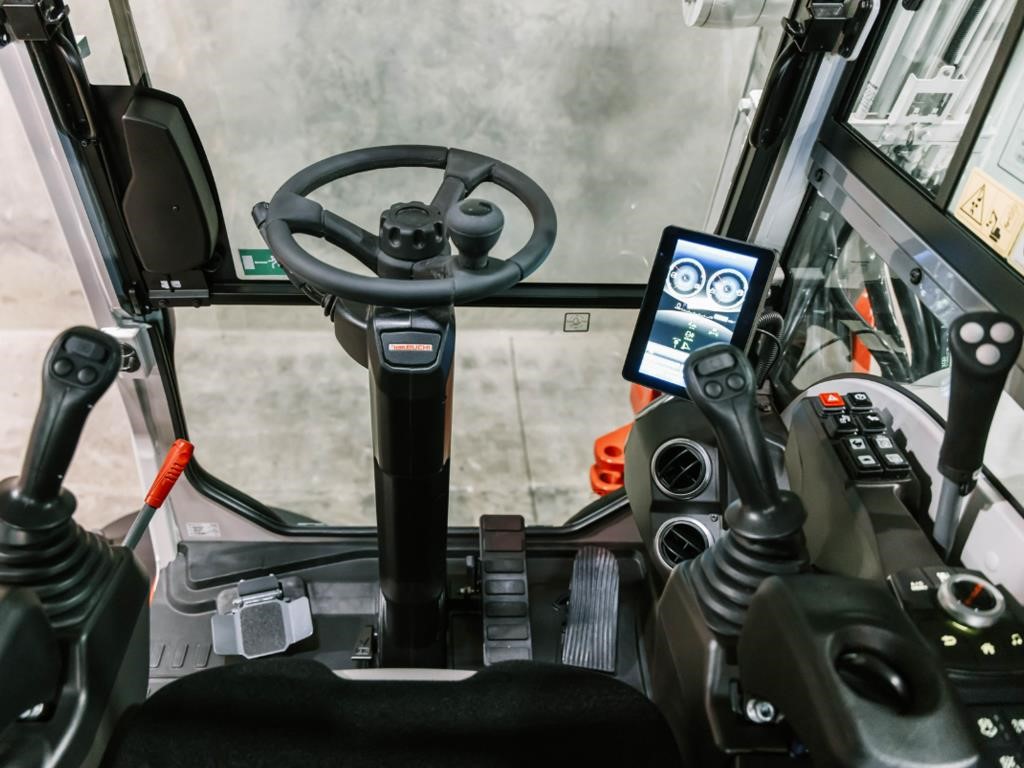

- The spacious floorboard controls include Swing Boom and Dual boom Control pedal, lockable digging break, foot throttle, and the 2 way adjustable steering column.
- It is equipped with a 6 way adjustable high back air ride suspension seat, ensuring maximum comfort and support for the operator during long hours of use.
- The 8" inch color touch screen display with Jog dial is a powerful tool that provides easy access to essential machine information and controls.
- EU Stage V / EPA Tier 4 Compliant
- DOC+DPF+SCR Exhaust After Treatment
- Automatic Fuel-Bleed System
- Double-Element Air Cleaner
- Automatic Deceleration
- Working Modes: Standard and ECO
- Engine Safety Start System on Left Console
- Engine Auto Stop
- Hydraulic Fan Drive for Radiator
- 2-Wheel Steering (2WS)
- 4-Wheel Steering (4WS): All-Wheel Steering and Crab Steering (optional)
- Auto Cruise Control
- Heavy-Duty Dozer Blade
- Hydraulic Outriggers
- Large Wraparound Counterweight
- Check Valve, Dozer Blade
- Front Axle Hub Brake
- Parking Brake
- Ram Lock
- 100%-Locking Differential
- Dual-Side Tool Box
- Mud Guards
- 8” Color Touchscreen Display
- Multi-Switch Control Panel & Jog Dial Control
- E/H Control for Dozer Blade, Boom Swing and Dual Boom Cylinder Adjustment
- LED Light Package; Right Cover, Boom, Front Cab, and Rear Cab
- LED Head Lights, Turn Signals and Tail Lamps
- LED Additonal Boom Light
- LED Arm Position Lamp
- Travel Alarm
- Rear-View Camera
- 270°-View Monitor
- ROPS/FOPS
- Air-Suspension Seat with Heat
- Tiltable Steering Wheel
- 2” Retractable Seat Belt
- Cab with Automatic Climate Control System, Windshield Wiper and Washer, Skylight w/ Sunshade, 24V Power Outlet and DAB Radio with Bluetooth
- Smartphone Holder with USB Port
- OPG Level II Front Guard (optional)
- Load-Sensing Hydraulic System
- Hydraulic Joystick Controls
- Proportional Control for Primary and Secondary Auxiliary Flow
- Detent for Primary Auxiliary Flow
- Third Auxiliary for Quick Hitch
- Auxiliary Hydraulic Circuit Plumbed to Arm
- Adjustable Auxiliary Flow for Service Port 1, 2,
- Auto Tank for Primary Auxiliary Flow
- Service Port Performance Package; Auto Pressure Release for SP1 & SP2, pressure Adjustment for SP1 & SP2, and High Pressure for SP1 (optional)
- 2-Piece Variable Angle Boom
- Cushioned Boom, Arm, and Swing Cyliders
- Boom Swing Stopper
- Boom-Holding Valve w/ Lift Alarm
- Arm-Holding Valve
- Two-Piece, Boom-Adjust Holding Valve
- Similar models may be shown in addition to the featured model. Equipment may be shown with options.
- Year: 2026
- Manufacturer: TAKEUCHI
- Model: TB395W
- Condition: New
- ROPS Type: Enclosed
- Operating Performance Operating Weight: 23,424 lb (10,625 kg)
- Operating Performance Bucket Capacity (Heaped): 1.5 cu yd (1.15 m3)
- Operating Performance Slew Speed: 9.7 rpm
- Operating Performance Low Speed 1: 3.5 mph (5.6 km/h)
- Operating Performance High Speed 1: 9.7 mph (15.6 km/h)
- Operating Performance Low Speed 2: 6.5 mph (10.5 km/h)
- Operating Performance High Speed 2: 18.1 mph (29.1 km/h)
- Operating Performance Gradeability: 30 deg
- Operating Performance Maximum Bucket Breakout Force: 13,241 lbf (6,006 kgf)
- Operating Performance Maximum Arm Digging Force: 8,925 lbf (4,048 kgf)
- Operating Performance Traction Force: 12,994 lbf (5,894 kgf)
- Operating Performance Boom Swing Angle (Left/Right): 68°/59°
- Hydraulic System Total Hydraulic Flow: 46.5 gpm (176 L/min)
- Hydraulic System Primary Auxiliary Flow: 31.7 gpm (120 L/min)
- Hydraulic System Secondary Auxiliary Flow: 14.5 gpm (55 L/min)
- Hydraulic System Third Auxiliary: 3,046 psi (21 MPa)
- Hydraulic System Hydraulic System Pressure: 3,988 psi (27.5 MPa)
- Hydraulic System Auxiliary 1 Pressure: 3,046 psi (21 MPa)
- Hydraulic System Auxiliary 2 Pressure: 3,046 psi (21 MPa)
- Engine Make / Model: DEUTZ/TCD3.6 L4
- Engine Rated Output (ISO 14396): 114 hp (85.0 kW / 2,200 min-1)
- Engine Maximum Torque: 339 ft lb (460.0 Nm / 1,600 min-1)
- Engine Displacement: 221 cu in (3,621 ml)
- Engine Alternator: 28 V - 2.24 kW
- Engine Battery (IEC 60095 1): 12 v 90 A • h X2
- Fluid Capacities Engine Lubrication: 10.6 qt (10 L)
- Fluid Capacities Cooling System: 25.4 qt (24 L)
- Fluid Capacities Fuel Tank Capacity: 42.8 gal (162 L)
- Fluid Capacities Hydraulic Reservoir Capacity: 24.2 gal (91.6 L)
- Fluid Capacities Hydraulic System Capacity: 54.1 gal (205 L)
- Fluid Capacities DEF Tank Capacity: 2.6 gal (10 L)
- Working Dimensions Maximum Reach: 25 ft 2.1 in (7,675 mm)
- Working Dimensions Maximum Reach At Ground Level: 24 ft 5.3 in (7,450 mm)
- Working Dimensions Maximum Digging Depth: 13 ft 5.2 in (4,095 mm)
- Working Dimensions Maximum Vertical Digging Depth: 11 ft 6.8 in (3,525 mm)
- Working Dimensions Reach At Maximum Digging Depth: 9 ft (2,745 mm)
- Working Dimensions Maximum Height At Cutting Edge: 27 ft 1.2 in (8,260 mm)
- Working Dimensions Maximum Dumping Height: 20 ft 5.7 in (6,240 mm)
- Working Dimensions Minimum Dumping Height: 8 ft 6.5 in (2,605 mm)
- Working Dimensions Reach At Maximum Height: 6 ft 11.9 in (2,130 mm)
- Working Dimensions Reach At Maximum Dumping Height: 7 ft 7.9 in (2,335 mm)
- Working Dimensions Dozer Blade Maximum Lifting Height: 15.7 in (400 mm)
- Working Dimensions Dozer Blade Maximum Lowering Depth: 5.9 in (150 mm)
- Working Dimensions Outrigger Maximum Lowering Depth: 5.9 in (150 mm)
- Machine Dimensions Overall Length: 22 ft 3.3 in (6,790 mm)
- Machine Dimensions Overall Width: 7 ft 7.3 in (2,320 mm)
- Machine Dimensions Overall Height: 9 ft 10.9 in (3,020 mm)
- Machine Dimensions Slew Radius: 5 ft 6.5 in (1,690 mm)
- Machine Dimensions Clearance Height Under Upper Structure: 3 ft 7.9 in (1,115 mm)
- Machine Dimensions Overall Width Of Upper Structure: 7 ft 5.4 in (2,270 mm)
- Machine Dimensions Overall Length Of Undercarriage: 13 ft 8 in (4,165 mm)
- Machine Dimensions Ground Clearance Of Undercarriage: 12.6 in (320 mm)
- Machine Dimensions Wheel Base: 7 ft 2.6 in (2,200 mm)
- Machine Dimensions Dozer Blade Width: 7ft 6.5 in (2,300 mm)
- Machine Dimensions Dozer Blade Height: 19.7 in (500 mm)
