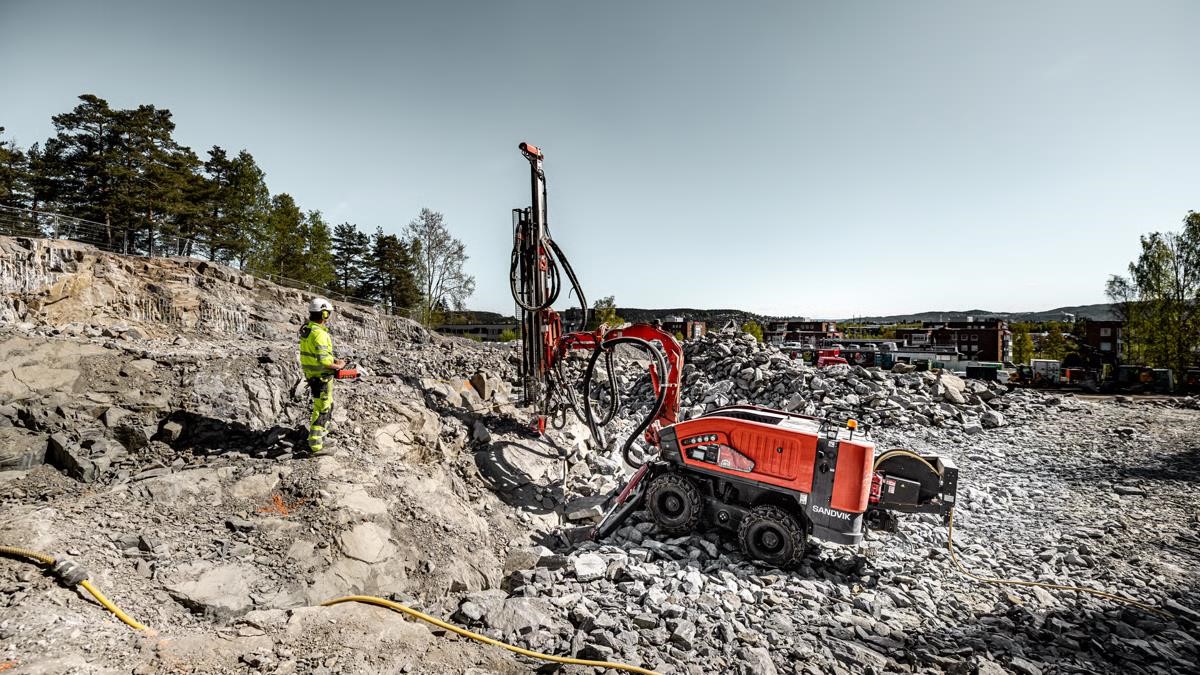

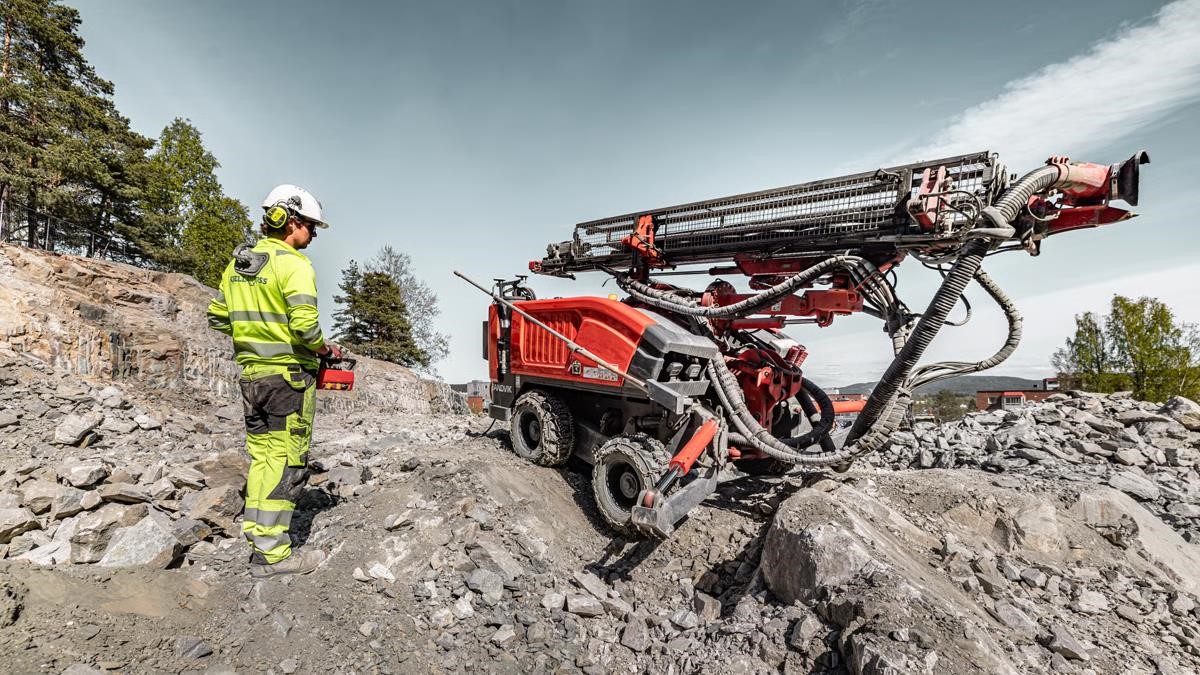

2026 SANDVIK COMMANDO DC310RIE
additional information
- Battery and cable power sources enable drilling without local exhaust emissions, supporting work in regulated urban environments and emission-restricted zones.
- The RD212 rock drill delivers efficient, consistent drilling results, backed by Sandvik's established top hammer expertise and an electric powertrain.
- Familiar controls and intuitive operation minimize retraining needs and support fast site readiness.
- Specifications and data shown are subject to change with or without prior notice.
- Year: 2026
- Manufacturer: SANDVIK
- Model: COMMANDO DC310RIE
- Condition: New
- TECHNICAL DATA Hole Diameter: 37.0 - 76.0 mm (1.5 - 3.0 in.)
- TECHNICAL DATA Rock Drill/DTH Hammer: 11 kW
- TECHNICAL DATA Flushing Air Capacity: 3 m³/min, up to 8 bar
- TECHNICAL DATA Drill Rod/tube Diameter: R28, R32 or T38 MF-rods
- TECHNICAL DATA Hydraulic Rock Drill: RD212 (11kW)
- TECHNICAL DATA Engine: 55 kW
- TECHNICAL DATA Cabin:
- TECHNICAL DATA Transport Length: 5.7 m (18.7 ft), with cable reel 6.3 m (20.7 ft)
- TECHNICAL DATA Transport Width: 2.35 m (7.70 ft)
- TECHNICAL DATA Transport Height: 2.85 m (9.40 ft)
- TECHNICAL DATA Weight: with battery drive, cable reel & cable 7,500 kg (16,500 lb)
- HYDRAULIC ROCK DRILL Rock Drill: RD212
- HYDRAULIC ROCK DRILL Rock Tools: R28, R32, T38
- HYDRAULIC ROCK DRILL Operating Pressure:
- HYDRAULIC ROCK DRILL Percussion Rate:
- HYDRAULIC ROCK DRILL Percussion Output Power: 11 kW
- HYDRAULIC ROCK DRILL Maximum Rotation Torque:
- HYDRAULIC ROCK DRILL Shank Lubrication: Air / oil mist
- HYDRAULIC ROCK DRILL Flushing: Air
- HYDRAULIC ROCK DRILL Weight:
- FEED Feed Type: Chain feed CF300
- FEED Total Length: 5695 mm
- FEED Rock Drill Travel: 4065 mm
- FEED Max. Length Of Starter Rod: 4265 mm (14’)
- FEED Hole Depth With Starter Rod: 3800 mm
- FEED Hose Reel:
- FEED Feed Extension Travel:
- FEED Feed/pull Out Force: 20 kN maximum retrac, 6,5 kN drilling max.
- FEED Feed Swing:
- FEED Feed Tilt:
- ROD CHANGER Rod Changer Type: RH400
- ROD CHANGER Storage Capacity: 1
- ROD CHANGER Rod Length: 14’ + 12’
- ROD CHANGER Max. Hole Depth: 7,55 m
- BOOM Boom Type: DB300, articulated
- BOOM Boom Reach: 4,3 m
- BOOM Drilling Coverage: 12 m²
- BOOM Boom Extension:
- BOOM Boom Swing: +/- 45°
- BOOM Collaring Height: + 1,9 m / - 3,2 m
- BOOM Horizontal Holes: Sideways, forwards (with rollover option)
- CABIN Cabin Type:
- CABIN Certificates:
- CABIN Noise Level In The Cabin:
- CABIN Air Conditioning:
- CABIN Pressurization:
- CABIN Seat:
- CABIN Vibration Dampening:
- CABIN Windows:
- POWERPACK Engine Type: 55 kW (electric motor nominal power) 25 kW Battery drive (option)
- POWERPACK Electric Power Supply: 400 VAC / 50 Hz / 125 A
- POWERPACK Battery: Lithium Ion, 2 x 11 kWh, 96 VDC (option)
- POWERPACK DEF Tank:
- POWERPACK Number Of Cylinders:
- POWERPACK Engine Output:
- POWERPACK Transmission Type: Gearbox
- POWERPACK Screw Compressor Type: Enduro 12
- POWERPACK Air Filters: 1 pcs (FGP090)
- POWERPACK Fuel Tank:
- HYDRAULIC SYSTEM Number Of Gear Pumps: 4 pcs.
- HYDRAULIC SYSTEM Number Of Piston Pumps:
- HYDRAULIC SYSTEM Filtration Rate: 10 micron abs.
- HYDRAULIC SYSTEM Cooling Capacity: up to +50°C ambient (Battery drive -20… +30°C)
- HYDRAULIC SYSTEM Hydraulic Oil Tank: 90 l
- HYDRAULIC SYSTEM Shank Lubrication Device: WL 39
- CONTROL SYSTEM Control System Type: Sandvik SICA, PLC controlled proportional electro- hydraulics
- CONTROL SYSTEM Tramming/boom/drilling Control: PLC controlled
- CONTROL SYSTEM User Interface: Radio remote and screen
- CONTROL SYSTEM Control System Diagnostics: Graphical flow chart diagnostic system
- CONTROL SYSTEM Drilling Control System Type: iTorque
- CONTROL SYSTEM Antijamming System: For rotation and flushing
- CONTROL SYSTEM Collaring Control: Automatic
- CONTROL SYSTEM Preset Drilling Parameters: 2 adjustable
- CONTROL SYSTEM Voltage: 24 VDC
- DUST COLLECTOR Dust Collector Type: DC400H
- DUST COLLECTOR Capacity/vacuum: 16 m³/min at 855 mm vacuum H2O
- DUST COLLECTOR Filter Elements/material: 9 pcs/fiber
- DUST COLLECTOR Total Filter Surface: 7,2 m²
- DUST COLLECTOR Primary Cyclone:
- DUST COLLECTOR Movable Suction Head: Fixed suction head standard
- CARRIER Track Type:
- CARRIER Grouser Plate Width:
- CARRIER Ground Contact Length:
- CARRIER Ground Pressure:
- CARRIER Ground Clearance: 380 mm
- CARRIER Oscillation Angles:
- CARRIER Tramming Force: 43 kN
- CARRIER Max. Tramming Speed: Slow 2,4 km/h, fast 3,6 km/h (50% reduction with battery drive)
